A drone's flight performance—including speed, endurance, payload, and stability—all depend on its engine . The term "engine" refers to any system that can convert energy into thrust, including electric brushless motors, fuel-powered engines, jet propulsion, hybrid power, and hydrogen fuel cells. Different types of power systems vary significantly in energy density, structural complexity, and suitable applications.
With technological development, drone engines have evolved from a single electric model to a diverse, parallel landscape: electric systems dominate the civilian market with high efficiency and low noise; fuel and hybrid systems excel in long-endurance and high-payload missions; and jet and hydrogen power represent the future of drones moving toward higher speeds, longer duration, and greater specialization.
This article will systematically analyze the five main power types, from their principles and performance characteristics to their application scenarios, to help you fully understand drone engine systems.

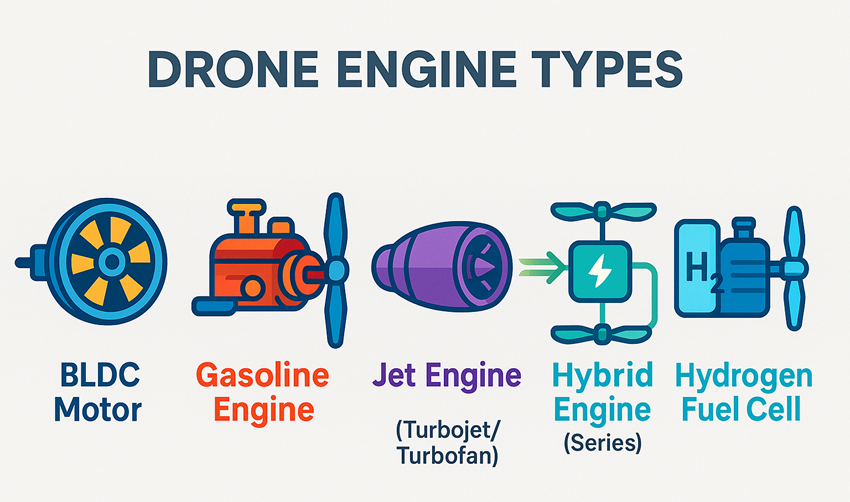

What Are the Types of UAV & Drone Engines?
The goal of a drone engine is always the same—to convert energy into controllable thrust with the highest possible efficiency. Based on the energy source and conversion method, modern drone power systems can be divided into five mainstream types:
-Electric Brushless Motor
-Drone Gasoline Engine
-Drone Jet Engine
-Drone Hybrid Engine
-Drone Hydrogen Engine
These power systems cover almost all forms of drones—from micro quadcopters weighing less than 100 grams to long-endurance reconnaissance aircraft with wingspans over 10 meters, all can be categorized into one of these. Below is a detailed explanation of the structural principles, advantages, disadvantages, and typical applications of these five systems.
1. Electric Brushless Motor
The Electric Brushless Motor is the most common and mature power solution in drones today, widely used in multi-rotor drones, FPV racing drones, aerial photography platforms, industrial inspection drones, and educational/research UAVs. It achieves high-efficiency electromagnetic drive through electronic commutation control and features a compact structure, rapid response, low noise, and low maintenance costs, making it the standard power system for modern drones.
Principle
Electric brushless motors operate by controlling the current cycling through the motor coils, creating a rotating magnetic field. This drives the outer magnets to rotate, generating thrust. It utilizes an Electronic Speed Controller (ESC) for precise commutation, avoiding the friction and wear of traditional brushed motors. This results in smooth, efficient, and responsive operation, making it the most common form of power for modern drones.
Advantages
High torque density and fast response speed, suitable for real-time attitude control.
High energy efficiency (typically 85%–90%), low energy loss.
Extremely low noise and minimal vibration, ideal for aerial photography and mapping missions.
Low maintenance requirements, no need for lubrication or periodic parts replacement.
Modular design, compatible with different voltage platforms (2S–14S) and various sizes (e.g., 1103. 2207. 2806. 4114. etc.).
Limitations
Limited endurance due to battery energy density (approx. 200–300 Wh/kg).
Requires a good heat dissipation system for high-power applications, otherwise efficiency drops.
Transient current overload can cause the ESC to overheat or burn out, requiring current redundancy in the design.
High demands on propeller and ESC matching, otherwise the thrust curve will not be linear.
Applications
FPV Racing/Freestyle: Uses high KV rating (1700–2800KV) motors for rapid acceleration and agile control.
Aerial Photography/Mapping Drones: Mid-to-low KV (900–1500KV) with large propellers for stable thrust and low vibration.
Educational & Entertainment Drones: Micro specifications (0802. 1103) balancing safety and cost.
Industrial & Agricultural Drones: High-voltage platforms (12S–14S) paired with high-torque motors (3510. 4114. 5010. and larger) for spraying, transport, and inspection tasks.
2. Drone Gasoline Engine
Before the prevalence of electric systems, gasoline engines were the primary power source for drones. Although electric systems now dominate the civilian and lightweight sectors, gasoline power remains irreplaceable for long-endurance, heavy-payload, scientific research, and special-purpose drones.
Principle
A gasoline engine ignites a mixture of gasoline and air in a cylinder, releasing thermal energy to push a piston in a reciprocating motion. This is then converted into rotational power via a crankshaft to drive a propeller and produce thrust. It utilizes the immense energy released from combustion to achieve sustained high-power output, serving as a vital power source for long-endurance and heavy-payload drones.
Advantages
Energy density up to 30 times that of batteries (approx. 10000 Wh/kg), supporting long-endurance flights.
Rapid refueling, no need to wait for charging.
Strong continuous power output, suitable for high-load tasks (e.g., long-range reconnaissance, agricultural spraying).
Strong adaptability to temperature changes, maintaining performance in low-temperature and high-altitude environments.
Limitations
High noise and vibration, placing high demands on the flight controller and structural vibration resistance.
Many mechanical parts, requiring frequent maintenance (replacing spark plugs, oil, filters, etc.).
Combustion efficiency is significantly affected by air density and fuel quality.
Exhaust emissions cause pollution, poor environmental friendliness.
Applications
Long-endurance fixed-wing UAVs (for tasks like inspection, mapping, and communications relay).
Industrial and scientific research testbeds for validating flight control algorithms or aerodynamic performance.
Heavy-payload drones (e.g., cargo transport, agricultural drones).
The main power generation unit in hybrid-power drones, used to supply power to the motor system.
3. Drone Jet Engine
The Drone Jet Engine uses a high-speed jet stream to produce a reaction force (Reaction Force) for thrust. It is currently the drone power system with the highest power density and greatest speed potential. Such systems are widely used in target drones, high-speed validation platforms, and some military UAVs, representing the core technology for breaking flight speed barriers. Jet systems are mainly divided into two types: Turbojet Engines and Turbofan Engines.
3.1 Drone Turbojet Engine
Principle
A turbojet engine works by drawing in air, compressing it, and mixing it with fuel for combustion. The resulting high-temperature, high-pressure gas is expelled at high speed from the nozzle, generating powerful reaction force thrust. A portion of the gas flow drives a turbine to keep the compressor running, forming a continuous cycle. This structure is simple, responsive, and has a high thrust-to-weight ratio, making it a common form of jet propulsion for small, high-speed drones and target drones.
Features
Extremely high thrust-to-weight ratio: Generally 8:1 to 12:1. several times that of other engines.
Fast response speed: Strong acceleration, suitable for high-speed maneuvers.
Compact structure: Can output tens of kilograms of thrust even at a small size.
Disadvantages: High fuel consumption, low efficiency at subsonic speeds; noise levels above 130dB, extremely high requirements for materials and lubrication.
Applications
Target Drones / Experimental Aircraft
Jet-powered model aircraft and Micro Turbine UAVs
High-altitude, high-speed research platforms for aerodynamics, infrared detection, and jet stream experiments.
3.2 Drone Turbofan Engine
Principle
A turbofan engine adds a large front fan to the turbojet core, allowing some air to bypass the combustion chamber, creating a bypass flow. The main flow (core) provides high-speed thrust, while the bypass flow helps reduce noise and improve fuel efficiency. Its thrust is smoother, and fuel consumption is lower, making it suitable for large drones performing long-duration, high-altitude cruise missions.
Features
High fuel efficiency: Saves about 20–30% fuel compared to a turbojet engine.
Lower noise: The bypass flow significantly reduces nozzle jet blast noise.
Stable thrust, longer life: Suitable for long-duration cruise missions.
Slightly higher structural complexity: Requires an additional fan drive and speed regulation system.
Applications
Long-endurance reconnaissance and communications relay UAVs (e.g., military strategic UAVs).
High-altitude scientific research and meteorological detection UAVs.
Some hybrid-propulsion platforms (e.g., "Turbofan + Electric" composite mode) to balance take-off thrust with cruise efficiency.
4. Drone Hybrid Engine
The Drone Hybrid Engine integrates the high energy density of a fuel engine with the high control precision of electric propulsion, offering the combined advantages of long endurance and high reliability. It is a crucial transitional solution between pure electric systems and hydrogen power systems, widely used in long-endurance fixed-wing UAVs, VTOL (Vertical Take-Off and Landing) drones, and platforms for inspection, communication, and logistics.
Principle
A hybrid engine combines both fuel and electric power sources. The engine powers a generator during flight, while the electric motor handles propulsion. The system can automatically switch power sources based on the mission phase: battery-assisted during takeoff, and fuel-powered generation during cruise. This strikes a balance between endurance and control flexibility.
Advantages
Endurance extended by 3–5 times: A typical medium-sized hybrid drone can achieve 4–10 hours of flight time.
High energy utilization: The high energy density of fuel combined with the high conversion efficiency of the electric motor can increase overall energy efficiency by 20%–40%.
Redundancy and safety: If the fuel system or electric control system fails, the other system can temporarily take over.
Rapid refueling: Fuel can be added in minutes, suitable for frequent mission turnarounds.
Flexible operation: Can switch between pure electric and hybrid modes based on the mission phase (e.g., using electric for takeoff/landing and fuel-powered generation for cruise).
Limitations
Complex system structure: More components (engine, generator, battery, ESC, control unit) increase maintenance difficulty.
High heat dissipation needs: The engine and generator produce concentrated heat, requiring an independent cooling system.
Higher cost: Airframe weight and integration costs are 20%–30% higher than pure electric systems.
Difficult to tune: Requires precise matching of engine speed, electric power output, and ESC control strategies.
Applications
Long-endurance fixed-wing UAVs: Suitable for inspection, mapping, communications relay, and border reconnaissance.
VTOL UAVs: Rely on electric motors for vertical lift during takeoff, then switch to fuel-powered generation for cruise to reduce energy consumption.
Industrial & Logistics Drones: Used for long-range cargo transport and pipeline inspections, often equipped with high-power motors and hybrid systems to balance range and stability.
Research & Validation Platforms: Used for testing energy management algorithms, composite propulsion architectures, and AI-based energy optimization.
5. Drone Hydrogen Engine
The Drone Hydrogen Engine is a power solution that generates electricity directly through an electrochemical reaction between hydrogen and oxygen from the air, without any combustion process. It is known for its high energy density, zero emissions, low noise, and long lifespan, and is considered a key future direction for medium-to-large drones. As hydrogen storage, safety control, and lightweight technologies mature, hydrogen fuel cells are moving from the laboratory to practical commercialization.
Principle
A hydrogen fuel cell generates electricity directly by converting chemical energy from an electrochemical reaction between hydrogen and oxygen. The resulting current drives the electric motor, and the only byproducts are water and a small amount of heat. With no combustion and no emissions, it features high energy density, low noise, and environmental friendliness.
Advantages
Ultra-high energy density: The theoretical energy density of hydrogen is about 33.000 Wh/kg, tens of times that of lithium batteries.
Zero emissions and eco-friendly: The only reaction product is water, with no carbon emissions.
Smooth operation: Stable current output with no significant power fluctuations.
Low noise and low thermal radiation: Ideal for reconnaissance, research, and urban operations.
Long lifespan: PEM fuel cells can operate for over 10.000 hours, far exceeding gasoline or hybrid systems.
Limitations
Hydrogen storage difficulty: High-pressure (350–700 bar) storage tanks require carbon-fiber composites, which are costly and have strict maintenance requirements.
Safety issues: Hydrogen is flammable and explosive, requiring designs to prevent leaks and static electricity.
Slow dynamic response: Power output adjustment lags when the load changes. It usually needs to be paired with a lithium battery (Hybrid Fuel System) to improve transient response.
Environmentally sensitive: Low-temperature environments (<0°C) can cause water inside the cell to freeze, requiring an associated thermal management system.
Applications
Long-endurance fixed-wing UAVs: With excellent aerodynamic efficiency and lightweight design, a single flight can last 4–8 hours, often used for mapping, inspection, and research.
Mapping & Inspection Drones: Suitable for large-area power line, pipeline, and forest inspection tasks.
High-Altitude Communications & Research Platforms: Used for high-altitude meteorological detection and emergency communications relays due to low noise and stable power supply.
Logistics & Emergency Transport Drones: Use composite hydrogen storage systems (solid-state + high-pressure) to achieve ranges over 100km.
Military & Research Validation: Validating the operational stability of fuel cells in high-altitude, low-temperature environments.
UAV & Drone Engine Types Comparison Table：
Engine Type | Energy Source | Energy Density (Wh/kg) | Thrust-to-Weight Ratio | Noise & Vibration | Endurance | Typical Applications | Advantages | Limitations |
Electric Brushless Motor | Lithium Battery (LiPo / Li-ion) | 200–300 | ★★★ | ★★★★★ (Very Low) | 20–90 min | Aerial Photography, FPV Racing, Industrial Inspection, Education | High efficiency, low noise, fast response, easy maintenance | Limited endurance, heat buildup, battery capacity constraints |
Gasoline Engine | Gasoline Combustion | ~10,000 | ★★★★ | ★★ (High Noise & Vibration) | 3–10 hrs | Long-endurance Fixed-Wing, Agriculture, Cargo, Research UAVs | High energy density, long flight time, quick refueling | Noisy, emissions, frequent maintenance required |
Jet Engine (Turbojet/Turbofan) | Jet Fuel (Kerosene) | ~12,000 | ★★★★★ | ★ (Extremely Loud) | 1–3 hrs | Target Drones, Experimental Platforms, Military UAVs | Extremely high thrust-to-weight, compact design, high speed | Very noisy, high fuel consumption, costly maintenance |
Hybrid Engine | Fuel + Electric Power | 2,000–4,000 (Combined) | ★★★★ | ★★★ | 4–10 hrs | Long-Endurance VTOL, Surveying, Communication Relay | Extended flight time, fast refueling, high redundancy | Complex system, heavier, expensive integration, cooling required |
Hydrogen Fuel Cell Engine | Hydrogen + Air Reaction | ~33,000 | ★★★ | ★★★★★ (Very Low) | 4–10 hrs (Up to 10+ hrs) | Long-endurance Fixed-Wing, Research, Communication Relay | Ultra-high energy density, zero emission, quiet operation | Storage difficulty, safety concerns, high cost |
How Different UAV & Drone Engines Affect Flight Performance？
A drone's power system determines not only if it can fly, but how it flies.
From thrust and endurance to noise and control precision, the impact of different energy systems on flight performance varies greatly. The following analysis breaks down the performance characteristics of each power system across six key dimensions.
1. Thrust & Payload Capacity
Thrust determines a drone's ability to take off, accelerate, and carry a payload.
Electric Brushless Motors provide linear thrust output and fast response, but continuous high-power output is limited by current and heat dissipation, making them suitable for small-to-medium drones.
Gasoline and Hybrid Engines have stronger torque reserves, allowing them to increase payload capacity while maintaining long endurance. They are often used for agricultural spraying, inspection, and logistics.
Jet Engines have the highest thrust-to-weight ratio and are the only propulsion method capable of achieving ultra-high speeds or high-altitude flight.
Fuel Cells provide stable thrust but have weaker instantaneous power, making them mainly suitable for medium-payload, long-endurance missions.
Overall thrust-to-weight ratio ranking: Jet > Gasoline ≈ Hybrid > Electric > Hydrogen Fuel.
2. Endurance
Endurance is primarily determined by energy density and system efficiency.
Electric Brushless Motors are limited by lithium battery density (200–300 Wh/kg). Multi-rotor endurance is typically 20–60 minutes, while fixed-wing can reach about 90 minutes.
Gasoline Engines have an energy density tens of times higher than batteries, with flight times reaching 3–10 hours.
Hybrid Engines combine fuel and electricity, achieving 4–10 hours or even longer flight times.
Hydrogen Fuel Cells have the highest theoretical energy density (up to 30.000 Wh/kg), and some experimental platforms have already achieved 10-hour continuous flights.
Endurance ranking: Hydrogen Fuel > Hybrid > Gasoline > Electric.
3. Flight Speed
Flight speed is related to thrust density, air resistance, and propulsion method.
Electric Brushless Motors are limited by propeller characteristics, with top speeds usually between 100–160 km/h. Efficient propellers and high-KV motors can reach 200 km/h.
Gasoline and Hybrid Engines offer more stable medium-to-high speed cruising (100–250 km/h).
Jet Engines have extremely high thrust density and can reach 500–800 km/h, with some military platforms even breaking the sound barrier.
Hydrogen Fuel Cells focus more on efficiency and endurance rather than speed limits.
In summary: Jet engines have the strongest speed performance; other engines prioritize energy efficiency.
4. Noise & Vibration
Noise and vibration affect flight stability and mission environment suitability.
Electric Brushless Motors and Hydrogen Fuel Cells operate smoothly with almost no mechanical vibration, making them ideal for aerial photography, research, and urban operations.
Gasoline and Hybrid Engines are noisy and have significant vibrations due to combustion and mechanical transmission, requiring extra vibration-damping structures.
Jet Engines are extremely loud (up to 130 dB+), suitable only for special or military scenarios.
Quiet performance ranking: Hydrogen Fuel ≈ Electric < Hybrid < Gasoline < Jet.
5. Maintenance & Reliability
Electric Brushless Motors have a simple structure, less wear, and high reliability. They currently have the longest maintenance cycles and lowest costs.
Gasoline Engines have many mechanical parts and require regular replacement of spark plugs, lubricants, and filters.
Hybrid Engines contain both fuel and electric control structures; their maintenance complexity is between the two.
Jet Engines are precision-built, operate at extremely high temperatures, and have demanding material requirements, making their maintenance costs the highest.
Fuel Cells run smoothly, but the hydrogen storage system requires regular checks for airtightness and safety valve status.
Reliability ranking: Electric > Fuel Cell > Hybrid > Gasoline > Jet.
6. System Complexity & Safety
The more complex the system, the more potential points of failure.
Electric Brushless Motors have the simplest structure and high safety.
Gasoline and Hybrid Engines involve combustion, high temperatures, and fuel storage, posing risks of leaks and fire.
Jet Engines operate at extremely high temperatures, placing the most stringent demands on control and structure.
Fuel Cell Engines have no combustion, but hydrogen storage requires strict explosion-proof and anti-static designs.
Overall safety ranking: Electric > Hydrogen Fuel > Hybrid > Gasoline > Jet.
How to Choose the Right UAV & Drone Engine?
Choosing a drone engine is essentially a balance between energy density, control precision, mission characteristics, and cost. Here are suggestions for selecting a power system for different application scenarios.
1. Electric Brushless Motor as the Standard
Currently, over 90% of drones use an electric brushless system (Brushless Motor + ESC + Battery).
Advantages: Simple structure, fast response, low noise, and easy maintenance.
Limitations: Limited by battery energy density, suitable for short-to-medium range missions.
Typical Applications: Aerial photography, FPV racing, agricultural patrols, security surveillance, education, and research.
Engineering Advice: Use high-energy-density lithium batteries, lightweight propellers, and high-efficiency ESCs, maintaining a 10–20% current margin to avoid overheating.
2. Hybrid & Fuel-Cell Power for Extended Missions
When the mission duration exceeds 3 hours, pure electric systems often fall short.
Hybrid Engines generate electricity from fuel to power the motors, allowing for rapid refueling and significantly increased endurance.
Fuel Cells supply power directly via a chemical reaction with hydrogen, offering zero emissions and low noise, making them more suitable for research and high-altitude missions.
Hybrid Applications: Long-endurance fixed-wing, communications relay, forest inspection, emergency rescue.
Fuel Cell Applications: Scientific mapping, high-altitude communications, unmanned reconnaissance, border surveillance.
Conclusion: Hybrid power focuses on "reliability and high endurance," while fuel cells focus on "clean and long endurance." Both will develop in parallel in the medium-to-large drone sector.
3. Jet Engine for Specialized Applications
Jet engines are known for high thrust-to-weight ratios and high speeds, making them the only solution for achieving ultra-high-speed flight.
Limitations: They are loud, have high fuel consumption, and high maintenance costs, making them unsuitable for civilian use.
Typical Applications: Target drones, high-speed research platforms, jet-powered model aircraft, military validation aircraft.
Engineering Advice: This type of engine is only suitable for speed-limit or military research scenarios; it is not recommended for general drones.
Future Trends in UAV & Drone Engine
Drone power technology is in a phase of rapid evolution. In the next decade, breakthroughs in energy density, intelligent control, and green energy will completely reshape the drone power landscape.
1. Solid-State & Lithium-Sulfur Batteries
Solid-state batteries replace liquid electrolytes with solid ones, increasing energy density by 30–50% while improving safety.
Lithium-sulfur (Li-S) batteries have a theoretical energy density of 400–600 Wh/kg, promising to extend pure-electric drone flight times to over 2 hours.
Graphene and sodium-ion batteries are becoming new options for the low-to-mid-range market due to their low cost and long life.
Trend Summary: New battery technologies will push electric drones into the "medium-payload, long-endurance" era.
2. Hydrogen & Hybrid Commercialization
Hydrogen fuel cells and hybrid power will see rapid adoption in the medium-to-large drone sector.
700 bar high-pressure storage and liquid hydrogen cooling technologies are gradually maturing.
Intelligent dual-source management systems can automatically allocate fuel and electric power, achieving adaptive energy optimization.
Trend Summary: Hydrogen and hybrid systems will become the mainstream power architecture for long-endurance drones within 5–8 years.
3. Miniature Turbines & Hybrid Jet-Electric Systems
Miniature turbojet and turbofan engines (1–10 kg thrust) have expanded from model aircraft to research and light military drones.
A "Jet + Electric" hybrid propulsion mode will emerge, using electric power for thrust during takeoff and jet power to maintain high-speed flight during cruise.
Trend Summary: Lightweight jet technology will further expand the high-speed and high-altitude boundaries of drones.
4. AI-Based Power Management
AI-driven energy management systems can monitor voltage, current, and temperature in real-time and automatically adjust output strategies.
Future drones will feature:
Automatic power distribution (dynamic switching between fuel/battery/hydrogen).
Intelligent energy consumption warnings and maintenance alerts.
Self-learning optimization algorithms to improve endurance and safety.
Trend Summary: AI will become a key technology for enhancing the efficiency and safety of drone power systems.
Frequently Asked Questions
1. Why don't large drones just use bigger electric motors for longer endurance?
The key limit to endurance is not the motor, but the energy density.
Even if an electric brushless motor is extremely efficient, the energy density of lithium batteries (200–300 Wh/kg) is still far lower than that of gasoline or hydrogen.
A bigger motor cannot compensate for the lack of energy storage in the battery. Therefore, long-endurance drones widely use fuel-powered, hybrid, or hydrogen systems.
2. Which engine type is the most cost-effective?
For most commercial and civilian drones, the electric brushless motor remains the most cost-effective solution due to its simple structure, low maintenance cost, and high maturity.
However, for long-endurance missions or large-area inspections, hybrid systems, despite their high initial cost, can significantly reduce the cost per flight hour, making them more economical in professional fields.
3. Can jet engines be used for small drones?
Theoretically yes, but not suitable for civilian scenarios.
While micro turbojet engines have strong thrust, they have high fuel consumption, are extremely noisy (over 130 decibels), and have expensive material and maintenance requirements.
These engines are mostly used for target drones, military validation platforms, or high-speed research drones; they are almost never used in consumer drones.
4. How do different drone engines perform under changing weather?
Electric systems: Low temperatures reduce battery activity and shorten endurance.
Gasoline systems: Good cold resistance, but combustion efficiency drops in the thin air at high altitudes.
Hybrid systems: Can dynamically switch power sources based on temperature.
Hydrogen fuel cells: Require an additional thermal management system to prevent the electrolyte from freezing at low temperatures.
5. Are hydrogen fuel cell drones safe for urban use?
Yes, but they must strictly adhere to safety designs.
Hydrogen is flammable and explosive, so the drone must be equipped with hydrogen leak sensors, pressure relief valves, anti-static and fireproof structures, and use carbon-fiber composite storage tanks (350–700 bar).
With strict safeguards, hydrogen fuel cell drones are already being tested for urban logistics, environmental monitoring, and emergency communications.
6. Are the lifespans of different drone engines very different?
Engine Type | Typical Service Life (Hours) | Maintenance Frequency |
Electric Brushless Motor | 2,000–5,000 h | Low (bearing replacement only) |
Gasoline Engine | 300–1,000 h | High (oil, spark plug, filter) |
Jet Engine | 100–500 h | Very High (overhaul required) |
Hybrid Engine | 800–2,000 h | Medium |
Hydrogen Fuel Cell | 5,000–10,000 h | Low (check hydrogen system) |
7. Do drone engines cause environmental pollution?
Fuel-powered and hybrid systems produce a certain amount of carbon dioxide (CO₂) and nitrogen oxides (NOx) emissions.
However, electric and hydrogen fuel cell systems are zero-emission power sources.
Furthermore, emerging biofuels and Sustainable Aviation Fuel (SAF) are being developed, which are expected to reduce the carbon footprint of traditional fuel-powered drones.
