With so many heavy-lift drone motors on the market, how can you quickly choose the right one and boost your work efficiency? Is the motor’s quality and performance up to standard? Is it compatible with your existing drone frame, propellers, ESCs, and other components? Is the delivery time reliable? These are common concerns for every drone pilot and enterprise buyer.
Selecting a high-performance, reliable heavy-lift drone motor can dramatically enhance your drone’s capabilities, double your operational efficiency, and ensure both safety and cost-effectiveness.
This article will help you fully understand the types, applications, and key selection criteria for heavy-lift drone motors. We’ll also introduce 13 of LIGPOWER’s most popular heavy-lift drone motors, enabling you to quickly identify the best model for your needs in just five minutes. If you already know your requirements, feel free to jump straight to the product recommendations to compare specifications and prices.
Comprehensive Guide to Heavy-Lift Drone Motors
To choose the right motor, you first need a solid understanding of the basics.
1. Types of Heavy-Lift Drone Motors
Heavy-lift drone motors generally fall into four categories: high-thrust, high-efficiency, long-endurance, and high-power. Popular series include the U Series (such as U Power, U Efficiency), Navigator Series, and Antigravity Series, each designed for different applications and payload requirements. Here’s a breakdown of these four types:
Type | Features & Structure | Application Scenarios | Advantages | Considerations |
High-Thrust | Delivers greater instant and sustained thrust. Larger size, higher current capacity, and stronger output. | Logistics drones, large agricultural UAVs, emergency supply drops—any task requiring heavy payloads. | Handles heavy takeoff and climbing with ease, improves safety and stability. | Higher power consumption, may reduce flight time; requires large-capacity batteries. |
High-Efficiency | Focuses on reducing energy consumption and maximizing flight distance per charge. Optimized coil and magnetic design. | Long-duration inspection, mapping, surveillance—missions with high endurance demands. | Extends flight time, lowers operating costs, ideal for long-duration tasks. | Thrust may be lower than high-thrust models; not for extreme payloads. |
Long-Endurance | Designed for ultra-long flights, balancing efficiency and stability. Lightweight, low heat, pairs with high-density batteries. | Large-area mapping, border patrol, environmental monitoring—missions needing maximum endurance. | Significantly increases single-flight duration, reduces battery swaps. | Payload and power output may be lower than high-thrust or high-power types. |
High-Power | Prioritizes high power output for high-speed or complex maneuvers. Supports high voltage/current, rapid response. | Industrial inspection, special operations, racing—scenarios demanding maximum power. | Powerful, suitable for intense, complex environments. | High power draw and heat; requires robust batteries and cooling. |
Each type has its strengths. When selecting, consider your application, payload, endurance needs, and budget to choose the most suitable motor.
2. Real-World Applications of Heavy-Lift Drone Motors
As industries like logistics, agriculture, emergency response, and utilities demand greater payloads, heavy-lift drones have become a focal point. Their core lies in a powerful propulsion system—especially high-performance motors. Payload capacity and endurance directly determine a drone’s application range and efficiency.
· ● Industrial Transport
Bulk Material Handling: In mines, ports, and factories, heavy-lift drones move bulk materials (e.g., ore, machinery), boosting efficiency and reducing labor costs and safety risks.
Construction Site Delivery: On high-rise or complex sites, drones deliver cement, steel, and tools directly, solving traditional lifting challenges and improving productivity.
● Agricultural Operations
Large-Scale Spraying: Agricultural drones carry large tanks for spraying vast fields. Heavy-lift motors ensure stable flight and endurance even when fully loaded.
Fertilizer/Seed Spreading: For large fields, drones can carry more material per trip, reducing return trips and increasing efficiency.
● Power Line Inspection
Aerial Equipment Checks: Inspection drones often carry heavy cameras or LiDAR. Heavy-lift motors ensure stable hovering and long operation times.
Line Maintenance: Drones can carry tools and insulation materials for high-voltage line work, improving safety and efficiency.
● Emergency Response
Supply Drops: In disasters like earthquakes or floods, drones deliver food, medicine, and rescue gear quickly, bypassing blocked roads.
Disaster Recon: Equipped with sensors and HD cameras, drones provide real-time data for rescue planning.
● Aerial Filmmaking
Heavy Camera Rigs: Professional aerial cinematography often requires high-end cameras and stabilizers. Heavy-lift motors provide the power and stability needed for complex shots.
Heavy-lift drone motors are widely used across industries, agriculture, utilities, emergency response, and film. Their power and reliability are key to high-payload, high-efficiency operations. As technology advances, heavy-lift drones will add value in even more sectors.

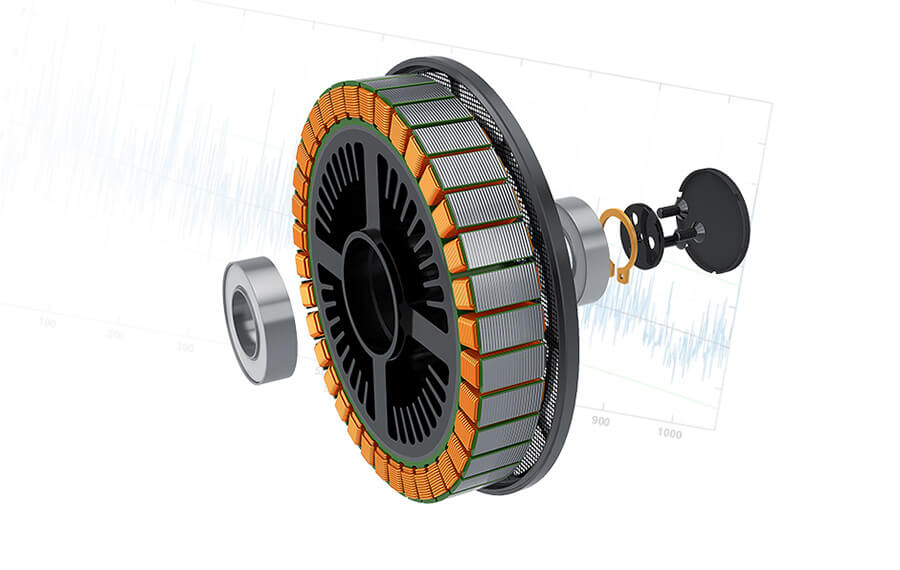

3. Key Components of Heavy-Lift Drone Motors
Heavy-lift drones typically use brushless DC motors for their high torque, efficiency, and cooling—ideal for sustained heavy loads. Key components include:
Component | Function | Structure/Material | Features |
Stator | The stationary part of the motor, responsible for generating a rotating magnetic field to drive the rotor. | Typically made of laminated silicon steel sheets, with high-temperature-resistant copper wire windings inside. | Heavy-duty motor stators are larger in size, use thicker winding wires, can withstand higher currents, and provide increased output torque. |
Rotor | The rotating part of the motor, directly connected to the propeller, converting electrical energy into mechanical energy. | Outrunner design is common in heavy-duty UAVs; high-performance permanent magnets (e.g., NdFeB) are evenly distributed on the rotor housing. | Outrunner structure enhances torque output and heat dissipation. |
Permanent Magnet | Generates a strong magnetic field and, together with the stator windings, enables electromagnetic induction for rotation. | Usually made of high-grade neodymium iron boron (NdFeB) magnets, featuring high magnetic energy product and high-temperature resistance. | The number and arrangement of magnets affect motor efficiency and operational smoothness. |
Bearing | Supports rotor rotation, reduces friction, and extends motor lifespan and operational stability. | Heavy-duty motors typically use high-precision, wear-resistant ball bearings; some high-end models use imported bearings. | High-quality bearings effectively reduce noise and vibration, suitable for prolonged high-load operation. |
Motor Shaft | Connects the rotor to the propeller and transmits power. | Usually made of high-strength alloy steel or stainless steel, offering excellent bending and torsional resistance. | Thicker shaft diameter increases load capacity and prevents deformation. |
Winding | Generates a magnetic field when energized, interacting with the permanent magnets to drive rotor rotation. | Made of high-purity, high-temperature-resistant copper wire with excellent insulation properties. | Thick wire gauge and high turn count accommodate high current and high power output. |
Cooling Structure | Helps the motor dissipate heat quickly under heavy load, preventing overheating and damage. | The housing features cooling fins or ventilation holes; some high-end motors support active air cooling. | Good thermal design significantly extends motor lifespan and operational stability. |
Housing & End Cap | Protects internal components and enhances structural strength. | Commonly made of aluminum alloy or high-strength composite materials, balancing light weight and durability. | Precision machining ensures concentricity and dynamic balance, reducing vibration. |
Every part must be made from quality materials and crafted precisely to ensure strong, efficient, and reliable performance under heavy loads.
4. Heavy-Lift vs. Standard Drone Motors
Beginners often ask: what’s the difference between heavy-lift and standard drone motors? The differences are significant in design, performance, and application:
● Design & Application:
Heavy-lift motors are built for high payloads and long, intense operations—common in agriculture, logistics, rescue, and industry. They must handle heavy tanks, cargo, or equipment, demanding high output and reliability.
Standard motors are for lighter tasks like aerial photography, recreation, mapping, or light inspection, focusing on weight and efficiency.
● Power & Torque:
Heavy-lift motors offer much higher rated power and torque, driving larger props for greater lift and stable heavy takeoff.
Standard motors have lower power/torque, suitable for small/medium props and light loads.
● Structure & Materials:
Heavy-lift motors use high-strength alloys, thick bearings, and heat-resistant windings for better cooling and fatigue resistance.
Standard motors focus on lightweight design and cost-effective materials.
● Cooling & Durability:
Heavy-lift motors feature advanced cooling (large fins, active cooling) for continuous high-load operation.
Standard motors have simpler cooling, suitable for short or moderate flights.
● Electrical Specs:
Heavy-lift motors support higher voltage/current, matching large batteries and high-performance ESCs for big power output.
Standard motors have lower specs, for regular batteries and ESCs.
● Price & Maintenance:
Heavy-lift motors cost more due to materials and craftsmanship, and require longer maintenance cycles—ideal for professional users.
Standard motors are more affordable and easier to maintain for the mass market.
How to Choose a Heavy-Lift Drone Motor
1. Define Your Needs:
Clarify your application (agriculture, industry, filming, etc.), required payload, flight time, and environment.
2. Key Selection Criteria:
Max Thrust: Should be at least twice the actual load per arm.
Voltage Compatibility: Match your drone’s battery system (e.g., 6S/12S/24S).
Efficiency: High-efficiency motors extend flight time.
Compatibility: Ensure fit with frame, propeller, ESC, etc.
Weight: Motor weight affects overall performance.
Brand & Support: Choose reputable brands with solid after-sales service.
3. Step-by-Step Quick Selection:
● Determine total payload and flight needs.
● Calculate required thrust per motor.
● Filter motors by voltage and thrust range.
● Compare efficiency, weight, price, etc.
● Check user reviews and brand reputation.
4. Tips for Narrowing Down Choices:
Use LIGPOWER’s website filters (thrust, voltage, price) to quickly find suitable motors.
Prioritize models with strong industry reputation.
Consult professional support for tailored advice.
5-Minute Quick Selection: Find Your Ideal Heavy-Lift Drone Motor
With so many models available, it’s easy to feel overwhelmed. To help you quickly pinpoint the best motor for your needs, we’ve organized our 13 heavy-lift drone motors by three key criteria: maximum thrust, operating voltage, and price range. Whether you care most about performance, system compatibility, or budget, these filters will help you efficiently narrow your options and find the perfect fit for your application.
Max Thrust 12–24kg | 6–14S | $200–400
Model | Weight | Size | Shaft Diameter | Rated Voltage | Max Power (180s) | Max Thrust | Price |
620g | Φ89*44.4mm | IN:12mm, OUT:8mm | 6-12S | 3200W | 14.3kg | $269.99 | |
392g | Φ87.8*31.5mm | IN:12mm | 12S | 2423W | 13.9kg | $279.9 | |
453g | Φ87.8*34.5mm | IN:12mm | 12S | 3180W | 16.8kg | $289.9 | |
630g | Φ118*34mm | IN:15mm | 6-12S | 2739W | 16.3kg | $339.9 | |
772g | Φ79.5*51.6 mm | 15mm | 12S | 2783W | 14.1kg | $349.9 | |
778g | Φ106.8*47.6 mm | 15mm | 10-14S | 4560W | 20.4kg | $369.9 |
Max Thrust 24–36kg | 10–25S | $300–700
Model | Weight | Size | Shaft Diameter | Rated Voltage | Max Power (180s) | Max Thrust | Price |
855g | Φ121*43.5mm | IN:15mm | 12-24S | 5800W | 27.4kg | $359.90 | |
1020g | Φ121*46.5mm | IN:15mm | 12-24S | 6888W | 30.8kg | $379.9 | |
975g | Φ100*60mm | 15mm | 22-25S | 6720W | 28.7kg | $379.9 | |
1740g | Φ147.5×55 mm | 20mm | 12-24S | 8580W | 36kg | $689.9 |
Max Thrust 60–100kg | 24S | $1000–2000
Model | Weight | Size | Shaft Diameter | Rated Voltage | Rated Power | Max Thrust | Price |
3600g | Φ151.5*86mm | 25mm | 24S | 2800W | 63kg | $1099 | |
4408g | Φ151.5*96mm | 25mm | 24S | 3550W | 81kg | $1699 | |
5130g | Φ151.5*106mm | 25mm | 24S | 3300W | 100kg | $1999 |
Common Pitfalls When Choosing Heavy-Lift Drone Motors
1、Focusing Only on Thrust, Ignoring Efficiency: High thrust doesn’t always mean high efficiency. Consider both endurance and energy consumption.
2、Overlooking Compatibility: Ensure the motor matches your propeller, ESC, battery, and other systems.
3、Chasing Low Prices: Cheap products may compromise durability and safety.
4、Ignoring After-Sales Support: Reputable brands offer better technical support and warranties.
5、Not Considering Real-World Conditions: For harsh environments (heat, humidity, dust), choose motors with higher protection ratings.
Conclusion
When selecting a heavy-lift drone motor, pay close attention to thrust, efficiency, and compatibility, but also consider your specific application and budget. Prioritize proven brands and models with a strong reputation. LIGPOWER offers a wide range of products and comprehensive after-sales support to help you complete any heavy-lift mission efficiently and safely.
For product details and more information, visit: Heavy-Lift Drone Motor Product List
For one-on-one selection advice, contact LIGPOWER’s official support team.
