How to Choose Heavy-lift Drone Motors?
Selecting the right heavy-lift drone motor is critical for achieving optimal performance, reliability, and safety for your commercial or industrial UAV application. This guide breaks down the selection process into actionable steps based on technical requirements and practical considerations.

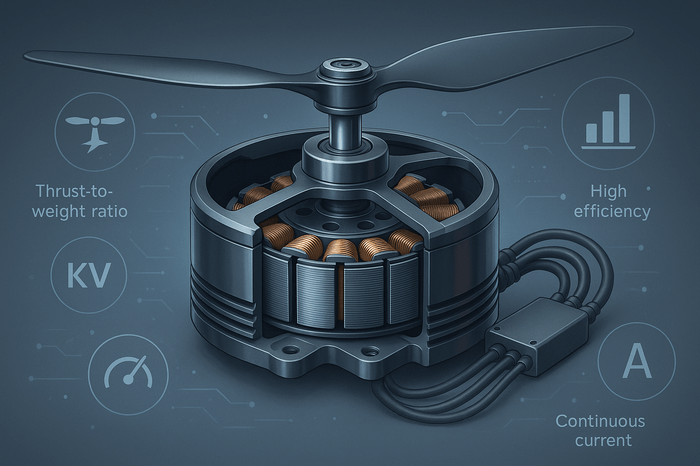

Key Selection Criteria
Thrust-to-Weight Ratio: The most critical factor in heavy-lift applications. Aim for a minimum 2:1 ratio (total motor thrust should be at least twice the total drone weight including payload). This ensures safe hovering, climbing ability, and maneuverability even under challenging conditions.
Motor Size and Stator Dimensions: Motors are typically labeled by stator diameter and height (e.g., 8020 = 80mm diameter, 20mm height). Larger stators generate more torque for heavy lifting but add weight. Wider motors offer better cooling and durability for sustained operations.
KV Rating: For heavy-lift applications, choose low KV motors (100-200 KV) that provide high torque for spinning large propellers at lower speeds. Higher KV motors are unsuitable for heavy lifting as they lack the necessary torque.
Voltage Compatibility: Higher voltage systems (36V-48V) deliver better performance for heavy-lift applications by allowing more efficient power delivery, reducing current requirements, and minimizing voltage sag under load.
Efficiency: Select motors with efficiency ratings of 80% or higher to maximize flight time and reduce heat generation. High-efficiency motors convert more electrical energy into useful mechanical output rather than wasting it as heat.
Cooling System: Heavy-lift operations generate significant heat. Motors with advanced cooling designs (heat sinks, cooling fins, optimized airflow channels) maintain performance during extended operations and prevent thermal shutdown.
Propeller Compatibility: Large-diameter, low-pitch propellers work best with low KV motors for heavy lifting. Always verify manufacturer recommendations for compatible propeller sizes and types.
Maximum Continuous Current: Indicates how much current the motor can handle without overheating. Heavy-lift motors typically range from 30A to 80A, with higher ratings allowing for greater power output.
Step-by-Step Selection Process
Calculate Total Drone Weight: Add up the weights of all components (frame, flight controller, ESCs, motors, propellers, battery) plus your intended payload, and include a 10-20% buffer for safety.
Determine Required Total Thrust: Multiply your total weight by at least 2 to establish minimum thrust requirements. For example, a 15kg drone requires at least 30kg of total thrust.
Establish Per-Motor Thrust Needs: Divide the total thrust by the number of motors your drone will have. For a quadcopter with 30kg thrust requirement, each motor must provide at least 7.5kg.
Select Appropriate Motor Size: Based on your thrust requirements, choose motors with stator sizes that can deliver the necessary power. Larger stators generally provide more torque and thrust.
Choose Proper KV Rating: For heavy lifting, select motors with KV ratings between 100-200 KV to ensure adequate torque with large propellers.
Verify Voltage Compatibility: Ensure your chosen motors are compatible with your power system voltage (usually 6S-12S LiPo batteries or 24V-48V power systems for commercial drones).
Check Manufacturer Thrust Data: Consult the manufacturer's thrust charts for your specific motor-propeller combination at your intended operating voltage to confirm performance.
Evaluate Cooling and Durability Features: For commercial applications, prioritize motors with robust cooling systems and durable construction suitable for your operating environment.
Real-World Example
Coastal Environmental Monitoring Application:
Mission Requirements: Long-duration environmental monitoring of coastal areas requiring waterproof components and extended flight time
Total Drone Weight: 9.5kg (including 3kg monitoring equipment, 4kg frame/electronics, and 2.5kg battery system)
Required Total Thrust: 19kg minimum (2:1 ratio)
Configuration: Hexacopter design (6 motors) for redundancy and stability in coastal wind conditions
Per-Motor Thrust Requirement: 3.2kg minimum per motor

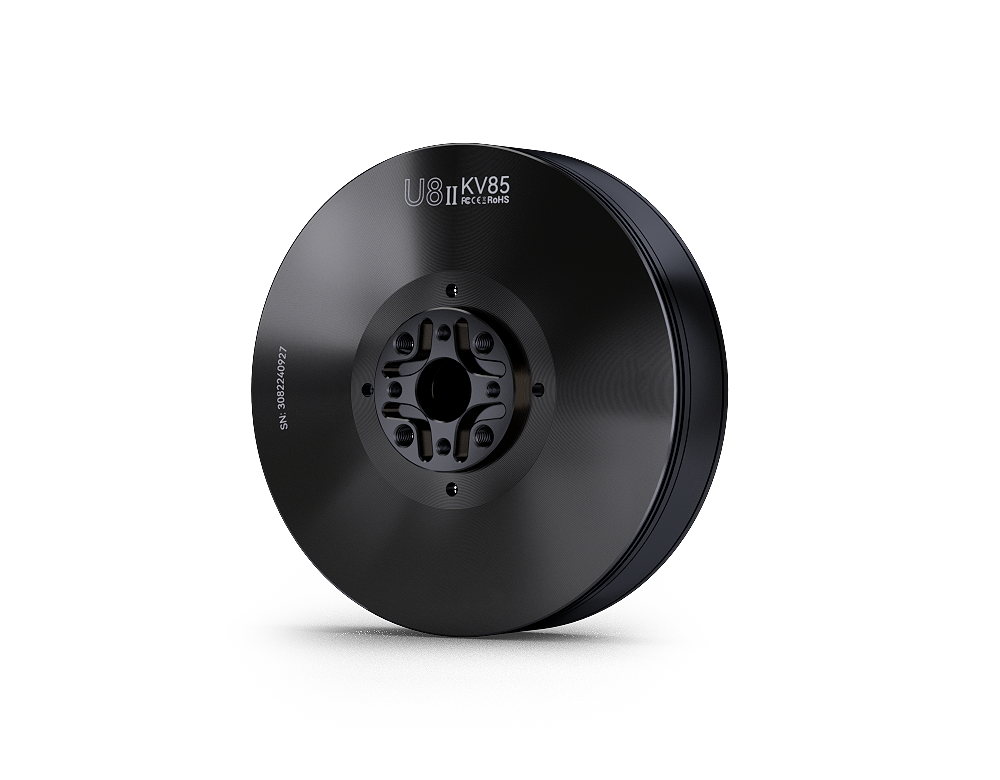

Selected Motor: U8Ⅱ KV85 Industry Waterproof UAV Motors
Key Specifications:
- 7.1kg maximum thrust per motor (7.3kg at peak performance)
- 12S LiPo rated voltage
- 85 KV rating for optimal torque
- IP55 motor protection against water and dust
- 277g weight (including cable)
- 28-29" propeller compatibility
- Silver winding reducing heat by 30%
- 1500 flights service life (40mins/flight)
- FOC ESC for smooth control and high efficiency
Result: The system provides a 2.2:1 thrust-to-weight ratio with single motor redundancy, 15% increased efficiency compared to previous models, effective operation in coastal environments with salt spray resistance, and reliable performance in challenging weather conditions. The special anti-rust treatment and dual bearing protection ensure longevity even in harsh marine environments, with the motor capable of passing a 48-hour salt spray test.
By selecting the U8Ⅱ KV85 motors with their waterproof design and enhanced efficiency, this coastal monitoring drone achieves the reliability, durability, and performance required for professional environmental applications in challenging conditions.
Heavy-lift Drone Motor Product Comparison
Compare the performance and specifications of LIGPOWER's premium heavy-lift drone motors across different series:
These heavy-lift motors are engineered to meet diverse application requirements, from commercial delivery drones to industrial inspection platforms. The U-Series offers waterproof protection and extended service life, Navigator motors provide excellent cooling performance for continuous operation, while V-Series motors deliver exceptional power-to-weight ratios for VTOL applications.
When selecting a motor for your heavy-lift drone application, consider the required payload capacity, flight time needs, environmental conditions, and compatibility with your control systems. LIGPOWER motors consistently deliver 5-10% higher efficiency compared to competitors, resulting in longer flight times and improved reliability.
Types of Heavy-Lift Drone Motors
Heavy-lift drones require specialized motors capable of generating substantial thrust to carry payloads ranging from several kilograms to hundreds of kilograms. Understanding the different types of motors available is crucial for selecting the right propulsion system for your specific application, whether it's industrial inspection, agricultural spraying, or cargo delivery.
Brushless DC (BLDC) Motors
Brushless DC motors represent the gold standard for heavy-lift drone applications. These motors use electronic speed controllers (ESCs) to manage current flow to the stator windings, eliminating the need for physical brushes that create friction and wear.
Key Features:
- Electronic commutation through ESCs
- Permanent magnet rotors with copper stator windings
- Low KV ratings (typically 100-200 KV) for high torque output
- Integrated cooling systems, often featuring centrifugal fans
- High-temperature solid core copper windings for sustained operation
Typical Use Cases:
- Agricultural drones for crop spraying and monitoring
- Industrial inspection and surveillance
- Cargo delivery and logistics operations
- Aerial photography with heavy camera equipment
Pros:
- Superior efficiency compared to brushed motors (minimal energy loss)
- Longer operational lifespan due to no brush wear
- Higher power-to-weight ratios
- Quieter operation
- Better thermal management
- Consistent torque delivery under load
Cons:
- Higher initial cost due to complex electronic components
- Requires compatible ESCs for operation
- More complex control systems

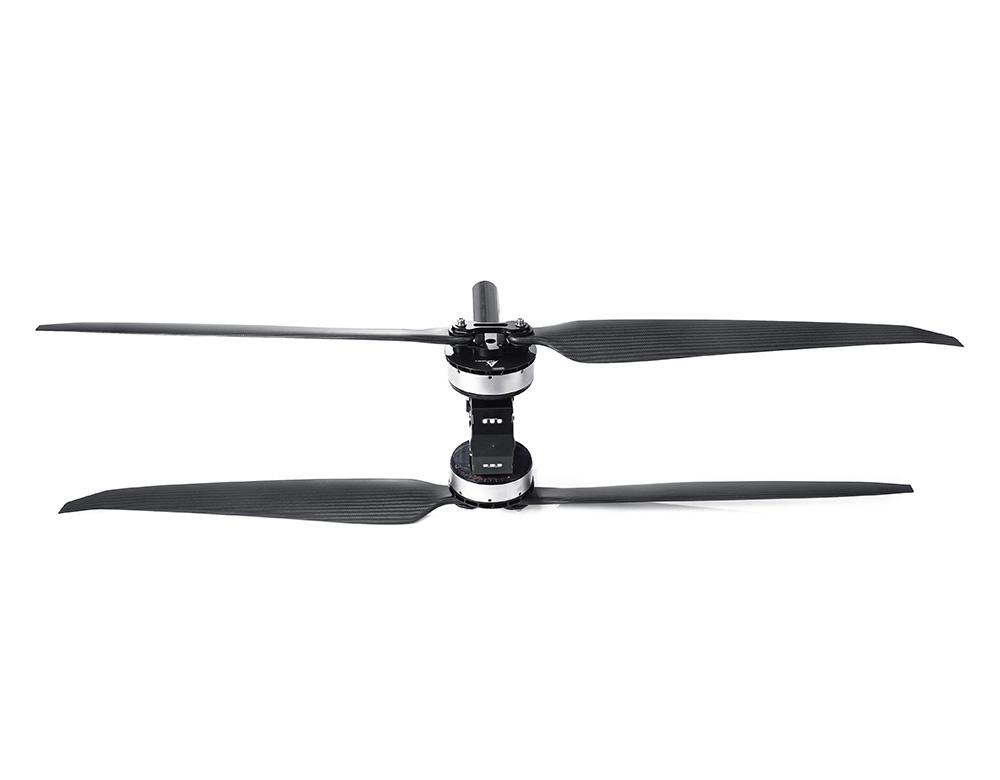

Coaxial Motors
Coaxial motors feature a unique design where two propellers are mounted on the same motor shaft, with one positioned above the other. This configuration offers distinct advantages for heavy-lift applications requiring maximum efficiency and redundancy.
Key Features:
- Dual propeller configuration on single motor shaft
- Counter-rotating propeller setup for enhanced efficiency
- Built-in redundancy for safety-critical operations
- Compact design relative to thrust output
- Utilization of reactive counter-force for improved performance
Typical Use Cases:
- Critical mission drones where failure is unacceptable
- Emergency response and rescue operations
- Heavy-lift applications with size constraints
- Industrial drones requiring maximum payload capacity
Pros:
- Increased efficiency compared to traditional single-propeller motors
- Enhanced safety through redundancy (if one propeller fails, the other maintains thrust)
- More compact than equivalent traditional motor setups
- Reduced torque effects and improved stability
- Higher thrust-to-weight ratio
Cons:
- Limited availability and fewer market options
- Higher complexity in design and maintenance
- Potentially higher costs
- More complex propeller balancing requirements

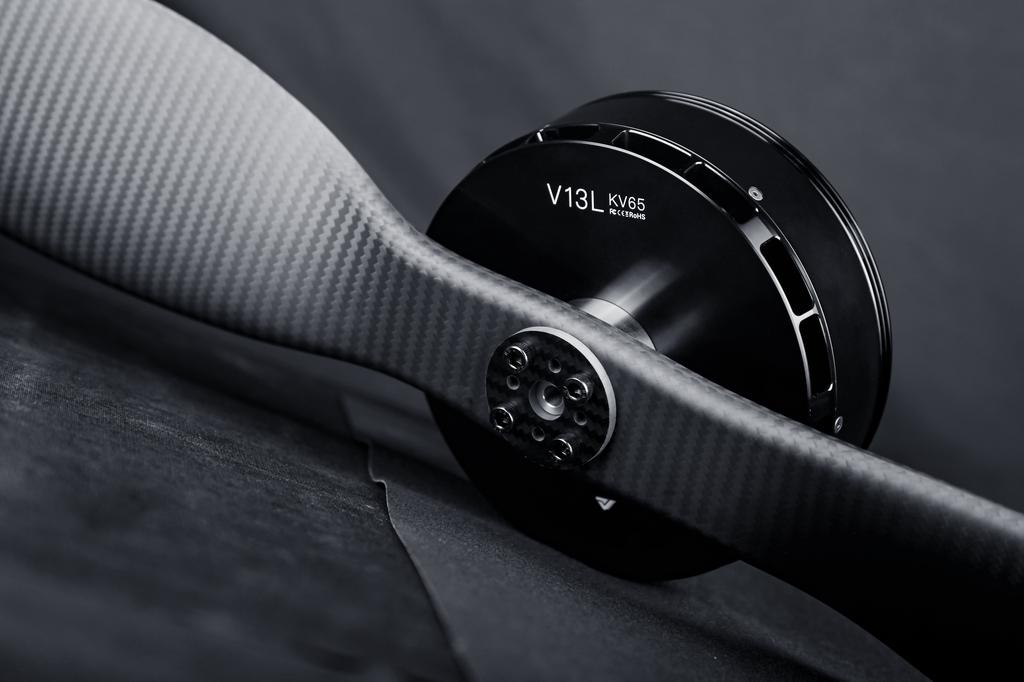

High-Torque Low-KV Motors
These specialized brushless motors are optimized specifically for heavy-lift applications, featuring extremely low KV ratings and enhanced torque characteristics designed to spin large-diameter propellers efficiently.
Key Features:
- Very low KV ratings (often below 100 KV)
- Large stator volumes for maximum torque production
- Enhanced cooling systems for sustained heavy-load operation
- Robust construction for industrial environments
- High current handling capabilities
Typical Use Cases:
- Ultra-heavy payload transport (100+ kg)
- Construction site material delivery
- Emergency supply drops
- Large-scale agricultural operations
- Manned UAV applications
Pros:
- Exceptional torque output for massive propellers
- Optimized for sustained heavy-load operations
- Superior efficiency with large-diameter props
- Excellent thermal management under stress
- Designed for industrial durability
Cons:
- Higher weight compared to standard motors
- Requires very large propellers and frame structures
- Higher power consumption at idle
- More expensive than standard motors
- Limited speed and agility
Motor Type Comparison
Heavy-lift Drone Motor Application
Heavy-lift drone motors from LIGPOWER are engineered to excel in the following demanding applications:
Logistics and Delivery: Powering drones that transport packages up to 15kg for last-mile delivery services, warehouse inventory management, and emergency supplies delivery. LIGPOWER motors maintain stable performance even in variable weather conditions.
Agricultural Spraying: Driving drones that carry liquid payloads of 10-20kg for precision crop spraying. The sealed design and corrosion-resistant materials ensure reliability when exposed to agricultural chemicals and dusty environments.
Professional Cinematography: Supporting heavy camera equipment (8-15kg) for film production. The smooth operation and minimal vibration characteristics of LIGPOWER motors help capture stable, high-quality footage.
Search and Rescue Operations: Enabling drones to carry thermal cameras, communication equipment, and emergency supplies in disaster zones. The high reliability and performance consistency are critical in these life-saving missions.
Industrial Inspection: Powering drones that carry specialized equipment for inspecting infrastructure like bridges, wind turbines, and power lines. The motors' high torque ensures stable flight even in challenging wind conditions.
Heavy-lift Drone Motor Frequently Asked Questions
What is the difference between KV and torque in heavy-lift motors?
KV rating indicates RPM per volt, with lower KV motors producing higher torque. For heavy-lift applications, lower KV motors (100-400KV) paired with larger propellers deliver the optimal balance of thrust and efficiency.
How do I determine the right motor size for my payload requirements?
Calculate your total aircraft weight (including frame, batteries, electronics, and payload), then select motors that collectively provide at least 2x that weight in thrust. For professional applications with variable payloads, a 2.5x to 3x thrust-to-weight ratio is recommended.
What cooling measures should I implement for heavy-lift drone motors?
Ensure adequate airflow around motors, consider active cooling for continuous operation, and monitor motor temperature during flight. LIGPOWER motors feature integrated cooling fins and optimized thermal design, but additional cooling may be beneficial in extreme conditions.
Are brushless motors better than brushed motors for heavy-lift applications?
Yes, brushless motors offer significant advantages for heavy-lift applications including higher efficiency (80-95% vs. 50-70%), better power-to-weight ratios, longer lifespan (3000+ hours vs. 1000-2000 hours), and superior heat management.
How does operating voltage affect heavy-lift motor performance?
Higher voltage systems (36-48V) typically deliver better performance for heavy-lift applications by reducing current requirements, minimizing voltage sag under load, and improving overall system efficiency. This translates to longer flight times and reduced heat generation.
What maintenance is required for heavy-lift drone motors?
Regularly inspect bearings, motor shafts, and mounting hardware for signs of wear. Clean motors to remove dust and debris, particularly after operating in harsh environments. Check winding resistance periodically to detect potential internal damage before failure occurs.
