How to Choose Fixed Wing Drone Motors?
Selecting the right motor for your fixed-wing drone is crucial for achieving optimal performance, efficiency, and reliability. The motor choice directly impacts flight time, payload capacity, and overall mission success. This guide covers the key considerations for matching motors to your specific aircraft and mission requirements.
Understanding Your Aircraft and Mission Requirements
Different fixed-wing applications demand distinct motor characteristics:
- Trainer aircraft: Require forgiving, moderate-power motors with good throttle response for learning
- Endurance platforms: Need high-efficiency motors optimized for long flight times at cruise speeds
- Mapping/surveying drones: Balance efficiency with payload capacity and stable flight characteristics
- Agricultural aircraft: Demand high thrust-to-weight ratios for heavy payloads and challenging operating conditions
Consider your typical flight profile, payload requirements, and environmental conditions when evaluating motor options.
Thrust-to-Weight Ratio and Motor Sizing
Proper motor sizing begins with calculating your aircraft's thrust-to-weight requirements:
- Trainers: 0.4-0.6 thrust-to-weight ratio provides adequate performance
- Sport/aerobatic: 0.8-1.2+ ratio for aggressive maneuvers
- Endurance/mapping: 0.3-0.5 ratio optimizes efficiency over performance
- Heavy cargo: 0.6-0.8 ratio ensures adequate climb performance
Calculate total aircraft weight including batteries, payload, and fuel, then select motors capable of producing the required static thrust with appropriate propeller combinations.
KV Rating, Voltage Selection, and Propeller Matching
Motor KV (RPM per volt) and system voltage must align with your propeller and performance goals:
Low KV motors (100-400 KV):
- Swing larger propellers efficiently
- Ideal for endurance and heavy-lift applications
- Require higher voltage systems (6S-12S)
High KV motors (800-2000+ KV):
- Spin smaller props at high RPM
- Better for speed and aggressive flying
- Work with lower voltage systems (3S-4S)
Match propeller diameter and pitch to motor KV and voltage. Larger props with lower KV provide better efficiency, while smaller props with higher KV offer more aggressive performance.
Balancing Efficiency, Performance, and Weight
Motor selection involves trade-offs between competing priorities:
For maximum endurance:
- Choose larger, heavier motors with high efficiency ratings
- Accept lower power-to-weight ratios for better energy consumption
- Prioritize motors with flat efficiency curves at cruise power
For performance and agility:
- Select lighter motors with higher power-to-weight ratios
- Accept reduced efficiency for better throttle response
- Consider brushless outrunner designs for optimal cooling
Motor weight directly impacts aircraft balance and performance. Account for motor mass in your center-of-gravity calculations and overall aircraft design.
Reliability, Cooling, and System Integration
Critical factors for operational success include:
Cooling and reliability:
- Ensure adequate airflow over motor windings and magnets
- Consider ambient operating temperatures and duty cycles
- Choose motors with appropriate temperature ratings for your environment
ESC compatibility:
- Match ESC current rating to motor requirements with 20-30% margin
- Verify ESC supports your chosen battery configuration
- Ensure compatible control protocols (PWM, OneShot, etc.)
Mounting and integration:
- Confirm motor mounting pattern matches your airframe
- Consider shaft diameter for propeller compatibility
- Account for motor length and cowl clearance requirements
Common Selection Pitfalls
Avoid these frequent mistakes:
- Over-propping: Using propellers too large for the motor-ESC combination, causing overheating and reduced efficiency
- KV-voltage mismatch: Pairing high KV motors with high voltage systems, resulting in excessive RPM and potential damage
- Inadequate ESC rating: Undersized ESCs that cannot handle motor current demands, leading to failures
- Ignoring efficiency curves: Selecting motors that operate inefficiently at your typical power settings
- Poor cooling consideration: Installing motors without adequate airflow, causing thermal derating and reliability issues
Quick Selection Checklist
- Define mission parameters: Flight time goals, payload requirements, and performance expectations
- Calculate thrust needs: Determine required thrust-to-weight ratio based on aircraft type and mission
- Match KV and voltage: Select motor KV and battery voltage combination appropriate for your propeller size and speed requirements
- Verify ESC compatibility: Ensure ESC current rating exceeds motor demands with adequate safety margin
- Confirm physical fit: Check motor dimensions, mounting pattern, and shaft compatibility with your airframe and propeller system
Fixed Wing Drone Motor Product Comparison

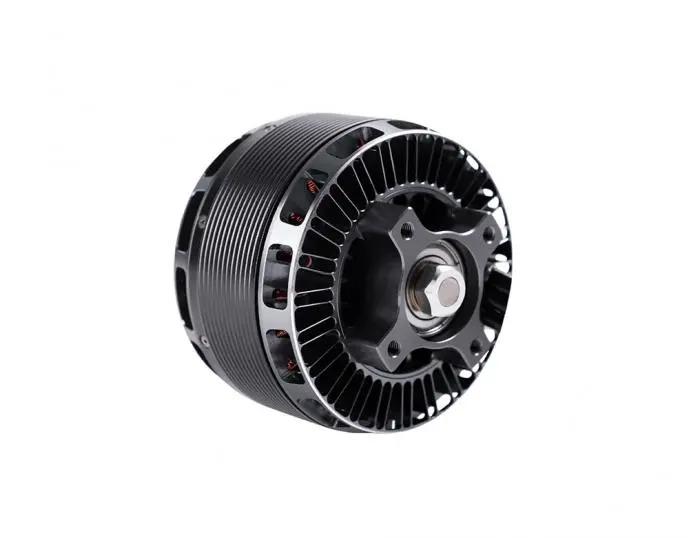

The following comparison showcases LIGPOWER's AT Series fixed wing motors across different power categories and applications. Each motor is engineered for specific aircraft sizes and mission requirements.
Selection Guidance
Choose AT2308-AT2826 for lightweight trainers and 3D aerobatic aircraft requiring responsive throttle control. Mid-range options like AT4130-AT5230A provide excellent balance for VTOL and general fixed-wing applications with proven reliability. For heavy-lift missions and commercial operations, AT7215-AT1030 deliver professional-grade performance with enhanced cooling and durability features.
Consider your aircraft's takeoff weight, required thrust-to-weight ratio, and battery configuration when selecting from this range - each motor is optimized for specific operational parameters detailed in the individual product specifications.
Fixed Wing Drone Motor Applications
Fixed wing drone motors are specifically designed to provide efficient, reliable propulsion for extended flight operations. Their high power-to-weight ratio and energy efficiency make fixed wing platforms ideal for applications requiring long flight times, large coverage areas, and consistent performance across diverse operating conditions.
Aerial Mapping and Photogrammetry
Fixed wing drones excel in large-scale surveying operations where extended flight time and stable platform characteristics are essential.
- Topographic mapping - Covering extensive terrain with consistent altitude and speed
- Agricultural surveying - Monitoring crop health across large farmlands
- Urban planning - Capturing high-resolution imagery of development areas
- Geological surveys - Mapping remote or hazardous terrain safely and efficiently
Environmental Monitoring
The endurance capabilities of fixed wing systems make them valuable for continuous environmental observation.
- Wildlife tracking - Long-duration flights for animal behavior studies
- Forest management - Monitoring deforestation, fire detection, and ecosystem health
- Water quality assessment - Surveying lakes, rivers, and coastal areas
- Climate research - Collecting atmospheric data over extended periods
Long-Endurance Patrol Operations
Fixed wing motors enable sustained surveillance missions across large operational areas.
- Border security - Continuous monitoring of remote frontier regions
- Maritime patrol - Ocean surveillance and search operations
- Pipeline inspection - Regular monitoring of energy infrastructure corridors
- Perimeter security - Automated patrol of industrial facilities and installations
Infrastructure Inspection
The stable flight characteristics and extended range make fixed wing drones effective for systematic infrastructure assessment.
- Power line inspection - Surveying electrical transmission networks
- Railway monitoring - Track and signal system evaluation
- Bridge assessment - Structural health monitoring from multiple angles
- Telecommunications - Cell tower and antenna system inspection
Training and Recreation
Fixed wing platforms serve educational and recreational purposes where flight duration and realistic aircraft behavior are important.
- Pilot training - Teaching basic aerodynamic principles and flight operations
- STEM education - Hands-on learning about aerospace engineering concepts
- Recreational flying - Extended flight sessions for hobbyist applications
- Competition events - Endurance and precision flying competitions
Logistics and Research Applications
Emerging applications leverage the cargo capacity and range capabilities of fixed wing systems.
- Medical supply delivery - Transporting medications to remote areas
- Research payload deployment - Carrying scientific instruments for field studies
- Communication relay - Providing temporary network coverage in disaster zones
- Prototype testing - Evaluating new sensors and equipment configurations
Fixed Wing Drone Motor FAQ
The following addresses common questions regarding fixed wing drone motor selection and operation:
Q: What's the difference between fixed wing and multirotor motor requirements?
A: Fixed wing motors operate at sustained power levels (50-70% throttle) for extended periods, requiring superior thermal management and efficiency optimization. Unlike multirotors that vary power constantly, fixed wing applications prioritize consistent performance and heat dissipation over rapid throttle response.
Q: How do I determine the correct KV rating for my fixed wing application?
A: KV rating should match your propeller and voltage requirements. Lower KV (200-400) suits large propellers and high efficiency, while higher KV (600-800) works with smaller props and higher RPM applications. Calculate: RPM = KV × Voltage, then match to propeller specifications.
Q: What efficiency rating should I target for extended flight operations?
A: Prioritize motors with 85%+ efficiency at cruise power settings. High-efficiency motors (90%+) significantly extend flight time and reduce thermal management requirements. Consider efficiency curves across the operating range, not just peak efficiency ratings.
Q: How important is cooling design for fixed wing motor selection?
A: Critical for sustained operations. Fixed wing motors require adequate cooling airflow design and heat dissipation. Consider motor mounting location, cowling design, and ambient operating temperatures. Poor cooling reduces performance and motor lifespan significantly.
Q: Can I use the same motor for both pusher and tractor configurations?
A: Most brushless motors can operate in both configurations, but consider propeller rotation direction and cooling airflow patterns. Pusher configurations may require different cooling considerations and propeller selection for optimal performance.
Q: What maintenance schedule should I follow for fixed wing drone motors?
A: Inspect bearings and magnets every 50 hours of operation. Monitor operating temperatures and vibration levels. Replace bearings every 200-300 hours depending on operating conditions. Regular cleaning and inspection prevent premature wear and ensure consistent performance.
Q: How do I select the appropriate ESC for fixed wing applications?
A: Choose ESCs rated for 1.5-2x the motor's maximum current draw. Consider programming features like soft start, timing adjustment, and telemetry capability. Ensure compatibility with your flight controller and desired safety features like failsafe operation.
