Choosing the right gimbal motor is crucial for achieving smooth and stable footage or operation in various applications such as photography, videography, drones, and industrial uses. This guide provides a comprehensive step-by-step approach to selecting an ideal gimbal motor based on key factors, applications, and best practices.
In a gimbal system, motors work by sensing movement and quickly compensating for it, allowing for stabilization during handheld shooting, drone flight, or robotic operations. The primary requirements are high torque density, precision, low noise, smooth torque delivery, and fast response to enable effective stabilization.
Motor Type
Common motor types for gimbals include:
- Brushed DC Motor (BDC)
- Brushless DC Motor (BLDC) – most favored for gimbals
- Permanent Magnet Synchronous Motor (PMSM) – compact, efficient, and precise
Among these, Brushless DC and Permanent Magnet Synchronous Motors are preferred for their smooth operation, higher efficiency, lower maintenance, and better torque density.
Torque and Payload Capacity
The motor must provide sufficient torque to support the weight of the camera or equipment plus accessories, preventing drift and jitter. Always select a motor whose torque rating exceeds your total payload for reliable performance.
Size and Weight
Gimbals generally require lightweight motors to avoid adding excessive bulk. Frameless or direct-drive motors help reduce weight and increase torque by integrating motor components directly into the gimbal structure.
Speed and Control Response
Motors must be capable of smooth operation at low speeds for fine stabilization adjustments. Fast dynamic response ensures quick correction of rapid movements.
Precision and Sensor Types
The use of encoders, preferably absolute encoders, is critical to accurately track motor position and enable precise stabilization, even during power interruptions.
Noise and Vibration
Quiet operation is essential for video or audio-sensitive applications. Choosing a motor with low cogging torque and smooth winding reduces noise.
Environmental Endurance
Consider the operating environment—motors for drones or industrial use need to withstand vibrations, temperature variations, and possibly moisture or dust.
How to Match a Gimbal Motor to Specific Applications
When designing or selecting a motor for UAV (drone) gimbals, frameless designs with permanent magnet synchronous motors offer agility and precision while minimizing weight and cost. For professional videography, smooth torque and quiet operation are paramount.
Common Mistakes to Avoid When Selecting a Gimbal Motor
- Underestimating Payload: Choosing a motor with insufficient torque leads to poor stabilization and motor overload. Always factor in the total weight including lenses and accessories.
- Ignoring Motor Type Suitability: Using general-purpose ESCs with gimbal motors compromises low-speed smoothness and stability; always use dedicated gimbal controllers.
- Neglecting Environmental Factors: Selecting a motor without adequate environmental protection can result in failure under harsh conditions.
- Not Checking Compatibility: For camera gimbals, ensure the motor and gimbal system are compatible with the camera size and weight.
- Skipping Encoder Quality: Poor or absent encoders limit the gimbal’s positional accuracy and responsiveness.
Maintenance Tips and Best Practices
- Regular Cleaning: Keep motors free from dust and debris to prevent overheating and wear.
- Check Electrical Connections: Ensure all wires and solder joints are secure and intact.
- Monitor Motor Temperature: Avoid prolonged operation beyond rated loads to prevent overheating.
- Bearing Maintenance: Most gimbal motors use pre-loaded/sealed bearings that require no user lubrication. Simply maintain external cleanliness and prevent magnetic dust/particles from entering.
- Perform Calibration and Auto-tuning: Regularly calibrate motors using gimbal controller software to maintain optimal performance.
- Store Properly: When storing for extended periods, keep motors in dry, dust-free environments to prevent corrosion.
This guide synthesizes current knowledge about gimbal motors and their application-specific demands, providing a solid foundation for selecting the right motor to achieve optimal stabilization performance.
Gimbal Motor Product Comparison

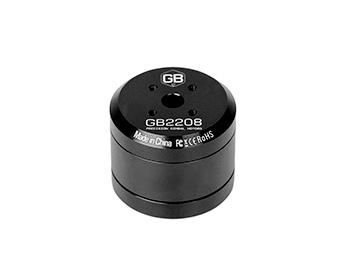

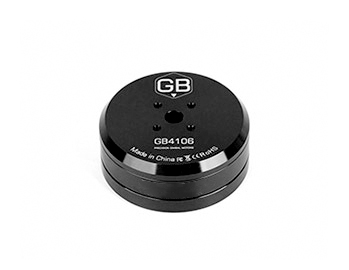

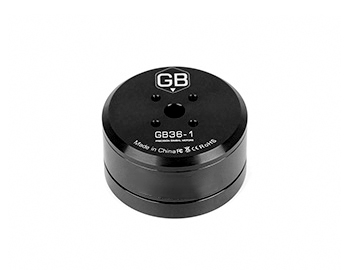

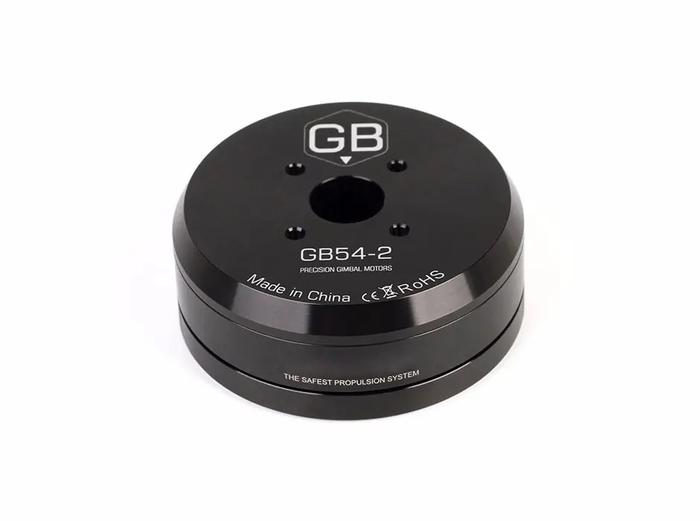

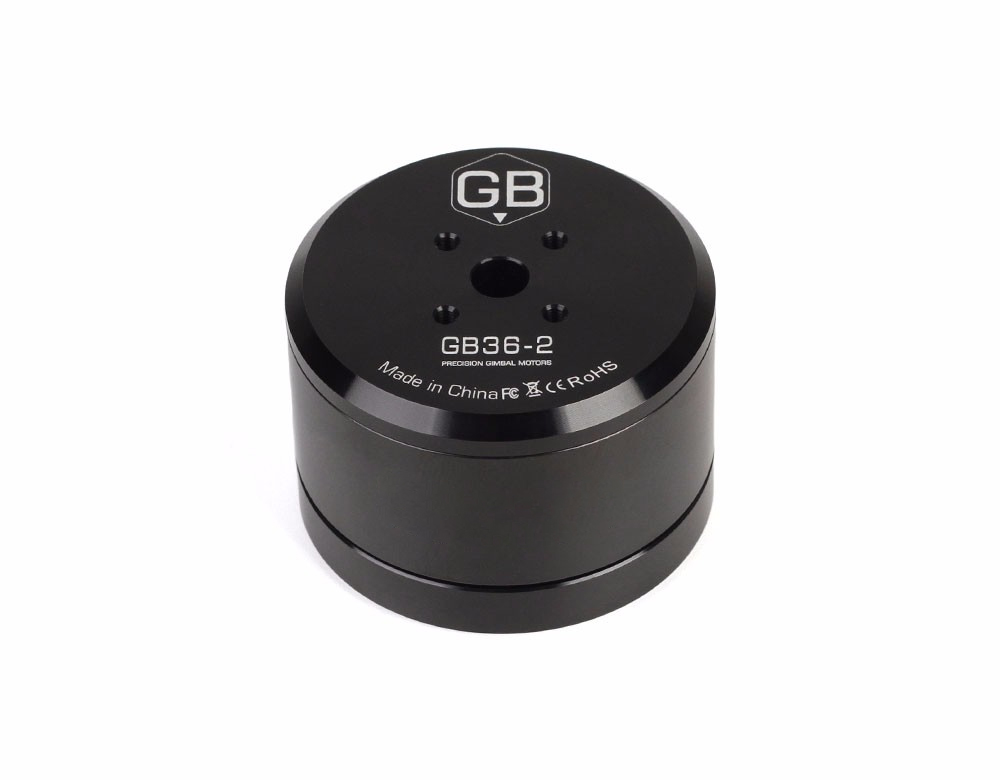

Selection Guidance: Choose GB2208 for lightweight applications (100-300g cameras), GB4106 or GB36 series for mid-range payloads, and GB54 series for heavy-duty professional setups requiring maximum stability and torque. Consider your specific payload requirements and operating voltage to optimize performance and ensure reliable operation across demanding environments.
Gimbal Motor Applications
Aerial Photography and Cinematography
- Drone cameras: Gimbal motors stabilize cameras on quadcopters and other UAVs, ensuring smooth footage despite aircraft vibrations and wind turbulence
- Professional filmmaking: Large cinema gimbals use powerful motors to support heavy camera rigs while providing fluid motion control for dynamic shots
- Handheld stabilizers: Compact gimbal systems allow content creators to capture steady video while walking or moving
Robotics and Automation
- Lightweight pointing platforms: Direct-drive motors for small-scale robotic platforms requiring precise directional control
- PTZ camera systems: High-end security cameras use direct-drive motors for smoother pan-tilt operation
- Precision positioning systems: Laboratory and research applications requiring accurate angular positioning
Industrial and Scientific Applications
- Inspection equipment: Gimbal-mounted cameras and sensors inspect pipelines, bridges, and other infrastructure from drones or robotic platforms
- Optical systems: Direct-drive motors for accurate pointing and tracking in telescopes and laser systems
- Precision platforms: Custom applications requiring smooth, precise angular control
Consumer Electronics
- Action cameras: Compact gimbals help adventure photographers capture stable footage during high-movement activities
The versatility and precision of gimbal motors make them essential components across industries where smooth motion control and stabilization are critical for optimal performance.
Gimbal Motor FAQ
The following are frequently asked questions about gimbal motors and their professional applications:
Q: What's the difference between brushless and brushed gimbal motors?
A: Brushless gimbal motors offer superior precision, longer lifespan, and reduced maintenance compared to brushed versions. They provide smoother operation with less vibration and heat generation, making them ideal for professional applications where consistent performance is critical. Brushless motors also offer better speed and torque control, essential for precise gimbal stabilization.
Q: How do I calculate the required torque for my gimbal application?
A: Static torque = Mass × Gravity × Arm Length (τ = m·g·r). Dynamic torque = Inertia × Angular acceleration (τ = I·α). Example: 2kg camera on 15cm arm requires ≈2.94 Nm static torque; add 30-50% safety margin for dynamics, totaling 3.5-4.5 Nm.
Q: What encoder resolution is needed for professional gimbal applications?
A: Professional gimbals use 12-14 bit absolute encoders (4,096-16,384 counts/revolution). Cinema applications may need higher resolution. Absolute encoders maintain position reference after power cycles, making them preferred over incremental types.
Q: How important is gimbal balancing for performance?
A: Proper balancing is crucial for optimal performance. Well-balanced systems reduce power consumption, extend battery life, and improve stabilization quality. Poor balance causes excessive current draw, vibration, and premature wear.
Q: What control protocols are commonly used with gimbal motors?
A: Common interfaces include CAN bus, UART, I²C, and RC PWM/SBUS. CAN bus offers noise immunity and multi-node capability for complex systems. UART enables parameter adjustment and telemetry. Control precision depends on encoder quality and algorithms, not the communication protocol.
Q: How do I prevent overheating in continuous operation scenarios?
A: Maintain proper balance to reduce current draw, ensure adequate ventilation, and monitor temperatures. Use 80°C as a conservative threshold to prevent magnet damage. Implement thermal protection with temperature sensors and consider duty cycle management for high-load applications.
Q: What's the typical lifespan of a professional gimbal motor?
A: Lifespan is primarily determined by bearing life and operating conditions. Under proper conditions with good balance and thermal management, quality motors can achieve 25,000+ hours. Calculate expected bearing L10 life based on your specific application rather than using fixed estimates.
