Name: T-HOBBY AM20 PRO Indoor RC Plane Combo Set
Brand: LIGPOWER
SKU: AWD11010031
Price: 89.00 USD
Availability: InStock

Relevant Products

Detail information
Specifications

About T-HOBBY Fixed Wing Airplane AM20 Pro F3P Indoor Combo

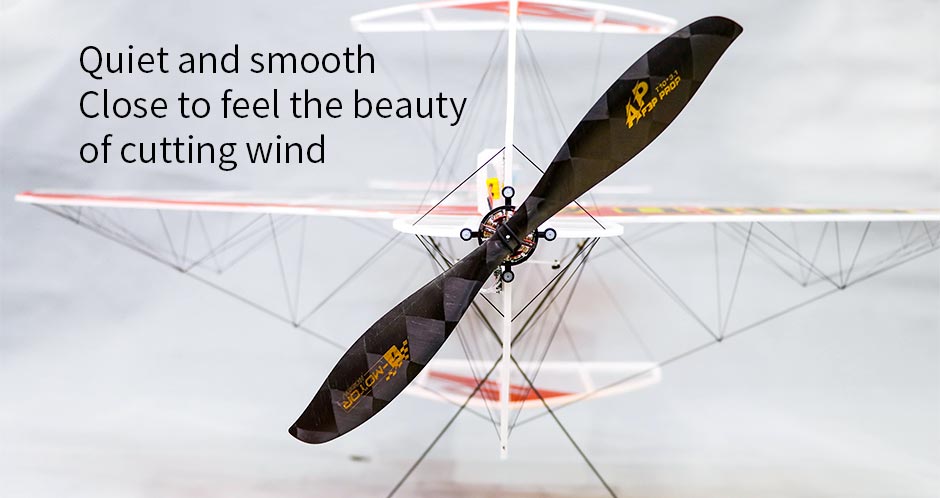

T-HOBBY AM20 Pro combo is the flagship of T-HOBBY Hobby for indoor competition, is designed for 50-100g F3P Plane

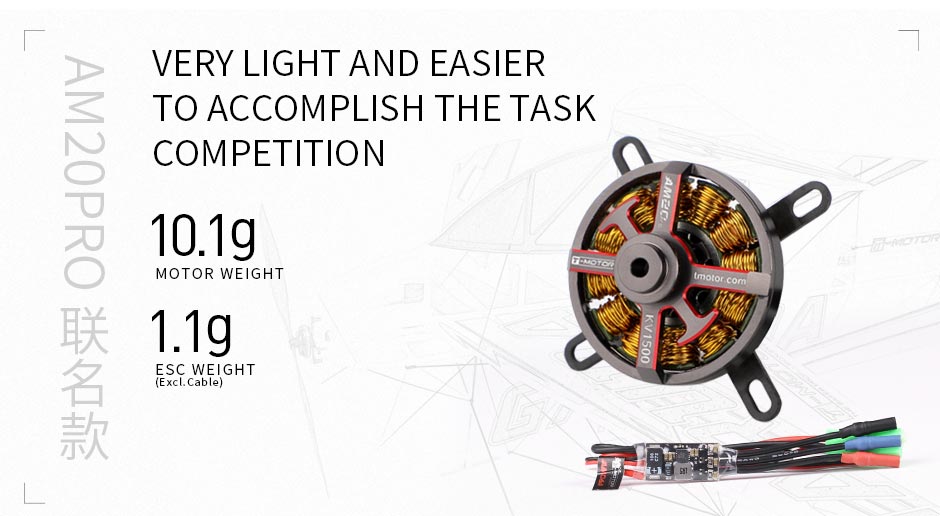

Include AM20 Pro motor + AM06A ESC + T10*3.1 carbon propeller,it's very light and very easier to accomplish the F3P competition task.

AM20 Pro F3P Combo Highlights:

1.Professional bench testing and world championship testing ensure the overall performance of the combo.

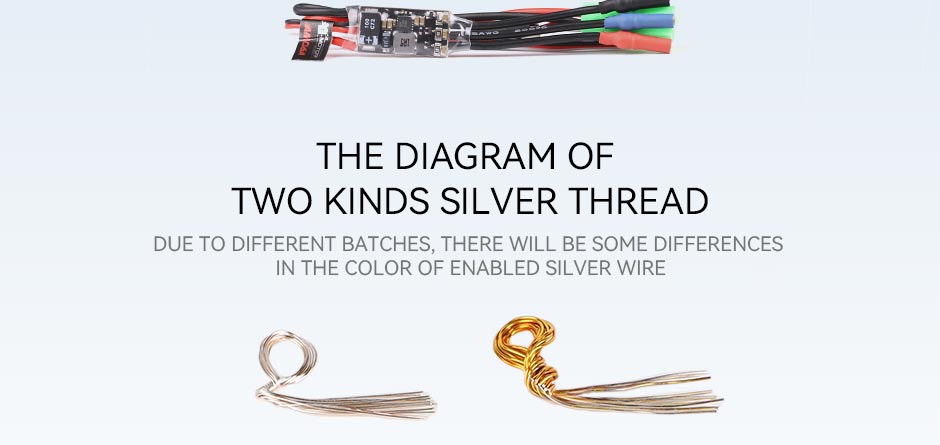

2.AM20Pro uses high-temperature silver wire, which is heat-resistant up to 240°, improving motor efficiency.

3.Linear power output, completing every action more accurately.

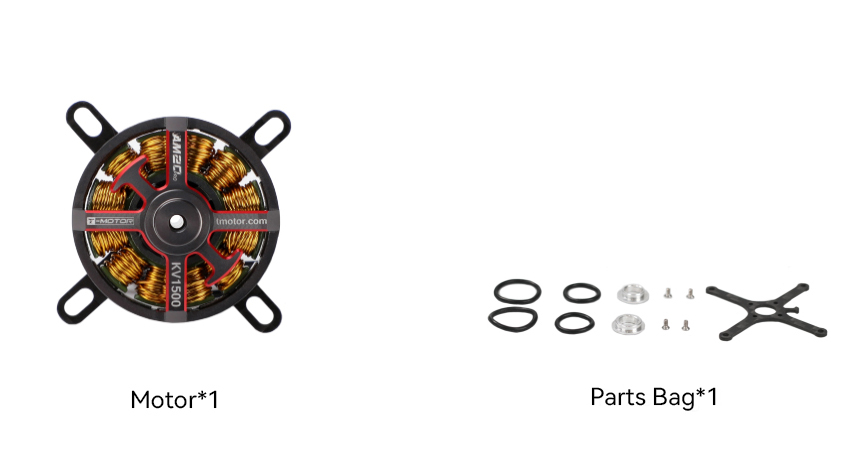

Packing List Includes:

1x T-HOBBY AM20 Pro motor + AM06A ESC + T10*3.1 carbon propeller

1x Parts pack

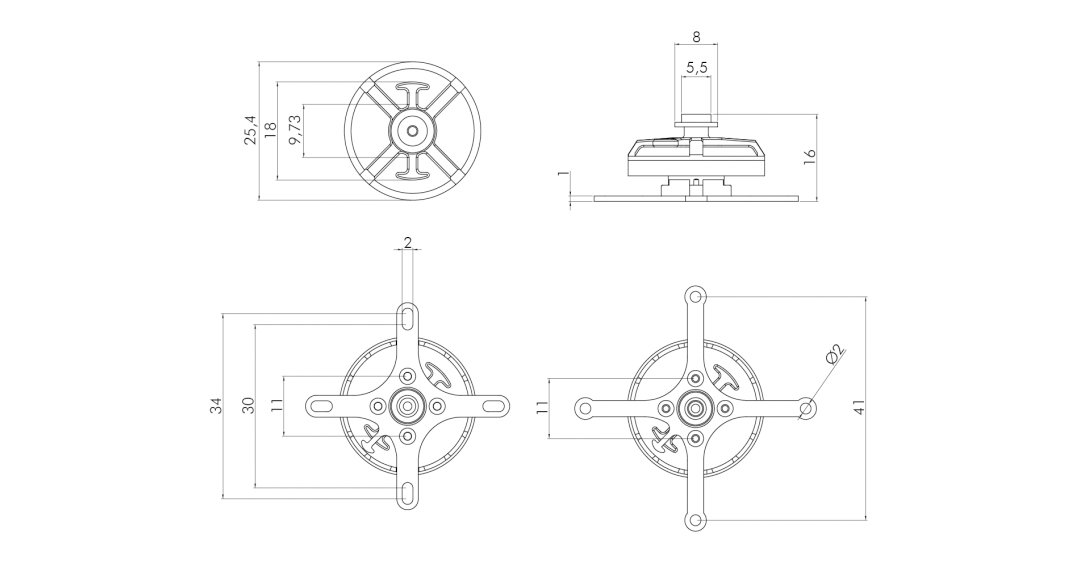

Technical Drawing

Specification Export to Excel

Test Item	KV1500	Weight (Incl. Cable)	10.1g
Motor Dimensions	Φ25.4*15mm	Internal Resistance	630mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2S
Idle Current(10V)	0.14A	Peak Current(180s)	6A
Max Power (180S)	67.2W

Test Item	KV1900	Weight (Incl. Cable)	10.1g
Motor Dimensions	Φ25.4*15mm	Internal Resistance	455mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2S
Idle Current(10V)	0.25A	Peak Current(180s)	6A
Max Power (180S)	67.2W

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
T-HOBBY AM20 KV1500	T-HOBBY 10*3.1	30%	8.23	0.34	2.82	1648	0.006	37	13.18	30
		35%	8.23	0.49	4.05	1882	0.007	48	11.91
		40%	8.22	0.72	5.89	2061	0.009	58	9.85
		45%	8.22	0.89	7.32	2322	0.010	70	9.61
		50%	8.22	1.25	10.27	2395	0.011	76	7.38
		55%	8.22	1.36	11.15	2705	0.014	95	8.55
		60%	8.21	1.63	13.36	2856	0.015	106	7.95
		65%	8.20	1.94	15.91	2997	0.017	118	7.41
		70%	8.19	2.27	18.58	3147	0.019	128	6.92
		75%	8.19	2.62	21.42	3279	0.020	139	6.50
		80%	8.17	3.09	25.23	3460	0.022	154	6.11
		85%	8.17	3.49	28.47	3569	0.024	165	5.80
		90%	8.16	3.90	31.81	3658	0.025	176	5.52
		95%	8.15	4.30	35.02	3741	0.026	183	5.23
		100%	8.14	4.68	38.06	3836	0.027	189	4.98
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
T-HOBBY AM20 KV1900	T-HOBBY 10*3.1	30%	8.22	0.51	4.19	1892	0.007	48	11.37	30
		35%	8.22	0.75	6.19	2126	0.009	60	9.65
		40%	8.21	1.32	10.86	2032	0.008	54	4.98
		45%	8.20	1.83	14.97	1938	0.007	49	3.29
		50%	8.19	2.02	16.51	2361	0.011	74	4.48
		55%	8.19	1.96	16.02	2928	0.016	112	6.98
		60%	8.19	2.35	19.22	3086	0.018	125	6.49
		65%	8.18	2.79	22.79	3226	0.020	137	5.99
		70%	8.17	3.24	26.45	3345	0.021	147	5.57
		75%	8.16	3.70	30.20	3468	0.023	158	5.23
		80%	8.15	4.17	33.94	3580	0.024	167	4.91
		85%	8.14	4.65	37.80	3677	0.025	175	4.64
		90%	8.13	5.14	41.75	3760	0.026	183	4.38
		95%	8.11	5.65	45.82	3820	0.027	190	4.16
		100%	8.10	6.14	49.72	3887	0.028	196	3.95
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
