Name: T-HOBBY AM83 P5B 2S RC Glider Flight Plane Motor
Brand: LIGPOWER
SKU: AGD02010021
Price: 49.90 USD
Availability: InStock

Relevant Products

T-HOBBY AM53A 2S Outdoor Sailplane ESC

$39.9

Detail information
Specifications

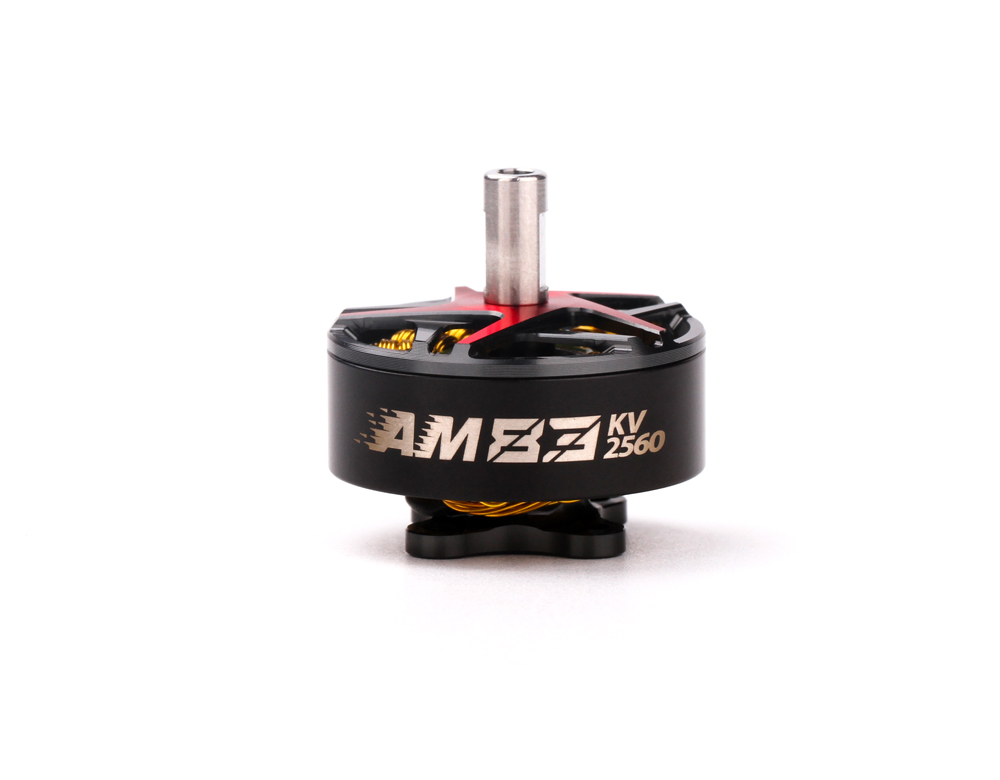

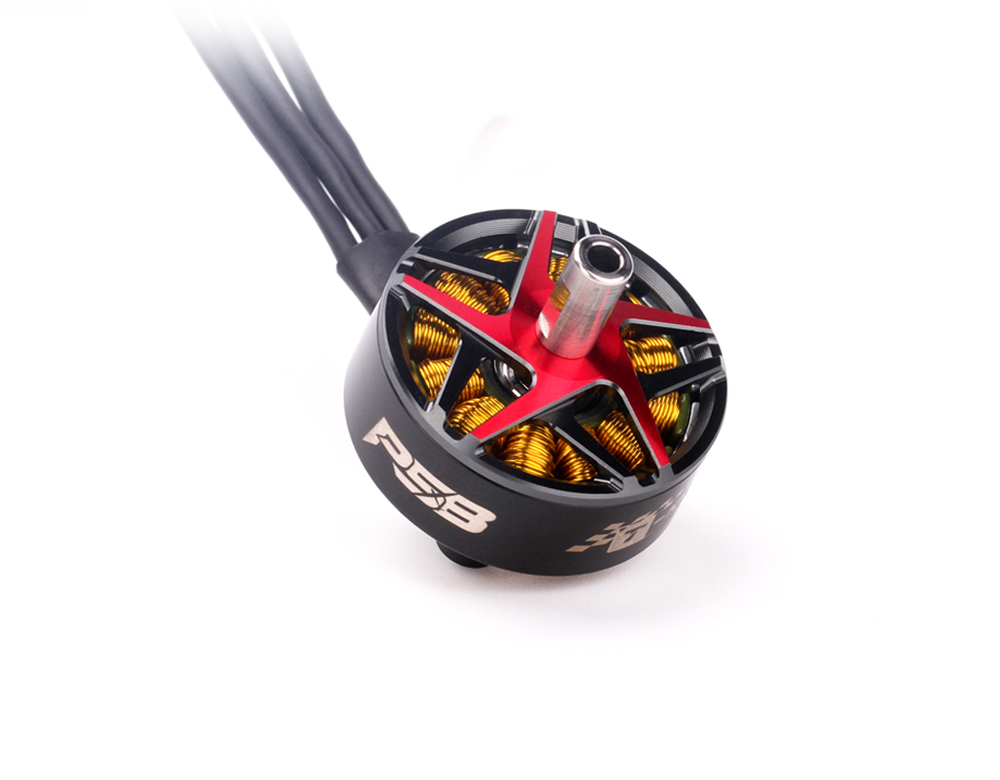

About T-HOBBY AM83 P5B 2S RC Glider Flight Plane Motor

T-HOBBY AM83A is a motor specially built for P5B glider competition. It can climb over 100 meters in three seconds, ushering in the three-second era of P5B.

It is recommended to match it with T-HOBBY AM53A ESC.

AM83 P5B Hightlight:

1.T-HOBBY opens the P5B three-second era, climbing to 115-122 meters in 3 seconds, and climbing to 201-207 meters in 5 seconds.

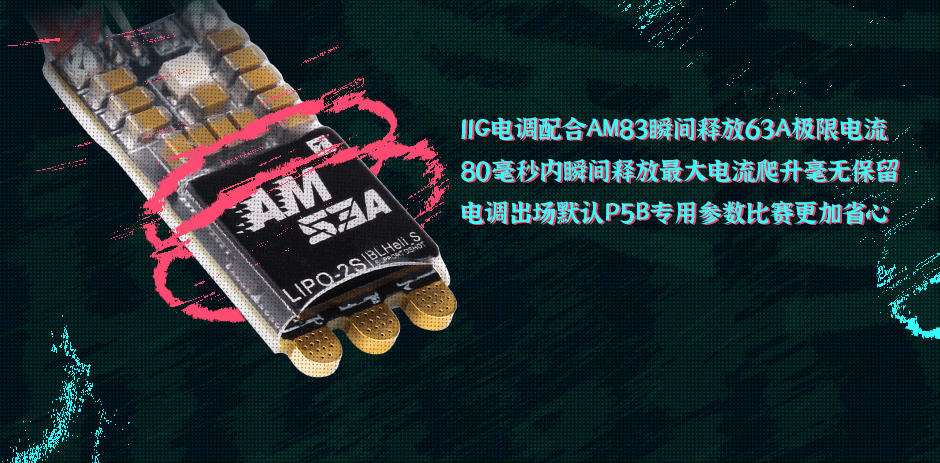

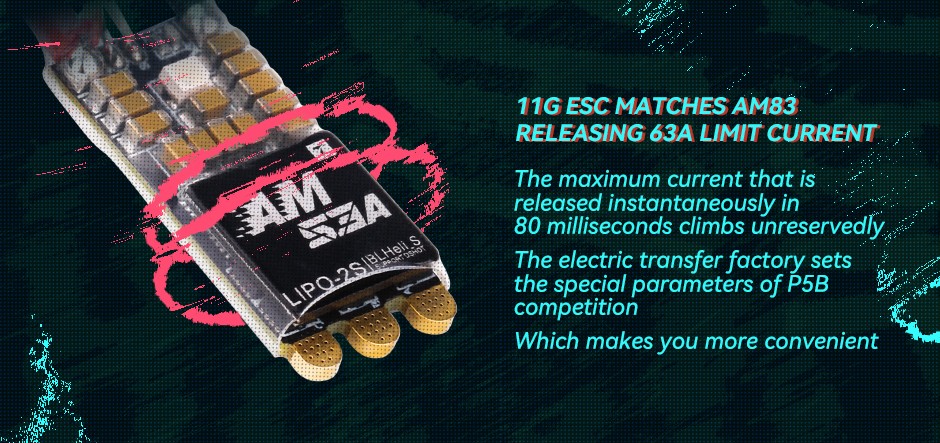

2.AM83 motor matches 11g ESC releasing 63A limit current.

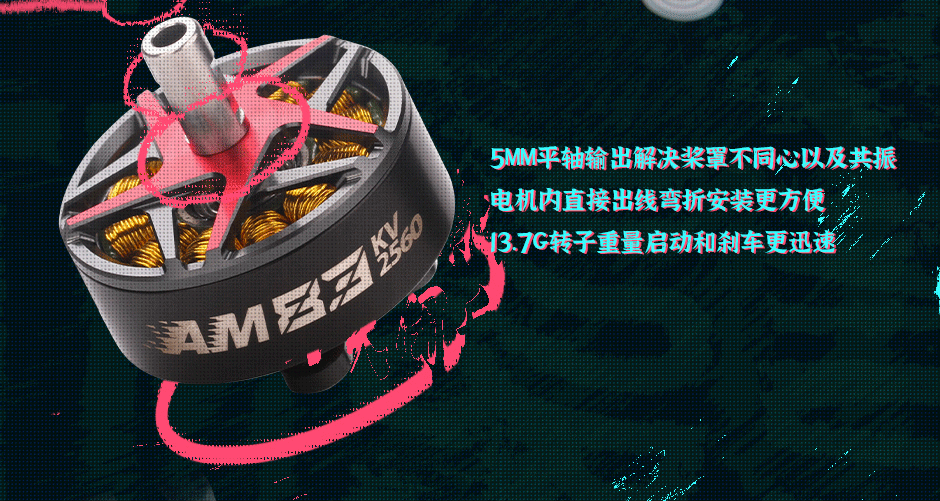

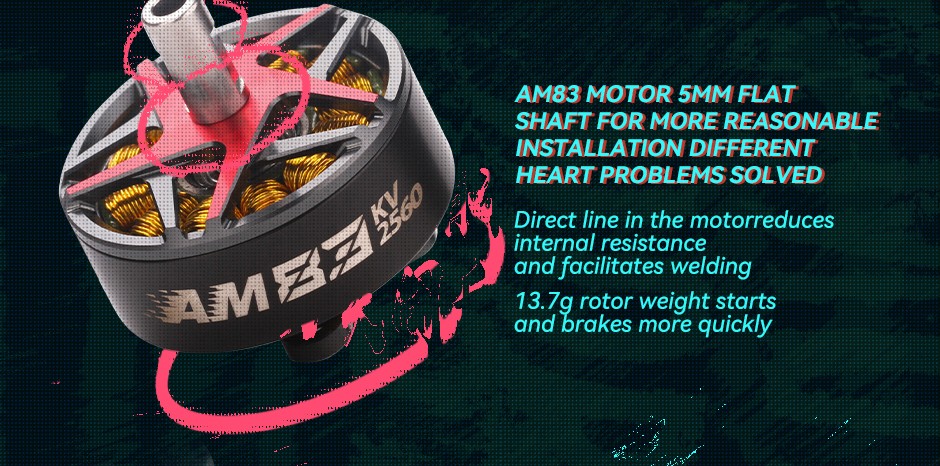

3.AM83 Motor 5mm flatshaft for more reasonable installation different heart problems solved，13.7g rotor weight startsand brakes more quickly.

Packing List Includes:

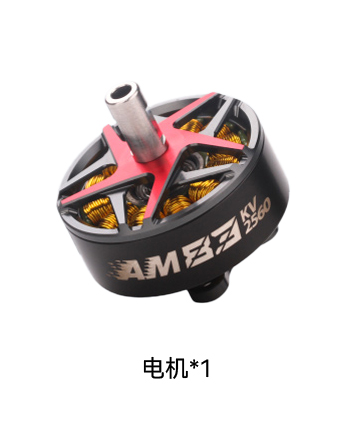

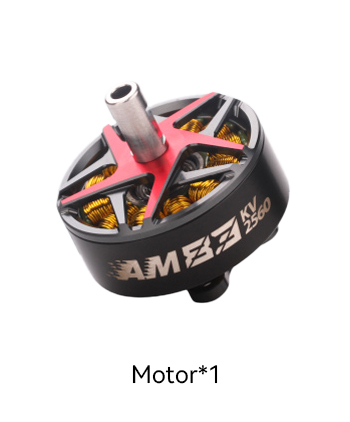

1x T-HOBBY AM83 Motor

1x Hardware pack

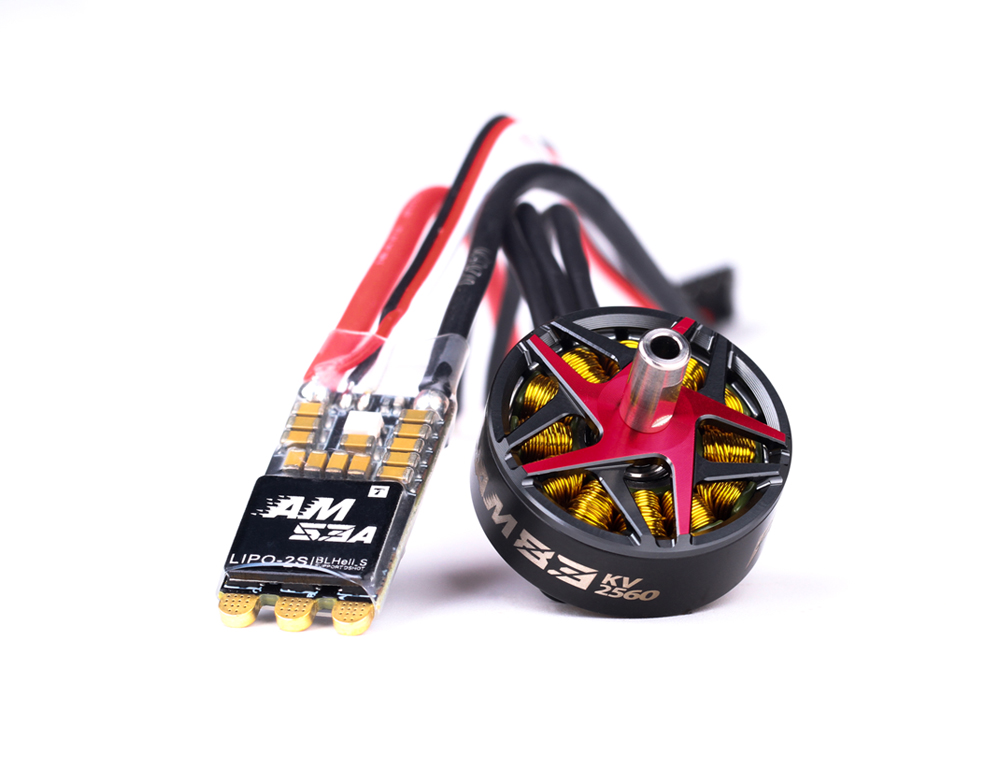

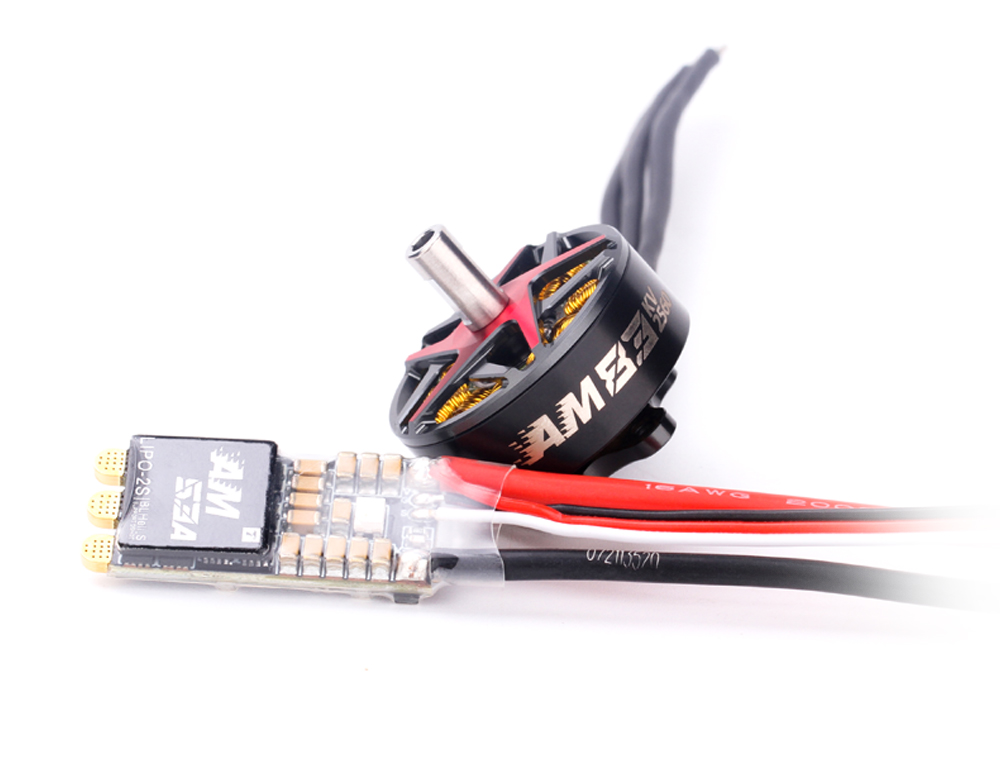

Matching Guide:

T-HOBBY AM53A P5B ESC

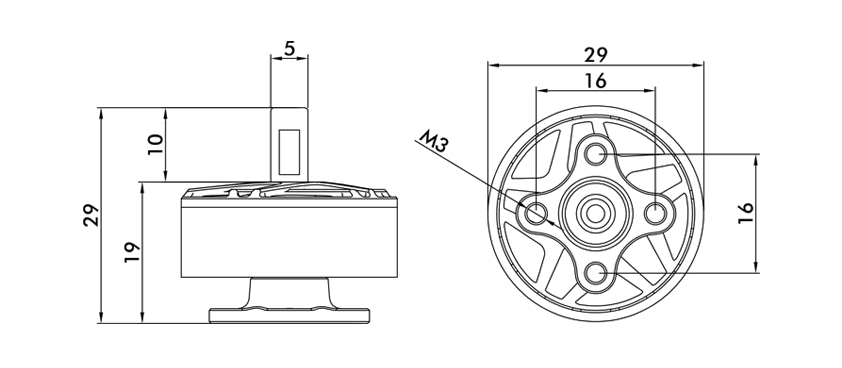

Technical Drawing

Specification Export to Excel

Test Item	AM83 kv 2560	Weight (Incl. Cable)	38g
Height	28.5mm	Motor Dimensions	29mm
Shaft Diameter	5mm	Lead	80mm

Test Item	AM53A	Input Voltage(Lipo)	2s
Weight	11g	Continuous Current	53A
Peak Current	63A	BEC Output	Same as voltage
Power line	100mm 16AWG	Signal line	150mm
Dimensions	33.4×15.3×5.6mm

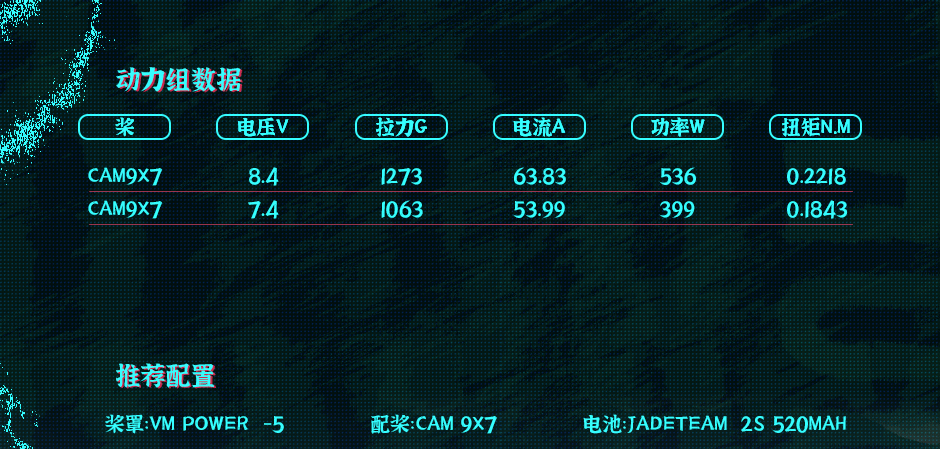

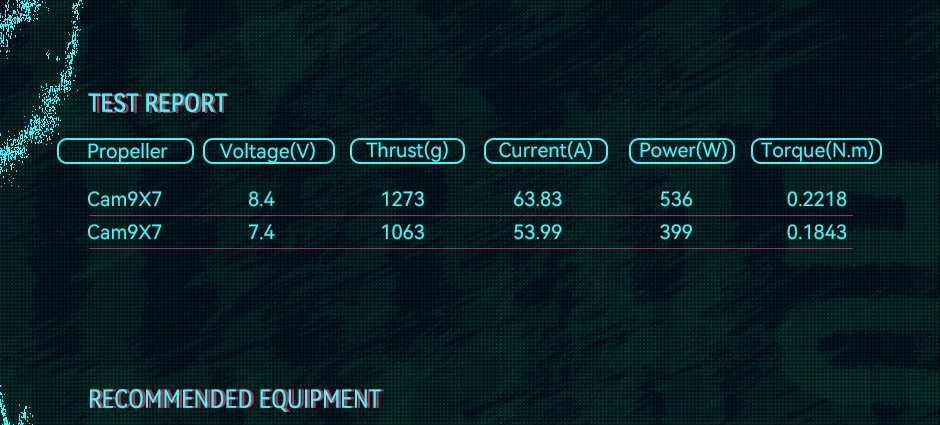

Test Data Export to Excel

Type	Propeller	Voltage (V)	Current (A)	Power (W)	Torque (N*m)	Thrust (g)
Am83	Cam9X7	8.40	63.83	536.00	0.222	1273
Am83	Cam9X7	7.40	53.99	399.00	0.184	1063

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
