Name: T-HOBBY F80 PRO 3-6S FPV Racing Drone Motor KV1900
Brand: LIGPOWER
SKU: AFD01010222
Price: 26.90 USD
Availability: InStock

T-HOBBY F80 PRO 3-6S FPV Racing Drone Motor KV1900

26.90

Available points: 1300 Points Points reward: 26 Points

• Only 36.4g
• The max trust 2kg+
• Perfect for big frame as 300MM
• KV1900/KV2200 high efficient for long range ,KV2500 for Freestyle&Racing

Parameter：

KV1900
KV2200
KV2500

Quantity：

26.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY F7+F55A PROⅡ HD

$137.9
T-HOBBY F7 Pro Full Function 30x30 Flight Controller Wifi&Bluetooth

$89.9

Detail information
Specifications

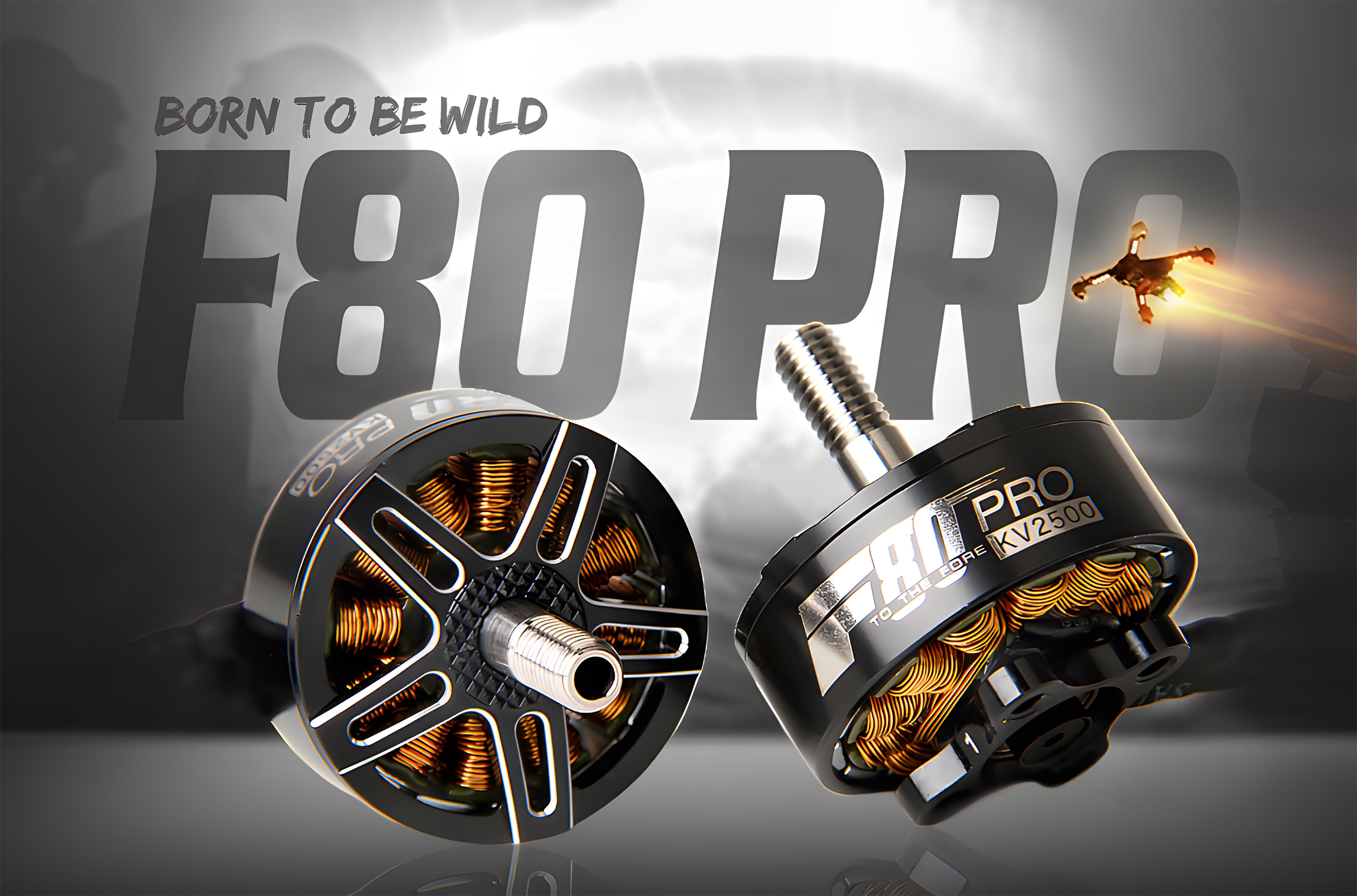

About T-HOBBY F80 PRO 5-6 Inch Racing Motor

T-HOBBY F80Pro 2408 fpv motors. These brushless motors are mean and put out insane power! Designed for long range, racing and freestyle builds.

F80 PRO Hightlight:

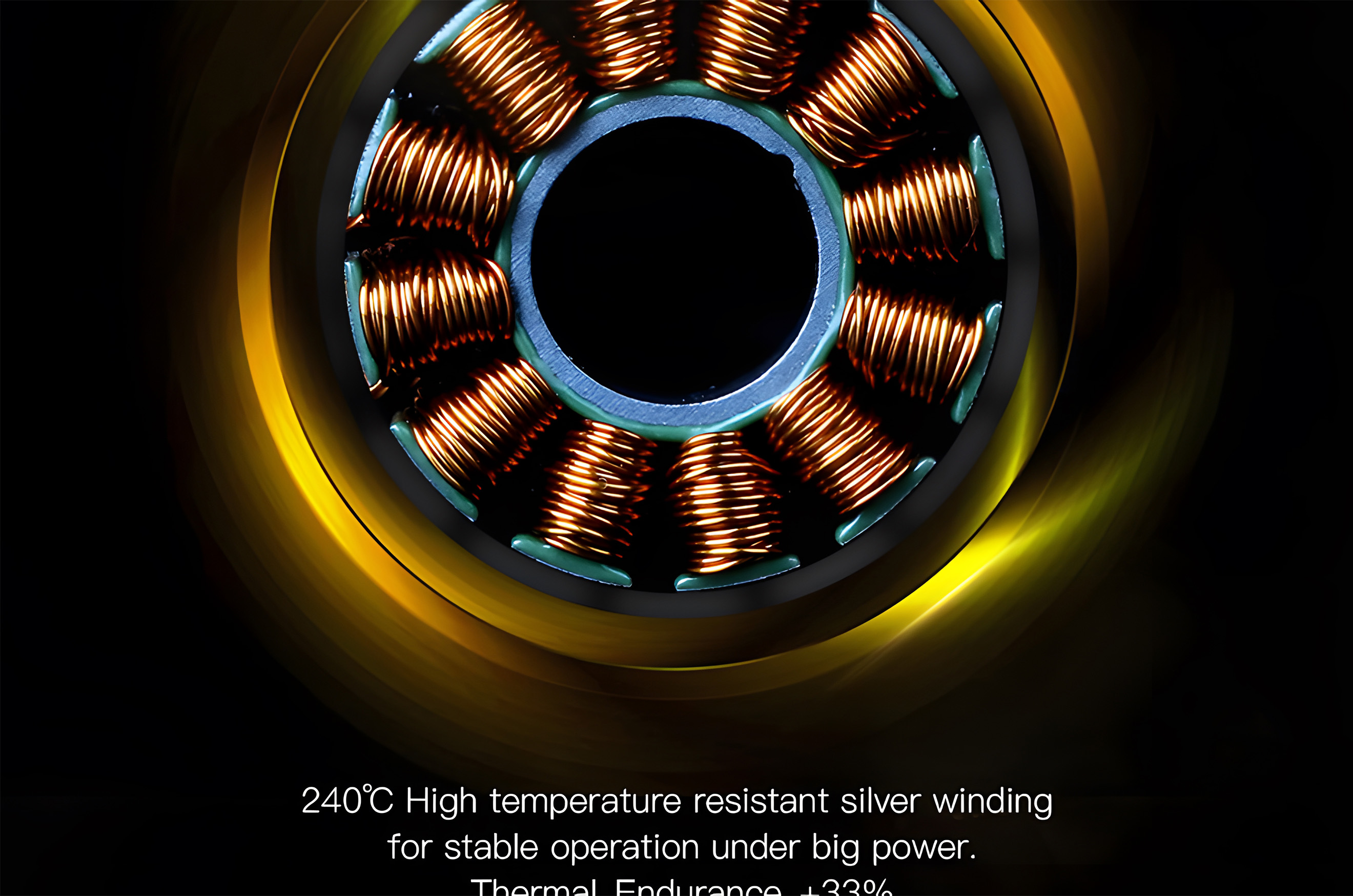

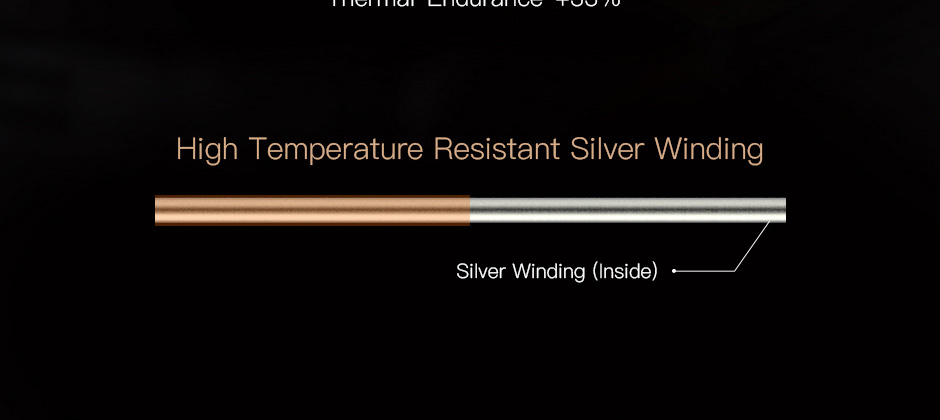

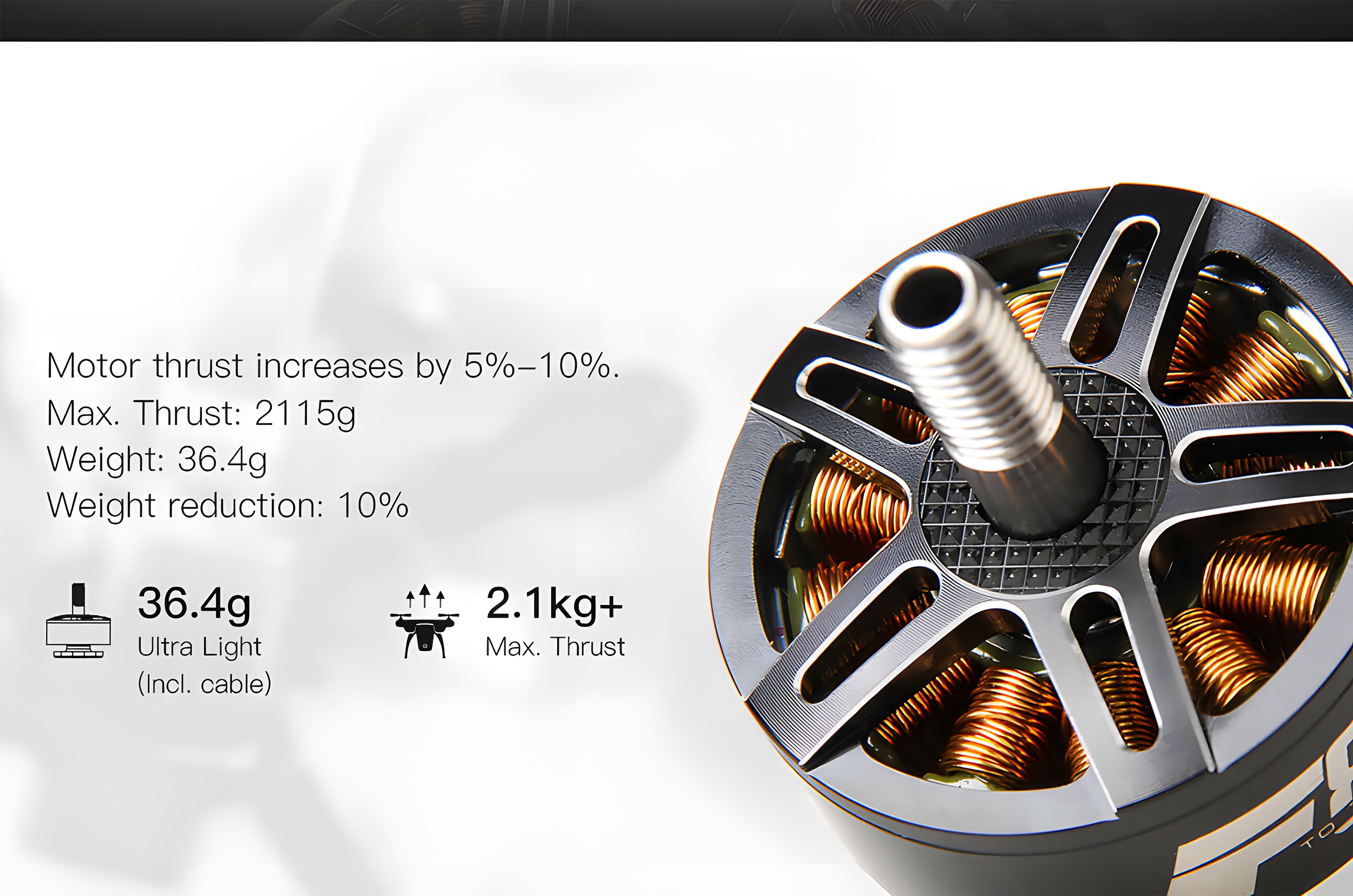

F80 FPV motor, weight 36.4g, maximum pulling force up to 2kg+, suitable for 5-6 inch FPV drone. Using high-temperature resistant silver wire

The temperature resistance is increased by 33%, reaching 240°C, and the operation is more stable under high power. Bearings imported from Japan have low noise and low friction coefficient,

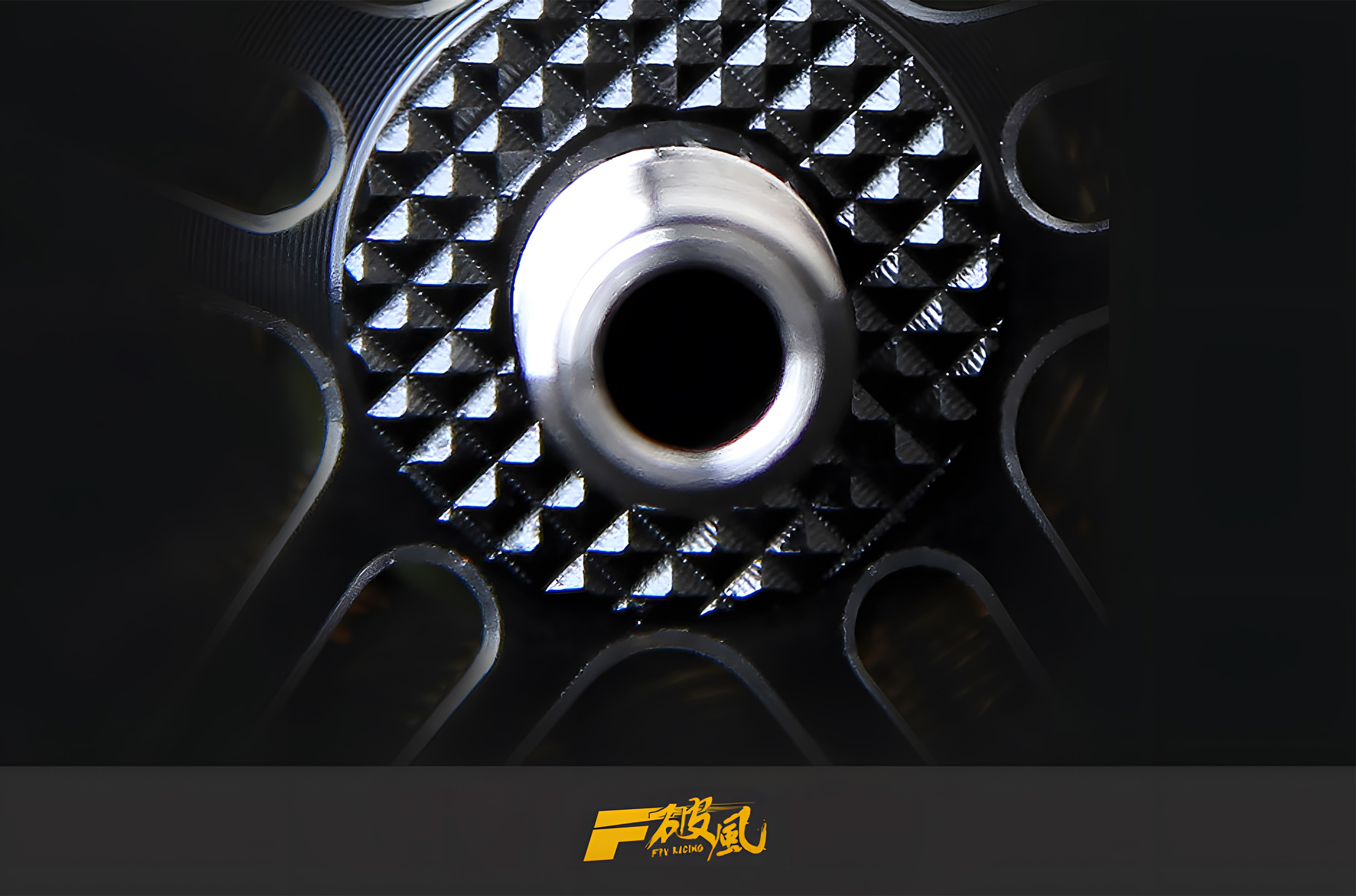

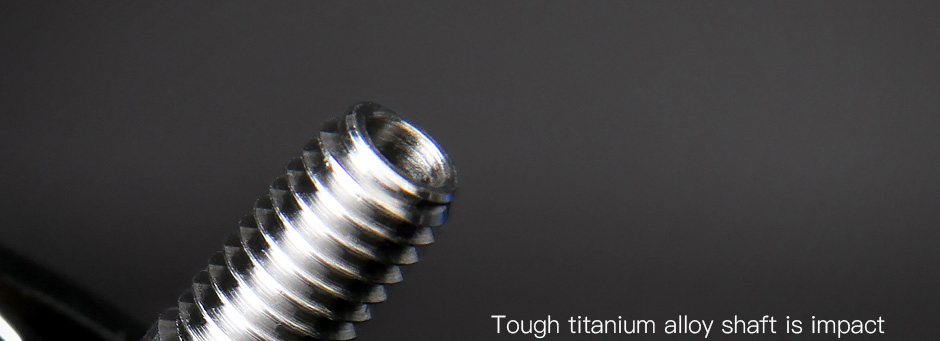

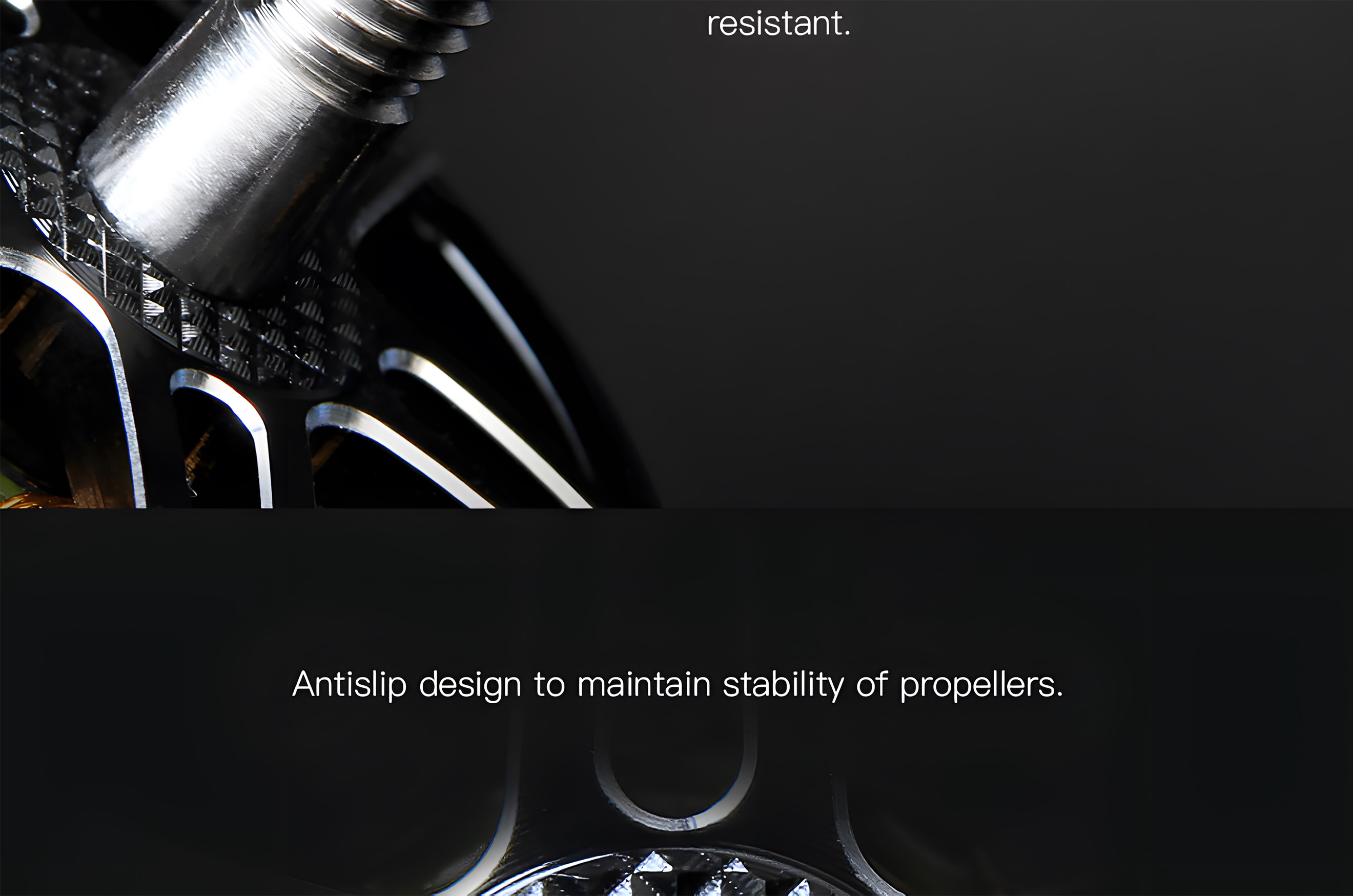

Which can reduce motor heating. Titanium alloy bearings are tougher and impact-resistant, and the cogging anti-slip design prevents the propeller from slipping.

1900KV/2200KV for efficient long-range flight, and 2500KV for freestyle and racing.

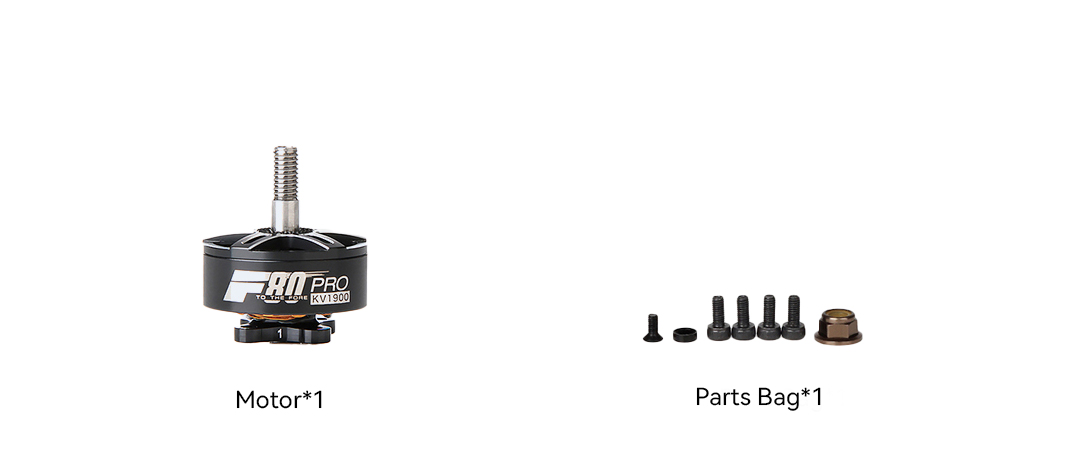

Packing List Includes:

1x F80 Pro 1900kv Motor

1x Parts Bag

Matching Guide:

F7 flight controller /F7 pro flight controller

F55A Pro II 6s 4in1 ESC

T5143S FPV Drone propeller

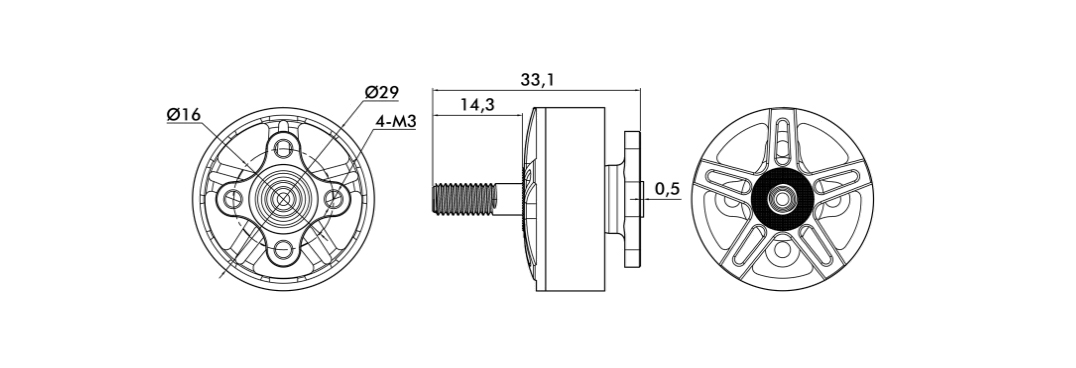

Technical Drawing

Specification Export to Excel

Test Item	KV1900	Weight(Incl. Cable)	39.7g
Motor Dimensions	Φ29*33.6mm	Internal Resistance	42mΩ
Lead	20AWG 150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	3-6S
Idle Current(10V)	1.7A	Peak Current(180s)	49.2A
Max. Power	1122W

Test Item	KV2200	Weight(Incl. Cable)	39.7g
Motor Dimensions	Φ29*33.6mm	Internal Resistance	35mΩ
Lead	20AWG 150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	3-5S
Idle Current(10V)	1.9A	Peak Current(180s)	49.4A
Max. Power	928W

Test Item	KV2500	Weight(Incl. Cable)	39.7g
Motor Dimensions	Φ29*33.6mm	Internal Resistance	32mΩ
Lead	20AWG 150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	3-4S
Idle Current(10V)	2.5A	Peak Current(180s)	47.6A
Max. Power	706W

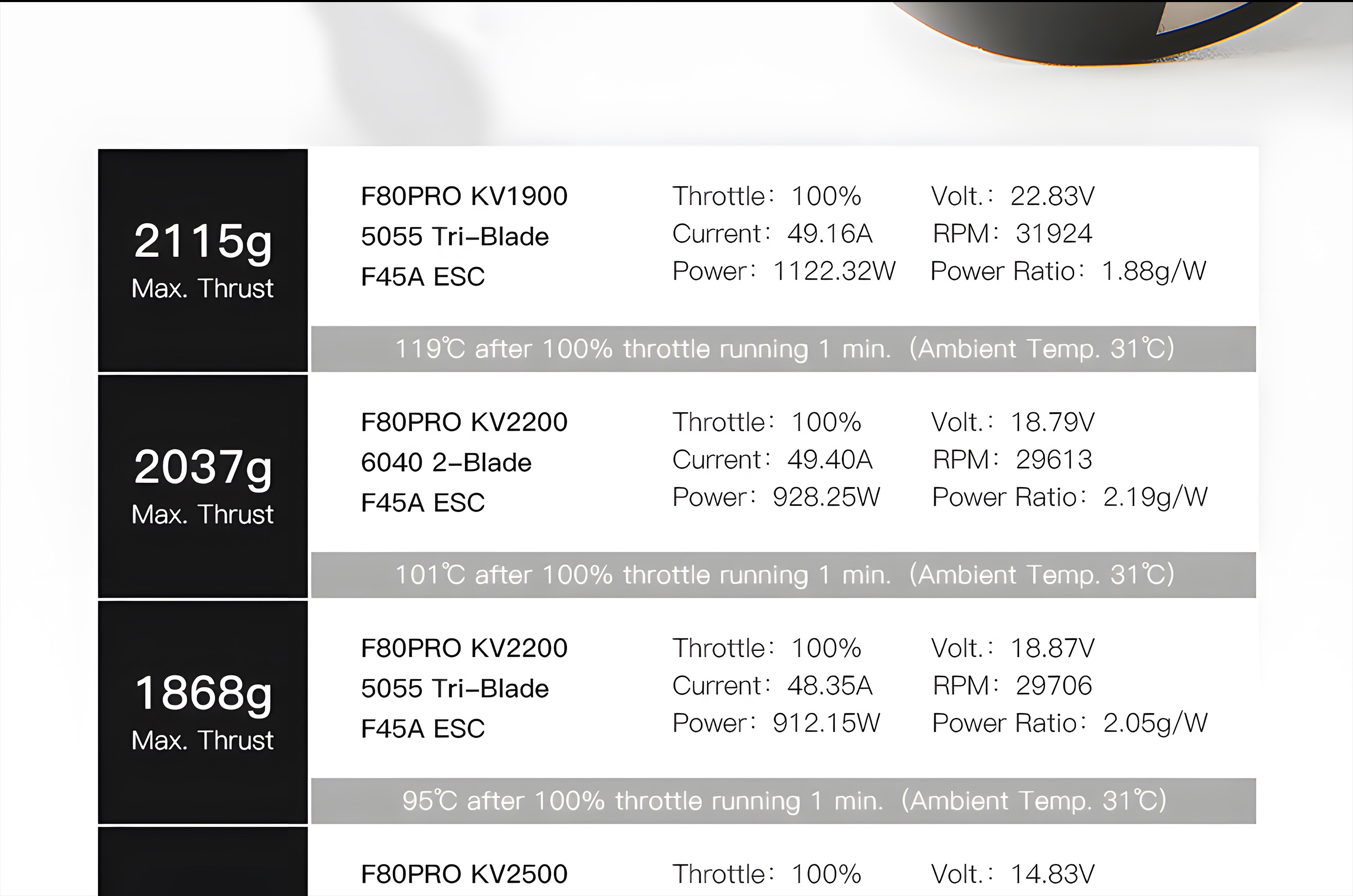

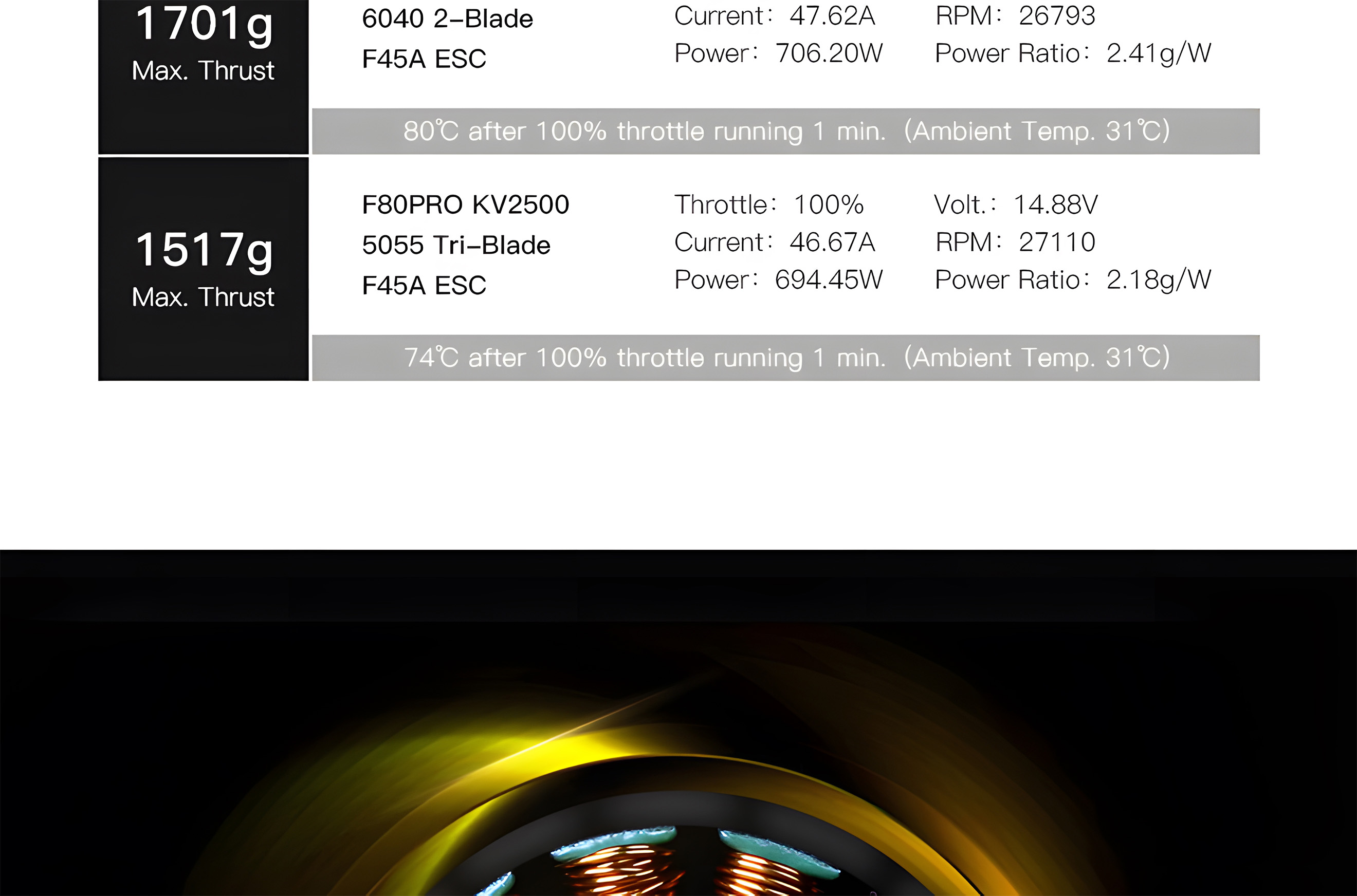

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F80 Pro KV1900	5055 Tri-Blade	50%	790.04	23.89	11.11	19932	265.36	2.98	119 (Ambient Temperature: 31℃)
		55%	908.12	23.84	13.67	21379	326.01	2.79
		60%	1042.01	23.78	16.61	22752	395.05	2.64
		65%	1182.98	23.71	19.67	24172	466.49	2.54
		70%	1323.01	23.63	23.04	25353	544.56	2.43
		75%	1418.16	23.54	26.09	26680	614.28	2.31
		80%	1555.57	23.41	29.91	27697	700.37	2.22
		85%	1683.97	23.28	33.90	28525	789.23	2.13
		90%	1793.47	23.14	38.02	29579	879.73	2.04
		95%	1896.57	22.99	42.09	30357	967.77	1.96
		100%	2114.78	22.83	49.16	31924	1122.32	1.88
F80 Pro KV2200	5055 Tri-Blade	50%	704.65	19.89	11.16	18832	221.95	3.17	95 (Ambient Temperature: 31℃)
		55%	818.27	19.84	13.79	20104	273.51	2.99
		60%	907.14	19.79	16.47	21492	325.87	2.78
		65%	1031.42	19.72	19.73	22710	389.04	2.65
		70%	1154.17	19.64	23.00	23980	451.81	2.55
		75%	1287.66	19.53	26.77	24983	522.90	2.46
		80%	1388.59	19.42	30.22	26014	586.76	2.37
		85%	1492.02	19.29	34.01	26950	656.15	2.27
		90%	1589.63	19.16	37.84	27796	724.97	2.19
		95%	1661.82	19.01	41.77	28554	794.20	2.09
		100%	1867.94	18.87	48.35	29706	912.15	2.05
	6040 2-Blade	50%	736.57	19.89	11.18	18754	222.46	3.31	101 (Ambient Temperature: 31℃)
		55%	847.93	19.84	13.69	20131	271.77	3.12
		60%	993.47	19.78	16.85	21330	333.29	2.98
		65%	1110.80	19.71	19.96	22574	393.52	2.82
		70%	1239.35	19.64	23.09	23884	453.43	2.73
		75%	1396.62	19.53	26.93	24790	525.83	2.66
		80%	1540.87	19.40	30.77	25715	596.89	2.58
		85%	1661.79	19.27	34.76	26640	669.79	2.48
		90%	1741.02	19.14	38.47	27495	736.30	2.36
		95%	1851.99	18.98	42.95	28202	815.02	2.27
		100%	2037.30	18.79	49.40	29613	928.25	2.19
F80 Pro KV2500	5055 Tri-Blade	50%	591.73	15.85	11.10	17325	175.99	3.36	74 (Ambient Temperature: 31℃)
		55%	676.24	15.79	13.56	18568	214.09	3.16
		60%	751.15	15.73	16.09	19781	253.24	2.97
		65%	843.19	15.67	19.01	20809	297.95	2.83
		70%	945.44	15.61	22.30	21783	348.03	2.72
		75%	1010.05	15.52	25.57	22951	397.01	2.54
		80%	1120.09	15.42	29.13	23807	449.12	2.49
		85%	1222.90	15.29	33.01	24520	504.80	2.42
		90%	1304.56	15.17	36.80	25256	558.15	2.34
		95%	1363.42	15.04	40.40	25960	607.82	2.24
		100%	1516.82	14.88	46.67	27110	694.45	2.18
	6040 2-Blade	50%	625.57	15.87	11.27	17282	178.91	3.50	80 (Ambient Temperature: 31℃)
		55%	719.71	15.81	13.76	18554	217.53	3.31
		60%	816.18	15.70	16.46	19641	258.31	3.16
		65%	917.09	15.65	19.45	20632	304.29	3.01
		70%	1004.55	15.59	22.49	21763	350.72	2.86
		75%	1106.85	15.52	25.91	22791	402.14	2.75
		80%	1228.74	15.40	29.81	23566	459.04	2.68
		85%	1320.52	15.28	33.42	24389	510.73	2.59
		90%	1419.87	15.15	37.29	25078	565.15	2.51
		95%	1527.30	15.02	41.45	25597	622.61	2.45
		100%	1700.76	14.83	47.62	26793	706.20	2.41
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
