Name: T-HOBBY F55A Pro II 55A 3-6s 4in1 ESC w/ BEC
Brand: LIGPOWER
SKU: AFT01010035
Price: 93.90 USD
Availability: InStock

T-HOBBY F55A Pro II 55A 3-6s 4in1 ESC w/ BEC

93.90

Available points: 4600 Points Points reward: 93 Points

• Explosive Power
• Fast Response
• Prominent Reliability

Quantity：

93.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information

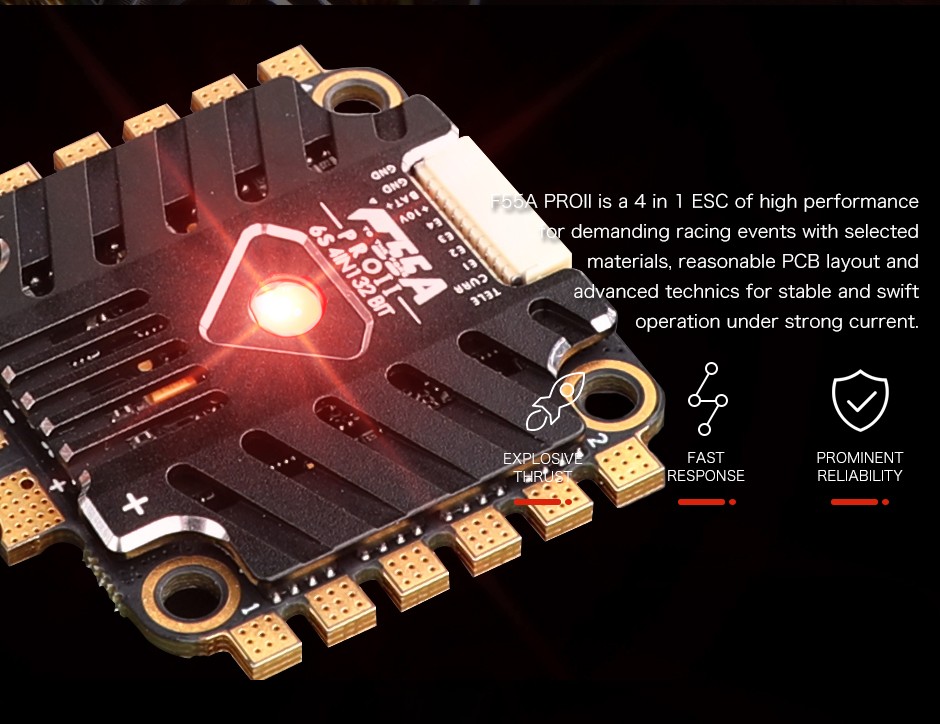

About T-HOBBY F55A Pro II FPV 4in1 Drone w/BEC

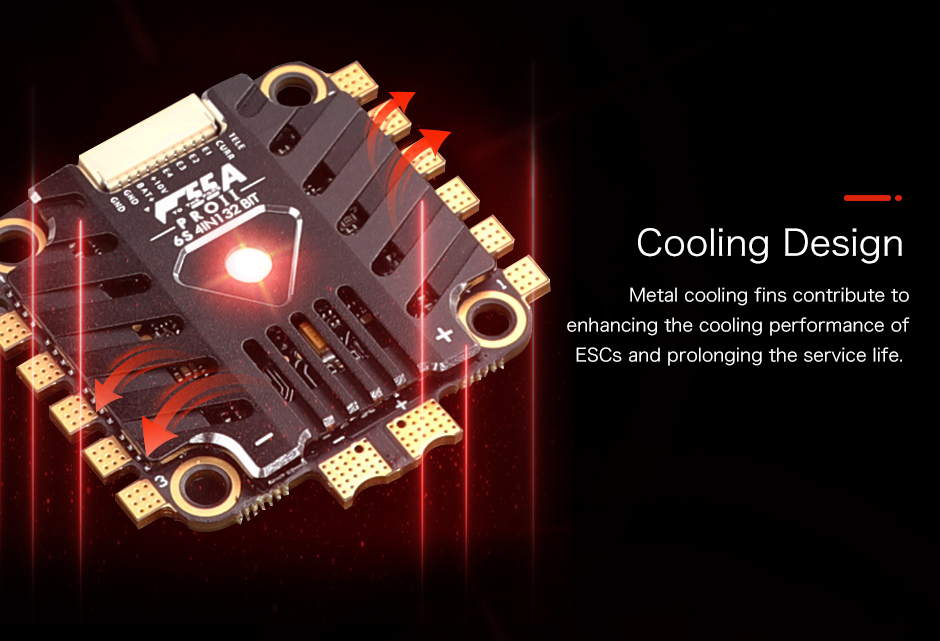

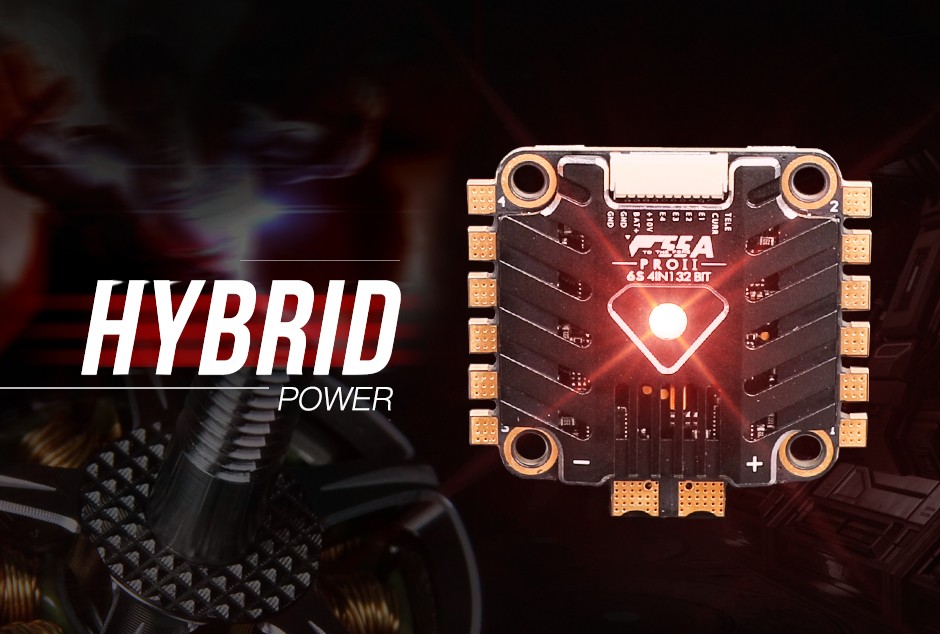

The F55 Pro II esc updates the original 55A esc with a new heatsink design, LED, and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and AM32 firmware.

F55A Pro II Hightlight:

The TMOTOR F55A Pro II esc updates the original 55A esc

with a new heatsink design, LED, and increased the BEC current to 10V@2A.

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw.

Equipped with the latest in ESC technology

such as 32-bit capability and AM32 firmware.

Unique Point

Explosive power
Fast response
Prominent reliability

Specifications

Input Voltage: 2-8S (8.4-33.6V)
MCU: STM32F405RGT6
IMU: ICM20602
OSD: Yes
Blackbox: 16MB Onboard Flash
UARTs: 6
ESC Connections: 6
Firmware: BetaFlight Target: T-Motor F4
BEC: 5V 2A
LC Filter: Yes
Current Sensor: Esc Telemetry / Current ADC
Buzzer: Pads
Barometer: No
Dimensions: 37x37x7mm
Mounting Pattern: 30.5x30.5mm
Weight: 7g

ESC

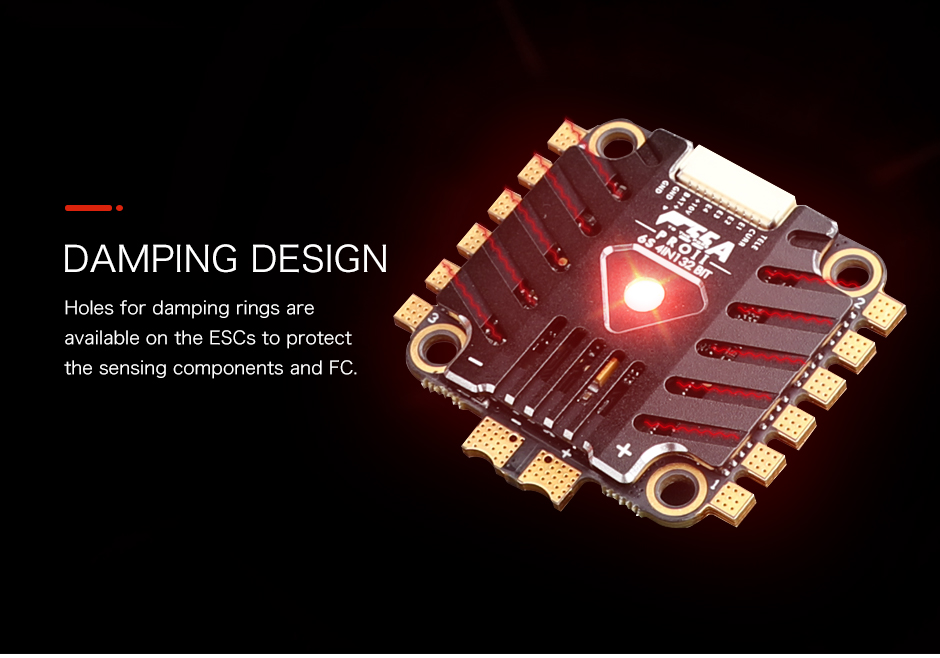

The F55 Pro II updates the original F55 with a new heatsink design, LED, and increased the BEC current to 10V@2A.

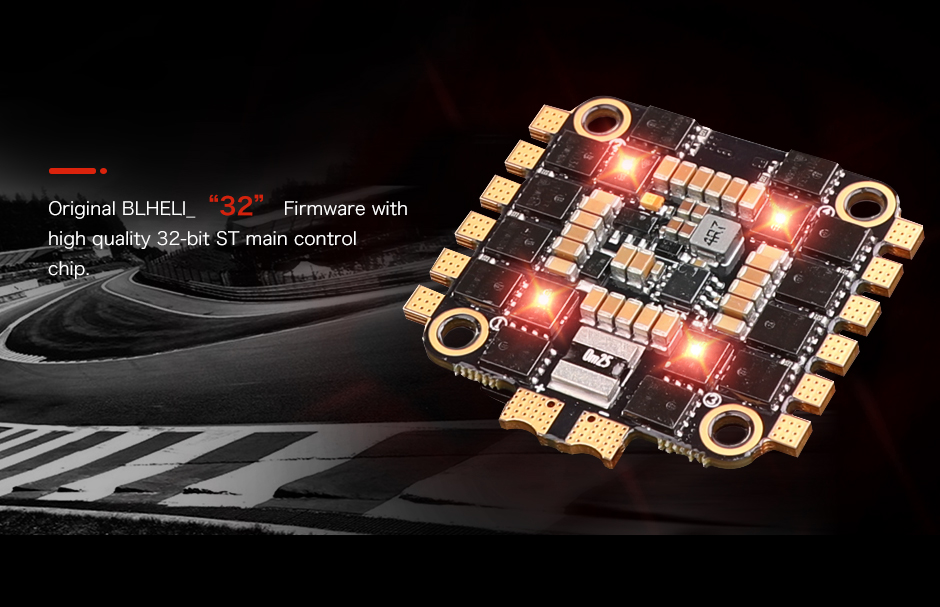

Fully capable of pushing 6s with 75A burst and a sustained 55A current draw. Equipped with the latest in ESC technology such as 32-bit capability and BLHeli32 firmware.
