LIGPOWER P2207 V3 5"Freestyle FPV Motor KV1750/KV1950/KV2080/KV2550

23.90

Available points: 1200 Points Points reward: 23 Points

1.Great for Freestyle Flights
2.Improved V3 Pacer Motor
3.Unibell Design
4.High Throttle
KV：
  • KV1750
  • KV1950
  • KV2080
  • KV2550
Quantity：

23.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER  P2207 V3 5"Freestyle FPV Motor


The LIGPOWER PACER V3 P2207 Powerful Freestyle Motor has become one of the most popular motors in the market.

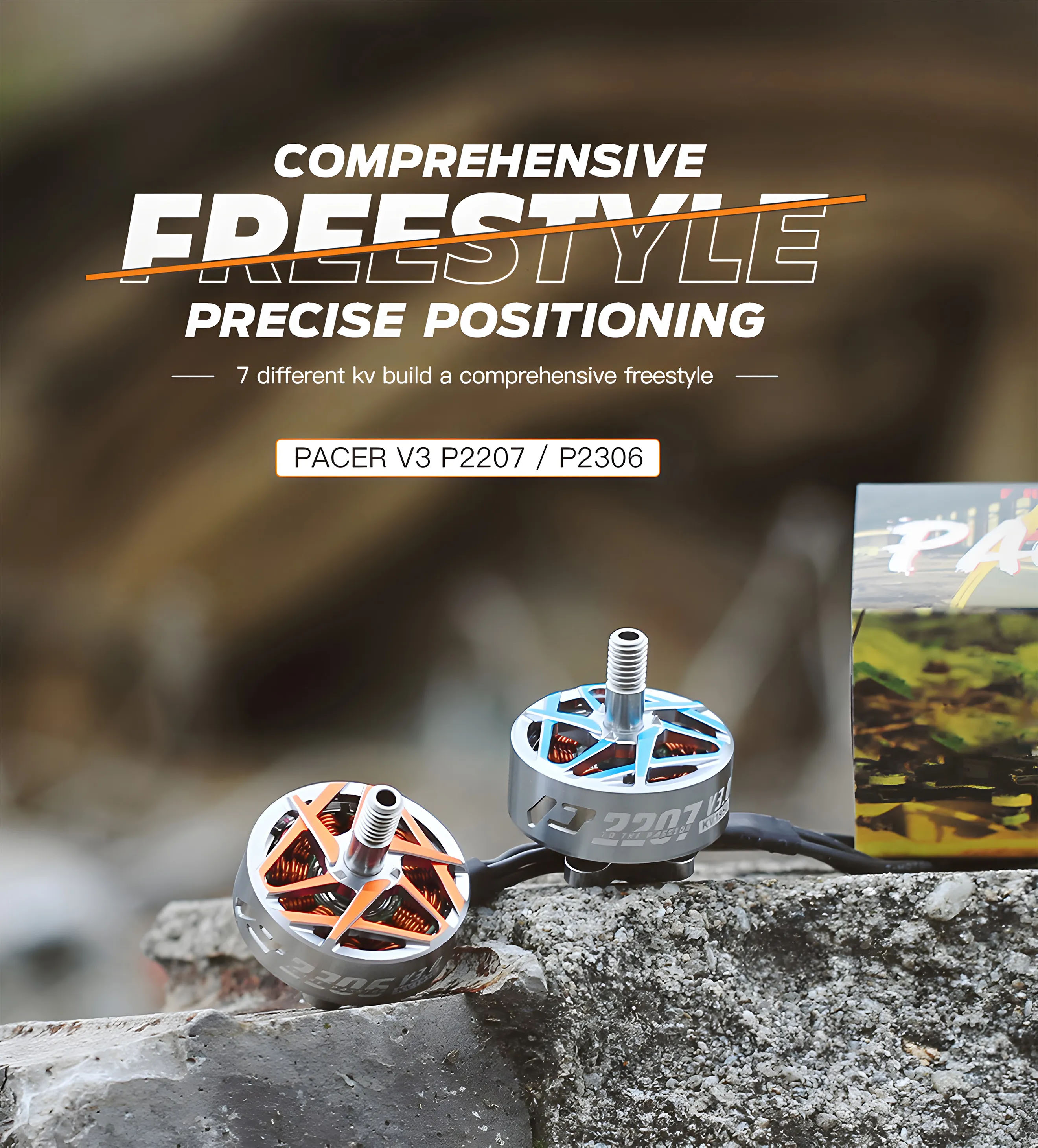

LIGPOWER has updated and upgraded their Pacer motor to V3! The 2207 version of the Pacer V3 has improved components and a unibell design to give your freestyle quadcopter extreme power.

This motor features a high throttle for precious control and is suitable when flying in bigger spaces!


P2207 V3 Hightlight:


The P2306 V3  brushless motor is suitable for 5" freestyle drone. 3 different KVs are suitable for different styles.

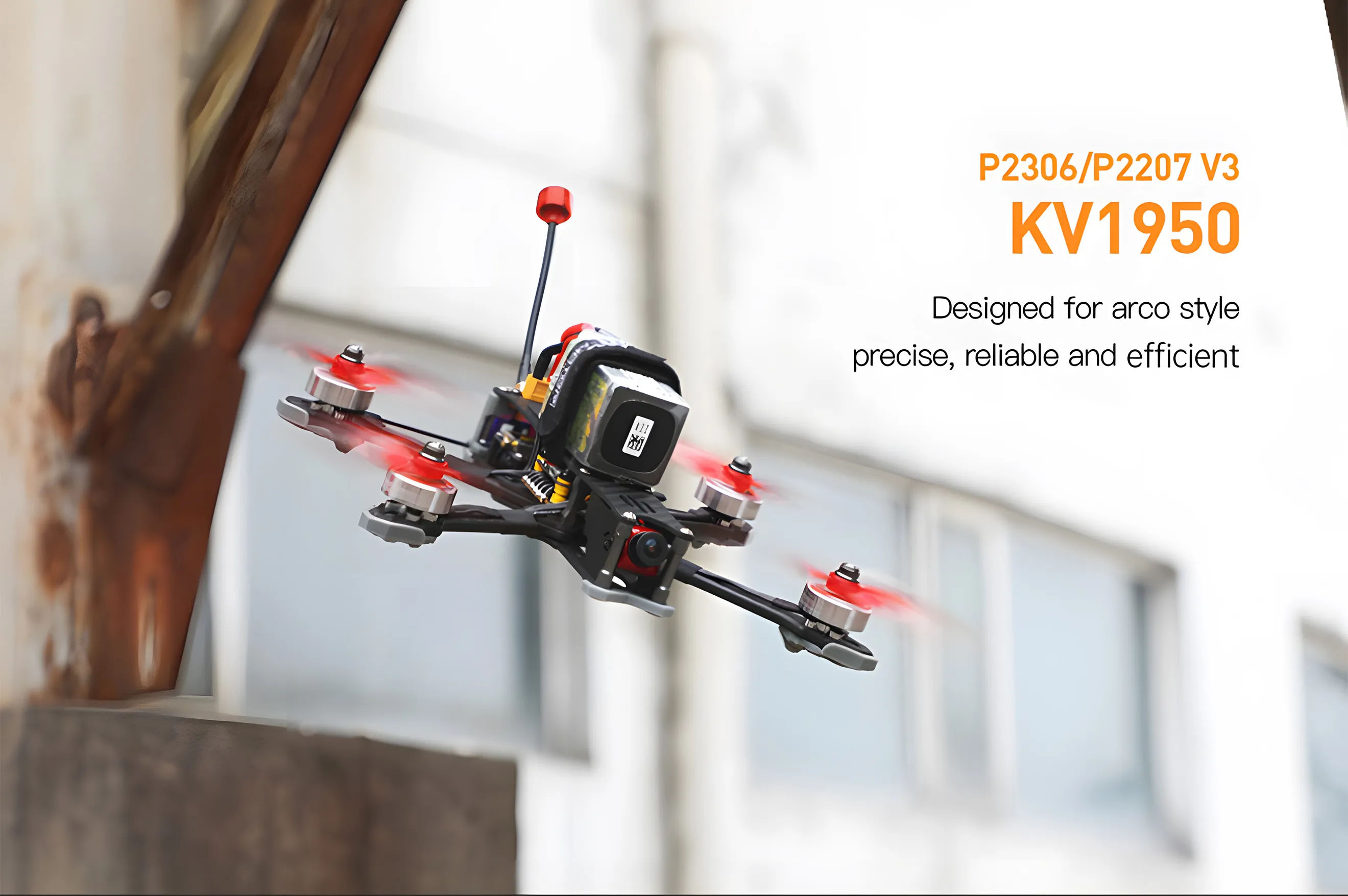

1750KV specially designed for flow style, more efficient. 1950KV is designed for acro style, precise and balance. For 4S we have 2550KV, satisfying the lightweight flight such as mind-bending.

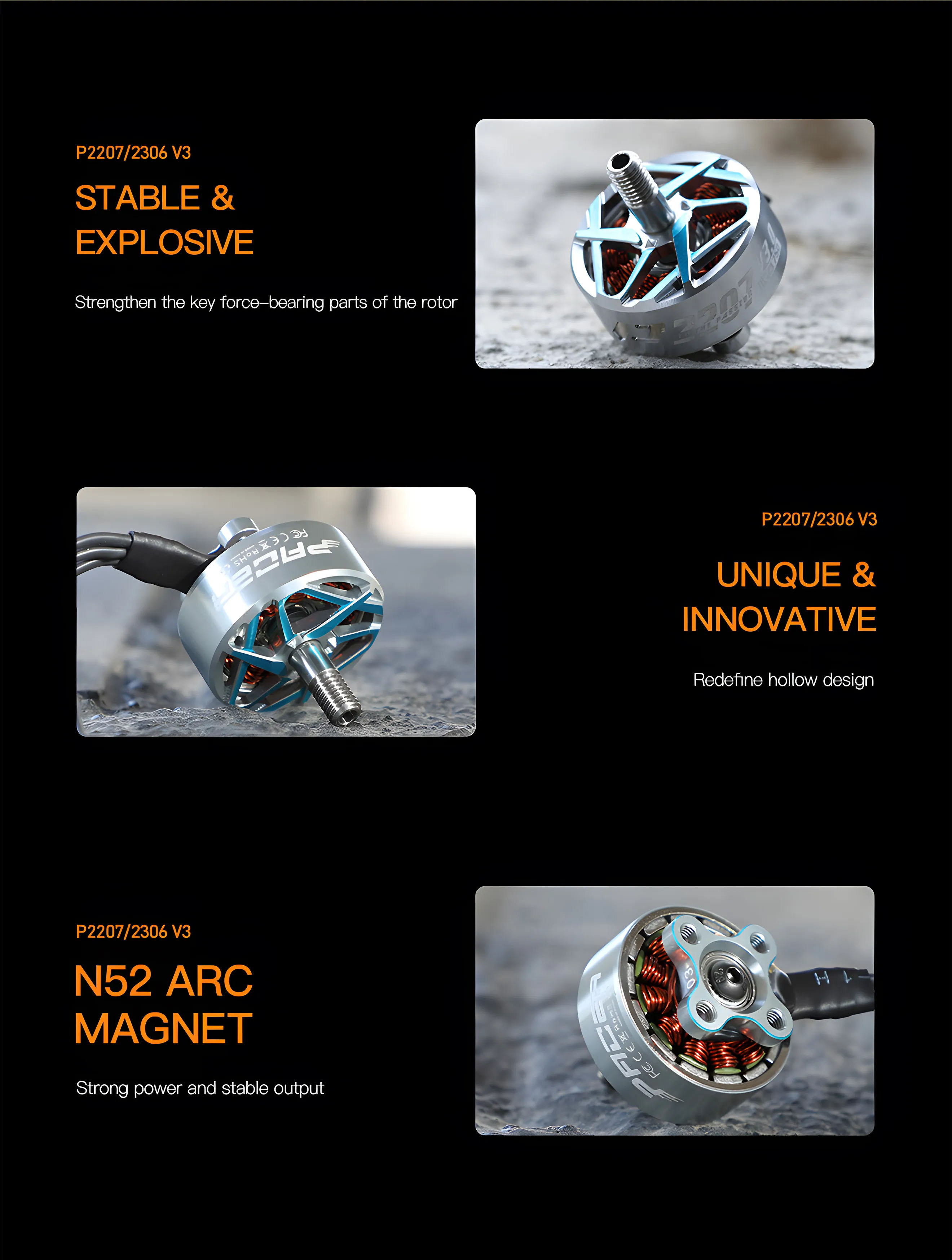

The motor is silver unibell design, more durable for daily flights.

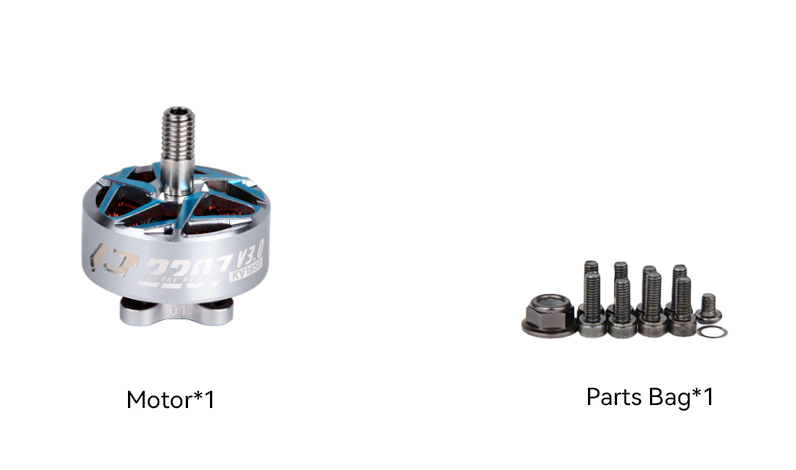

Packing List Includes:


1x LIGPOWER PACER V3 P2207 Powerful Freestyle Motor  (1750KV, 1950KV, 2080KV or 2550KV)

1x Hardware Set


Matching Frame:


5 Inch


Matching Guide:


F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller

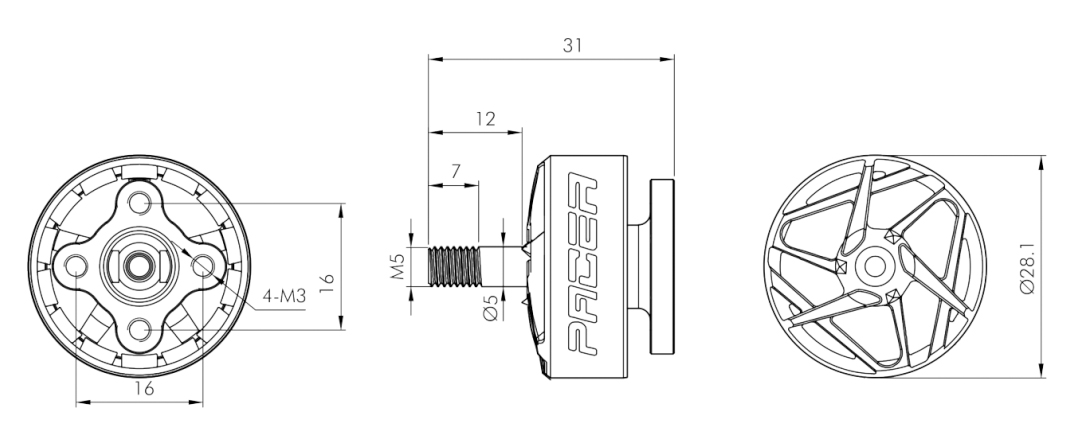

Technical Drawing

Specification
KVKV1750Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)34.2gVoltage6S
Idle Current（10V）1.2AMax. Power（60s）952W
Peak Current（60s）38.4A

KVKV1950Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)34.3gVoltage6S
Idle Current（10V）1.35AMax. Power（60s）1085W
Peak Current（60s）44A

KVKV2080Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)34.1gVoltage6S
Idle Current（10V）1.4AMax. Power（60s）1037W
Peak Current（60s）44A

KVKV2550Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)34.2gVoltage4S
Idle Current（10V）2.25AMax. Power（60s）713W
Peak Current（60s）43.6A

Test Data
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)
LIGPOWER
P49436-3		1750KV20%25.22.312566229.557.24.01
40%25.27.619159571.4192.42.97
60%25.114.023193853.4352.62.42
80%25.023.0280651283.6574.72.23
100%24.837.9324481696.9940.11.80
1950KV20%25.22.613110259.366.03.93
40%25.29.219960634.4230.52.75
60%25.116.924042928.1423.92.19
80%24.928.1289761378.8700.41.97
100%24.843.8330111760.11084.51.62
2080KV20%23.02.512504227.957.93.94
40%23.08.819131581.0201.12.89
60%22.916.123133844.3367.62.30
80%22.826.0277941256.0590.42.13
100%22.641.9319011628.4945.11.72
2550KV20%16.82.911241177.148.83.63
40%16.79.217463466.6153.53.04
60%16.616.521322714.3273.92.61
80%16.526.7252141013.4440.42.30
100%16.342.9293491392.1700.01.99

LIGPOWER
T5143S-3

1750KV20%25.22.412280223.859.73.75
40%25.27.718796566.2192.52.94
60%25.114.422865849.7361.62.35
80%25.023.5277071285.7586.82.19
100%24.838.4318691677.2952.81.76
1950KV20%25.22.712850249.867.33.71
40%25.29.319765618.9232.92.66
60%25.116.824072928.4421.92.20
80%24.928.3291571376.3704.31.95
100%24.745.1334671815.31115.91.63
2080KV20%24.02.712505233.463.83.66
40%23.99.419243592.1224.82.63
60%23.817.523263872.3417.32.09
80%23.728.0280861320.6665.01.99
100%23.544.0317541668.31036.21.61
2550KV20%16.83.011071176.149.73.54
40%16.79.317098470.2156.03.01
60%16.616.721031696.3277.92.51
80%16.527.4248711026.7453.22.27
100%16.343.7289441372.5713.01.93

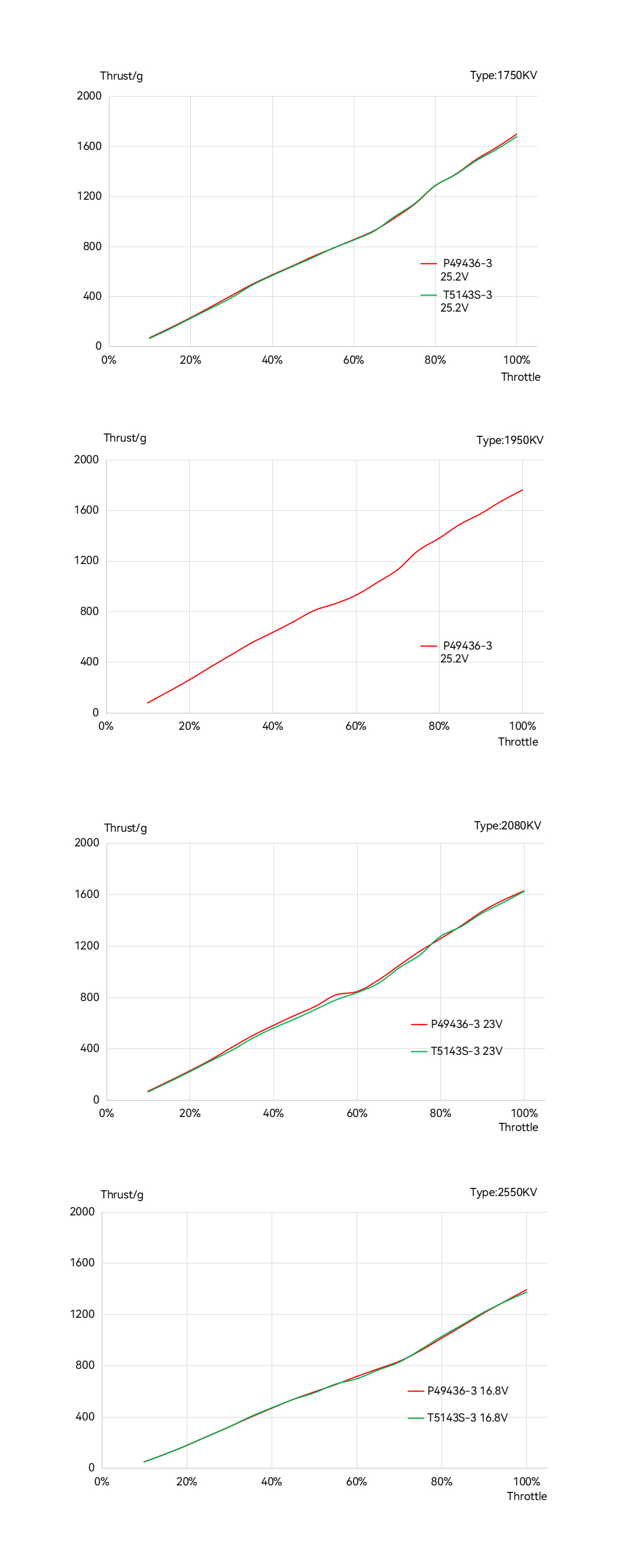

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
