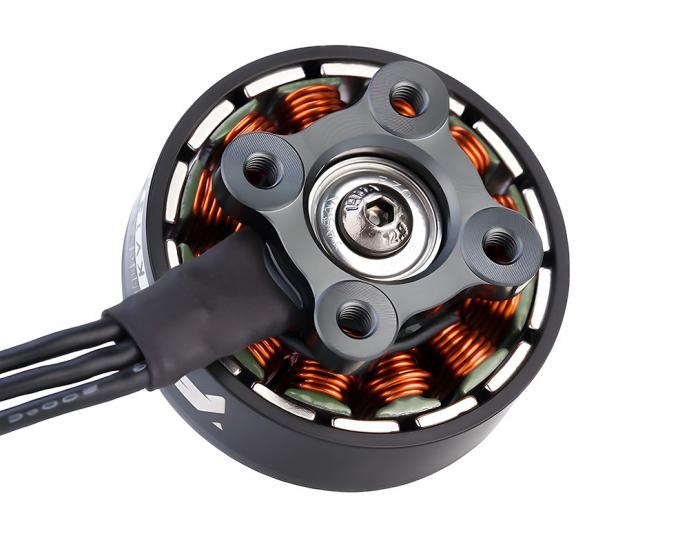

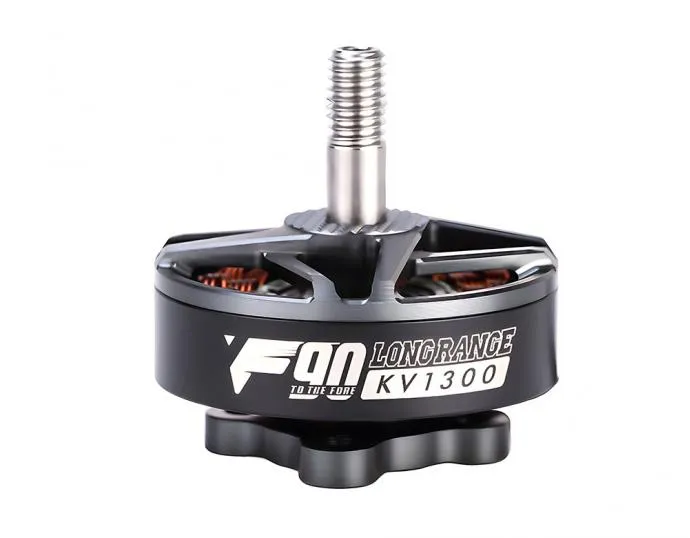

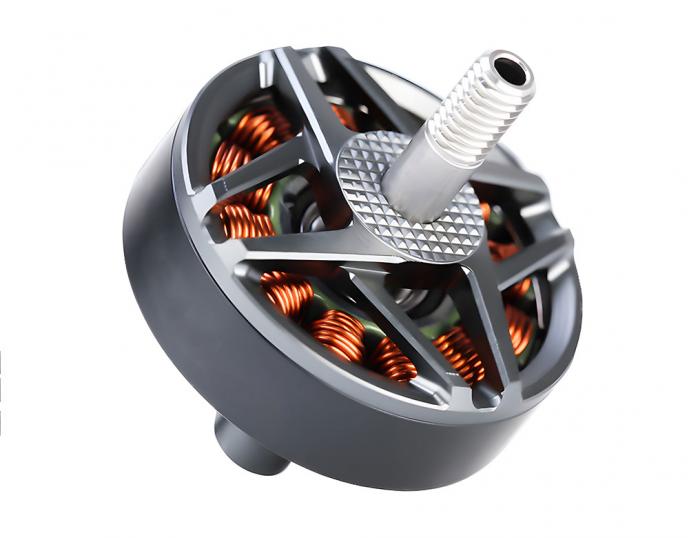

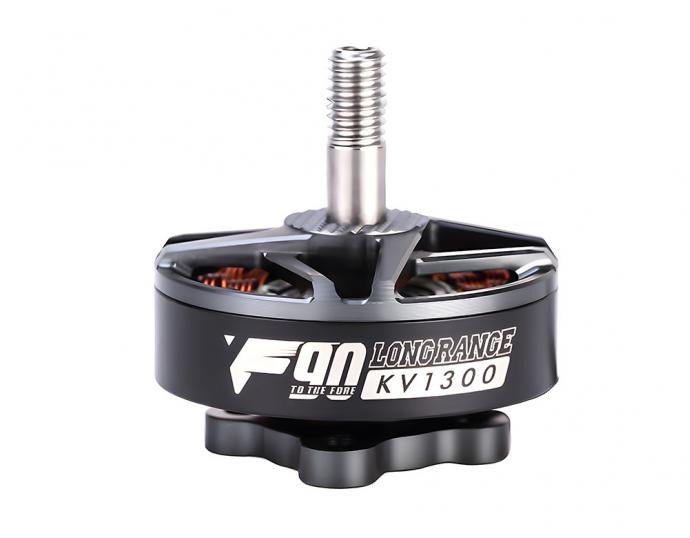

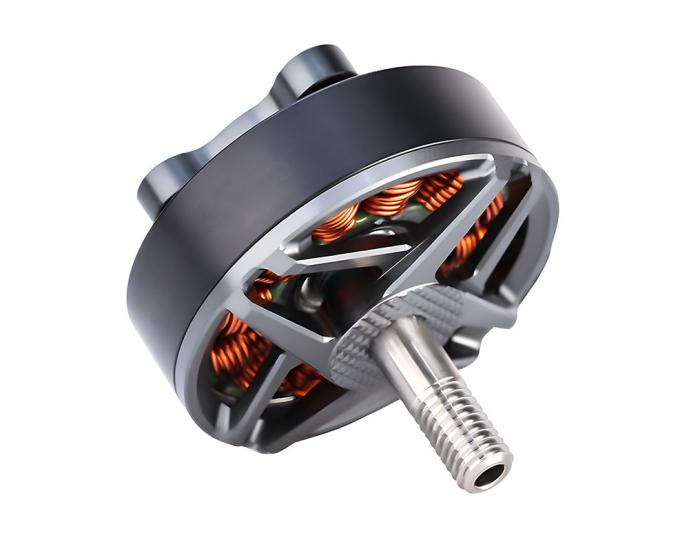

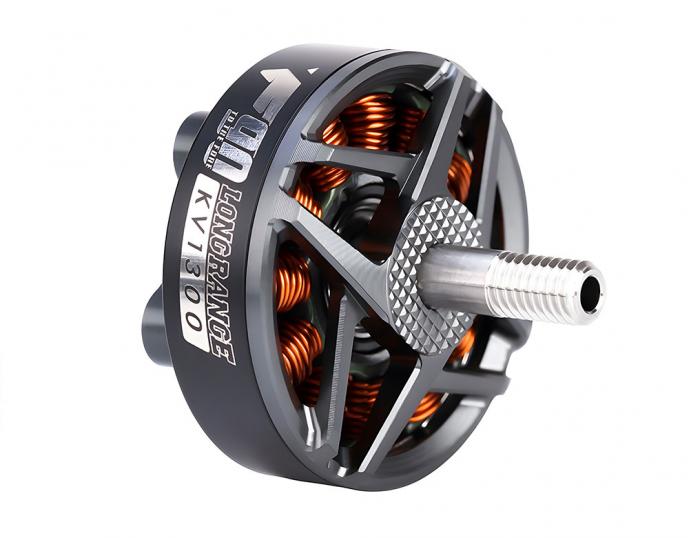

Name: T-HOBBY F90 2806.5 Long Range Motor 5-6S KV1300/KV1500/KV1950
Brand: LIGPOWER
SKU: LIGPOWER001587
Price: 29.90 USD
Availability: InStock

T-HOBBY F90 2806.5 Long Range Motor 5-6S KV1300/KV1500/KV1950

29.90

Available points: 1500 Points Points reward: 29 Points

1. Special for freestyle/long range/cinematic fpv drones
2. Perfect for 6''7'' fpv drones

Parameter：

KV1300
KV1500
KV1950

Quantity：

29.90

Free Shipping by DHL/UPS Express

Relevant Products

Detail information
Specifications

About T-HOBBY F90 2806.5 6-7 Inch Long Range/Cinematic Motor

Get a longer flight time with the T-HOBBY F90 Motor! This motor is designed for Cinelifter X8 FPV builds or similar style builds meant to carry a heavy camera.

The F90 is a stable and smooth motor that comes in three KV's:1300KV, 1500KV, and 1950KV.

F80 PRO Hightlight:

The F90 long-range motor is specially designed for the cinematic X8 drones and can be equipped with a high-definition camera.

It is suitable for 6-7-inch lightweight cinematic X8 drones and 7-inch long-range drones. The model is 2806.5, and there are three KVs to choose from, KV1500, KV1300, and KV1950.

Packing List Includes:

1x T-HOBBY F90 Motor - KV Optional

1x Parts Bag

Matching Frame:

6-7 Inch

Matching Guide:

F7 flight controller /F7 pro flight controller

F55A Pro II 6s 4in1 ESC

Technical Drawing

Specification Export to Excel

Test Item	KV1300	Weight(Incl.Cable)	46.6g
Motor Dimensions	Φ33.4*34.7mm	Internal Resistance	76mΩ
Lead	20#AWG 230mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	0.95A	Peak Current(60s)	45.1A
Max.Power(60s)	1059W

Test Item	KV1500	Weight(Incl.Cable)	46.7g
Motor Dimensions	Φ33.4*34.7mm	Internal Resistance	62mΩ
Lead	20#AWG 230mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	1.2A	Peak Current(60s)	47.4A
Max.Power(60s)	1089W

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F90 KV1300	HQ 70403	30%	353.46	24.24	2.14	8192	51.97	6.80	96 (Ambient Temperature: 27℃)
		35%	478.74	24.22	3.31	9342	80.15	5.97
		40%	596.38	24.19	4.55	10488	110.13	5.42
		45%	758.30	24.15	6.71	11716	162.08	4.68
		50%	947.57	24.10	8.83	12801	212.90	4.45
		55%	1131.80	24.06	11.29	13891	271.71	4.17
		60%	1290.19	24.01	14.27	14807	342.61	3.77
		70%	1585.74	23.90	20.64	16402	493.17	3.22
		80%	1865.32	23.78	27.73	17739	659.40	2.83
		90%	2210.20	23.63	36.73	18865	867.82	2.55
		100%	2360.61	23.48	45.11	19617	1059.16	2.23
	GF 7042	30%	319.66	24.24	1.78	8506	43.23	7.39	93 (Ambient Temperature: 27℃)
		35%	433.50	24.22	2.62	9659	63.49	6.83
		40%	552.09	24.20	3.86	10772	93.35	5.91
		45%	697.52	24.18	5.22	12021	126.13	5.53
		50%	836.04	24.14	7.22	13240	174.32	4.80
		55%	988.93	24.10	9.24	14379	222.65	4.44
		60%	1196.60	24.04	12.15	15407	292.09	4.10
		70%	1474.19	23.95	18.25	17166	437.12	3.37
		80%	1783.25	23.83	24.52	18809	584.30	3.05
		90%	1969.91	23.71	32.06	20211	760.06	2.59
		100%	2116.55	23.54	41.26	21357	971.16	2.18
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F90 KV1500	HQ 70403	30%	447.12	23.94	2.95	8760	70.61	6.33	99 (Ambient Temperature: 27℃)
		35%	581.32	23.91	4.53	9949	108.27	5.37
		40%	733.34	23.87	6.60	11267	157.59	4.65
		45%	877.50	23.81	9.04	12483	215.20	4.08
		50%	1033.22	23.75	11.85	13538	281.36	3.67
		55%	1187.19	23.69	15.00	14445	355.32	3.34
		60%	1361.51	23.61	18.65	15178	440.22	3.09
		70%	1640.76	23.45	25.42	16570	596.07	2.75
		80%	1793.87	23.30	34.52	17025	804.19	2.23
		90%	1983.76	23.14	39.54	18122	915.13	2.17
		100%	2102.78	23.01	47.37	18501	1089.99	1.93
	GF 7042	30%	432.05	23.95	2.76	8506	66.05	6.54	96 (Ambient Temperature: 27℃)
		35%	549.31	23.93	4.04	9659	96.69	5.68
		40%	699.29	23.89	5.96	10772	142.38	4.91
		45%	839.58	23.84	8.11	12021	193.25	4.34
		50%	980.00	23.79	10.62	13240	252.74	3.88
		55%	1134.08	23.73	13.56	14379	321.86	3.52
		60%	1293.48	23.65	16.53	15407	391.06	3.31
		70%	1475.60	23.47	26.05	17166	611.47	2.41
		80%	1642.99	23.32	31.12	18809	725.79	2.26
		90%	1765.77	23.16	39.27	20211	909.44	1.94
		100%	1840.71	23.02	47.07	21357	1083.74	1.70
	T6143	30%	280.07	23.98	1.84	9810	44.17	6.34	97 (Ambient Temperature: 27℃)
		35%	378.01	23.96	2.86	11345	68.63	5.51
		40%	489.09	23.93	4.14	12852	99.07	4.94
		45%	596.88	23.91	5.58	14198	133.44	4.47
		50%	686.68	23.88	7.01	15518	167.43	4.10
		55%	811.55	23.84	8.86	16693	211.08	3.84
		60%	930.00	23.80	10.95	17812	260.63	3.57
		70%	1185.39	23.70	15.83	19986	375.13	3.16
		80%	1451.51	23.59	21.60	21879	509.59	2.85
		90%	1708.33	23.46	28.24	23664	662.53	2.58
		100%	1961.04	23.32	35.73	25185	833.01	2.35
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F90 KV1950	GF51466-3 5S	30%	381.97	21.00	4.87	15006	102.31	3.73	81 (Ambient Temperature: 16℃)
		35%	460.38	20.98	6.32	16431	132.60	3.47
		40%	540.15	20.96	7.88	17729	165.13	3.21
		45%	614.83	20.94	9.46	18694	198.17	3.10
		50%	679.57	20.91	10.98	19742	229.66	2.96
		55%	758.97	20.91	12.59	20552	263.23	2.88
		60%	835.59	20.88	14.18	21552	296.20	2.82
		70%	1002.77	20.83	18.39	23517	383.13	2.62
		80%	1231.68	20.76	24.02	25691	498.64	2.47
		90%	1518.36	20.66	32.03	28418	661.55	2.30
		100%	1784.09	20.54	41.56	30594	853.46	2.09
	T6143-3 5S	30%	470.80	20.97	5.45	12345	114.38	4.12	88 (Ambient Temperature: 16℃)
		35%	556.57	20.96	6.66	13493	139.62	3.99
		40%	649.36	20.93	8.28	14368	173.36	3.75
		45%	743.71	20.92	10.05	15644	210.16	3.54
		50%	847.35	20.88	12.54	16697	261.87	3.24
		55%	967.26	20.85	14.82	17801	309.00	3.13
		60%	1094.46	20.81	18.45	18771	383.92	2.85
		70%	1369.87	20.71	25.62	21001	530.70	2.58
		80%	1631.36	20.61	33.87	22618	698.02	2.34
		90%	1947.18	20.49	43.76	24810	896.41	2.17
		100%	2136.75	20.15	54.06	26217	1089.02	1.96
	GF51466-3 6S	30%	511.25	25.22	6.19	17140	156.22	3.27	93 (Ambient Temperature: 16℃)
		35%	605.24	25.18	8.01	18627	201.67	3.00
		40%	694.10	25.17	9.95	19888	250.45	2.77
		45%	791.86	25.16	11.86	21186	298.38	2.65
		50%	888.81	25.12	13.85	22321	347.94	2.55
		55%	967.94	25.09	16.02	23239	401.98	2.41
		60%	1057.16	25.07	17.38	24238	435.63	2.43
		70%	1326.45	25.01	23.23	26896	587.02	2.28
		80%	1625.05	24.88	31.72	29478	789.12	2.06
		90%	1858.36	24.75	41.93	32422	1037.97	1.79
		100%	2075.42	24.26	53.66	34173	1301.95	1.59
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
