Name: T-HOBBY P2505 5" FPV freestyle Drone Motor KV1850
Brand: LIGPOWER
SKU: ligpower001198
Price: 24.90 USD
Availability: InStock

T-HOBBY P2505 5" FPV freestyle Drone Motor KV1850

24.90

Available points: 1200 Points Points reward: 24 Points

1.Smooth
2.Lightweight
3.Higher Efficiency
4.Weights only 31.25g
5.Made with high-quality material like N54 magnet
6.Unique hollow-carved design

KV：

KV1850

Quantity：

24.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY P49436 2pairs/bag

$3.19
T-HOBBY P60A V2 3-6S 4in1 128K ESC 30.5x30.5

$99.9
T-HOBBY Pacer G4 Alpha HD FC

$99.9

Detail information
Specifications
Download

About T-HOBBY P25056 5"Freestyle FPV Drone Motor

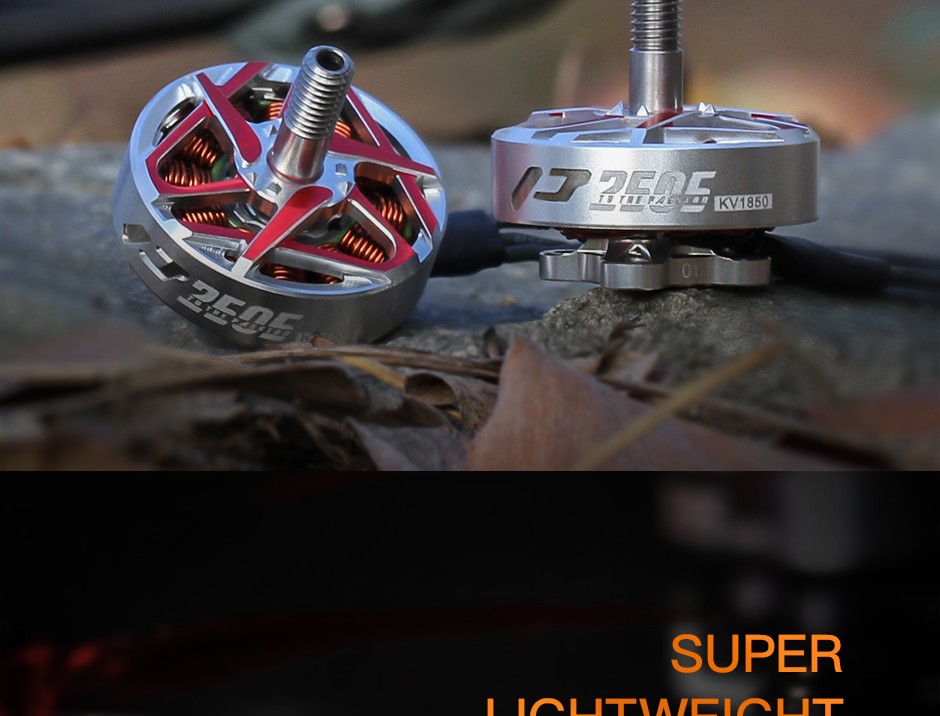

The T-HOBBY P2505 1850KV motor is a responsive, smooth, and super lightweight motor that only weighs 31.25g!

Made with high-quality components like an N54 magnets for better performance and a unique hollow-carved design to bring you smooth flying!

P2505 Hightlight:

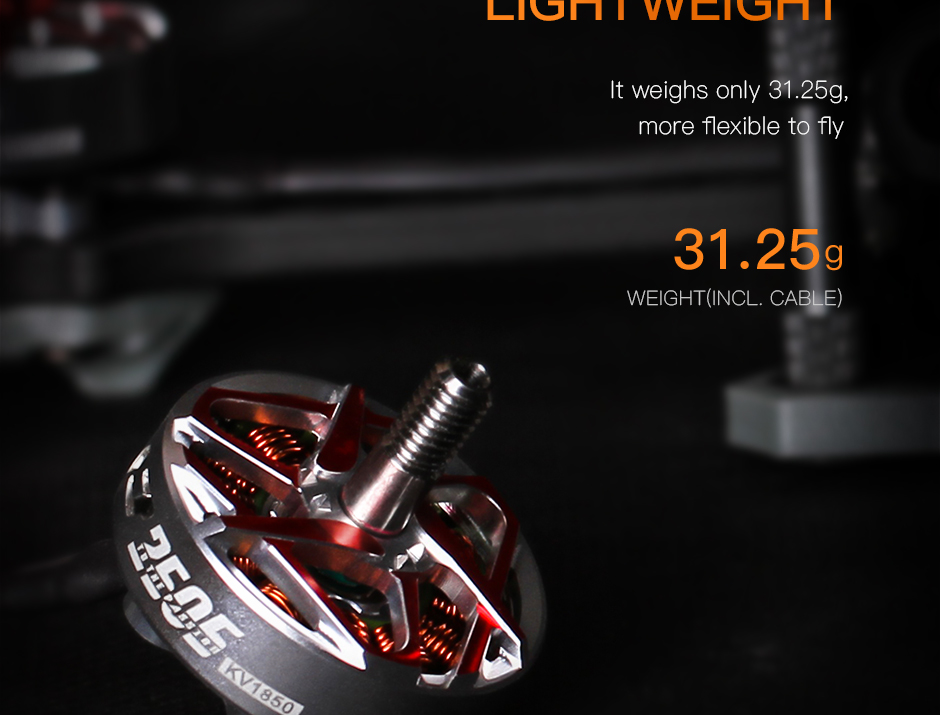

The Pacer 2505 brushless motor is suitable for 5" heavy, 6" freestyle and mid-range drones. Super lightweight, only 31.25g(Incl. cable).

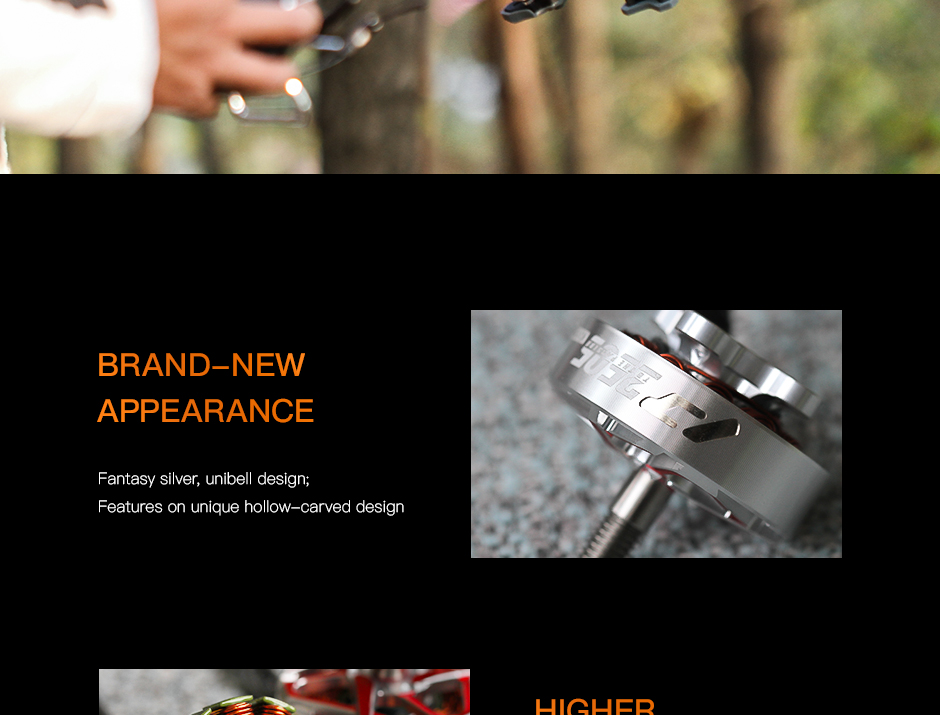

More precise lock and stronger control of flight attitude, perfect for flow and juicy styles. Continuation of the Pacer series sliver unibell design, which is more durable.

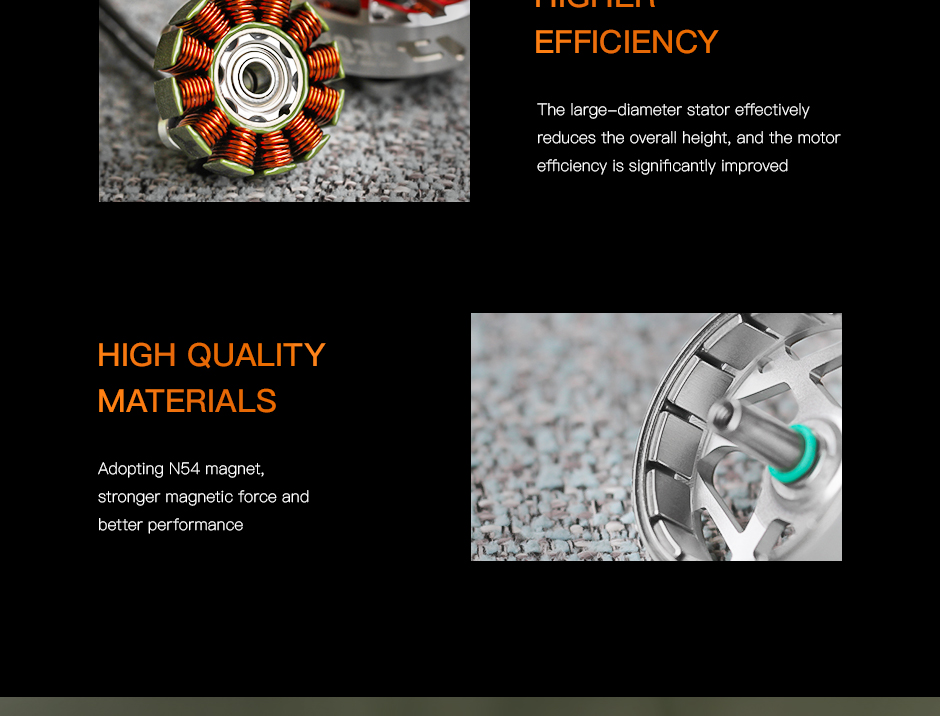

The large diameter stator effectively reduces the overall height, and the motor efficiency is significantly improved.

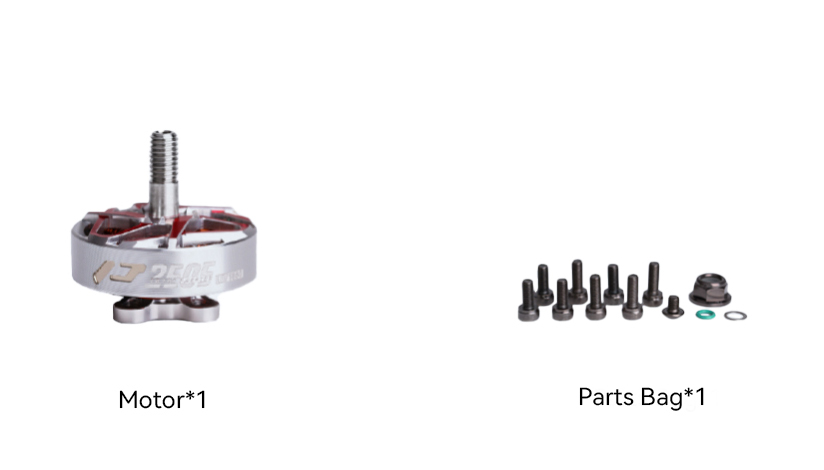

Packing List Includes:

1 x T-HOBBY P2505 1850KV Motor - Pale Rose

1 x Pack of screws

Matching Frame:

5 Inch

Matching Guide:

F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller

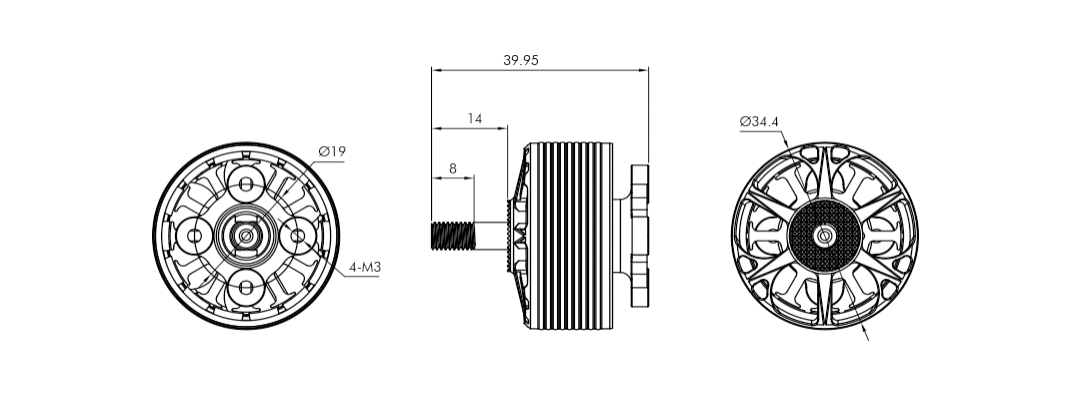

Technical Drawing

Specification

Test Item	KV1850	Weight(Incl. Cable)	31.25g
Motor Dimensions	Φ30.4*28.8mm	Internal Resistance	69mΩ
Lead	20#AWG150mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	1.1A	Peak Current(60s)	47A
Max. Power（60S）	1217W

Test Data

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
P2505 KV1850	GF 7040-3	30%	209.56	16.86	1.99	7754	33.60	6.24	18 (Ambient Temperature: 16℃)
		40%	369.48	16.82	4.11	9871	69.03	5.35
		50%	560.13	16.75	7.43	11879	124.47	4.50
		60%	763.99	16.67	11.88	13651	198.09	3.86
		70%	950.19	16.57	16.98	15018	281.48	3.38
		80%	1118.30	16.48	22.26	16142	366.78	3.05
		90%	1263.19	16.36	28.54	17027	466.75	2.71
		100%	1384.39	16.22	35.09	17658	569.30	2.43
	T 6143-3	30%	155.32	16.80	1.72	8214	28.84	5.39	77 (Ambient Temperature: 16℃)
		40%	268.51	16.77	3.32	10414	55.59	4.83
		50%	424.93	16.72	5.82	12673	97.29	4.37
		60%	582.62	16.66	9.02	14731	150.36	3.87
		70%	739.23	16.59	12.73	16457	211.27	3.50
		80%	893.59	16.51	16.98	17963	280.37	3.19
		90%	1047.42	16.42	21.87	19394	359.19	2.92
		100%	1192.77	16.31	27.69	20605	451.59	2.64
	T 5143-3	30%	176.84	21.08	1.72	10508	36.32	4.87	80 (Ambient Temperature: 16℃)
		40%	312.55	21.05	3.43	13695	72.12	4.33
		50%	472.04	21.00	5.82	16524	122.14	3.86
		60%	624.70	20.94	8.78	18985	183.99	3.40
		70%	815.36	20.87	12.77	21493	266.40	3.06
		80%	992.00	20.78	17.36	23644	360.70	2.75
		90%	1153.74	20.69	22.16	25396	458.31	2.52
		100%	1330.36	20.57	28.29	27116	581.81	2.29
	T 6143-3	30%	235.22	20.93	2.29	9761	47.90	4.91	85 (Ambient Temperature: 16℃)
		40%	414.90	20.89	4.68	12575	97.72	4.25
		50%	627.73	20.82	8.16	15152	169.99	3.69
		60%	811.23	20.73	12.83	17233	266.07	3.05
		70%	1007.51	20.65	17.34	19048	357.98	2.81
		80%	1211.66	20.54	22.90	20718	470.42	2.58
		90%	1364.10	20.43	28.96	21934	591.62	2.31
		100%	1511.72	20.29	36.10	23013	732.64	2.06
	T 5143-3	30%	256.33	25.25	2.30	12370	57.96	4.42	95 (Ambient Temperature: 16℃)
		40%	438.83	25.21	4.53	15953	114.13	3.85
		50%	639.18	25.15	7.70	19210	193.67	3.30
		60%	870.18	25.06	12.11	22050	303.52	2.87
		70%	1093.04	24.96	17.29	24636	431.64	2.53
		80%	1278.38	24.86	22.82	26677	567.30	2.25
		90%	1595.62	24.60	36.01	30171	885.72	1.80
		100%	1912.61	25.36	47.02	30610	1192.22	1.60
	T 6143-3	30%	341.60	25.14	3.04	11322	76.42	4.47	87 (Ambient Temperature: 16℃)
		40%	581.43	25.07	6.38	14672	160.09	3.63
		50%	809.11	24.95	13.13	17007	327.59	2.47
		60%	993.79	24.84	18.89	18996	469.18	2.12
		70%	1236.59	24.79	21.34	21068	529.02	2.34
		80%	1463.84	24.66	28.37	22581	699.51	2.09
		90%	1550.32	24.54	34.50	23358	846.74	1.83
		100%	1627.58	24.41	41.60	23794	1015.29	1.60
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.

LIGPOWER-P2505.zip
