Name: T-MOTOR TF15*8 Glider&UAV Carbon Propeller
Brand: LIGPOWER
SKU: AGJ03010004
Price: 10.90 USD
Availability: InStock

T-MOTOR TF15*8 Glider&UAV Carbon Propeller

10.90

Available points: 500 Points Points reward: 10 Points

• Recommendation of motor and ESC
• Prop size 15*8 with AT3530-4120 and 60-80A ESC
• Prop size 16*8 with AT4120-4130 and 80-100A ESC

Blades：

Spinner
15*8 Blades
15*8 Blades+Spinner

Quantity：

10.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-MOTOR TF15*8 Glider&UAV Carbon Propeller

TF15*8 is a carbon fiber polymer folding paddle for glider, UAV or fixed wing. It can be used for power inspection, weather monitoring, pipeline inspection and measurement and mapping.

TF15*8 Highlights:

1.Special heat-insulating layer is attached to the blade surface, featuring high shading and high temperature resistance.

2.A polymer material specially developed for fixed-wing paddle series. The abrasion resistance of the paddle surface is increased by 1.5 times, and the strength of the blade is increased by 2 times.

3.The wing shape and blade shape of the paddle are optimized by CFD, and the performance of the paddle is significantly improved in terms of maximum pulling force and force efficiency.

Packing List Includes:

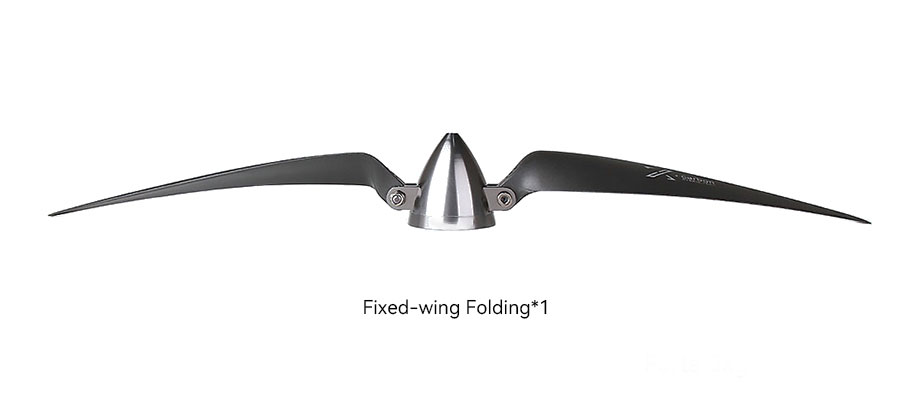

1x T-MOTOR TF15*8 Carbon Propeller

Matching Guide:

AT4120 Motor / AT115A ESC

Ultra-thin rounded trailing edge, paddles with high shading, high temperature resistant features

High abrasion resistance and high paddle strength

CFD optimized design for improved pulling force and force efficiency

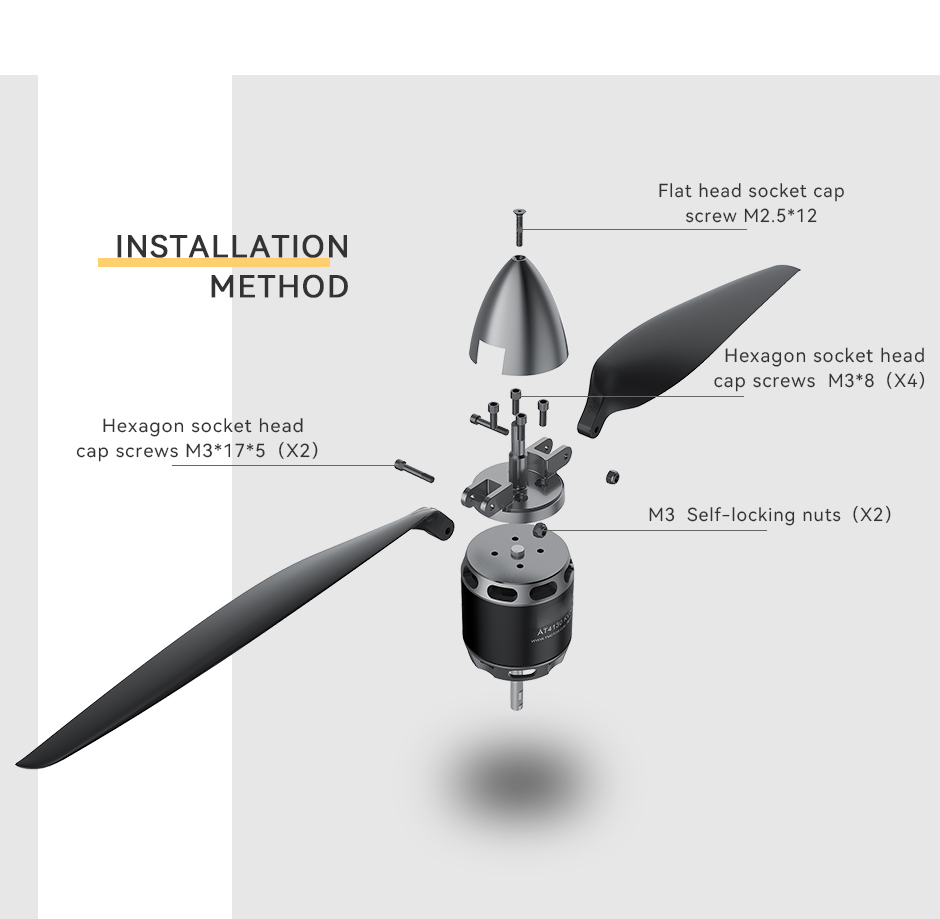

Installation method

multi-scenario application

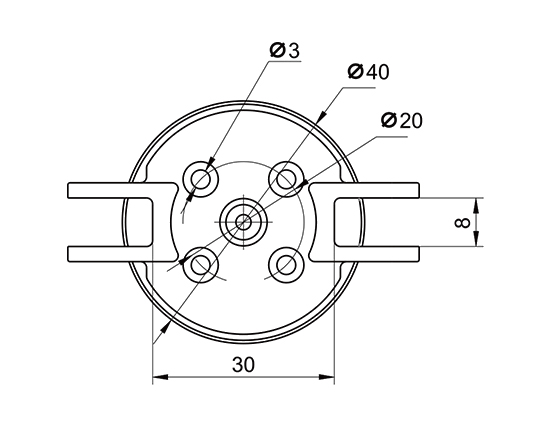

Technical Drawing


Specification Export to Excel

Model NO.	T15X8	T-MOTOR Series	Fixed-wing Folding
Weight (Single Blade)	10.9g	Package Weight	114.8g
Diameter	15inch(381mm)	Package Size	2169348mm
Pitch	8inch(203.2mm)	Material	Polymer+CF
Recommended Thrust/RPM	2～4.2kg/5600～8000RPM	Recommended Max Thrust/RPM	5.5kg/9000RPM
Ambient Temp	-40℃～65℃	Storage Temp/Humidity	-10℃～50℃/＜85%

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.

Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers.

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need

4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4).

6.For long time storage of over 6 months, please keep it in sealed preservation.
