Name: T-HOBBY V2306 V2.0 5"Freestyle/Racing FPV Motor 4-6S KV1950/KV2400
Brand: LIGPOWER
SKU: ligpower001106
Price: 13.99 USD
Availability: InStock

T-HOBBY V2306 V2.0 5"Freestyle/Racing FPV Motor 4-6S KV1950/KV2400

13.99

Available points: 700 Points Points reward: 13 Points

1.Suitable for 5 inch fpv drones
2.Great power
3.Smooth motor

Parameter：

KV1950
KV2400

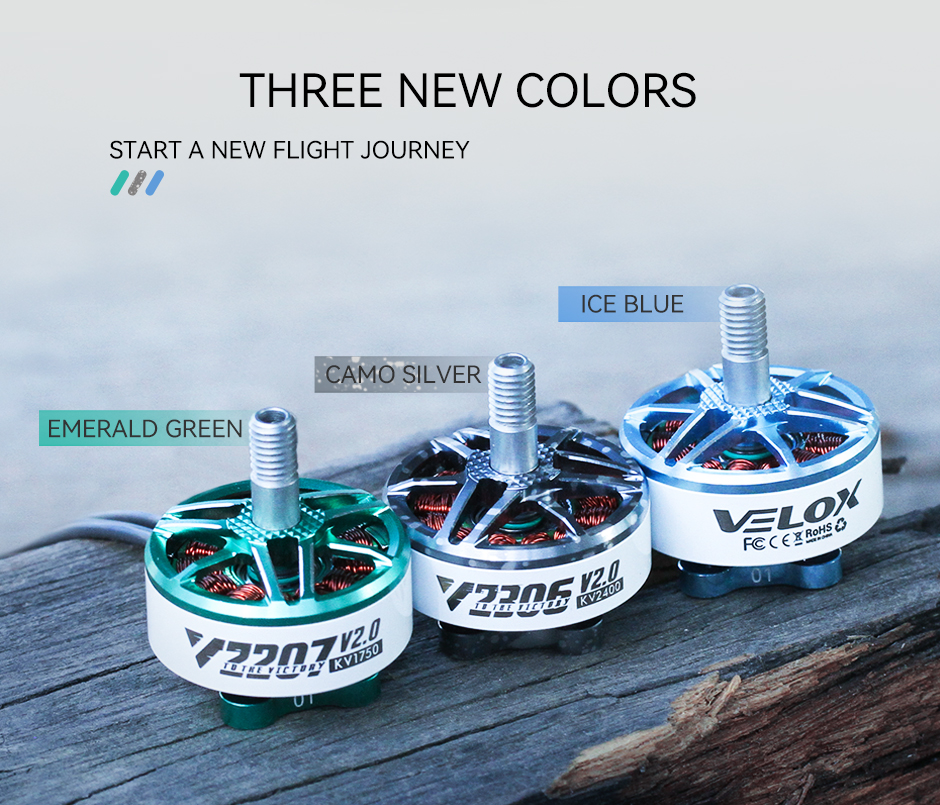

Color：

Camo silver

Quantity：

13.99

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY T5143S 2Pairs/bag

$3.19

Detail information
Specifications

About T-HOBBY Velox V2306 V2.0 Racing&freestyle FPV Motor

The velox series is budget and economical series which is better choice for FPV beginners, designed to allow pilots to break through themselves and enjoy the fun of fpv.

The V2306 V2 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game!

Great for freestyle and racing!

Velox V2306 V2.0 Hightlight:

The VELOX V2 motor is suitable for 5-inch FPV drone, especially suitable for freestyle and racing.

The explosion resistance of the motor has been improved, allowing pilots to easily cope with extreme flying movements and enjoy speed and passion on the field.

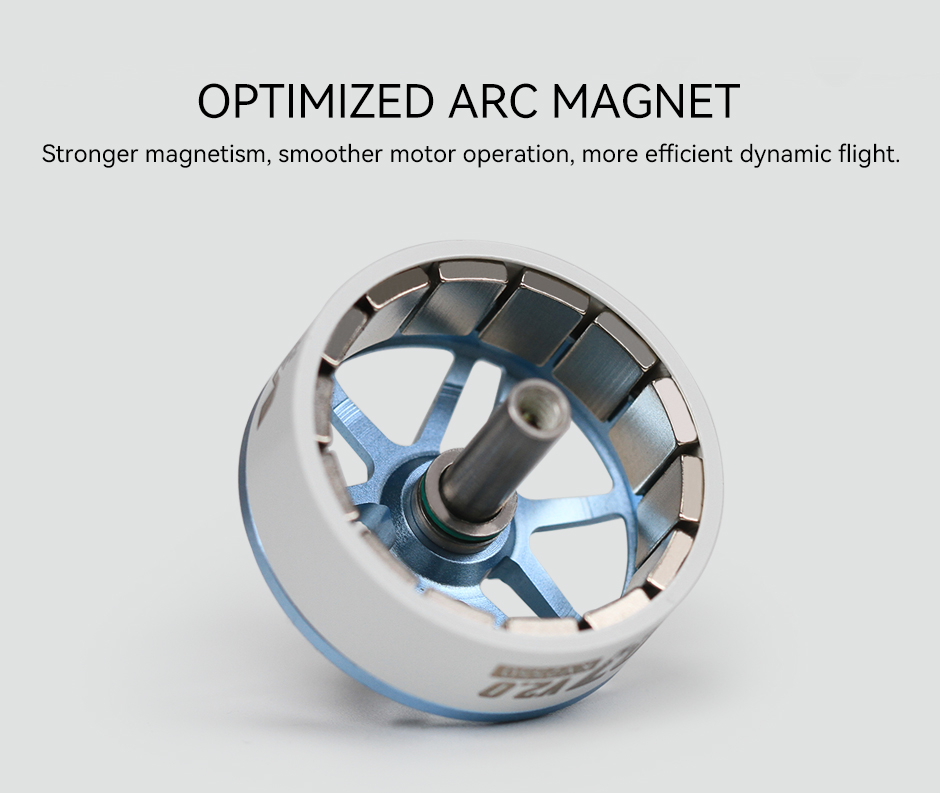

The curved magnet is optimized for stronger magnetism, smoother motor operation, and more efficient dynamic flight.

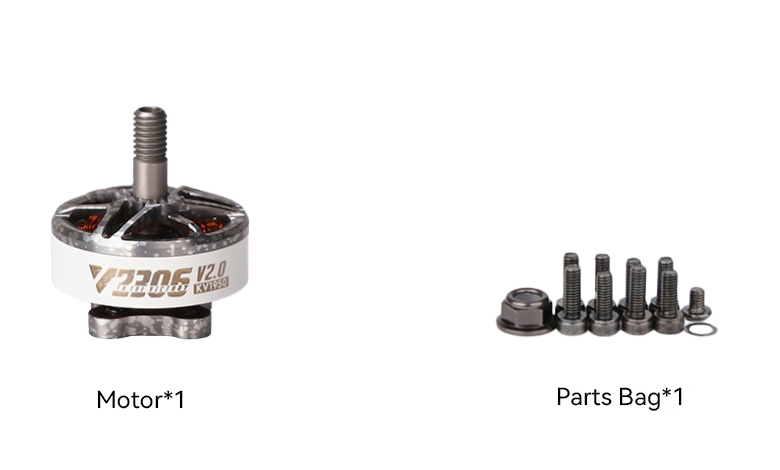

Packing List Includes:

1x T-HOBBY VELOX V2306 V2.0 Motor (Choose KV)

1x Hardware Set

Matching Frame:

5 Inch

Matching Guide:

F7 Flight controller / Pacer F7 Flight controller

F55A Pro II 6S 4IN1 ESC

P49436 FPV Drone propeller / T5143s FPV Drone propeller

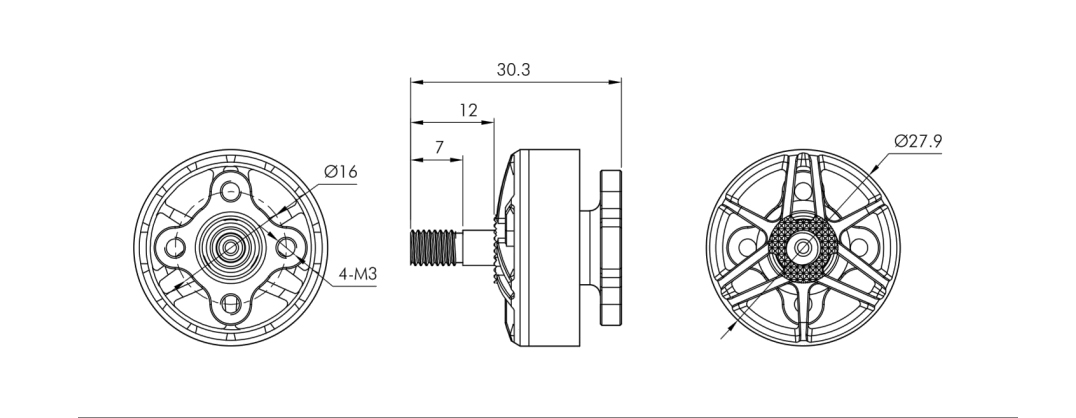

Technical Drawing

Specification Export to Excel

Test Item	1950	Configuration	12N14P
Internal Resistance	64mΩ	Motor Dimensions	ø27.9*30.3mm
Shaft Diameter	4mm	Lead	20#150mm
Weight(Incl.Cable)	32g	Weight(Excl.Cable)	28.2g
Rated Voltage(Lipo)	5-6S	Idle Current(10V)	1.35A
Max.Power(60s)	850W	Peak Current(60s)	38.1A

Test Item	2400	Configuration	12N14P
Internal Resistance	49mΩ	Motor Dimensions	ø27.9*30.3mm
Shaft Diameter	4mm	Lead	20#150mm
Weight(Incl.Cable)	32g	Weight(Excl.Cable)	28.2g
Rated Voltage(Lipo)	4S	Idle Current(10V)	1.85A
Max.Power(60s)	494W	Peak Current(60s)	34.1A

Test Data Export to Excel

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
V2306 V2 KV1950	T5143S	50%	533.88	23.76	7.85	18791	186.44	2.86	89 (Ambient Temperature:25℃)
		55%	615.65	23.65	9.60	20113	227.13	2.71
		60%	721.05	23.55	11.95	21729	281.53	2.56
		65%	825.15	23.47	14.38	23096	337.53	2.44
		70%	919.54	23.38	17.01	24537	397.71	2.31
		75%	1021.85	23.26	19.73	25583	458.91	2.23
		80%	1110.25	23.14	22.42	26725	518.96	2.14
		85%	1208.75	23.02	25.25	27895	581.29	2.08
		90%	1305.38	22.87	28.51	28947	651.99	2.00
		95%	1369.33	22.68	31.88	29677	723.14	1.89
		100%	1485.74	22.51	34.85	30624	784.40	1.89
	T5146	50%	616.60	23.75	8.50	18266	201.76	3.06	93 (Ambient Temperature:25℃)
		55%	722.62	23.67	10.59	19637	250.72	2.88
		60%	835.76	23.55	13.00	21138	306.03	2.73
		65%	957.14	23.42	15.74	22419	368.80	2.60
		70%	1073.92	23.31	18.77	23672	437.64	2.45
		75%	1172.42	23.20	21.63	24803	501.71	2.34
		80%	1262.19	23.07	24.70	25872	569.78	2.22
		85%	1351.60	22.96	27.23	26661	625.11	2.16
		90%	1454.35	22.77	30.78	27623	700.83	2.08
		95%	1479.07	22.56	34.34	28330	774.67	1.91
		100%	1587.53	22.37	36.78	29002	822.80	1.93
	T5147	50%	621.84	23.73	8.87	18082	210.34	2.96	98 (Ambient Temperature:25℃)
		55%	725.17	23.64	11.05	19318	261.20	2.78
		60%	833.90	23.51	13.42	20730	315.43	2.64
		65%	955.95	23.39	16.30	22182	381.22	2.51
		70%	1076.98	23.27	19.36	23396	450.49	2.39
		75%	1189.15	23.15	22.49	24445	520.81	2.28
		80%	1277.95	23.03	25.57	25423	588.85	2.17
		85%	1368.04	22.90	28.36	26134	649.47	2.11
		90%	1472.39	22.72	31.67	26945	719.45	2.05
		95%	1550.63	22.50	35.40	27712	796.77	1.95
		100%	1636.53	22.30	37.98	28091	846.97	1.93
	T5150	50%	628.08	23.75	8.77	18155	208.19	3.02	101 (Ambient Temperature:25℃)
		55%	729.41	23.66	10.95	19471	259.03	2.82
		60%	845.26	23.57	13.48	20898	317.63	2.66
		65%	972.00	23.41	16.45	22235	385.09	2.52
		70%	1084.13	23.29	19.29	23425	449.31	2.41
		75%	1189.73	23.17	22.39	24521	518.68	2.29
		80%	1298.24	23.02	25.65	25427	590.35	2.20
		85%	1378.26	22.89	28.32	26173	648.32	2.13
		90%	1477.09	22.71	31.64	26949	718.68	2.06
		95%	1542.95	22.50	35.39	27688	796.30	1.94
		100%	1656.31	22.31	38.10	28284	849.84	1.95
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
V2306 V2 KV2400	T5143S	50%	390.06	15.80	7.07	16363	111.65	3.49	94 (Ambient Temperature:19℃)
		55%	462.78	15.73	9.08	17656	142.83	3.24
		60%	528.16	15.66	10.87	18834	170.18	3.10
		65%	594.33	15.59	12.82	19907	199.79	2.97
		70%	670.27	15.53	15.21	21130	236.29	2.84
		75%	739.42	15.35	17.49	21963	268.42	2.75
		80%	805.43	15.21	20.06	23011	305.13	2.64
		85%	867.32	15.10	22.70	23849	342.78	2.53
		90%	939.44	15.00	24.83	24501	372.59	2.52
		95%	998.49	14.84	27.10	25213	402.27	2.48
		100%	1083.73	14.70	30.12	26144	442.66	2.45
	T5146	50%	456.13	15.69	7.32	15824	114.88	3.97	98 (Ambient Temperature:19℃)
		55%	535.98	15.59	9.85	17117	153.57	3.49
		60%	616.86	15.51	11.93	18154	185.08	3.33
		65%	692.03	15.43	14.12	19227	217.88	3.18
		70%	770.17	15.35	16.48	20188	252.94	3.04
		75%	848.08	15.26	19.13	21318	291.90	2.91
		80%	920.50	15.15	21.85	22262	331.00	2.78
		85%	995.22	15.03	24.40	22965	366.78	2.71
		90%	1088.73	14.90	27.31	23603	407.00	2.68
		95%	1166.93	14.77	30.12	24433	445.03	2.62
		100%	1205.47	14.60	32.64	24941	476.72	2.53
	T5147	50%	476.52	15.61	8.01	15652	125.11	3.81	101 (Ambient Temperature:19℃)
		55%	539.47	15.54	10.20	16726	158.48	3.40
		60%	622.91	15.48	12.51	17928	193.65	3.22
		65%	697.43	15.37	14.77	18908	227.05	3.07
		70%	774.28	15.29	17.20	19845	263.12	2.94
		75%	851.89	15.20	19.94	20900	302.97	2.81
		80%	932.49	15.09	22.80	21796	344.05	2.71
		85%	1009.03	14.96	25.78	22560	385.75	2.62
		90%	1073.21	14.83	28.68	23083	425.38	2.52
		95%	1134.26	14.69	31.05	23831	456.06	2.49
		100%	1221.31	14.51	34.10	24526	494.95	2.47
	T5150	50%	468.44	15.66	7.82	15688	122.49	3.82	102 (Ambient Temperature:19℃)
		55%	548.67	15.58	9.83	16920	153.16	3.58
		60%	623.07	15.49	11.92	17895	184.62	3.37
		65%	698.17	15.40	14.23	19002	219.18	3.19
		70%	776.80	15.33	16.71	19885	256.14	3.03
		75%	855.94	15.22	19.43	21004	295.74	2.89
		80%	936.06	15.10	22.28	21746	336.44	2.78
		85%	1006.75	14.98	25.13	22604	376.51	2.67
		90%	1079.24	14.85	28.05	23294	416.59	2.59
		95%	1163.79	14.71	30.68	23945	451.25	2.58
		100%	1242.15	14.55	33.55	24623	488.04	2.55
Note: Motor temperature is motor surface temperature @100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
