T-HOBBY VELOX V2808 Cinewhoops FPV Drone Motor 4-6S KV1300/KV1500/KV1950

27.90

Available points: 28 Points Points reward: 27 Points

1.Suitable 5 inch cinewhoop, 7 inch long range, 7 inch cinelifter builds
2.Boast stable performance
3.Reliability
4.Silky smooth feeling
KV：
  • KV1300
  • KV1500
  • KV1950
Quantity：

27.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About T-HOBBY Velox V2808 Cinewhoop Drone Motor


The V2808 motor is perfect for 7 inch racing drone,5 inch cinewhoop, 7 inch cinelifter builds.

We carefully slected good materials, unmatched craftsmanship, strict quality control bring you a total safety, worry-free flying.

Fantastic performance silky smooth feeling, increased stability for shooting.


Velox V2008 Hightlight:


Suitable for 6-inch cinewhoops, 7-8 inch long-range and cinelifters, cost-effective cinematic motors.

Selected materials, ingenious craftsmanship, strict quality control, safety and worry-free flight.

The performance is stable and reliable, and the flight is silky smooth.


Packing List Includes:


1x T-HOBBY VELOX V2808 Cinematic Motor (1300KV, 1500KV, or 1950KV)

1x Washer

9x Screw

2x O-ring

2x Nut


Matching Frame:


6-8 Inch


Matching Guide:


F7Pro Flight controller / F7 Flight controller

F55A II 6S 4IN1 ESC / C55A 8in1 ESC

C7.5*4.6 FPV Drone propeller

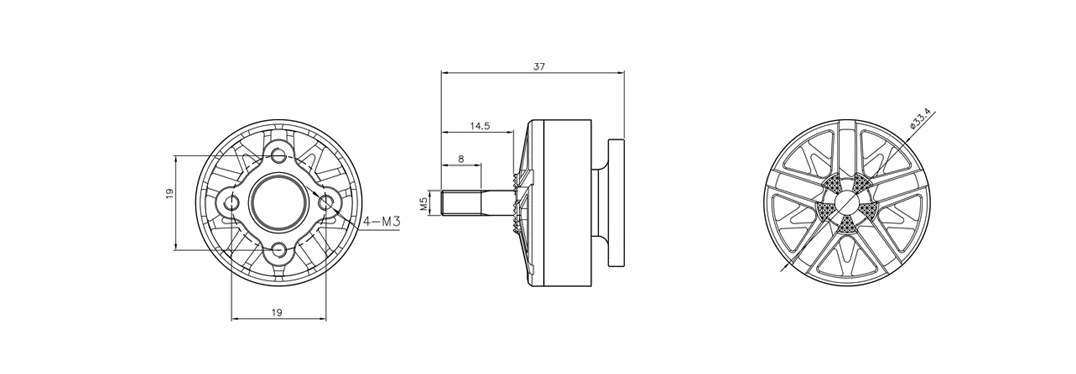

Technical Drawing

Specification
KVKV1300Configuration12N14P
Shaft Diameter4mmLead18#250mm
Weight (Incl. Cable)61.1gVoltage25.2V
Idle Current（10V）1.19AMax. Power（10s）1511.9W
Peak Current（10s）62.4A

KVKV1500Configuration12N14P
Shaft Diameter4mmLead18#250mm
Weight (Incl. Cable)60.5gVoltage25.2V
Idle Current（10V）1.49AMax. Power（10s）1781.7W
Peak Current（10s）74.3A

KVKV1950Configuration12N14P
Shaft Diameter4mmLead18#250mm
Weight (Incl. Cable)61.1gVoltage16.8V/21V/25.2V
Idle Current（10V）2.45AMax. Power（10s）1849.3W
Peak Current（10s）82.3A

Test Data
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)

T-HOBBY
T6143-3

1500KV20%25.22.510190.4192.263.83.01
40%25.17.915706.5569.3197.32.89
60%25.015.219536.1951.2380.62.50
80%24.827.524149.81523.0682.42.23
100%24.547.528715.12176.31163.81.87
1950KV20%25.14.512139.9304.0112.92.69
40%25.014.218460.7830.0354.42.34
60%24.828.122914.21368.9695.51.97
80%24.450.127935.22081.01223.71.70
100%23.977.332261.62679.71849.31.45

T-HOBBY
T7546-3

1300KV20%25.22.26315.2245.455.34.44
40%25.18.910230.3778.0222.93.49
60%24.920.713872.81509.5514.32.93
80%24.640.016989.52298.3982.12.34
100%24.262.418942.72910.41511.91.92
HQ
5040-6		1300KV20%25.22.07838.1135.651.52.63
40%25.16.612132.4451.6165.52.73
60%25.013.415865818.3335.92.44
80%24.827.019796.91307.4670.51.95
100%24.545.623645.31909.11118.61.71
1500KV20%25.23.08822.4195.774.42.63
40%25.18.913479560.6224.42.50
60%24.920.317796.51034.7505.52.05
80%24.638.621871.51599.1951.21.68
100%24.363.525398.42180.31541.01.41
1950KV20%21.03.98948.4213.881.32.63
40%20.911.913716.6589.5247.92.38
60%20.627.118160.51059.1559.31.89
80%20.251.2221401609.21036.01.55
100%19.877.3253752155.11528.21.41

GF
7040-3		1300KV20%25.22.07976.2180.551.13.53
40%25.16.512280.6600.9163.83.67
60%25.013.415926.21075.3333.83.22
80%24.827.919724.31807.7690.72.62
100%24.547.423321.92466.81160.62.13
1500KV20%25.22.98942.7263.773.53.59
40%25.18.813575754.0221.73.40
60%24.920.217780.51363.8504.62.70
80%24.640.021540.22180.2985.82.21
100%24.266.124651.52635.91600.71.65
1950KV20%21.03.89063.5279.980.33.49
40%20.911.713900.8779.9243.93.20
60%20.627.0181131365.0555.72.46
80%20.252.721794.62169.91064.92.04
100%19.782.324565.72643.31623.51.63

GF
8040-3		1300KV20%25.22.26550.4237.154.54.35
40%25.18.210460.7770.0206.63.73
60%24.919.6141021554.0487.03.19
80%24.638.517229.62409.8946.42.55
100%24.361.019222.23083.41479.92.08
1500KV20%25.23.17279.6325.976.94.24
40%25.111.111519985.8277.43.55
60%24.829.715043.41780.0736.62.42
80%24.452.518009.62644.01282.92.06
100%24.074.319241.83069.01781.71.72
1950KV20%16.83.26335.1224.854.44.13
40%16.711.89960.7696.9196.63.54
60%16.426.913484.81352.3441.73.06
80%16.051.516439.12049.7825.92.48
100%15.679.418210.32631.11237.72.13

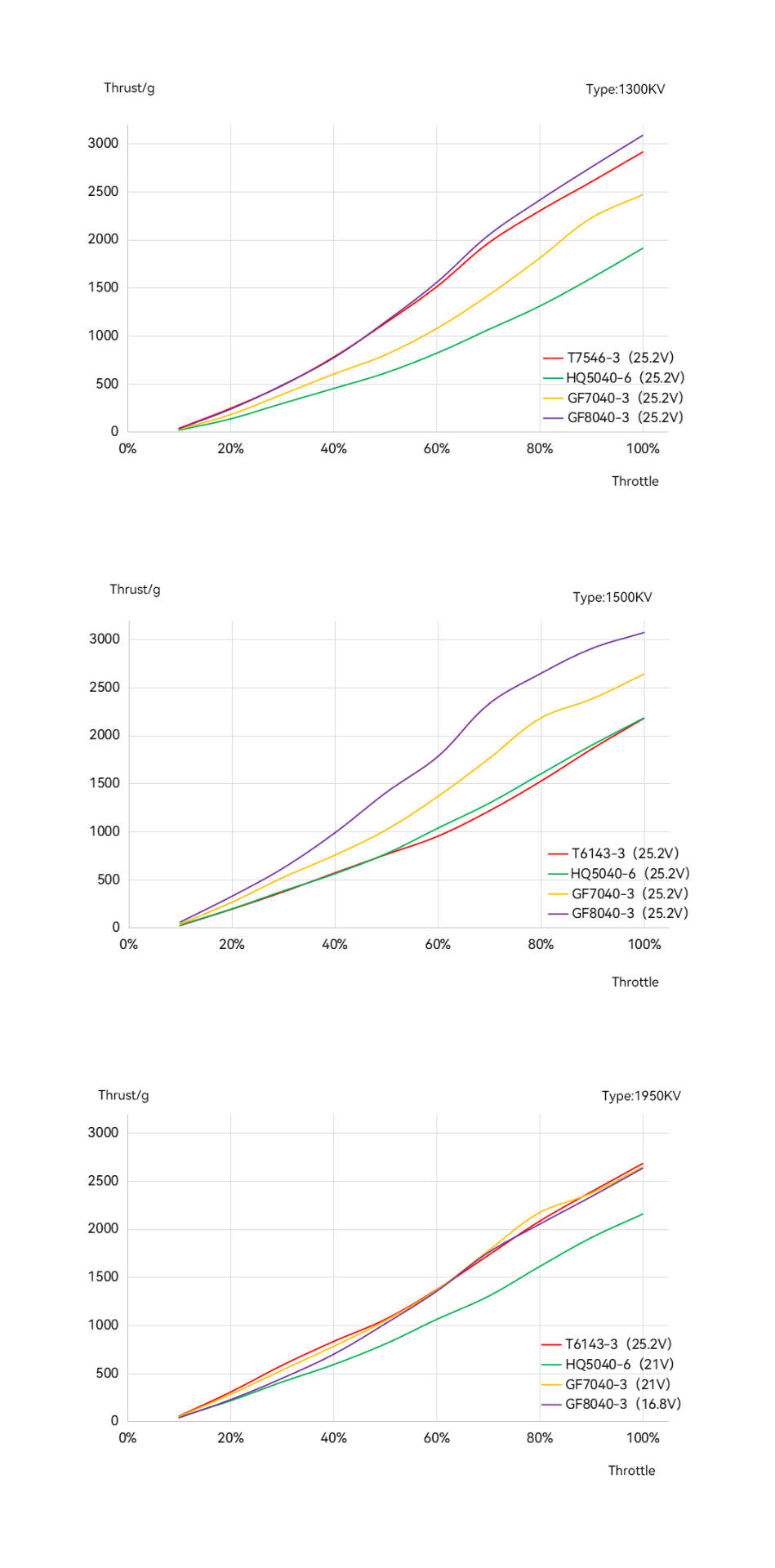

Analysis Chart

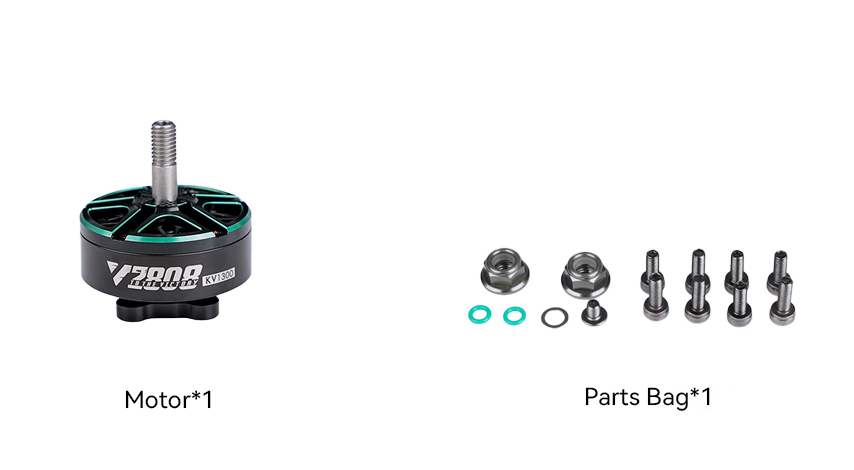

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
