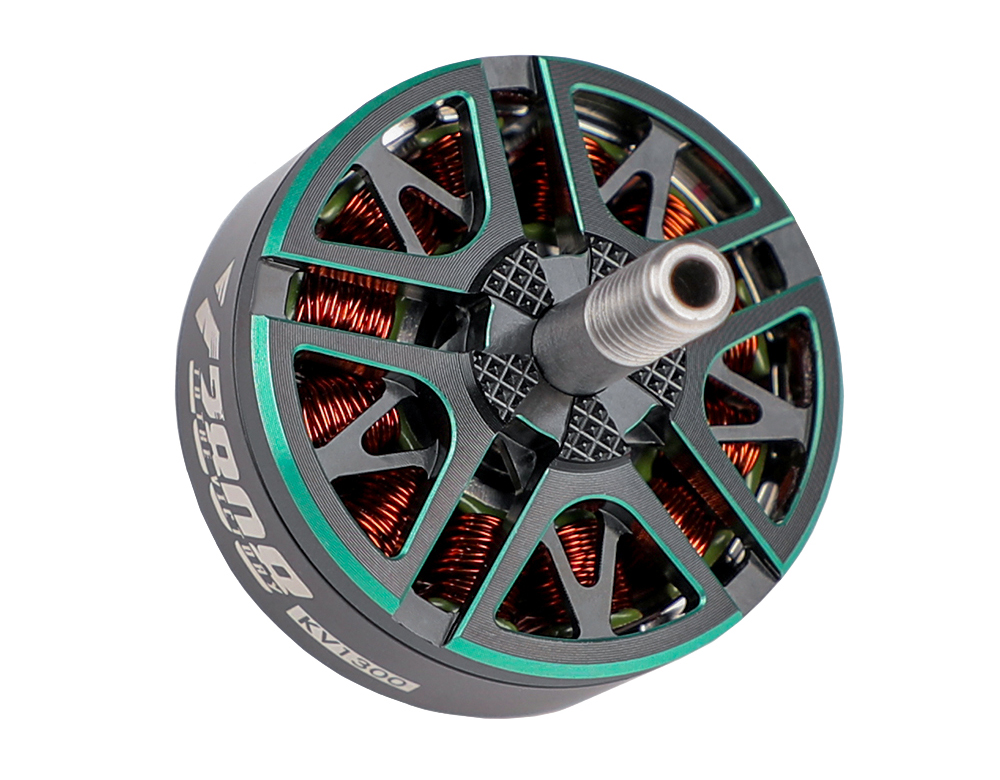

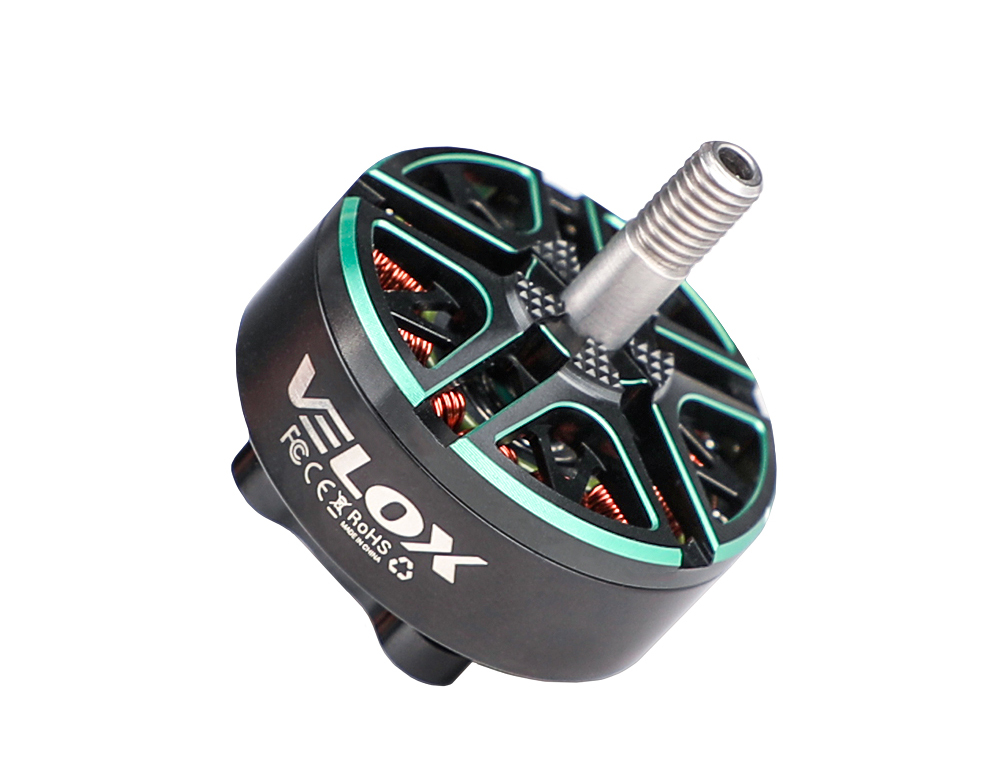

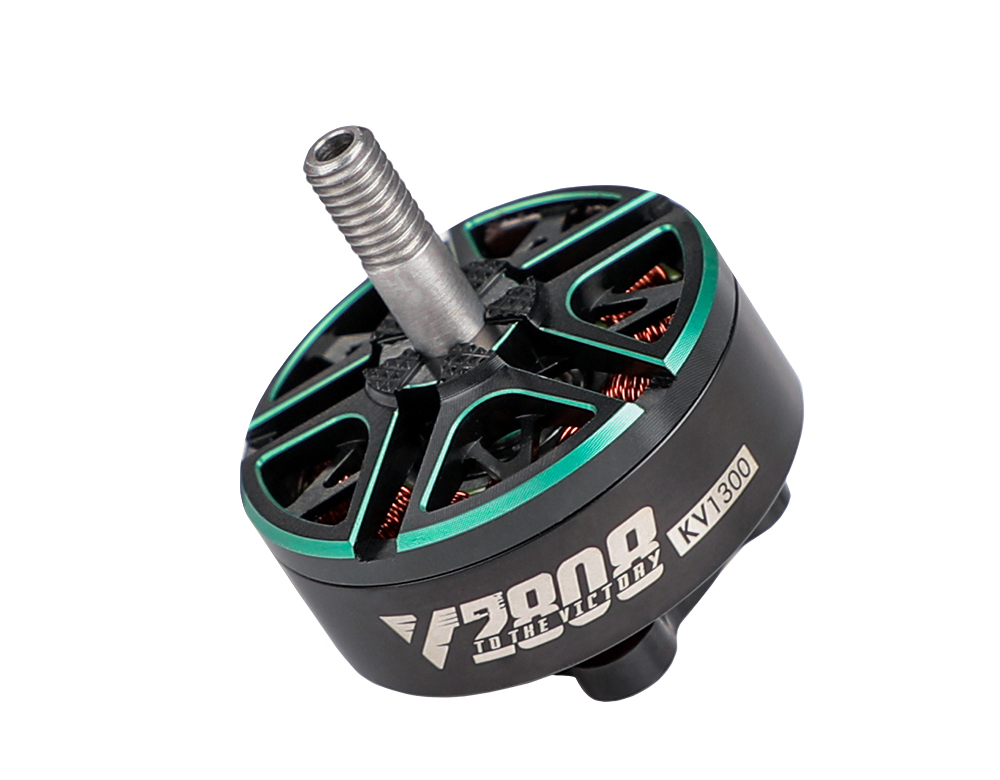

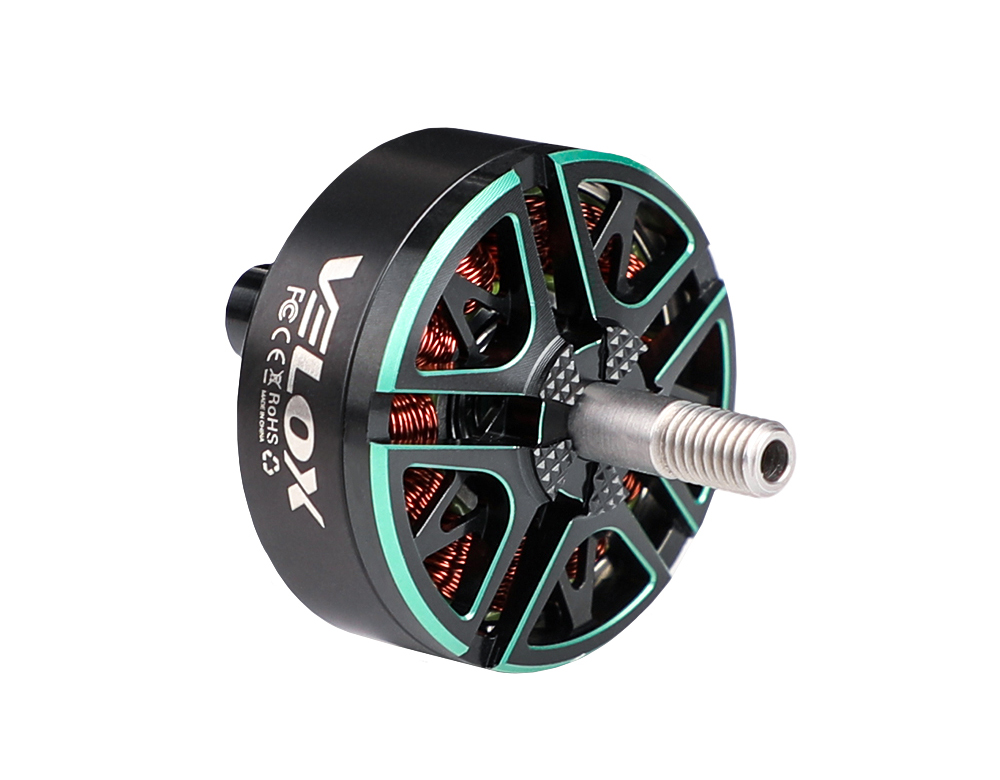

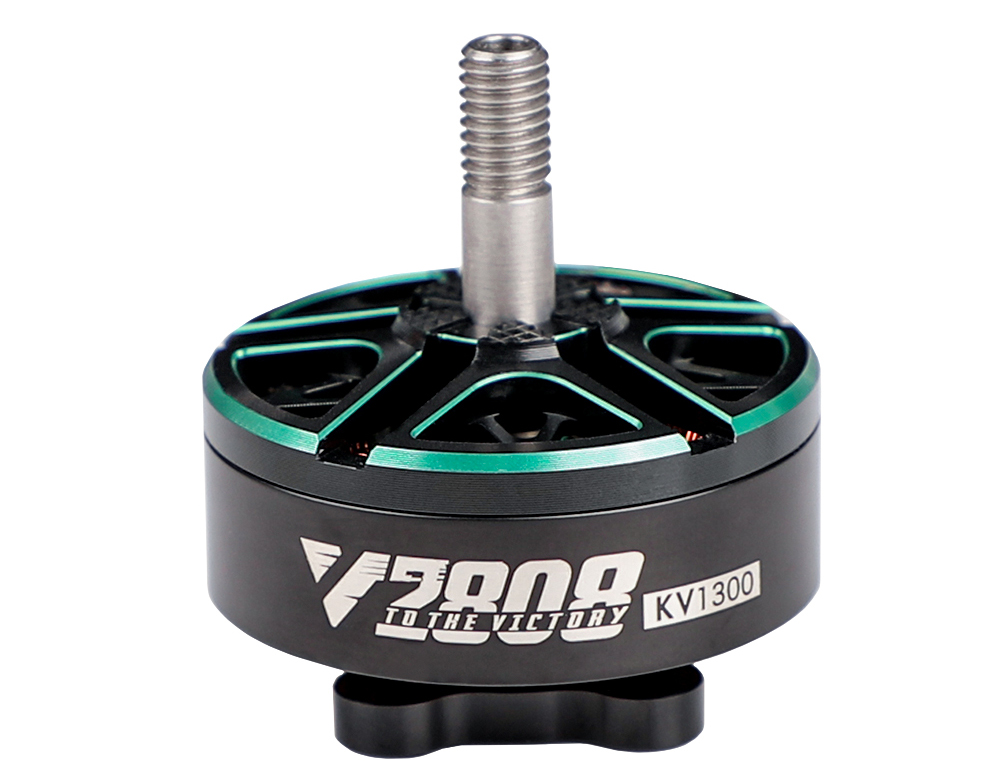

Name: T-HOBBY VELOX V2808 Cinewhoops FPV Drone Motor 4-6S KV1300/KV1500/KV1950
Brand: LIGPOWER
SKU: LIGPOWER001529
Price: 27.90 USD
Availability: InStock

T-HOBBY VELOX V2808 Cinewhoops FPV Drone Motor 4-6S KV1300/KV1500/KV1950

27.90

Available points: 28 Points Points reward: 27 Points

1.Suitable 5 inch cinewhoop, 7 inch long range, 7 inch cinelifter builds
2.Boast stable performance
3.Reliability
4.Silky smooth feeling

Parameter：

KV1300
KV1500
KV1950

Quantity：

27.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY VELOX V50A 3-6S 4in1 ESC

$60.9
T-HOBBY F7 Pro Full Function 30x30 Flight Controller Wifi&Bluetooth

$89.9
T-HOBBY Velox CINE F7+V50A SE

$109.9

Detail information
Specifications

About T-HOBBY Velox V2808 Cinewhoop Drone Motor

The V2808 motor is perfect for 7 inch racing drone,5 inch cinewhoop, 7 inch cinelifter builds.

We carefully slected good materials, unmatched craftsmanship, strict quality control bring you a total safety, worry-free flying.

Fantastic performance silky smooth feeling, increased stability for shooting.

Velox V2008 Hightlight:

Suitable for 6-inch cinewhoops, 7-8 inch long-range and cinelifters, cost-effective cinematic motors.

Selected materials, ingenious craftsmanship, strict quality control, safety and worry-free flight.

The performance is stable and reliable, and the flight is silky smooth.

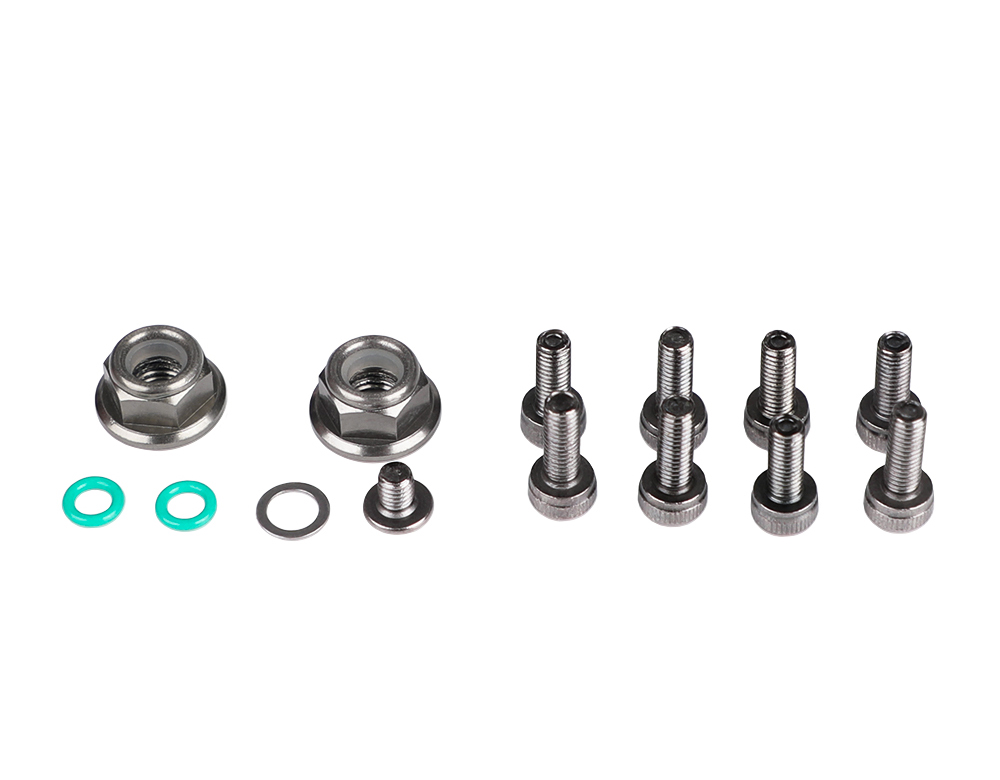

Packing List Includes:

1x T-HOBBY VELOX V2808 Cinematic Motor (1300KV, 1500KV, or 1950KV)

1x Washer

9x Screw

2x O-ring

2x Nut

Matching Frame:

6-8 Inch

Matching Guide:

F7Pro Flight controller / F7 Flight controller

F55A II 6S 4IN1 ESC / C55A 8in1 ESC

C7.5*4.6 FPV Drone propeller

Technical Drawing

Specification Export to Excel

KV	KV1300	Configuration	12N14P
Shaft Diameter	4mm	Lead	18#250mm
Weight (Incl. Cable)	61.1g	Voltage	25.2V
Idle Current（10V）	1.19A	Max. Power（10s）	1511.9W
Peak Current（10s）	62.4A

KV	KV1500	Configuration	12N14P
Shaft Diameter	4mm	Lead	18#250mm
Weight (Incl. Cable)	60.5g	Voltage	25.2V
Idle Current（10V）	1.49A	Max. Power（10s）	1781.7W
Peak Current（10s）	74.3A

KV	KV1950	Configuration	12N14P
Shaft Diameter	4mm	Lead	18#250mm
Weight (Incl. Cable)	61.1g	Voltage	16.8V/21V/25.2V
Idle Current（10V）	2.45A	Max. Power（10s）	1849.3W
Peak Current（10s）	82.3A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T6143-3	1500KV	20%	25.2	2.5	10190.4	192.2	63.8	3.01
		40%	25.1	7.9	15706.5	569.3	197.3	2.89
		60%	25.0	15.2	19536.1	951.2	380.6	2.50
		80%	24.8	27.5	24149.8	1523.0	682.4	2.23
		100%	24.5	47.5	28715.1	2176.3	1163.8	1.87
	1950KV	20%	25.1	4.5	12139.9	304.0	112.9	2.69
		40%	25.0	14.2	18460.7	830.0	354.4	2.34
		60%	24.8	28.1	22914.2	1368.9	695.5	1.97
		80%	24.4	50.1	27935.2	2081.0	1223.7	1.70
		100%	23.9	77.3	32261.6	2679.7	1849.3	1.45
T-HOBBY T7546-3	1300KV	20%	25.2	2.2	6315.2	245.4	55.3	4.44
		40%	25.1	8.9	10230.3	778.0	222.9	3.49
		60%	24.9	20.7	13872.8	1509.5	514.3	2.93
		80%	24.6	40.0	16989.5	2298.3	982.1	2.34
		100%	24.2	62.4	18942.7	2910.4	1511.9	1.92
HQ 5040-6	1300KV	20%	25.2	2.0	7838.1	135.6	51.5	2.63
		40%	25.1	6.6	12132.4	451.6	165.5	2.73
		60%	25.0	13.4	15865	818.3	335.9	2.44
		80%	24.8	27.0	19796.9	1307.4	670.5	1.95
		100%	24.5	45.6	23645.3	1909.1	1118.6	1.71
	1500KV	20%	25.2	3.0	8822.4	195.7	74.4	2.63
		40%	25.1	8.9	13479	560.6	224.4	2.50
		60%	24.9	20.3	17796.5	1034.7	505.5	2.05
		80%	24.6	38.6	21871.5	1599.1	951.2	1.68
		100%	24.3	63.5	25398.4	2180.3	1541.0	1.41
	1950KV	20%	21.0	3.9	8948.4	213.8	81.3	2.63
		40%	20.9	11.9	13716.6	589.5	247.9	2.38
		60%	20.6	27.1	18160.5	1059.1	559.3	1.89
		80%	20.2	51.2	22140	1609.2	1036.0	1.55
		100%	19.8	77.3	25375	2155.1	1528.2	1.41
GF 7040-3	1300KV	20%	25.2	2.0	7976.2	180.5	51.1	3.53
		40%	25.1	6.5	12280.6	600.9	163.8	3.67
		60%	25.0	13.4	15926.2	1075.3	333.8	3.22
		80%	24.8	27.9	19724.3	1807.7	690.7	2.62
		100%	24.5	47.4	23321.9	2466.8	1160.6	2.13
	1500KV	20%	25.2	2.9	8942.7	263.7	73.5	3.59
		40%	25.1	8.8	13575	754.0	221.7	3.40
		60%	24.9	20.2	17780.5	1363.8	504.6	2.70
		80%	24.6	40.0	21540.2	2180.2	985.8	2.21
		100%	24.2	66.1	24651.5	2635.9	1600.7	1.65
	1950KV	20%	21.0	3.8	9063.5	279.9	80.3	3.49
		40%	20.9	11.7	13900.8	779.9	243.9	3.20
		60%	20.6	27.0	18113	1365.0	555.7	2.46
		80%	20.2	52.7	21794.6	2169.9	1064.9	2.04
		100%	19.7	82.3	24565.7	2643.3	1623.5	1.63
GF 8040-3	1300KV	20%	25.2	2.2	6550.4	237.1	54.5	4.35
		40%	25.1	8.2	10460.7	770.0	206.6	3.73
		60%	24.9	19.6	14102	1554.0	487.0	3.19
		80%	24.6	38.5	17229.6	2409.8	946.4	2.55
		100%	24.3	61.0	19222.2	3083.4	1479.9	2.08
	1500KV	20%	25.2	3.1	7279.6	325.9	76.9	4.24
		40%	25.1	11.1	11519	985.8	277.4	3.55
		60%	24.8	29.7	15043.4	1780.0	736.6	2.42
		80%	24.4	52.5	18009.6	2644.0	1282.9	2.06
		100%	24.0	74.3	19241.8	3069.0	1781.7	1.72
	1950KV	20%	16.8	3.2	6335.1	224.8	54.4	4.13
		40%	16.7	11.8	9960.7	696.9	196.6	3.54
		60%	16.4	26.9	13484.8	1352.3	441.7	3.06
		80%	16.0	51.5	16439.1	2049.7	825.9	2.48
		100%	15.6	79.4	18210.3	2631.1	1237.7	2.13

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
