Name: T-HOBBY VELOX V2812 7-8"Longrange/Cinelifter FPV Motor 6S KV925/KV1155
Brand: LIGPOWER
SKU: LIGPOWER001530
Price: 33.90 USD
Availability: InStock

T-HOBBY VELOX V2812 7-8"Longrange/Cinelifter FPV Motor 6S KV925/KV1155

33.90

Available points: 34 Points Points reward: 33 Points

1. Suitable 7 inch long range, 7-8 inch cinelifter builds
2.Incredibly poweful
3.Yet smooth
4.Extremely durable

Parameter：

KV925
KV1155

Quantity：

33.90

Free Shipping by DHL/UPS Express

Relevant Products

T-HOBBY F7 Pro Full Function 30x30 Flight Controller Wifi&Bluetooth

$89.9
T-HOBBY F55A PRO III 3-8S 4in1 ESC 30x30

$119.9
T-HOBBY Velox CINE F7+V50A SE

$109.9

Detail information
Specifications

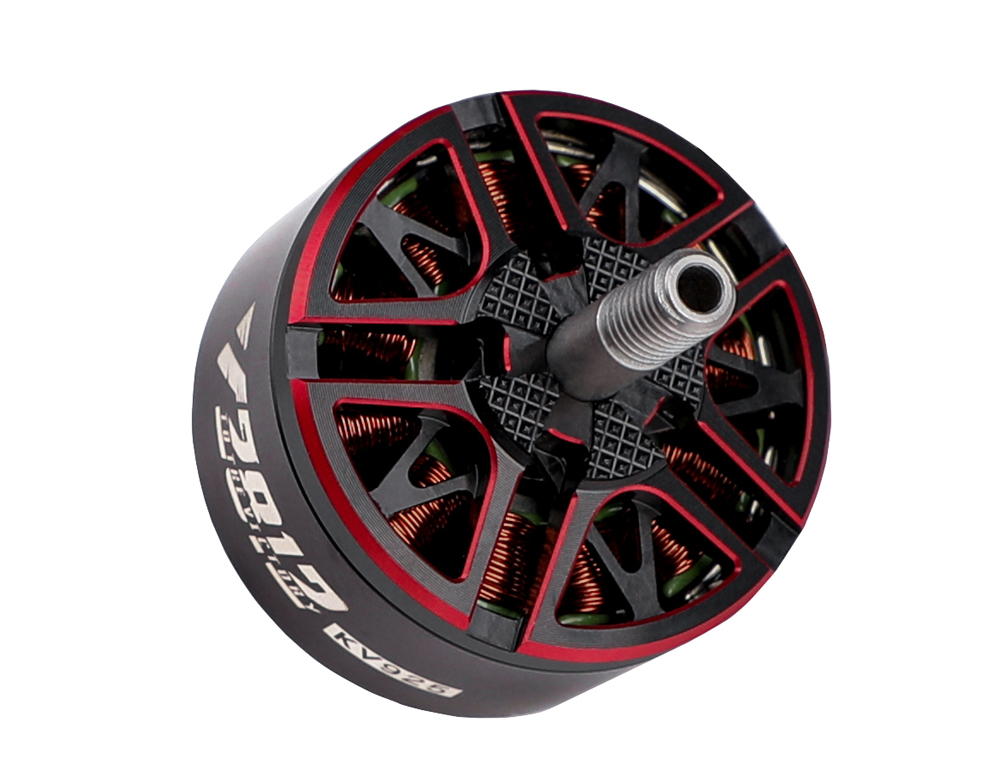

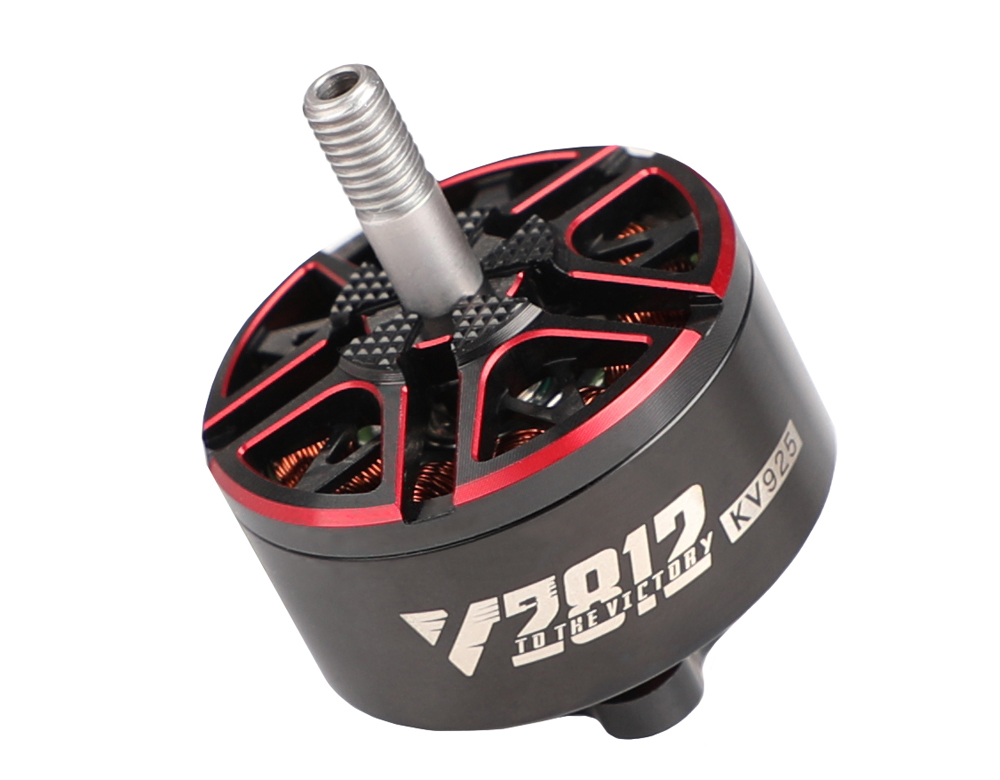

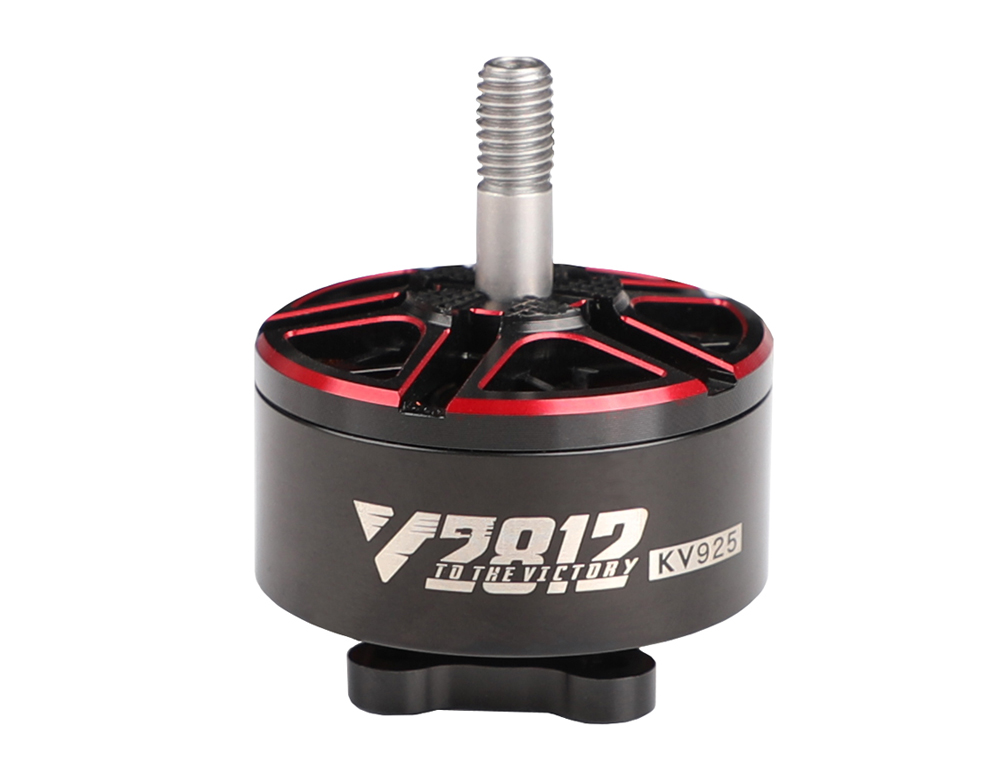

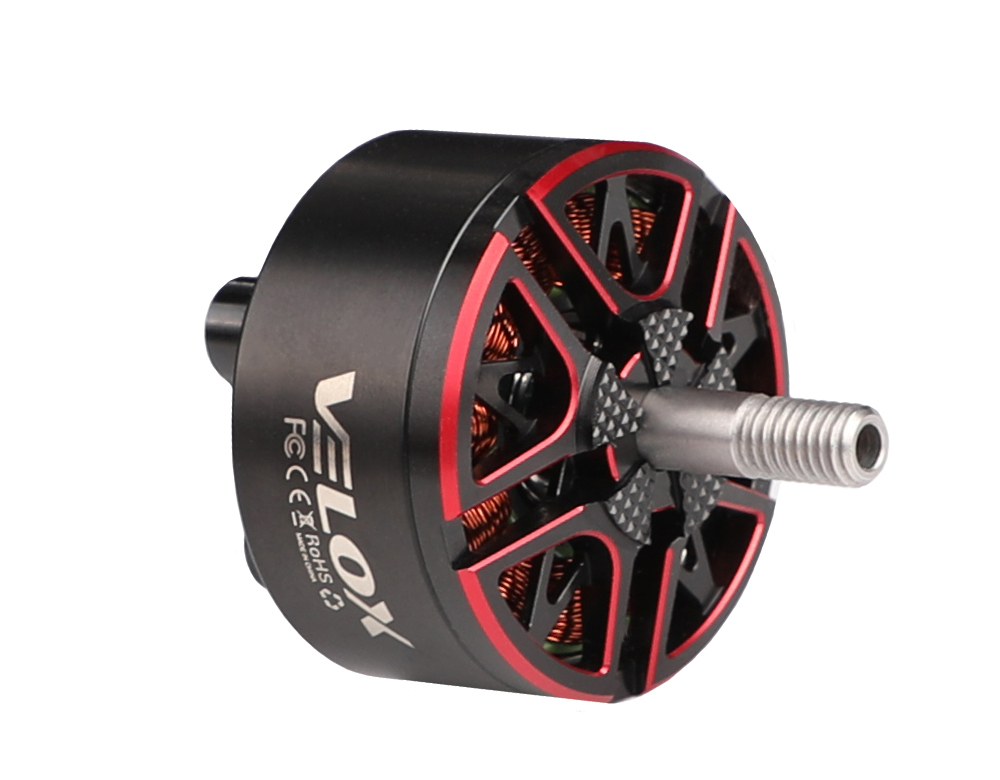

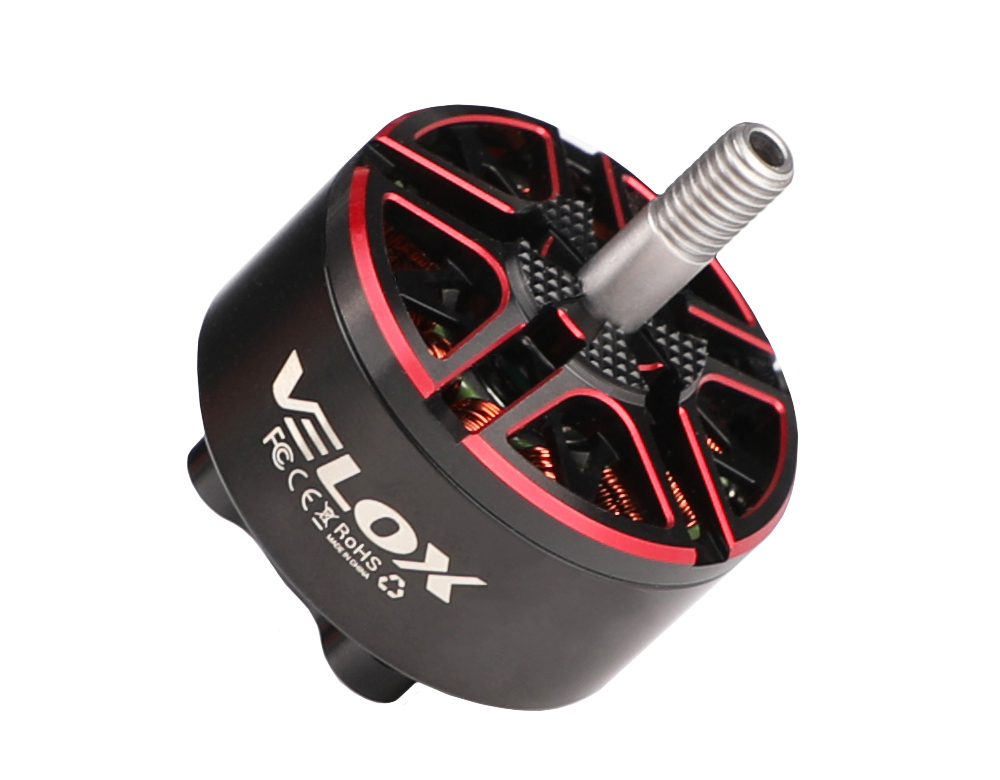

About T-HOBBY Velox V2812 Longrange 7inch X8 Drone Motor

The Velox V2812 motor is design for 7-8 inch long range and pro-class X8 cinelifter builds.

We carefully slected good materials, unmatched craftsmanship, strict quality control bring you a total safety, worry-free flying.

Fantastic performance silky smooth feeling, increased stability for shooting.

Cinematic Velox V2812 Hightlight:

Suitable for 7-8 inch long-range and cinematic drones, two KV options are 925KV and 1155KV. Highly cost-effective cinematic motor.

Selected materials, ingenious craftsmanship, strict quality control, safety and worry-free flight. The performance is stable and reliable, and the flight is silky smooth.

Packing List Includes:

1x T-HOBBY VELOX V2812 Cinematic Motor (925KV or 1155KV)

1x Washer

9x Screw

2x O-ring

2x Nut

Matching Frame:

7-8 Inch(X8)

Matching Guide:

F7Pro Flight controller / F7 Flight controller

F55A II 6S 4IN1 ESC / C55A 8in1 ESC

C7.5*4.6 FPV Drone propeller

Technical Drawing

Specification Export to Excel

KV	KV925	Configuration	12N14P
Shaft Diameter	4mm	Lead	18#250mm
Weight (Incl. Cable)	78.6g	Voltage	25.2V
Idle Current（10V）	1.16A	Max. Power（10s）	1013.3W
Peak Current（10s）	41.4A

KV	KV1155	Configuration	12N14P
Shaft Diameter	4mm	Lead	18#250mm
Weight (Incl. Cable)	78g	Voltage	25.2V
Idle Current（10V）	1.52A	Max. Power（10s）	1520.6W
Peak Current（10s）	63.1A

Test Data Export to Excel

Propeller	Type	Throttle	Voltage (V)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)
T-HOBBY T7546-3	925KV	20%	25.2	1.6	5772.6	204.4	41.0	4.99
		40%	25.2	5.1	8944	586.0	128.0	4.58
		60%	25.0	10.3	11624.4	1016.9	258.9	3.93
		80%	24.9	20.6	14861	1684.7	511.8	3.29
		100%	24.7	35.8	17690.8	2470.0	883.6	2.80
	1155KV	20%	25.2	2.6	6707.2	286.1	64.5	4.44
		40%	25.1	8.5	10407.8	810.4	212.0	3.82
		60%	24.9	17.4	13720.8	1433.1	432.8	3.31
		80%	24.7	36.1	17231.3	2348.0	889.5	2.64
		100%	24.3	59.2	20049.6	3233.8	1437.9	2.25
GF8040-3	925KV	20%	25.2	1.6	5965.1	204.6	40.4	5.06
		40%	25.2	5.1	9196.6	599.9	127.1	4.72
		60%	25.1	9.8	11764.9	1028.3	245.7	4.18
		80%	24.9	19.6	15013	1728.9	488.8	3.54
		100%	24.7	34.7	17843.1	2556.5	855.5	2.99
	1155KV	20%	25.2	2.5	6970.9	276.8	64.0	4.33
		40%	25.1	8.2	10727.5	813.3	206.3	3.94
		60%	25.0	16.2	14016	1402.6	403.6	3.48
		80%	24.7	34.1	17549.3	2375.0	842.7	2.82
		100%	24.3	57.5	20334.9	3352.8	1397.7	2.40
HQ8045-3	925KV	20%	25.2	1.5	4714.92	190.0	37.7	5.04
		40%	25.1	5.1	7324.83	572.7	128.1	4.47
		60%	25.0	12.0	9961.83	1099.2	299.7	3.67
		80%	24.8	24.2	12473.19	1787.1	599.9	2.98
		100%	24.5	41.4	14533.92	2476.8	1013.3	2.44
	1155KV	20%	25.2	2.4	5470.92	257.9	60.4	4.27
		40%	25.1	8.4	8536.86	773.5	210.6	3.67
		60%	24.9	19.9	11564.01	1511.5	494.5	3.06
		80%	24.5	40.5	14091.12	2356.6	993.3	2.37
		100%	24.1	63.1	15759.63	3014.2	1520.6	1.98

Analysis Chart

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
