In the propulsion system of FPV drones, although the ESC (Electronic Speed Controller) may seem inconspicuous, it consistently bears the critical role of connecting the battery, motors, and flight controller. It is responsible for power distribution and speed regulation, and its stability directly affects the response consistency and long-term reliability of the entire aircraft. As FPV architecture has gradually matured, the 4-in-1 ESC has become the most common form of electronic speed controller in quadcopters. Through its highly integrated design, it offers significant advantages in installation, wiring, and overall consistency, making it widely used in mainstream frames and complete build solutions.
What is a 4-in-1 ESC?
In the propulsion system of an FPV drone, the ESC is responsible for connecting the battery, motors, and flight controller. Different ESC forms exhibit distinct differences in structure and usage. To understand the 4-in-1 ESC, one must first clarify its position within the entire propulsion system and its basic definition.
1. Introduction to the Drone 4-in-1 ESC
A 4-in-1 ESC is an electronic speed controller that integrates four motor drive circuits onto a single circuit board. It controls the power supply and speed regulation of four motors simultaneously via a single ESC unit, primarily applied in four-axis FPV drones. Compared to installing an independent ESC for each motor, the 4-in-1 ESC integrates the control circuits for all four motors. This not only saves space but also reduces wiring complexity, making the airframe structure more compact. It is typically suitable for standard quadcopter platforms and facilitates the integration of the flight controller and ESC system during installation.
2. What functions does a 4-in-1 ESC integrate?
The core function of a 4-in-1 ESC is to provide independent drive output for four motors while receiving control signals from the flight controller. The speed of each motor is controlled by throttle commands from the flight controller; the ESC is responsible for converting these commands into actual current output to regulate motor speed.
Additionally, 4-in-1 ESCs typically use a unified battery input, distributing battery voltage to the four motors through a single power interface. Some models also integrate basic power interfaces or provide data monitoring functions for current and voltage, though these are supplementary designs and not its core function.
3. What functions is a 4-in-1 ESC NOT responsible for?
Although the 4-in-1 ESC is highly integrated in terms of hardware, it does not assume responsibilities at the flight control level. It does not participate in flight attitude calculations, nor does it decide flight modes or flight control logic. The flight controller is the core component that determines flight stability and attitude, whereas the ESC is solely responsible for regulating motor speed according to the flight controller's instructions. Therefore, the ESC's role is limited to executing the drive commands, while decisions regarding flight stability, control algorithms, and mode switching are entirely completed by the flight controller. The relationship between the two is one of cooperation, not substitution.
4. What is the difference between a 4-in-1 ESC and Independent ESCs?

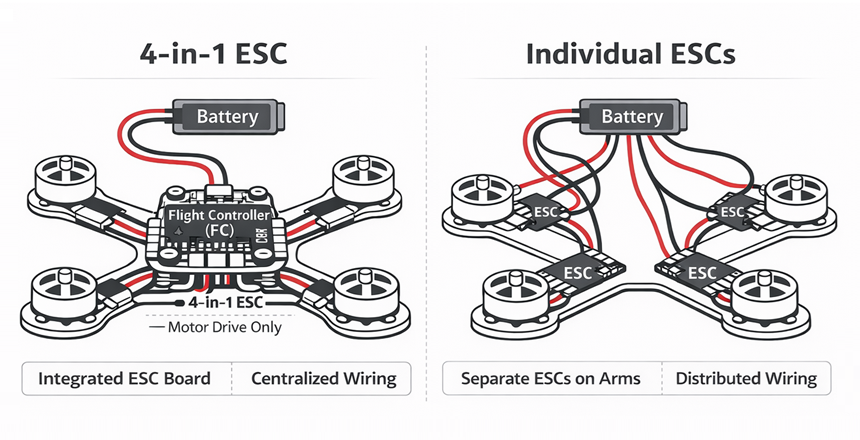

Aspect | 4-in-1 ESC | Individual ESC |
Structure | Four motor drivers integrated on a single PCB | One ESC per motor |
Mounting location | Central stack, usually stacked with the flight controller | Mounted on each arm |
Wiring complexity | Lower, centralized wiring | Higher, distributed wiring |
Thermal behavior | Heat concentrated on one board, relies more on airflow | Heat distributed across arms, easier to dissipate |
Maintenance | Entire unit usually replaced if one channel fails | Only the faulty ESC needs replacement |
Typical applications | Mainstream FPV quadcopters | Large frames, long-endurance or task-oriented platforms |
The main differences between a 4-in-1 ESC and independent ESCs are reflected in structural design, installation methods, and maintenance convenience.
Installation Method: The 4-in-1 ESC concentrates the control circuits of four motors onto one ESC board, usually installed in the center of the fuselage, reducing wiring complexity. Independent ESCs need to be installed separately on each arm, resulting in more dispersed wiring.
Maintenance and Replacement: If a 4-in-1 ESC malfunctions, the entire unit usually needs to be replaced. Independent ESCs allow for replacing only the damaged unit in the event of a single-channel failure, making maintenance more flexible.
Impact of Failure: The 4-in-1 ESC is a centralized design, so a single-point failure may affect the stability of the entire system; independent ESCs are better suited for localized repair after a single-channel failure, offering better risk isolation.
Why Do Most FPV Drones Use 4-in-1 ESCs?
After clarifying the basic concept of the 4-in-1 ESC, a practical question arises: Why has it become the mainstream choice in FPV drones? This result stems more from structural compatibility and ease of use rather than a single performance factor.
1. Excellent Compatibility with FPV Frames
Most mainstream FPV frames support 20×20 mm or 30×30 mm mounting specifications, which fits perfectly with the design of 4-in-1 ESCs. Due to its integrated design, the 4-in-1 ESC can be stacked with the flight controller, reducing the number of external cables and connection complexity, making the overall installation more compact. In 5-inch FPV drones, the 4-in-1 ESC has formed a mature configuration standard and has become one of the common choices, especially in frames designed with an emphasis on neatness and simplicity.
2. Greater Convenience for Assembly
The integration of the 4-in-1 ESC greatly simplifies the assembly process. Compared to independent ESCs, it significantly reduces the number of solder points between the motors and the ESC, lowering the probability of errors during installation. Furthermore, because the ESC board is concentrated in one location, the wire routing within the arms is much cleaner. This not only improves assembly efficiency but also makes the overall machine structure neater and more maintainable.
3. More Beneficial for Power Supply and Tuning
Power supply consistency is a major advantage of the 4-in-1 ESC. Since all four motors are powered by the same ESC board, the consistency of current output is better guaranteed, which helps improve stability and predictability during flight. Regarding tuning, due to the centralized design of the ESC and flight controller, consistency and repeatability are ensured during flight parameter tuning. Especially during frequent tuning or fine-tuning, the stability of the aircraft's performance is more significant, reducing tuning errors. In summary, the design of the 4-in-1 ESC brings users a more concise assembly experience and more intuitive flight tuning, making it particularly suitable for FPV pilots who pursue convenience and consistency.
Which FPV Drone Sizes Are Best Suited for 4-in-1 ESCs?
In the FPV field, drones are usually categorized by propeller diameter. Platforms of different sizes have distinct differences in motor power, propeller load, and flight style. These differences directly affect the working state of the ESC and determine whether a 4-in-1 ESC is suitable for long-term stable use. From a practical application standpoint, there is no "absolute limit on size" for 4-in-1 ESCs, but their advantages and boundaries manifest differently across different size ranges.
FPV Drone Size | Typical Load Characteristics | Suitability of 4-in-1 ESC | Practical Recommendation |
2–3 inch | Low power, light load | Highly suitable | Prioritize compact size and low weight |
3.5–5 inch | High burst current, short duration | Highly suitable | Well-established and widely proven setups |
7 inch | Sustained medium-to-high load | Requires careful evaluation | Pay close attention to cooling and current margin |
8 inch and above | Long-duration high load | Not recommended | Individual ESCs are usually more reliable |
1. Micro and Small FPV (2–3 inches)
In 2–3 inch micro FPV platforms, the overall weight is light, and motor power and propeller loads are generally low, so the continuous current pressure on the ESC is relatively limited. In this size range, 4-in-1 ESCs usually operate within a milder load range, with relatively relaxed requirements for heat dissipation and current headroom. Whether for indoor flying, lightweight practice drones, or small platforms focused on agility, 4-in-1 ESCs can perform stably. It is worth noting that these models are often more sensitive to volume and weight, so when selecting components, one should pay more attention to the physical size and weight of the ESC rather than simply pursuing higher current parameters.
2. Mainstream Mid-Sized FPV (3.5–5 inches)
The 3.5–5 inch range is currently the most mainstream FPV size and is also the most mature and widely used field for 4-in-1 ESCs. Within this size range, flight characteristics typically feature short bursts of high throttle output coexisting with frequent acceleration and deceleration, yet the overall load remains within a controllable range. Mainstream motor, propeller, and battery configurations are highly standardized, making the operating conditions of the ESC relatively clear. Because of this, the design of most 4-in-1 ESCs is actually optimized around this size range. Assuming a reasonable power system combination, the 4-in-1 ESC achieves a good balance between performance, stability, and installation convenience, making it the most common and safest choice for this segment.
3. Large and Mission-Oriented FPV (7 inches and above) - Evaluate with Caution
When the FPV platform size expands to 7 inches and above, flight requirements often begin to change. Compared to agility, these models emphasize range, flight time, or payload capacity, and the ESC is more likely to be in a state of high current output for extended periods.
In this usage mode, the integrated structure of the 4-in-1 ESC faces greater heat dissipation pressure. Once running under continuous high load, heat tends to concentrate more easily, and stability and lifespan become more dependent on the frame structure and airflow conditions.
Therefore, in large-sized or mission-oriented FPV platforms, 4-in-1 ESCs are not unusable, but one must more carefully evaluate their continuous current capability, heat dissipation conditions, and overall redundancy space. In many cases, an independent ESC architecture will offer advantages in terms of long-term stability and maintenance flexibility.
Which Scenarios are Suitable for 4-in-1 ESCs? Which are Not?
After determining the match between the 4-in-1 ESC and the drone size, the next step is to consider the specific flight scenario and usage method. Even within the same size range, different flight styles and load characteristics will subject the ESC to completely different working conditions. From practical experience, the advantages and limitations of the 4-in-1 ESC are often reflected more in "how it is used" rather than "where it is installed."
Use Case | 4-in-1 ESC Recommended? | Reasoning |
FPV racing / freestyle | Yes | High burst load with short duty cycles |
Cinewhoop | Conditionally | Space-efficient, but thermal management is critical |
Lightweight DIY builds | Depends | Suitable if load and usage are clearly defined |
Long-endurance flights | Not ideal | Sustained load increases thermal stress |
Industrial or heavy-lift platforms | No | Higher demands for redundancy and serviceability |
1. Typical Scenarios Suitable for 4-in-1 ESCs
1.1 FPV Racing and Freestyle Drones
Typical characteristics of FPV racing and freestyle are short bursts of high throttle output and frequent acceleration, deceleration, and attitude changes. Although the ESC needs to withstand high instantaneous currents, the duration of high load is usually short. In this usage mode, the 4-in-1 ESC can well utilize its integration advantages. Powering four motors from the same ESC board helps maintain output consistency, making the flight response more predictable. At the same time, these models generally use mature power combinations, and the ESC's working range is relatively clear. The 4-in-1 ESC has been verified by extensive actual flights in this scenario and is a stable and mature choice.
1.2 Cinewhoops and Compact Multi-rotors
Cinewhoops and other compact FPV platforms usually have limited fuselage space and high requirements for stack height and wiring neatness. In this case, the advantage of the centralized layout of the 4-in-1 ESC is very obvious. It can significantly reduce wire routing on the arms, making the overall structure more compact and installation and maintenance more intuitive. It should be noted that Cinewhoops often adopt enclosed or semi-enclosed structures, where airflow conditions are relatively restricted. If medium-to-high throttle is maintained for a long time, the heat dissipation pressure on the ESC will increase significantly. Therefore, when using a 4-in-1 ESC in this scenario, it is more suitable for short-duration, intermittent flights rather than long-term continuous high-load operation.
1.3 Lightweight DIY or Non-standard FPV Frames
In lightweight DIY or non-standard frames, the propulsion system often needs to be flexibly matched according to actual needs, lacking a unified mature configuration reference. Provided that the load is clear and the power demand is controllable, the 4-in-1 ESC remains a feasible solution. Its integrated structure helps reduce assembly complexity, making it especially suitable for users pursuing a clean layout and quick build. However, in such platforms, whether a 4-in-1 ESC is suitable depends not on "whether it is DIY," but on whether one can clearly evaluate the continuous current, heat dissipation conditions, and the flight style itself. If these conditions are vague, the risk of using a 4-in-1 ESC increases accordingly.
2. Scenarios Less Suitable for 4-in-1 ESCs
2.1 Large Propellers or Continuous High-Load Flight
When using large-sized or high-pitch propellers, the continuous current demand of the motors rises significantly. At this time, the challenge facing the ESC lies not in instantaneous bursts, but in running close to full load for a long time. The integrated structure of the 4-in-1 ESC makes heat easier to concentrate; once heat dissipation conditions are insufficient, stability and lifespan will be affected. In this scenario, independent ESCs are easier to arrange in a dispersed layout to obtain better cooling conditions, and are thus usually safer.
2.2 Long-Endurance, Continuous Operation, or Mission-Based Flight
Long-endurance or mission-based flight emphasizes continuous stable operation rather than instantaneous performance. Once the propulsion system behaves abnormally during flight, it often brings high flight risks and operational costs. Since the 4-in-1 ESC is a centralized architecture, an anomaly in one channel can quickly affect the entire system, which is not ideal for mission-critical applications. Therefore, in these scenarios, it is more common to use independent ESCs to enhance fault isolation capabilities and maintenance flexibility.
2.3 Industrial-Grade, Heavy-Lift, or High-Redundancy Platforms
In industrial or heavy-lift platforms, system design usually prioritizes reliability, redundancy, and maintainability over high integration. These platforms often have clear requirements for rapid component replacement, single-channel maintenance, and risk isolation. In contrast, the integrated structure of the 4-in-1 ESC is more suitable for consumer or entertainment FPV, rather than industrial applications requiring long-term high-intensity operation.
Key Parameters to Consider When Choosing a 4-in-1 ESC
After clarifying whether a 4-in-1 ESC is suitable for your drone size and flight scenario, the actual selection phase begins. The parameters themselves are not complex, but if understood in isolation from the usage method, one can easily be misled by the nominal values.
1. Continuous Current vs. Peak Current
Among all parameters, current specifications are most easily noticed and most easily misunderstood. Continuous current represents the working current that the ESC can withstand stably for a long time under reasonable cooling conditions; it is the core indicator for judging reliability. Peak current usually applies only to instantaneous loads for a very short time and does not represent that the ESC can run at this current for long periods. In actual usage, FPV flight relies more on continuous current capability than instantaneous peaks. Therefore, rather than pursuing higher peak numbers, it is better to ensure that the continuous current can cover common flight conditions and leave a certain margin for the ESC.
2. Supported Battery Voltage Levels
4-in-1 ESCs will typically specify the supported battery voltage range, such as 3S, 4S, or 6S. This parameter not only determines "usability" but also directly affects the ESC's working pressure and thermal characteristics. Under the same power requirement, higher voltage means lower current, which helps reduce the current burden on wires and interfaces; however, at the same time, it places higher demands on the ESC's electrical design and switching loss control. Therefore, the choice of voltage level should remain consistent with the entire propulsion system, rather than changing to a higher voltage ESC solely for the sake of an "upgrade."
3. Firmware and Signal Protocols
The 4-in-1 ESC communicates with the flight controller via firmware and signal protocols, which determine the throttle response method and compatibility. In the current FPV environment, mainstream firmware and protocols are already quite mature and can satisfy the vast majority of flight needs. For ordinary users, as long as compatibility between the ESC and flight controller is ensured and communication is stable, there is usually no need to overly agonize over specific protocol differences. Compared to extreme response performance, stability and predictability are often more important for the daily flight experience.
4. Built-in BEC and Power Supply Capability
Some 4-in-1 ESCs integrate a BEC (Battery Eliminator Circuit) to provide low-voltage power for the flight controller or peripherals. This design can reduce the need for extra power modules, making the aircraft structure simpler. Under basic configurations, the built-in BEC is usually sufficient. However, if there are many peripherals or devices with high power consumption, one needs to pay attention to whether the ESC's power supply capability is adequate to avoid instability caused by insufficient power.
5. Thermal Performance in Actual Use
Even with similar nominal parameters, different 4-in-1 ESCs may exhibit significant differences in actual performance, with heat dissipation being a key factor. The PCB design of the ESC, component layout, and airflow conditions inside the frame will all affect heat accumulation and dissipation. Issues with insufficient heat dissipation are more likely to be exposed during high-throttle or long-duration flights. Good cooling conditions relate not only to flight stability but also directly affect the lifespan of the ESC. Therefore, when selecting a model, one should not just look at the spec sheet but also consider the actual operating environment.
How to Make a 4-in-1 ESC More Stable and Last Longer?
In the previous sections, we discussed the applicable boundaries of 4-in-1 ESCs from multiple angles such as size, usage scenarios, parameter understanding, and propulsion system impact. However, in actual use, the stability and lifespan of an ESC depend not only on whether the selection was "correct," but more on whether the long-term usage method is reasonable. Understanding which factors gradually accumulate pressure during use helps reduce the probability of failure and allows the 4-in-1 ESC to work more stably within its design limits.
1. What are the most common risks during flight?
In FPV usage, anomalies in 4-in-1 ESCs are rarely caused by a single factor, but often stem from a superposition of multiple usage conditions.
The most common sources of risk include:
Maintaining high throttle output for extended periods, restricted airflow inside the frame leading to insufficient cooling, and unstable solder joints or connections. These issues may not immediately manifest during short flights but will gradually amplify during continuous use. It is important to note that ESC problems often have a "delayed effect." That is, when an anomaly manifests, the pressure has often been accumulating for some time, rather than just occurring.
2. What to do if one channel acts abnormally?
Since the 4-in-1 ESC uses a centralized structure, when one motor or drive channel behaves abnormally, the impact on the entire machine is usually quite direct.
During flight, common signs of abnormality include:
Abnormal startup of a single motor, unstable RPM, or the aircraft's attitude suddenly becoming difficult to control. These phenomena do not necessarily mean the ESC is already destroyed, but they often indicate that a certain channel is already in an abnormal working state. In this situation, continuing to fly may accelerate the expansion of the problem. Compared to trying to "finish this pack" (fly until the battery is empty), stopping use immediately and checking the propulsion system is more helpful in avoiding further damage.
3. How to improve stability and lifespan?
Based on usage experience, making a 4-in-1 ESC more stable and durable does not rely on complex tricks, but more on following some basic principles.
First, reserving a reasonable margin for the ESC during the selection phase can significantly reduce long-term operating pressure. Second, good heat dissipation conditions are particularly important for integrated ESCs; frame structure and airflow paths are often more critical than a single parameter. Additionally, avoiding continuous full-throttle operation for long periods and regularly checking the status of solder joints and connections also help reduce potential risks. These practices will not significantly alter the flight experience but can greatly enhance the reliability of the system.
Frequently Asked Questions (FAQ)
Q1. Is a 4-in-1 ESC necessarily more advanced than an independent ESC?
Not necessarily. The advantages of the 4-in-1 ESC lie in high integration, simple installation, and good overall consistency, but this does not mean it is "more advanced" in all scenarios. Independent ESCs still possess distinct advantages in heat dissipation, maintenance flexibility, and fault isolation. The two represent different design orientations rather than a generational technological difference.
Q2. If one channel of a 4-in-1 ESC fails, must the whole board be replaced?
In the vast majority of cases, yes. Because the 4-in-1 ESC uses a centralized structure, once hardware-level damage occurs to one drive channel, the entire ESC usually needs to be replaced. This is one of the trade-offs that must be accepted with an integrated solution regarding maintenance.
Q3. Is a larger nominal current always safer?
Not entirely. The nominal current, especially the peak current, does not represent that the ESC can work stably at that current for a long time. Compared to the magnitude of the number, continuous current capability, heat dissipation conditions, and actual operating conditions have a greater impact on stability.
Q4. Does using 6S batteries make it easier to burn the ESC?
Whether it is easier to encounter problems depends on the overall combination and usage method. Under a reasonable configuration, 6S does not necessarily increase risk; however, under conditions of high load, insufficient cooling, or improper matching, higher voltage can more easily amplify the working pressure on the ESC. Therefore, the key is not "whether it is 6S," but whether the system is matched correctly.
Q5. Is a 4-in-1 ESC suitable for beginners to use directly?
In most cases, yes. 4-in-1 ESCs are simpler to install and require less wiring, making it easier to build a neat airframe structure, which is actually more friendly to beginners. The prerequisite is to choose specifications that match the model size and usage scenario, and to avoid aggressive configurations.
Q6. Why do different brands of 4-in-1 ESCs with the same specifications perform very differently?
This is a common phenomenon. Even if nominal parameters are close, differences in PCB design, component layout, and heat dissipation methods across different ESCs will lead to different actual operating temperatures and stability. Therefore, identical parameters do not imply a completely identical usage experience.
Q7. Is slight heating of the ESC a normal phenomenon?
Within a normal operating range, slight heating is normal. The ESC inevitably generates heat during the power conversion process. The key is not "whether it heats up," but whether there is abnormal temperature rise, performance degradation, or changes in stability. If heating is accompanied by flight anomalies, it requires attention.
Q8. Is it necessary to deliberately choose a higher specification ESC for safety?
Reserving a moderate margin is reasonable, but higher is not always better. Excessively pursuing high specifications may bring unnecessary burdens in terms of volume, weight, or layout. A more rational approach is to select a specification that is suitable and has some margin, based on a clear understanding of the size and usage scenario.
