In drone power systems, the ESC (Electronic Speed Controller) is a core component that determines flight performance stability, power response speed, and overall system reliability. Whether it is a TinyWhoop, a 5-inch Freestyle racing drone, or a 6–7 inch long-range platform, the ESC undertakes the task of converting control commands output by the flight controller into three-phase drive signals in real-time. If the ESC specifications are chosen incorrectly, heat dissipation is poor, or the response is not stable enough, it can lead to crashes, thermal attenuation (heat soak), jitter, motor stuttering (desync), or even a complete loss of control of the aircraft.

To help users in 2025 quickly and safely find mainstream ESC models that are purchasable, verified as mature, and adapted to different aircraft types, this article will start from core principles and break down the best choices category by category: TinyWhoop → Cinewhoop → 5-inch Racing → Long-Range → Industrial HV ESCs. Combined with motor matching logic, current/voltage selection methods, and firmware protocol differences, this guide will help you make accurate decisions under different mission scenarios.

Principles and Functions of Drone ESCs

1. Basic Concepts of the ESC (What Is a Drone ESC)

The ESC (Electronic Speed Controller) is the key power control module connecting "Flight Controller → Motor." Its main task is to convert the throttle commands (PWM, DShot, etc., digital signals) output by the flight controller into three-phase current waveforms to drive the brushless motor in real-time, thereby precisely controlling the motor's speed (RPM) and torque.

Its core working logic includes:

(1) Converting Flight Controller Signals into Drive Commands

The flight controller outputs throttle signals (PWM/DShot/Multishot) to the ESC. The ESC's internal MCU (such as STM32G071/F411. etc.) parses the signal into the target speed or "target torque" that the actual motor should achieve.

(2) Driving Three-Phase Motor Coils via High-Speed Switching

The ESC follows algorithms in its firmware (BLHeli_S / BLHeli_32 / AM32. etc.) to switch the MOSFET array (MOSFETs) at high speeds, ultimately outputting the three-phase current required by the brushless motor. The switching frequency is usually in the range of 24–128kHz; the higher the frequency, the more linear the throttle, the lower the noise, and the less the vibration.

(3) Managing Current and Voltage, and Protecting Equipment in Real-Time

High-quality ESCs continuously monitor voltage, current, temperature, and motor status, and protect against abnormalities, such as: Over-current protection, Temperature protection, Brake on Stop, Stall protection, etc. Different firmware and MOSFET quality will directly affect flight feel, reliability, and crash resistance.

(4) Influencing Flight Controller Filtering and IMU Stability

ESC noise, current ripple, and drive modes directly affect the interference levels on the IMU. For example, high-frequency PWM (48–128kHz) can reduce noise, making the video footage of Long-Range platforms and Cinewhoops cleaner.

In short:

The ESC is the "power arm" of the flight controller. The ESC is the critical execution module connecting the flight controller and the motor, and it is the "stability anchor" of the power system.

2. The Role of the ESC in the Drone Power System

From the perspective of the power link, the core energy flow sequence of a drone is:

Battery → ESC → Motor → Propeller

The ESC plays an extremely critical role in this:

(1) Determines Flight Stability and Throttle Linearity

Whether the throttle feels connected (locked-in); whether there is jitter at low throttle; whether it overheats at high throttle; whether there is lag during re-acceleration—these are all determined by the ESC drive algorithms.

(2) Affects Motor Response and Overall Handling Feel

Racing drones require millisecond-level response, while Cinewhoops care more about linearity and low vibration. The same set of motors can have vastly different flight feels under different ESCs.

(3) Has a Direct Impact on Flight Controller Filtering and Video Transmission

High-frequency PWM can reduce noise and current ripple. Stable power output can reduce static (snow) interference in video transmission, and less current noise can improve IMU data quality. This is why Cinewhoop and Long-Range LR platforms care particularly about ESC "noise performance."

(4) Different Aircraft Types Have Completely Different Priorities for ESCs

Therefore, regarding ESC selection, no single ESC can fit all aircraft types; choices must be picked according to the scenario.

1–2S Micro Drone ESC Recommendations (TinyWhoop / Toothpick)

The development focus of 1–2S micro platforms has shifted from "performance" to "extreme lightweight and integration." These models usually have a size of 65–75mm, with small motor volume and high KV values. They do not have a large demand for ESC current, but have extremely high requirements for volume, weight, throttle precision, and response consistency. Therefore, this type of platform mainly uses AIO (Flight Controller + ESC combined board), prioritizing integrated design, low heat generation, and high stability across consecutive flights. This chapter recommends two AIO ESC solutions that perform most stably in 1–2S micro traversing, racing, and indoor FPV scenarios.

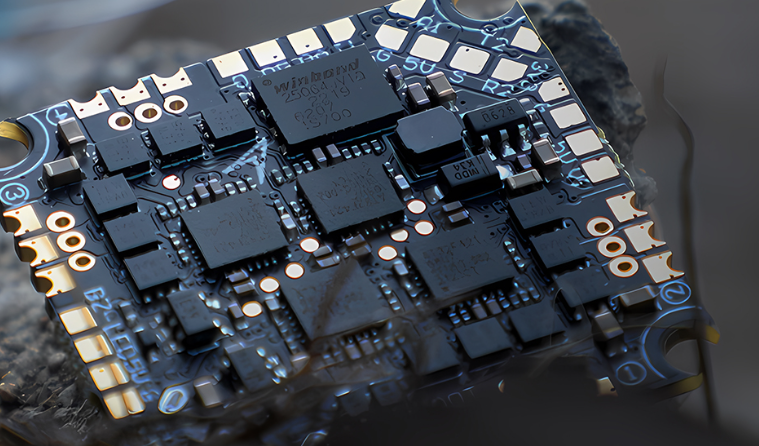

1. T-Motor F411 1S 13A AIO Flight Controller (Whoop)

Specifications:

Type: AIO (Flight Controller + 4-in-1 ESC)

Input Voltage: 1S

Continuous Current (ESC): 13A

ESC Firmware: AM32

PWM Frequency: 24–96kHz

Supported Protocols: DShot / Oneshot and other standard brushless protocols

FC MCU: STM32F411

Gyroscope: BMI270

Onboard BEC: 5V / 2A

Dimensions (PCB Size): Approx. 29.5 × 29.5mm

Mounting Holes: 25.5 × 25.5mm, M2

Weight: Approx. 5.7g (including vibration dampeners/gummies)

Reason for Recommendation:

The F411 13A AIO is one of the highest-spec 1S boards in the TinyWhoop segment. Its 13A continuous current rating far exceeds typical 1S boards (5–8A), providing ample headroom for high-KV 0802, 1002, and 1102 motors. It maintains stable output during rapid throttle punches without voltage sag. The F411 MCU paired with the BMI270 IMU delivers clean gyro data even in high-noise indoor environments, resulting in highly consistent flight performance. This makes it a strong choice for 65–75mm TinyWhoops and 1S toothpick builds focused on racing responsiveness, throttle accuracy, and repeatable control feel.

2. Happymodel X12 AIO 5-in-1 F4 12A 1–2S

Specifications:

Type: 5-in-1 AIO (F4 FC + 4-in-1 ESC + ELRS RX + VTX + OSD)

Input Voltage: 1–2S

Continuous Current (ESC): 12A

Peak Current (ESC): Approx. 15A (3 seconds)

ESC Firmware: BLHeli_S (Default Z_H_30_REV16_7. can flash Bluejay)

PWM Frequency: Typical 24–48kHz (depends on firmware configuration)

Supported Protocols: DShot300/600. Multishot, Oneshot, etc.

FC MCU: STM32F411CEU6

Gyroscope: ICM20689

Onboard BEC: 5V / 1A (for VTX / Camera), 3.3V / 0.5A (Receiver, etc.)

Dimensions (PCB Size): Approx. 30 × 30mm

Mounting Holes: 25 × 25mm Whoop spacing (M2)

Weight: Approx. 5.1g (excluding wires)

Reason for Recommendation:

The X12’s strength lies in its all-in-one integration (FC + ESC + ELRS RX + VTX), which is critical for ultra-light 1–2S platforms where every gram affects performance. Its 12A continuous current is sufficient for 1102 and 1202.5 motors on 2S without triggering voltage drop, and when flashed with Bluejay, it offers cleaner throttle characteristics and reduced motor noise. At roughly 5g, it is widely adopted for Sub50g toothpicks and lightweight 1S indoor builds, particularly for pilots seeking minimal wiring, clean assembly, and high crash tolerance.

Summary:

The most critical aspects for micro 1–2S models are lightweight, stability, and integration. The positioning of the T-Motor F411 13A and Happymodel X12 is different: the former focuses on high-spec 1S performance, suitable for racing and high KV motors; the latter excels in functional integration and 1–2S versatility. These two solutions are sufficient to cover most needs from entertainment and practice to light racing, making them the most mature and reliable choices for micro drones.

3–4 Inch Cinewhoop / Small Long-Range ESC Recommendations

3–4" models and Cinewhoop Long-Range platforms take "efficiency, lightweight, and durability" as key demands. They usually use 3–6S power, requiring enough current to support lightweight motors like 1504–2004. while also demanding that the ESC maintain low temperature and low interference during long cruises, and be compatible with the power supply needs of DJI/Walksnail video transmission systems. Compared to micro platforms, this category is more sensitive to the ESC's "continuous working capability" and "stable BEC output." This chapter selects two high-stability AIO ESCs widely recognized in lightweight long-range and small Cinewhoops.

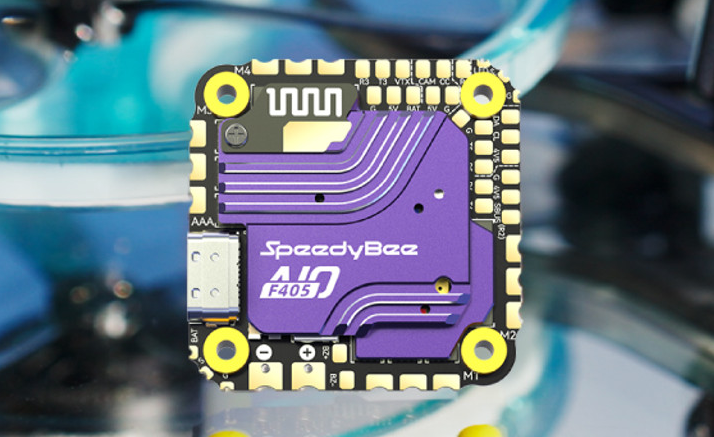

1. SpeedyBee F405 AIO 40A 3–6S Flight Controller

Specifications:

Type: AIO (F405 FC + 4-in-1 40A ESC)

Input Voltage: 3–6S

Continuous Current (ESC): 40A

Peak Current (ESC): 45A (10 seconds)

ESC Firmware: BLHeli_S (Pre-flashed Bluejay J-H-40 Target)

PWM Frequency: Up to 48kHz

Supported Protocols: DShot300/600. Multishot, Oneshot, etc.

FC MCU: STM32F405

Gyroscope: ICM42688P

Onboard BEC: 5V / 2A, 9V / 2A

Dimensions (PCB Size): Approx. 33 × 33 × 8mm

Mounting Holes: 25.5 × 25.5mm, M2 (Whoop specification)

Weight: Approx. 13–14g (including heatsink)

Reason for Recommendation:

The F405 40A AIO hits an optimal balance for 3–4" long-range and Sub250g platforms. Its 40A continuous output supports 1504, 1804, and 2004 motors while remaining stable under sustained cruising. The onboard 9V regulator delivers robust power for HD video systems such as DJI O3 or Walksnail, preventing voltage dips that could cause video transmission glitches. Bluetooth configuration simplifies PID tuning and maintenance, making this board ideal for lightweight long-range builds and compact Cinewhoops that demand both efficiency and reliable HD power delivery.

2. iFlight BLITZ Whoop F7 55A AIO

Specifications:

Type: High Current AIO (F7 FC + 4-in-1 55A ESC, separable FC / ESC dual-layer structure)

Input Voltage: 2–6S LiPo / LiHV

Continuous Current (ESC): 55A

Peak Current (ESC): 65A (10 seconds)

ESC Firmware: BLHeli_S (Can flash Bluejay)

PWM Frequency: 24kHz (Adjustable in Bluejay)

Supported Protocols: DShot150/300/600. Supports Bidirectional DShot (Bluejay)

FC MCU: BGA-STM32F745. 216MHz

Gyroscope: ICM42688

Onboard BEC (FC part): 5V / 2–2.5A

Dimensions (Full Board PCB): Approx. 35 × 35mm

Mounting Holes: 25.5 × 25.5mm (Nominal φ3mm holes)

Weight: Approx. 10.5g (Full set FC+ESC)

Reason for Recommendation:

The BLITZ F7 55A excels in high-load 3.5–4" Cinewhoops and compact 5" builds that require substantial current overhead. Many GoPro- or O3-equipped Cinewhoops routinely draw 40A+ bursts on 2004/2105.5 motors; this ESC’s 55A rating combined with thicker copper layers and improved thermal design ensures low temperatures during demanding maneuvers. The F7 processor offers stronger noise rejection and more accurate filtering, delivering smoother footage and more precise control—ideal for cinematic flights where stability and motor linearity matter.

Summary:

The SpeedyBee F405 40A AIO is more suitable as a "Universal Sub250g ESC," while the iFlight BLITZ F7 55A AIO leans towards the high-performance route for Cinewhoops and medium-load models. Both are characterized by small size, sufficient power, and strong compatibility, capable of covering most 3–4" tasks, from lightweight long-range to medium-high load Cinewhoops.

5 Inch Freestyle / Racing ESC Recommendations

5" Freestyle and Racing are the scenarios with the most extreme requirements for ESCs in the FPV world. High KV motors generate huge instantaneous current shocks under full throttle bursts; crash intensity is high, and thermal load is heavy. This makes the ESC's copper thickness, MOSFET quality, heat dissipation structure, and protection mechanisms the core competencies. The key for a 5" ESC is not having many features, but being "resistant to violence, high heat, and impact." This chapter selects two 55A ESCs representing the extreme performance route and the high cost-effectiveness route respectively, covering main needs from competitive racing to daily Freestyle.

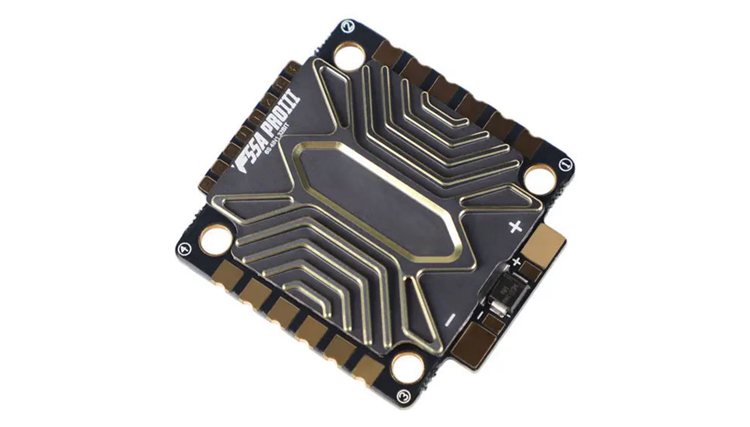

1. T-Motor F55A PRO III 55A 3–8S 4-in-1 ESC

Specifications:

Type: 4-in-1 High Performance Racing / Freestyle ESC

Input Voltage: 3–8S

Continuous Current: 55A

Peak Current: 65A (10 seconds)

ESC Firmware: AM32

PWM Frequency: 16–128kHz (Adjustable)

Supported Protocols: DSHOT150/300/600/1200. Supports Telemetry

BEC: None

MCU: STM32G071 (32-bit)

Dimensions: Approx. 44 × 40 × 7.5mm

Mounting Holes: 30.5 × 30.5mm, M3

Weight: Approx. 17.8g (including heatsink)

Reason for Recommendation:

The F55A PRO III is widely regarded as a benchmark ESC for 5" racing and freestyle. Using high-grade MOSFETs and a reinforced thermal structure, it exhibits minimal heat-soak even under sustained 6S high-KV bursts with 2207.5 or 2306 motors. Real-world tests show notably lower MOSFET temperatures compared to mid-tier ESCs. With AM32 firmware and optional 128kHz drive frequency, throttle response is extremely fast and precise, making it suitable for pilots who push maximum acceleration, aggressive maneuvers, and competitive racing conditions where reliability can’t be compromised.

2. SpeedyBee F405 V4 BLS 55A 30×30 4-in-1 ESC

Specifications:

Type: 4-in-1 ESC (Forms a 30×30 Stack with F405 V4 FC)

Input Voltage: 3–6S

Continuous Current: 55A

Peak Current: 70A (10 seconds)

ESC Firmware: BLHeli_S J-H-40

PWM Frequency: Up to 48kHz

Supported Protocols: DShot300/600. Supports wireless motor direction reversal

BEC: None

Dimensions: Approx. 45.6 × 44 × 8mm

Mounting Holes: 30.5 × 30.5mm, hole diameter approx. 4mm

Weight: Approx. 23.5g (including heatsink)

Reason for Recommendation:

The F405 V4 BLS 55A prioritizes durability, ease of use, and stable power delivery for everyday freestyle flying. Its 55A continuous (70A peak) output supports common 6S 2207/2306 setups, providing consistent thrust even during repeated power cycles and crashes. When paired with the F405 V4 FC, motor direction and ESC settings can be adjusted wirelessly via the SpeedyBee app—greatly improving maintenance efficiency. This ESC is ideal for freestyle pilots who need strong performance without the premium cost of high-end competitive boards.

Summary:

The T-Motor F55A PRO III is a flagship solution for the "top pursuit of performance and durability," while the SpeedyBee 55A ESC has become the most common high cost-performance choice for the masses due to "uncompromised specs + high usability + easy tuning." Together, they cover the needs of mainstream 4–6S 5" models. Whether you are pursuing extreme acceleration in Racing or high-force moves in Freestyle, you can find a matching solution from these two ESCs.

6–7 Inch Long-Range Platform ESC Recommendations

6–7" Long-Range platforms emphasize "Efficiency and Stability prioritized above all else." These aircraft use large propellers and low KV motors, have long flight times, and have extremely high requirements for the ESC's continuous current capability, thermal control performance, PWM high-frequency response, and stable voltage output. LR scenarios do not pursue extreme bursts, but rather throttle linearity and low-noise operation over long cruising distances. Therefore, the ESC's high-frequency drive and heat dissipation capabilities are more important than instantaneous peak current. This chapter recommends two 60A ESCs that perform most stably in 5–7" Long-Range and medium-load cruising tasks.

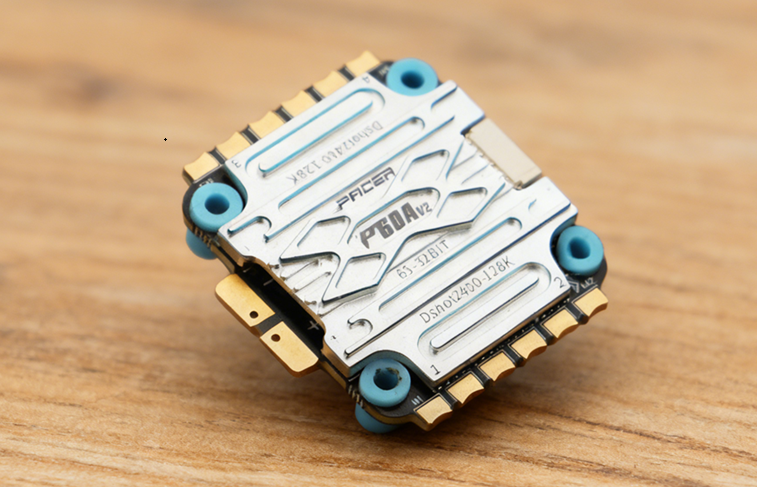

1. T-Motor P60A V2 60A 3–6S 4-in-1 ESC

Specifications:

Type: 4-in-1 Mid-High Current ESC

Input Voltage: 3–6S LiPo

Continuous Current: 60A

Peak Current: 70A

ESC Firmware: BLHeli_32 32bit

PWM Frequency: 16–128kHz

Supported Protocols: DShot150/300/600/1200. Supports Telemetry

BEC: None

Dimensions: Approx. 41 × 45 × 7.2mm

Mounting Holes: 30.5 × 30.5mm, M3

Weight: Approx. 22g (including heat dissipation shell)

Reason for Recommendation:

The P60A V2 stands out in 6–7" long-range applications due to its clean high-frequency (up to 128kHz) PWM output, which significantly reduces low-frequency vibrations from large low-KV motors. This results in smoother IMU data, higher throttle efficiency, and more stable cruise performance. When paired with motors such as 2507, 2806.5, or 3115, the ESC allows long-range aircraft to maintain tight efficiency margins—often improving endurance by 3–8% in real-world use. It is well suited for long-distance flight, aerial mapping, cinematic cruising, and autonomous waypoint missions.

2. Hobbywing XRotor Micro 60A 6S 4-in-1 BLHeli_32 ESC

Specifications:

Type: 4-in-1 ESC

Input Voltage: 3–6S LiPo

Continuous Current: 60A

Peak Current: 80A

ESC Firmware: BLHeli_32

PWM Frequency: Supports high-frequency PWM (Typical 24–48kHz, scalable higher)

Supported Protocols: DShot1200 and all lower digital/analog throttle protocols

Onboard BEC: 5V / 0.6A (Power for FC), with Voltage / Current detection module

Dimensions: Approx. 52 × 42 × 6.6mm

Mounting Holes: 30.5 × 30.5mm

Weight: Approx. 15g (ESC body)

Reason for Recommendation:

The XRotor Micro 60A is known for its exceptional reliability and thermal stability, traits inherited from Hobbywing’s industrial-grade ESC line. It handles sustained 6S loads on motors like 2806.5, 3110, and 3508 without thermal runaway, making it a dependable choice for long-range or medium-payload builds. Its onboard 5V BEC provides a clean, stable power supply for HD systems or flight controllers—particularly important for aerial cinematography and long-endurance platforms that require consistent voltage regulation. Ideal for pilots who value reliability over extreme peak performance.

Summary:

The T-Motor P60A V2 focuses on high-frequency control and high-end cruising experience, while the Hobbywing XRotor Micro 60A is famous for being heat-resistant, durable, and stable for long flights. Together, they cover the medium-high load needs of 5–7" platforms and are the most reliable ESC combination choices for engineering inspection, long-distance flight, and aerial photography models.

Industrial and Heavy-Load Multirotor (HV) ESC Recommendations

Industrial and heavy-load multirotor platforms have essentially departed from the FPV category and entered the requirements of "Engineering-Grade Stability." 6–12S high-voltage systems, large-volume motors, and long-duration missions require ESCs to possess high current output, comprehensive protection mechanisms, FOC fine driving (some models), and highly reliable thermal design. Compared to civilian small drones, the core of this type of ESC is "Safety and Durability," not explosive power. The two ESCs selected in this chapter represent the FOC engineering-grade route and the HV high-power traditional route respectively, capable of covering professional application needs such as mapping, inspection, agriculture, and logistics.

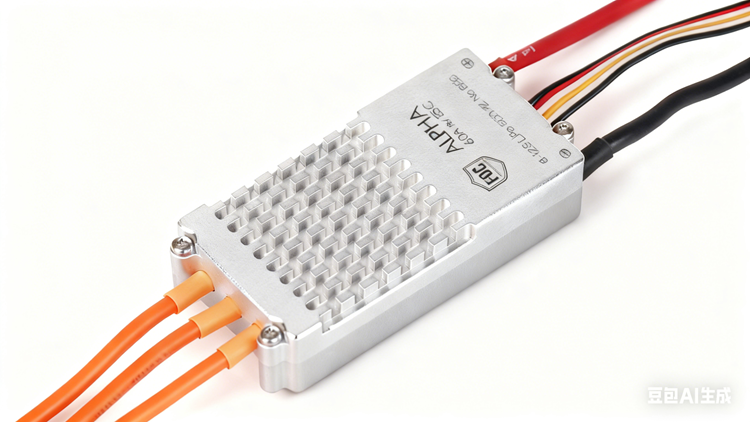

1. T-Motor ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC

Specifications:

Type: Single Industrial FOC Sensorless Sine-Wave ESC

Input Voltage: Max 12S

Continuous Current: 60A

Instantaneous Current: 80A (10s)

Drive Method: FOC (Sine-Wave Drive)

Dimensions: 78.7 × 32.5 × 16.2mm

Weight: 73g

Standby Power Consumption: ≤50mA

BEC: None

Supported Protocols: PWM / PPM / Standard throttle signals

Throttle Travel Range: 1100-1940μs

Throttle Refresh Frequency: 500Hz

Throttle Response Speed: 300μs

Protection Functions: Multiple protections including Over-current, Stall, Short circuit, Undervoltage, Over-temperature, etc.

Reason for Recommendation:

The ALPHA 60A uses true FOC (Field-Oriented Control) sine-wave drive, offering substantially quieter operation, lower electrical noise, and higher efficiency on 6–12S heavy-lift motors. This control method reduces vibrations and current ripple, which is particularly important for IMU-sensitive applications such as mapping, inspection, and cargo drones. It pairs especially well with motors like the U8, MN501S, and MN6007. With robust protection features and industrial-level reliability, it is one of the most widely used ESCs in professional multirotor platforms requiring long mission endurance.

2. Hobbywing XRotor Pro 80A HV V3 6–14S ESC

Specifications:

Type: Single HV ESC (OPTO Type)

Input Voltage: 6–14S LiPo (High Voltage HV Platform)

Continuous Current: 80A

Peak Current: Approx. 100–120A (10 seconds)

Drive Method / Firmware: Hobbywing self-developed BLDC drive (Non-BLHeli), supports high-frequency throttle signals

PWM / Throttle Frequency: Standard 50–500Hz throttle input

Supported Protocols: PWM / Standard throttle signal (Does not support DShot)

Onboard BEC: No BEC

Dimensions: Length approx. 85–100mm, Width approx. 35–45mm, Height approx. 20–25mm (including external heatsink)

Mounting Holes: Traditional large ESC mounting tabs, non-30.5/20mm standard spacing

Weight: Approx. 120–140g (including wires)

Reason for Recommendation:

The XRotor Pro 80A HV V3 is engineered for 6–14S agricultural, industrial, and heavy-lift multirotors. Its substantial heat-dissipation structure and high-temperature-rated MOSFETs maintain stability during extended full-load operations, such as spraying, inspection, or logistics flights. Supporting large motors (e.g., 5010–6015) and 30–32" propellers, it offers the reliability needed for aircraft carrying 5–15kg payloads. Designed with safety margins suited to professional environments, it is a dependable ESC for high-voltage, high-power mission profiles.

Summary:

The T-Motor Alpha 60A 12S relies on FOC drive to bring higher efficiency and lower noise, making it very suitable for professional mapping and inspection tasks; while the Hobbywing XRotor Pro 80A HV V3 becomes the "Workhorse ESC" for agricultural heavy-load platforms due to higher voltage, higher current, and solid reliability. The two complement each other, jointly covering industrial UAV application scenarios from 6S to 14S, allowing heavy-load platforms to achieve a balance between safety and efficiency.

TOP 10 Drone ESC Specifications Summary Table:

How to Choose the Suitable Drone ESC?

Selecting an ESC for a drone is not simply looking at "the bigger the current the better" or "the newer the firmware the better," but must be judged comprehensively from multiple angles such as current, voltage, structural form, firmware protocols, and build quality. This chapter will provide clear, practical, and actionable ESC selection methods around five questions most common to readers.

1. How to Select Drone ESC Current Specifications?

The "Continuous Current" of the ESC is the most critical indicator; it directly determines whether the ESC can remain stable during long-duration flights, high-throttle maneuvers, or high-temperature environments. Peak current can usually only last for a few seconds, so it can be used for reference but cannot be used as the basis for selection.

A simple and practical method for judgment is:

ESC Continuous Current ≈ Motor Max Current × 1.2–1.3

This redundancy can cover acceleration bursts, voltage fluctuations, airframe resistance changes, etc.

Typical current ranges for different aircraft types vary significantly:

TinyWhoop / 1S: 5–13A (Lightweight priority)

3–4 Inch Platforms: 20–40A (Balancing efficiency and temperature)

5 Inch Racing / Freestyle: 45–60A (Instantaneous bursts are huge)

6–7 Inch Long-Range: 50–60A (Continuous stability is most important)

Industrial Multirotor: 60–80A Single (High voltage large load)

If you mainly do racing or large-maneuver flying, current redundancy should be appropriately increased; while lightweight platforms need to balance between "sufficient use" and "weight reduction."

2. How Much Voltage Does the Drone ESC Need to Match?

The ESC input voltage must be completely consistent with the battery cell count; this is a rigid condition that cannot be compromised.

For example:

3–6S ESC cannot use 8S batteries

12S ESC cannot connect to 14S

Engineering-grade platforms of 6–12S must also strictly abide by the manufacturer's range

Voltage mismatch is very dangerous and can lead to MOSFET breakdown, capacitor explosion, power supply system back-surge, and other problems.

Common voltage and aircraft type correspondences:

1S: Micro drones, whoops

2–4S: Lightweight Toothpick, 3–4 Inch Cinewhoop

4–6S: 5 Inch Mainstream Models

6S: 6–7 Inch Long-Range

6–12S / 14S: Industrial Multirotor

Therefore, the ESC "Operating Voltage Range" must be audited as a pre-condition for selection.

3. What is the Difference Between AIO, 4-in-1. and Single ESCs?

The structural form of the ESC determines which type of drone it is more suitable for:

AIO (Flight Controller + ESC Combined Board)

Applicable: 1–2S / 3–4S Lightweight platforms

Pros: Extremely light, minimal wiring, small space occupation

Cons: Current limit is limited; if one part breaks, the whole board needs replacement

4-in-1 ESC

Applicable: 5 Inch FPV, 4–6S platforms

Pros: High current, good heat dissipation, standardized stacking with FC

Cons: If any single channel is damaged, the whole board needs replacement

Single ESC (Independent, HV ESC)

Applicable: 6–12S / 14S Industrial, Agricultural drones, Inspection drones

Pros: Large current, large metal heatsinks, more rigorous protection mechanisms

Cons: Large volume, more wiring, higher cost

4. How to Choose ESC Firmware and Signal Protocols?

Firmware and protocols determine the ESC's drive method, throttle linearity, and flight feel; they are extremely important but easily overlooked parts of the power chain.

Common Firmware Types:

BLHeli_S / Bluejay: Lightweight and stable, suitable for micro drones

BLHeli_32: Supports high-frequency PWM, Telemetry, more suitable for 5 Inch and Long-Range

AM32: Open-source firmware, fast response, many adjustable parameters, common in Racing scenarios

regarding protocols, DShot300/600 has become the FPV mainstream, while DShot1200 / 2400 on high-end ESCs can provide faster and cleaner throttle signals.

If you fly Long-Range, Cinewhoop, or high-image-quality scenarios, high-frequency PWM (48–128kHz) and high-quality filtering are critical; if it is 5 Inch Racing, then you need the firmware to have rapid response and low latency.

5. How to Judge ESC Workmanship, Heat Dissipation, and Reliability?

For the same 55A ESC, some can remain stable after dozens of crashes, while others suffer from thermal attenuation after just a few flights; the difference lies in workmanship and materials.

Reliable ESCs usually possess:

Sufficient PCB copper thickness (2oz–3oz)

Better quality MOSFETs (Low internal resistance, high-temperature tolerance)

Large area metal heatsinks

Complete TVS diode and capacitor layout

Neat, reinforced solder joints and reasonable wiring

5 Inch Racing platforms, 6–7 Inch Long-Range platforms, and Engineering-Grade drones all rely heavily on high-quality ESCs because their flight environments are more complex, power is higher, and temperatures are higher.

Summary

The ESC is the core component in the drone power system that determines response speed, control stability, and reliability. This article has systematically organized the mainstream ESCs on sale in 2025 from working principles, structural types, and firmware characteristics to key indicators like current, voltage, and heat dissipation, and provided clear model recommendations for different aircraft scenarios.

Whether it is a micro TinyWhoop, small Cinewhoop, 5-inch Racing and Freestyle, or 6–7 inch Long-Range and Engineering-Grade High-Voltage platform, as long as you choose around aircraft requirements, current/voltage matching, structural form, and workmanship quality, you can quickly identify a suitable ESC. We hope this list can help you reduce trial-and-error during the actual build and upgrade process, allowing the drone to achieve better overall performance in terms of capabilities, stability, and safety.
