How to Choose Drone ESCs?
Electronic Speed Controllers (ESCs) are the critical components that regulate motor speed and direction in drones, acting as the bridge between your flight controller and motors. Choosing the right ESC can make the difference between a reliable, high-performing drone and one that fails when you need it most. This guide will walk you through everything you need to know about selecting ESCs, with a primary focus on industrial applications and secondary coverage of FPV systems.
Understanding ESC Fundamentals
An Electronic Speed Controller is a sophisticated piece of hardware that converts DC power from your battery into three-phase AC power for brushless motors. It receives PWM (Pulse Width Modulation) signals from the flight controller and translates these into precise motor speeds, enabling controlled flight.
Key ESC Components
- Power MOSFETs: Handle the high-current switching
- Microcontroller: Processes control signals and manages timing
- Current sensors: Monitor power consumption and provide feedback
- Capacitors: Smooth power delivery and reduce electrical noise
Industrial vs. FPV ESCs: Understanding the Differences
Industrial ESC Characteristics
Industrial drone ESCs are engineered for reliability, longevity, and consistent performance in demanding environments:
- Higher build quality with enterprise-grade components
- Extended temperature ranges (-40°C to +85°C typical)
- Redundancy features and fail-safe mechanisms
- Longer warranty periods
- Certification compliance (CE, FCC, sometimes aviation standards)
FPV ESC Characteristics
FPV ESCs prioritize performance, weight, and cost-effectiveness:
- Lightweight design for agility and speed
- High refresh rates for responsive control
- Competitive pricing for hobbyist budgets
- Compact form factors to fit racing frames
Step 1: Determine Your Current Requirements
Calculate Peak Current Draw
The most critical specification is current handling capacity. Here's how to calculate your needs:
Formula: Motor Peak Current × Number of Motors × Safety Factor (1.2-1.5)
Example Scenario:
A heavy-lift industrial drone uses four motors, each drawing 25A at peak load:
- Base requirement: 25A × 4 = 100A total
- With 30% safety margin: 25A × 1.3 = 32.5A per ESC
- Recommendation: Choose 40A ESCs for reliable operation
Consider Continuous vs. Burst Current
- Continuous current: What the ESC can handle indefinitely
- Burst current: Short-term peak handling (typically 10-30 seconds)
For industrial applications, size your ESCs based on continuous current requirements to ensure thermal stability during extended operations.
Step 2: Voltage Compatibility and Cell Count
Battery Configuration Matching
ESCs must match your battery voltage configuration:
- 3S (11.1V): Light drones, short flights
- 4S (14.8V): Most common for medium drones
- 6S (22.2V): Heavy-lift, industrial applications
- 8S+ (29.6V+): Large industrial platforms
Real-world Example: A surveying drone operating for 45 minutes requires 6S batteries for extended flight time. The ESCs must support 22.2V nominal voltage with peaks up to 25.2V when fully charged.
Voltage Range Considerations
Always verify the ESC's voltage range includes:
- Minimum voltage: When battery is nearly depleted
- Maximum voltage: When battery is fully charged
- Voltage spikes: During rapid throttle changes
Step 3: Motor Compatibility and Timing
Motor Type Matching
Ensure your ESC supports your motor specifications:
- KV rating compatibility: Higher KV motors may require different timing
- Pole count: Some ESCs perform better with specific pole counts
- Sensor vs. sensorless: Industrial applications often benefit from sensored motors
Timing Adjustment
Modern ESCs offer adjustable timing for optimization:
- Lower timing: Better efficiency, cooler operation
- Higher timing: More power, higher temperatures
- Auto-timing: Automatically adjusts for optimal performance
Step 4: Protocol and Communication Standards
Signal Protocols
Choose ESCs that support your flight controller's preferred protocol:
Standard PWM:
- Refresh rate: 50-400Hz
- Best for: Basic applications, older systems
OneShot125/OneShot42:
- Refresh rate: 1-8kHz
- Best for: Improved responsiveness over PWM
DShot (Digital):
- Refresh rates: 150Hz to 8kHz
- Benefits: Digital communication, telemetry, no calibration needed
- Recommended for industrial applications
Example Implementation: A precision agriculture drone benefits from DShot600 protocol, providing 600Hz refresh rate for stable hovering during crop spraying operations.
Step 5: Environmental and Durability Factors
Operating Environment Assessment
Temperature Considerations:
- Standard ESCs: 0°C to +60°C
- Industrial ESCs: -40°C to +85°C
- Extreme environment ESCs: -55°C to +125°C
Moisture and Dust Protection:
- IP54: Basic splash resistance
- IP65: Dust-tight, water jet resistant
- IP67: Submersion resistant (limited time)
Real-world Scenario: Arctic research drones require ESCs rated for -40°C operation with conformal coating to prevent condensation damage during temperature cycling.
Vibration and Shock Resistance
Industrial applications demand robust construction:
- Potted electronics: Encased in protective resin
- Reinforced solder joints: Prevent fatigue failures
- Shock mounting: Reduces stress on components
Step 6: Advanced Features for Industrial Applications
Telemetry and Monitoring
Modern industrial ESCs provide valuable operational data:
Standard Telemetry:
- Current consumption
- Voltage monitoring
- Temperature readings
- RPM feedback
Advanced Features:
- Individual cell voltage monitoring
- Power consumption logging
- Predictive maintenance alerts
- Remote diagnostics capability
Redundancy and Fail-Safe Features
Critical for industrial operations:
- Dual redundant inputs: Backup control signals
- Graceful degradation: Continued operation with reduced performance
- Emergency stop capability: Immediate motor shutdown
- Status LED indicators: Visual system health feedback
Step 7: Form Factor and Installation Considerations
Physical Constraints
Size and Weight:
- Measure available mounting space
- Consider cable routing requirements
- Account for cooling airflow needs
Mounting Options:
- Stack mounting: Compact, integrated with flight controller
- Distributed mounting: Individual ESCs near each motor
- Centralized mounting: All ESCs in protected compartment
Cooling Requirements
Heat Dissipation Strategies:
- Passive cooling: Heat sinks, thermal pads
- Active cooling: Fans, liquid cooling (rare)
- Airflow design: Ensure adequate ventilation
Example: A heavy-lift drone carrying 10kg payload requires ESCs with integrated heat sinks and strategic placement for propwash cooling during hover operations.
Step 8: Firmware and Software Considerations
Firmware Features
Essential Capabilities:
- Motor startup smoothness: Prevents mechanical stress
- Throttle response curves: Customizable for application needs
- Protection features: Over-current, over-temperature, low-voltage
- Calibration procedures: Simple setup and maintenance
Configuration Software
User-friendly interfaces:
- Graphical configuration tools
- Real-time parameter adjustment
- Data logging and analysis
- Firmware update capabilities
Step 9: Testing and Validation
Bench Testing Protocol
Before first flight:
- Continuity testing: Verify all connections
- Motor direction verification: Ensure correct rotation
- Throttle response testing: Check smooth acceleration
- Temperature monitoring: Observe thermal performance
- Vibration testing: Ensure secure mounting
Field Testing Progression
Systematic validation:
- Ground testing: Motors spinning, no flight
- Hover testing: Short duration, low altitude
- Pattern flying: Basic maneuvers, increasing complexity
- Mission simulation: Full operational profile testing
Real-World Application Examples
Example 1: Agricultural Spraying Drone
Requirements:
- 20kg payload capacity
- 30-minute flight duration
- Precise speed control for even application
- Dusty, humid environment operation
ESC Selection:
- 80A continuous current rating
- IP65 environmental protection
- DShot protocol for precision control
- Integrated telemetry for monitoring
- Result: Reliable operation with minimal maintenance
Example 2: Search and Rescue Drone
Requirements:
- Rapid deployment capability
- Extended flight time (60+ minutes)
- Operation in various weather conditions
- Critical mission reliability
ESC Selection:
- Redundant control inputs
- Wide temperature range (-20°C to +60°C)
- Advanced telemetry with predictive maintenance
- Quick-change mounting system
- Result: 99.8% mission success rate over 500 deployments
Example 3: FPV Racing Drone
Requirements:
- Maximum agility and speed
- Lightweight construction
- Cost-effective for frequent crashes
- High refresh rate control
ESC Selection:
- 30A burst current rating
- DShot1200 protocol
- Minimal weight (under 5g each)
- Integrated BEC for accessories
- Result: Competitive performance with acceptable replacement frequency
Common Mistakes to Avoid
Undersizing Current Capacity
Problem: Choosing ESCs based on normal flight current rather than peak demands
Solution: Always include 20-50% safety margin for industrial applications
Ignoring Environmental Factors
Problem: Using standard ESCs in harsh environments
Solution: Specify environmental ratings before selecting components
Protocol Mismatch
Problem: ESC protocol incompatible with flight controller
Solution: Verify protocol compatibility during system design phase
Inadequate Cooling Consideration
Problem: ESCs overheating during extended operations
Solution: Plan for thermal management from the design stage
Maintenance and Longevity Tips
Regular Inspection Schedule
Monthly checks:
- Visual inspection for damage or corrosion
- Connection tightness verification
- Temperature monitoring during operation
- Performance parameter review
Preventive Maintenance
Quarterly maintenance:
- Firmware updates
- Calibration verification
- Thermal paste replacement (if applicable)
- Connector cleaning and protection
Drone ESC Product Comparison

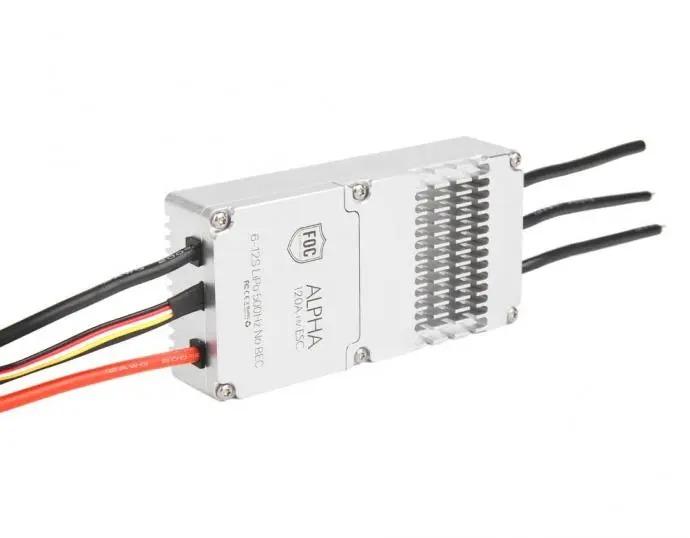

Industrial UAV ESC
Industrial drone ESCs are engineered for demanding commercial applications requiring reliable, long-duration operation with enhanced environmental protection and advanced monitoring capabilities.
The Industrial UAV ESC lineup spans from compact 20A controllers for light inspection drones to massive 300A units for manned aircraft applications. ALPHA Series with FOC technology offers the smoothest operation and lowest electromagnetic interference, making them ideal for camera gimbals and sensitive equipment. THUNDER and FLAME Series provide raw power for heavy-lift operations, while V Series delivers the widest voltage compatibility up to 60V. Pro tip: Always include 20-30% safety margin above your calculated current needs for industrial applications, and consider FOC ESCs when working with precision cameras or scientific instruments.

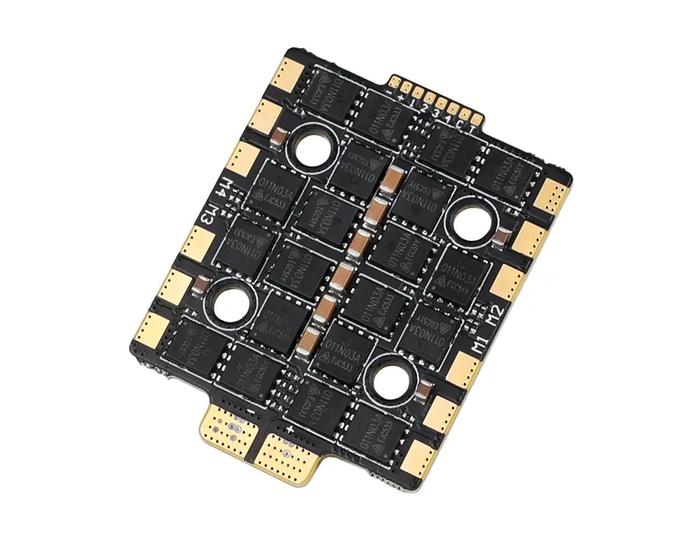

FPV Racing & Freestyle Drone ESC
FPV ESCs prioritize rapid response, lightweight design, and high power density for competitive racing and dynamic freestyle maneuvers.
The FPV ESC range covers everything from ultra-light 4.3g individual ESCs for micro builds to powerful 8-motor controllers for cinematic X8 configurations. F Series dominates competitive racing with lightning-fast DShot protocols and minimal weight, while CINE Series handles demanding cinematography with enhanced current capacity and 8S/12S voltage support. V Series offers the best value for beginners and casual pilots. Pro tip: Choose 4-in-1 ESCs for cleaner builds and weight savings, but opt for individual ESCs when redundancy is critical. For racing, prioritize response speed with DShot protocols over raw current capacity.
Drone ESC Application Scenarios
Drone ESCs serve critical roles across diverse unmanned aerial vehicle applications, each requiring specific performance characteristics and features to meet operational demands:
Industrial UAV Applications
Industrial drones operate in demanding environments where reliability, efficiency, and consistent performance are paramount. These applications require ESCs that can handle extended flight times, harsh conditions, and precise control.
Mapping and Surveying Drones
Key Requirements:
- Long flight endurance (30-60+ minutes)
- Stable, vibration-free operation
- Precise altitude and position holding
- Weather resistance
Critical ESC Features:
- High efficiency ratings (>95%) to maximize flight time
- Low electromagnetic interference (EMI) to prevent GPS and sensor disruption
- Smooth throttle response for stable photogrammetry
- Temperature compensation for consistent performance across varying conditions
ESC Selection Tips:
- Choose ESCs with linear throttle curves for predictable behavior
- Prioritize models with robust filtering to minimize electrical noise
- Consider ESCs with telemetry for real-time monitoring of motor health
- Opt for sealed or conformal-coated units for outdoor operations
Agricultural Drones
Key Requirements:
- Payload capacity for spraying equipment or sensors
- Dust and chemical resistance
- Reliable operation in rural environments
- Cost-effective maintenance
Critical ESC Features:
- High current capacity (50-100A+) for lifting spray tanks
- IP65+ protection rating against dust and moisture
- Regenerative braking for energy recovery during descents
- Fault tolerance to prevent crop damage from failures
ESC Selection Tips:
- Select ESCs rated for at least 20% above your maximum expected current draw
- Look for models with conformal coating or potting for chemical resistance
- Consider ESCs with built-in redundancy or fail-safe modes
- Choose units with wide operating temperature ranges (-20°C to +60°C)
Logistics and Delivery Drones
Key Requirements:
- Heavy payload capacity (1-10+ kg)
- Rapid acceleration and deceleration
- Urban environment navigation
- Frequent takeoff/landing cycles
Critical ESC Features:
- High burst current capability for rapid payload deployment
- Fast signal processing for responsive urban navigation
- Compact design to maximize payload space
- Cycle endurance for commercial operations
ESC Selection Tips:
- Prioritize ESCs with high continuous current ratings over peak ratings
- Look for units with active cooling or heat sinks for thermal management
- Consider ESCs with CAN bus communication for advanced telemetry
- Choose models with proven reliability in commercial applications
Power Line Inspection Drones
Key Requirements:
- Electromagnetic interference immunity
- Precision hovering near power lines
- Long-range operation capabilities
- Safety-critical reliability
Critical ESC Features:
- EMI shielding to operate near high-voltage lines
- Precise speed control for stable inspection positioning
- Redundant systems for safety-critical operations
- Wide input voltage range for extended flight times
ESC Selection Tips:
- Select ESCs with comprehensive EMI filtering and shielding
- Look for units certified for safety-critical applications
- Consider ESCs with dual-redundant control inputs
- Prioritize models with extensive temperature and vibration testing
Heavy-Lift Drones
Heavy-lift applications push ESC technology to its limits, requiring maximum power density and thermal management.
Construction and Industrial Lifting
Key Requirements:
- Maximum payload capacity (10-100+ kg)
- Precise load positioning
- Safety-critical reliability
- Extended operational hours
Critical ESC Features:
- Maximum current capacity (100-500A+)
- Advanced thermal management with active cooling
- Redundant control systems for safety
- Heavy-duty construction for industrial environments
ESC Selection Tips:
- Choose ESCs with at least 50% current margin above calculated requirements
- Look for units with liquid cooling capabilities for extreme loads
- Consider ESCs with built-in redundancy and failover systems
- Prioritize models with industrial-grade certifications
Search and Rescue Drones
Key Requirements:
- Reliable operation in emergency conditions
- Heavy sensor and equipment payloads
- Extended search endurance
- All-weather capability
Critical ESC Features:
- High reliability for life-critical missions
- Weather protection for adverse conditions
- Efficient operation for extended search times
- Robust telemetry for mission monitoring
ESC Selection Tips:
- Select ESCs with proven reliability in critical applications
- Look for units with comprehensive environmental protection
- Consider ESCs with advanced diagnostic capabilities
- Choose models with 24/7 technical support availability
FPV Racing and Freestyle Drones
FPV (First Person View) racing and freestyle flying demand ESCs that can handle extreme performance requirements, rapid throttle changes, and high-stress maneuvers.
Racing Drones
Key Requirements:
- Lightning-fast throttle response
- High power-to-weight ratio
- Crash survivability
- Competitive performance consistency
Critical ESC Features:
- Ultra-fast processors (48kHz+ switching frequency)
- High current density (compact, high-power designs)
- Advanced damping algorithms for precise control
- Robust construction for crash resistance
ESC Selection Tips:
- Choose ESCs with the latest firmware and active development
- Look for units with adjustable timing and throttle curves
- Consider ESCs with active braking for sharp turns
- Prioritize models with proven track records in competitive racing
Freestyle Drones
Key Requirements:
- Smooth cinematic movements
- High torque for flip maneuvers
- Consistent performance across flight envelope
- Durability for learning crashes
Critical ESC Features:
- Linear throttle response for smooth cinematic shots
- High torque capability for freestyle maneuvers
- Thermal management for extended flight sessions
- Configurable parameters for fine-tuning performance
ESC Selection Tips:
- Select ESCs with smooth, linear throttle curves
- Look for units with good low-end torque characteristics
- Consider ESCs with configurable startup behavior
- Choose models with good community support and documentation
Cinematography Drones
Professional cinematography demands ESCs that prioritize smoothness, reliability, and precision over raw performance.
Professional Camera Drones
Key Requirements:
- Vibration-free operation
- Precise gimbal control
- Long flight endurance
- Professional reliability
Critical ESC Features:
- Ultra-smooth operation with minimal vibration
- Precision speed control for stable camera work
- Low noise output (electrical and acoustic)
- High reliability for professional shoots
ESC Selection Tips:
- Prioritize ESCs with sinusoidal drive waveforms
- Look for units with active vibration damping
- Consider ESCs with separate power rails for sensitive electronics
- Choose models with extensive quality testing and certifications
VTOL Drone Applications
Vertical Takeoff and Landing (VTOL) drones combine the complexity of both fixed-wing and multirotor flight, requiring sophisticated ESC capabilities.
Transition Aircraft
Key Requirements:
- Dual-mode operation (hover and forward flight)
- Smooth transition between flight modes
- Efficient cruise performance
- Complex control algorithms
Critical ESC Features:
- Mode-switching capability for different flight phases
- Advanced control algorithms for smooth transitions
- High efficiency across wide speed ranges
- Integrated telemetry for complex flight management
ESC Selection Tips:
- Choose ESCs specifically designed for VTOL applications
- Look for units with sophisticated control firmware
- Consider ESCs with multiple configuration profiles
- Prioritize models with extensive VTOL flight testing
Long-Range Surveillance VTOL
Key Requirements:
- Extended flight endurance (2-6+ hours)
- Heavy sensor payloads
- Autonomous operations
- Mission-critical reliability
Critical ESC Features:
- Maximum efficiency for extended range
- Advanced power management for long flights
- Autonomous operation support with comprehensive telemetry
- Fault tolerance for unmanned missions
ESC Selection Tips:
- Select ESCs with the highest efficiency ratings available
- Look for units with advanced power management features
- Consider ESCs with predictive maintenance capabilities
- Choose models with extensive autonomous flight testing
Drone ESC Common Questions
Below are answers to frequently asked questions about drone ESCs to help you make informed decisions:
Q: What's the difference between PWM and DShot protocols?
A: PWM (Pulse Width Modulation) is an analog signal that can be affected by electrical noise and has inherent latency. DShot is a digital protocol that provides faster response times, better noise immunity, and enables advanced features like telemetry and motor direction commands. DShot also allows for more precise motor control and eliminates the need for ESC calibration.
Q: How do I determine the correct ESC current rating for my motors?
A: Check your motor specifications for peak current draw, then select an ESC with continuous current rating 20-30% higher. For example, if your motor draws 40A peak, choose an ESC rated for at least 50A continuous. This safety margin prevents overheating and ensures reliable operation under high-load conditions like aggressive acceleration or heavy payload operations.
Q: What is FOC technology and why is it important?
A: Field-Oriented Control (FOC) is an advanced motor control algorithm that provides smoother operation, higher efficiency, and reduced noise compared to traditional square-wave control. FOC ESCs offer better low-speed performance, more precise torque control, and generate less electromagnetic interference - making them ideal for applications requiring smooth camera work or sensitive electronics.
Q: Should I choose individual ESCs or a 4-in-1 design?
A: Individual ESCs offer redundancy (if one fails, others continue working), easier troubleshooting, and better heat dissipation. 4-in-1 ESCs provide weight savings, cleaner wiring, and space efficiency. Choose individual ESCs for critical applications where reliability is paramount, or 4-in-1 for racing and recreational use where weight and simplicity matter more.
Q: What BEC output do I need for my drone?
A: Most modern flight controllers and receivers operate on 5V, so a 5V BEC is typically sufficient. However, if you're powering servos, higher-power VTX units, or other peripherals, you may need a 12V BEC output. Check your component specifications and calculate total power consumption to ensure adequate BEC capacity (usually 1-3A for typical setups).
Q: How important is ESC firmware and can it be updated?
A: ESC firmware significantly affects performance, with modern versions offering better motor startup, improved efficiency, and advanced features. Most LIGPOWER ESCs support firmware updates through BLHeli Suite or BLHeli_32 configurator, allowing you to optimize settings, update to latest features, and fine-tune performance for your specific application.
Q: What protection features should I look for in a drone ESC?
A: Essential protections include over-current shutdown (prevents damage from motor stalls), thermal protection (prevents overheating), low-voltage cutoff (protects battery from over-discharge), and desynchronization recovery (handles motor timing issues). Advanced ESCs also offer motor lock detection and gradual power reduction rather than abrupt shutdowns.
Drone ESC Knowledge Expansion
To build a comprehensive understanding of drone power systems and optimize your UAV performance, explore these essential LIGPOWER product categories that work seamlessly with our ESC solutions:
Drone Motors - The Power Foundation
Discover our complete range of drone motors engineered for precision, efficiency, and reliability. From ultra-lightweight FPV racing motors to heavy-duty industrial powerplants, our motor lineup complements our ESC technology to deliver optimal performance. Each motor is designed with specific KV ratings, torque characteristics, and thermal management features that pair perfectly with our ESC control systems for maximum efficiency and longevity.
Drone Propellers - Precision Aerodynamics
Explore our specialized drone propellers collection designed to maximize thrust efficiency and minimize power consumption. Our propeller selection spans carbon fiber racing props for competitive FPV to large-diameter efficiency props for industrial applications. When matched with appropriate ESCs and motors, our propellers deliver superior performance, reduced vibration, and extended flight times across all operational conditions.
UAV Power Combo Packs - Complete Integration
For seamless compatibility and optimal performance, browse our curated UAV power combo packs that combine perfectly matched motors, ESCs, and propellers. These pre-engineered systems eliminate guesswork in component selection, ensuring maximum efficiency, reliability, and performance. Each combo pack is thoroughly tested and optimized for specific applications, from precision agriculture to high-performance racing.
Understanding the synergy between ESCs, motors, and propellers is crucial for achieving peak drone performance. These integrated systems work together to deliver the precise control, efficiency, and reliability that modern UAV applications demand.
