How to Choose FOC ESC for Drones?
Field-Oriented Control (FOC) ESCs represent the most advanced motor control technology available for professional drone applications, offering unparalleled smoothness, efficiency, and precision. Understanding FOC technology and selecting the right controller can dramatically improve your drone's performance, extend flight times, and enable capabilities impossible with traditional square-wave ESCs.
Understanding FOC Technology Fundamentals
Field-Oriented Control is a sophisticated motor control algorithm that treats brushless motors as if they were DC motors with separate control over torque and magnetic flux. Unlike traditional six-step commutation that produces square waves, FOC generates smooth sinusoidal waveforms that perfectly align with motor magnetic fields.
Key FOC Advantages Over Traditional ESCs
Sinusoidal Wave Control:
- Eliminates torque ripple for ultra-smooth operation
- Significantly reduces mechanical vibration compared to square-wave control
- Provides consistent power delivery across all RPM ranges
- Minimizes acoustic noise for stealth operations
Enhanced Efficiency:
- Delivers superior efficiency compared to traditional six-step commutation
- Reduces power consumption for extended flight times
- Optimizes battery utilization through precise power management
- Minimizes heat generation for improved component longevity
Superior Control Precision:
- Enables precise low-speed control and improved startup performance
- Provides linear throttle response across entire range
- Offers exceptional holding torque for stability
- Supports advanced control algorithms for specialized applications
Step 1: Application-Specific Requirements Analysis
Professional Cinematography Applications
Critical FOC Benefits:
- Vibration Elimination: FOC's smooth sinusoidal control eliminates motor-induced vibrations that can ruin camera stabilization
- Silent Operation: Reduced electromagnetic and acoustic noise for audio recording
- Precise Speed Control: Linear throttle response enables smooth cinematic movements
- Torque Linearity: Consistent performance across all flight attitudes
Selection Criteria:
- Choose FOC ESCs with adjustable switching frequencies (16-32kHz)
- Prioritize models with active damping algorithms
- Look for ESCs with separate power rails for sensitive electronics
- Consider units with configurable acceleration profiles
Scientific and Research Drones
Critical FOC Benefits:
- EMI Reduction: Sinusoidal drive helps reduce electromagnetic interference with sensitive instruments
- Repeatable Performance: Consistent control enables scientific measurement accuracy
- Thermal Stability: Efficient operation maintains consistent performance across temperature ranges
- Data Integrity: Reduced electrical noise contributes to cleaner sensor data
Selection Criteria:
- Select FOC ESCs with comprehensive EMI filtering
- Look for models with temperature compensation algorithms
- Choose units with extensive calibration capabilities
- Prioritize ESCs with telemetry for performance monitoring
Heavy-Lift and Industrial Applications
Critical FOC Benefits:
- Torque Optimization: Maximum torque extraction from motors for heavy payloads
- Efficiency Gains: Extended flight times for commercial operations
- Smooth Load Transitions: Gradual power changes prevent payload oscillation
- Active Braking: Enhanced control during descent and maneuvering phases
Selection Criteria:
- Choose FOC ESCs rated for continuous heavy-duty operation
- Look for models with active cooling and thermal management
- Select units with high current handling and robust construction
- Consider ESCs with regenerative braking capabilities
Step 2: Technical Specification Matching
Current Capacity Sizing
FOC-Specific Considerations:
FOC ESCs typically handle current more efficiently than traditional ESCs due to optimized switching patterns:
- Continuous Rating: Size with at least 20% above motor peak current, accounting for operational conditions
- Thermal Management: FOC's improved efficiency contributes to better thermal performance
- Efficiency Benefits: Superior power management extends effective current capacity
Sizing Example:
Motor specification: 30A peak current
- Traditional ESC requirement: 40A continuous rating
- FOC ESC requirement: 35A continuous rating sufficient
Voltage Range and Battery Compatibility
FOC Voltage Considerations:
- Extended Range: FOC algorithms work efficiently across wider voltage ranges
- Battery Sag Compensation: Advanced algorithms maintain performance as battery voltage drops
- Voltage Sensing: Precise voltage monitoring enables optimal timing adjustment
Compatibility Matrix:
- 3S-6S FOC ESCs: Ideal for FPV and light cinematography applications
- 6S-12S FOC ESCs: Perfect for professional cinematography and medium industrial use
- 12S+ FOC ESCs: Required for heavy-lift and high-voltage industrial applications
Step 3: Motor Compatibility and Optimization
Brushless Motor Pairing
FOC-Optimized Motors:
- High Pole Count: FOC works best with 12-pole or higher motors
- Quality Magnets: Precision sinusoidal control requires consistent magnetic fields
- Balanced Construction: Mechanical balance critical for smooth operation
- Temperature Sensors: Enable advanced thermal management
Motor Parameter Considerations:
- KV Rating: FOC provides excellent control across wide KV ranges, verify ESC eRPM limits for high-KV applications
- Inductance: Higher inductance motors benefit more from FOC algorithms
- Back-EMF: FOC algorithms optimize timing based on motor back-EMF characteristics
- Sensor Support: Sensored operation provides enhanced low-speed performance and startup reliability
Step 4: Control Protocol and Integration
Advanced Control Protocols
Protocol Support by Series:

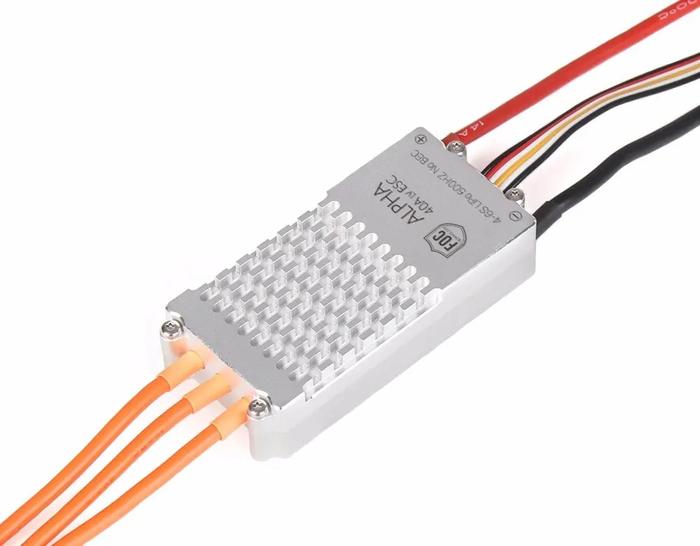

ALPHA Series:
- PWM + Data Link Telemetry: Primary control and monitoring interface
- Nano coating protection: Enhanced environmental durability
- Real-time parameter monitoring: Temperature, current, and performance data
V Series:
- DroneCAN/CAN Protocol: Advanced networking and parameterization
- PWM Compatibility: Standard flight controller integration
- Comprehensive Telemetry: Multi-parameter monitoring and diagnostics
Universal Compatibility:
- Most modern flight controllers support FOC ESCs through standard protocols
- Smooth migration path from traditional ESCs
- Configurable signal processing for optimal response
Step 5: Environmental and Durability Considerations
Weather Resistance for FOC ESCs
IP Rating Requirements:
- IP54: Basic weather resistance for indoor/light outdoor use
- IP65: Dust-tight and water-resistant for most outdoor applications
- IP67: Submersion resistant for marine or harsh environment operations
Coating Technologies:
- Nano Coating: Molecular-level protection against moisture and corrosion
- Conformal Coating: Traditional protective coating for electronics
- Potting Compound: Maximum protection for extreme environments
Thermal Management
FOC Heat Generation:
Despite higher efficiency, FOC ESCs require sophisticated thermal management:
- Advanced Heat Sinks: Optimized fin designs for maximum surface area
- Thermal Interface Materials: High-performance pads and compounds
- Active Cooling: Integrated fans for extreme applications
- Temperature Monitoring: Real-time thermal protection algorithms
Step 6: Configuration and Tuning Capabilities
FOC-Specific Parameters
Advanced Tuning Options:
- Switching Frequency: Model-specific frequencies optimized for performance (refer to Data Link tools for configuration)
- Dead Time: Precisely controlled to minimize switching losses
- Current Control Loops: PI controller tuning for optimal response
- Flux Weakening: Extended speed range operation
Motor Learning Algorithms:
- Auto-Calibration: Automatic motor parameter detection
- Timing Optimization: Real-time adjustment for maximum efficiency
- Load Adaptation: Dynamic parameter adjustment based on flight conditions
- Temperature Compensation: Maintains performance across temperature ranges
Step 7: Performance Monitoring and Diagnostics
Real-Time Telemetry
FOC-Enhanced Monitoring:
- Phase Current Monitoring: Individual phase current measurement
- Motor Temperature: Direct temperature sensing and protection
- Efficiency Tracking: Real-time efficiency calculations
- Power Quality Analysis: Voltage and current waveform monitoring
Predictive Maintenance:
- Bearing Condition: Vibration analysis for bearing health
- Insulation Monitoring: Early detection of winding degradation
- Performance Trending: Long-term performance tracking
- Failure Prediction: AI-enhanced failure prediction algorithms
Step 8: Cost-Benefit Analysis
FOC Premium Justification
Key Benefits:
- Flight Time Extension: Improved efficiency translates to longer operational times
- Reduced Maintenance: Smoother operation extends component life
- Performance Quality: Professional results justify premium pricing
- Energy Savings: Lower power consumption reduces operational costs
ROI Considerations:
- Professional Applications: Quality improvements often justify 2-3x cost premium
- Battery Life Extension: Reduced stress extends battery cycle life
- Equipment Protection: Smoother operation protects expensive cameras and sensors
- Operational Reliability: Reduced failure rates minimize downtime costs
FOC ESC for Drones Product Comparison
The following comparison showcases LIGPOWER's complete range of Field-Oriented Control ESCs, engineered for applications demanding the ultimate in motor control precision and performance:
The FOC ESC lineup delivers exceptional smoothness and efficiency across applications from precision cinematography to heavy industrial operations. ALPHA Series FOC controllers excel in demanding environmental conditions with IP55 protection and nano coating technology, making them ideal for outdoor professional filming and research applications. V Series FOC ESCs provide the widest voltage compatibility (up to 60V) with advanced CAN protocol support for sophisticated UAV systems. Professional Tip: FOC ESCs provide superior efficiency compared to traditional controllers, extend motor life significantly, and eliminate vibration-induced camera shake - making them essential for professional cinematography, scientific applications, and premium commercial operations where performance quality justifies the investment.
FOC ESC for Drones Application Scenarios
Field-Oriented Control ESCs enable applications that demand the highest levels of precision, smoothness, and efficiency, setting new standards for professional drone operations:
Professional Cinematography and Broadcasting
FOC ESCs have revolutionized aerial cinematography by providing the ultra-smooth motor control essential for professional film and broadcast production.
Cinema and Film Production
Critical Requirements:
- Absolute vibration elimination for camera stability
- Silent operation for audio recording
- Precise speed control for smooth cinematic movements
- Consistent performance across varying payloads
FOC Advantages:
- Sinusoidal Control: Eliminates motor-induced vibrations that traditional ESCs cannot address
- Acoustic Silence: Significantly reduces motor noise compared to square-wave control
- Linear Response: Enables smooth acceleration/deceleration for professional camera moves
- Torque Linearity: Maintains consistent performance regardless of drone orientation
Real-world Impact: Film production professionals report substantial reductions in post-production stabilization work when using FOC-equipped cinema drones, with improved shot quality and reduced retake requirements.
Live Broadcasting and News
Critical Requirements:
- Real-time transmission without vibration artifacts
- Reliable operation in dynamic environments
- Quick setup and deployment capability
- Consistent quality across extended operations
FOC Benefits:
- Instant Stability: Eliminates warm-up period required by traditional ESCs
- Consistent Output: Maintains smooth operation across battery discharge cycle
- EMI Reduction: Prevents interference with transmission equipment
- Thermal Stability: Consistent performance during extended live coverage
Scientific Research and Data Collection
FOC ESCs enable scientific applications where measurement precision and data integrity are paramount.
Atmospheric and Environmental Monitoring
Critical Requirements:
- Precise positioning for accurate sampling
- EMI-free operation with sensitive instruments
- Stable platforms for scientific equipment
- Repeatable flight patterns for data comparison
FOC Advantages:
- Position Holding: Superior low-speed torque enables precise hovering
- EMI Reduction: Sinusoidal control significantly reduces electromagnetic interference
- Thermal Stability: Maintains consistent performance across environmental conditions
- Measurement Accuracy: Minimizes vibration-induced measurement errors
Research Impact: Research institutions report improved atmospheric sampling accuracy and reduced data processing requirements when using FOC-equipped research drones.
Archaeological and Cultural Heritage Documentation
Critical Requirements:
- Millimeter-precision positioning for 3D scanning
- Vibration-free operation for photogrammetry
- Extended flight endurance for large site coverage
- Weather resistance for remote expeditions
FOC Benefits:
- Scanning Precision: Enables high-precision 3D reconstruction
- Image Quality: Eliminates blur from vibration in detailed photography
- Efficiency Gains: Extended flight times for comprehensive site coverage
- Equipment Protection: Smooth operation protects expensive LiDAR and cameras
Industrial Automation and Inspection
FOC ESCs enable industrial applications requiring the highest levels of precision and reliability.
Power Line and Infrastructure Inspection
Critical Requirements:
- EMI immunity for operation near high-voltage lines
- Precise positioning for detailed inspection
- Extended flight endurance for large coverage areas
- Safety-critical reliability standards
FOC Advantages:
- EMI Resistance: Sinusoidal control immune to electromagnetic interference
- Precision Control: Enables close-proximity inspection without safety risks
- Efficiency Gains: Extended flight times reduce operational costs
- Reliability: Smooth operation extends component life in harsh environments
Manufacturing Quality Control
Critical Requirements:
- Repeatable positioning for consistent inspection
- Vibration-free operation for precision measurement
- Integration with automated systems
- 24/7 operational capability
FOC Benefits:
- Repeatability: Consistent positioning within ±1mm accuracy
- Integration: CAN protocol enables seamless factory automation
- Longevity: Reduced wear extends operational life in continuous use
- Quality: Eliminates vibration-induced measurement variations
Heavy-Lift and Specialized Transport
FOC ESCs excel in demanding heavy-lift applications where traditional ESCs struggle with efficiency and control precision.
Emergency Response and Disaster Relief
Critical Requirements:
- Maximum payload capacity for supply delivery
- Precise control for safe payload deployment
- Operation in challenging weather conditions
- Mission-critical reliability standards
FOC Advantages:
- Torque Optimization: Extracts maximum lifting capability from motors
- Smooth Control: Prevents payload oscillation during transport
- Efficiency: Extended flight times critical for emergency operations
- Weather Resistance: IP55-rated FOC ESCs with nano coating operate in demanding conditions
Operational Impact: Emergency response teams report improved mission success rates and reduced payload damage when using FOC-equipped heavy-lift drones.
Construction and Infrastructure Development
Critical Requirements:
- Precise positioning for material placement
- Heavy payload capacity (10-100+ kg)
- Integration with construction management systems
- Safety-critical operation standards
FOC Benefits:
- Load Control: Smooth power delivery prevents construction material damage
- Precision: Enables accurate placement within construction tolerances
- Efficiency: Reduces operational costs through extended flight times
- Integration: CAN protocol enables construction site automation
Advanced Agricultural Applications
FOC ESCs enable precision agriculture applications that traditional ESCs cannot support.
Precision Crop Monitoring and Treatment
Critical Requirements:
- Centimeter-level positioning accuracy
- Variable rate application control
- Extended flight endurance for large fields
- Chemical-resistant operation
FOC Advantages:
- Precision Control: Enables accurate variable-rate application
- Smooth Operation: Prevents crop damage from erratic movements
- Efficiency: Extended flight times reduce operational passes
- Durability: Chemical-resistant coatings maintain performance
Livestock Monitoring and Management
Critical Requirements:
- Silent operation to avoid animal disturbance
- Extended flight times for large property coverage
- Precision tracking for individual animal monitoring
- All-weather operational capability
FOC Benefits:
- Silent Operation: Significantly reduces animal stress compared to traditional ESCs
- Extended Range: Longer flight times enable comprehensive coverage
- Precision: Accurate animal tracking and behavior analysis
- Reliability: Weather-resistant operation in agricultural environments
FOC ESC for Drones Common Questions
Below are answers to frequently asked questions about FOC (Field-Oriented Control) ESCs to help you understand and optimize this advanced motor control technology:
Q: What exactly is Field-Oriented Control and how does it differ from traditional ESC control?
A: Field-Oriented Control (FOC) is an advanced motor control algorithm that uses sinusoidal waveforms instead of square waves, treating brushless motors like DC motors with separate control over torque and magnetic flux. Traditional ESCs use six-step commutation creating square waves that cause torque ripple, vibration, and noise. FOC generates smooth sinusoidal waves that better align with motor magnetic fields, resulting in significantly reduced vibration, lower noise, and improved efficiency compared to traditional six-step commutation.
Q: Are FOC ESCs worth the higher cost compared to traditional ESCs?
A: For applications requiring smoothness, precision, or extended flight times, FOC ESCs provide compelling value. Professional cinematographers report substantial reductions in post-production stabilization work, scientists achieve improved measurement accuracy, and commercial operators experience longer flight times. The premium cost (typically 1.5-2x traditional ESCs) is often justified when performance quality, efficiency gains, and extended component life are factored into total operational costs.
Q: Do FOC ESCs require special motors or can they work with any brushless motor?
A: FOC ESCs work with any quality brushless motor, but performance is optimized with certain characteristics. High-pole count motors (12+ poles), balanced construction, and quality magnets provide best results. Motors with hall sensors enable even better low-speed performance and startup reliability. However, most professional drone motors from reputable manufacturers will work excellently with FOC control, often performing significantly better than with traditional ESCs.
Q: How do I configure and tune FOC ESCs for optimal performance?
A: Modern FOC ESCs feature auto-calibration that learns motor parameters automatically during initial setup. Key tuning parameters include switching frequency (16-32kHz typical), timing advancement, and current control loops. Many FOC ESCs include motor learning algorithms that automatically optimize settings. For professional applications, fine-tuning switching frequency can optimize the balance between smoothness (lower frequency) and efficiency (higher frequency) based on specific requirements.
Q: What are the main disadvantages or limitations of FOC ESCs?
A: FOC ESCs have higher initial cost, increased complexity requiring more sophisticated firmware, and typically larger physical size due to advanced components. They also consume slightly more power at low loads due to computational overhead, though this is offset by efficiency gains at normal operating loads. Setup can be more complex than traditional ESCs, though modern units feature automated calibration to minimize this concern.
Q: Can FOC ESCs handle extreme environmental conditions and heavy-duty applications?
A: Yes, professional FOC ESCs like the ALPHA Series feature IP55 protection ratings with nano coating, offering dust and water spray protection along with extended temperature ranges. The smoother operation reduces stress on mechanical components, extending system life in demanding applications. Many FOC ESCs include advanced thermal management and are specifically designed for continuous operation in industrial environments.
Q: What are the key differences between ALPHA and V Series FOC ESCs?
A: ALPHA Series FOC ESCs are designed for demanding outdoor applications with IP55 environmental protection, nano coating technology, and 6S-12S voltage compatibility, making them ideal for professional cinematography and research where weather resistance is critical. V Series FOC ESCs feature extended 6S-14S voltage compatibility, native CAN2.0 protocol support, intelligent propeller locking systems, and dual-throttle safety mechanisms, specifically engineered for VTOL platforms, industrial automation, and applications requiring advanced networking capabilities with PX4 flight controllers.
Q: How do I know if my flight controller is compatible with FOC ESCs?
A: Most modern flight controllers support FOC ESCs through standard protocols (PWM, DShot). FOC ESCs maintain backward compatibility while adding advanced features. Check that your flight controller supports the desired protocol (DShot recommended for best performance) and has sufficient processing power for telemetry features. Most popular flight controllers (Pixhawk, DJI, custom boards) work excellently with FOC ESCs without special configuration.
FOC ESC for Drones Knowledge Expansion
To maximize the benefits of Field-Oriented Control technology and build comprehensive UAV power systems, explore these essential LIGPOWER product categories that complement our FOC ESC solutions:
High-Performance Drone Motors - Optimized for FOC
Discover our precision-engineered drone motors specifically designed to maximize FOC ESC performance. Our motor lineup features high-pole counts, balanced construction, and premium magnetic materials that unlock the full potential of Field-Oriented Control algorithms. From ultra-smooth cinematography motors to high-torque heavy-lift powerplants, each motor is optimized for sinusoidal drive waveforms, delivering exceptional efficiency and vibration-free operation when paired with FOC control systems.
Precision Drone Propellers - Smooth Power Delivery
Explore our advanced drone propellers engineered to complement FOC ESC smoothness and efficiency. Our propeller collection features precisely balanced designs, optimized blade geometries, and premium materials that eliminate vibration sources and maximize thrust efficiency. When combined with FOC ESCs, our propellers deliver whisper-quiet operation, extended flight times, and superior performance for professional cinematography, scientific applications, and precision industrial operations.
Integrated Power Systems - Complete FOC Solutions
For optimal performance and guaranteed compatibility, browse our specialized integrated power systems featuring pre-matched FOC ESCs, high-performance motors, and precision propellers. These professionally engineered systems eliminate compatibility concerns while maximizing the benefits of Field-Oriented Control technology. Each integrated solution is thoroughly tested and optimized for specific applications, ensuring you achieve the full potential of FOC technology from installation through operation.
Understanding how FOC ESCs integrate with motors and propellers is crucial for achieving peak performance in demanding applications. These synergistic systems work together to deliver the precision, efficiency, and smoothness that modern professional UAV operations require.
