A drone's propulsion system defines the upper limit of its flight performance,and the motor kit is the core component of this system.Compared to buying parts individually,a motor kit with a pre-matched configuration not only reduces the risk of selection errors but also significantly simplifies the assembly and tuning process.
A good motor kit strikes a balance between thrust,response speed,efficiency,and stability,allowing the drone to perform reliably whether in racing,aerial photography,long-range flight,or industrial applications.
This article will guide you through the entire process of selecting a drone motor kit,covering basic components,matching logic,application scenarios,and brand and model recommendations.
What is a Drone Motor Kit?
A drone's propulsion system is equivalent to its"engine of flight,"and the motor kit is the core execution unit of this system.It consists of three parts—the Motor,the Electronic Speed Controller(ESC),and the Propeller—which form a complete chain of electrical energy conversion,speed control,and thrust output,enabling the aircraft to take off,hover,accelerate,and perform various maneuvers.
1. How do motors affect a drone's propulsion performance?
The motor is the most important power source for a drone,primarily responsible for converting the electrical energy supplied by the battery into mechanical energy to spin the propellers.Its performance directly determines the aircraft's thrust,acceleration,response speed,and load capacity.
The most common type of drone motor is the Brushless DC Motor(BLDC),which offers higher efficiency,longer lifespan,and more precise control compared to brushed motors.
Key Motor Parameters Explained:
KV Value(RPM Constant):Indicates the motor's no-load rotational speed(RPM)per 1V of input voltage(RPM/V).
Higher KV means faster speed and quick response,suitable for racing and FPV.
Lower KV means higher torque,suitable for long-endurance and heavy-load flights.
Stator Size:Such as 2207,2306,2212.The first two digits represent the stator diameter(mm),and the last two represent the stator height.
A larger size means the motor has stronger power and torque,capable of driving larger propellers.
Rated Voltage and Current:Must be compatible with the battery and ESC;otherwise,it can lead to components burning out or insufficient power.
Pole Count and Structure:For example,12N14P or 9N12P are common in FPV,affecting efficiency and torque characteristics.
Practical Tips:
For the same KV value,a motor with a larger stator can drive a larger propeller.
High-KV motors have high power density but are more demanding on the ESC's current rating and the propellers.
When choosing a motor,don't just look at the KV;consider the propeller size and flight scenario.
2. What role does the Electronic Speed Controller(ESC)play in a drone?
The ESC is the"bridge"and"pacemaker"between the motor and the battery.It receives control signals from the Flight Controller(FC),converts the DC power into multi-phase AC pulse signals,and adjusts the motor's speed in real-time.
A good ESC not only provides stable power but also influences the throttle response speed and the aircraft's control precision.
Key ESC Parameters Explained:
Rated Current:Must be higher than the motor's peak current(a 20%–30%margin is recommended).
Supported Voltage:Must match the motor and battery(e.g.,2S,4S,6S).
PWM Response Frequency:The higher the frequency,the faster the throttle response.High frequencies(e.g.,48kHz+)are recommended for racing drones.
Protocol Type:
BLHeli_S:Fast response,mainstream for entry-level to mid-range.
BLHeli_32:Extremely fast response,supports higher frequencies,suitable for racing/advanced builds.
SimonK(Old Protocol):No longer recommended.
Protection Mechanisms:Quality ESCs often include overcurrent,overtemperature,and voltage detection protection,which can prevent mid-air failures from burning out components.
Practical Tips:
A bigger ESC is not always better.While a larger one offers a higher safety margin,it also adds weight and volume.
For racing and freestyle flying,prioritize response speed.
For aerial photography and industrial drones,focus on long-term stable power delivery and heat resistance.
3. What role do propellers play in a drone?
The propeller is responsible for converting the motor's rotational energy into aerodynamic force,i.e.,thrust.It not only determines the drone's climb rate and forward speed but also directly affects flight efficiency,battery life,and control feel.
Key Propeller Parameters Explained:
Size(Diameter):Larger props generate more thrust but also create a higher load.
Number of Blades:
Two-blade:High efficiency,low power consumption,suitable for long-range.
Three-blade:A balance of thrust and responsiveness,the mainstream choice.
Four-blade(or more):More thrust,but higher power consumption.
Pitch:A higher pitch(angle)means more aggressive thrust but also more drag.A lower pitch is more efficient and suited for long-range.
Material:
Nylon:Cheap,durable(crash-resistant),good for beginners.
Carbon Fiber:Light,high rigidity,faster response,but expensive.
Composite Materials:A compromise between weight and strength,suitable for aerial photography and industrial applications.
Practical Tips:
Propellers must be matched with the motor's KV value to avoid overloading or wasting performance.
For the same size prop,a different blade count will significantly affect the throttle curve.
Try to choose branded propellers,as they generally have better dynamic balance and less vibration.

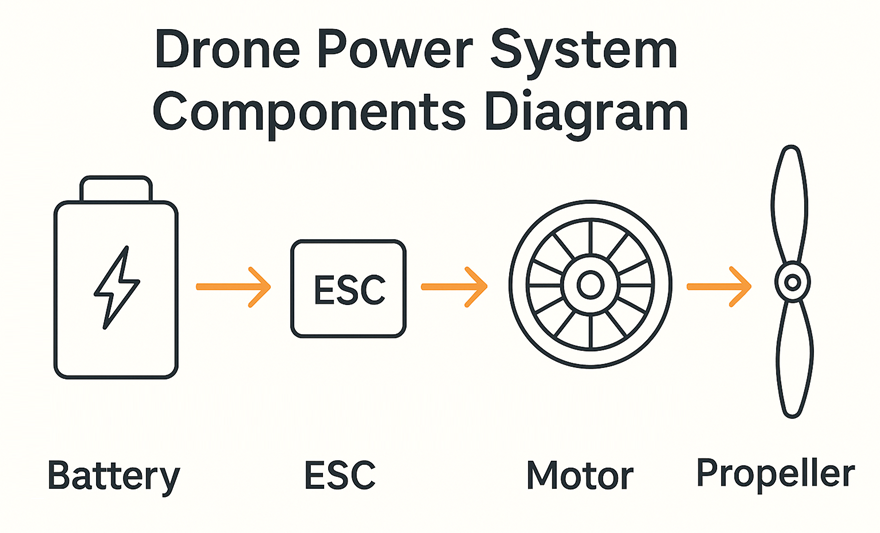

4. What is the drone's propulsion system power path?
A drone's propulsion system involves a process where energy is transferred from the battery to the propellers,with each step impacting flight performance:
Battery:Provides electrical energy for the entire system.Its voltage and capacity determine flight time and power output.
Flight Controller(FC):Receives pilot or autonomous control signals and outputs commands to control the motors.
ESC:Based on the FC's signals,it adjusts the current and voltage to precisely control the motor speed.
Motor:Receives the current from the ESC and drives the propeller to spin.
Propeller:Spins to generate thrust,pushing the drone into flight.
Flight Control Adjustment:By making minute adjustments to the speed of the four(or more)motors,the drone achieves pitch,yaw,and roll movements.
This power chain may seem simple,but if any single component is mismatched,it can lead to poor flight efficiency or even a loss of control.Therefore,understanding this path is the first step in selecting a motor kit.
How to Correctly Match Motors,ESCs,and Propellers
Simply understanding the individual roles of the motor,ESC,and propeller is not enough;true flight performance depends on their matching and synergy.A good propulsion combo balances thrust,efficiency,and reliability.
1. Motor and ESC Matching
Current Matching and Safety Margin:
The ESC's rated current must be higher than the motor's peak current.
A 20%–30%margin is recommended to prevent overheating during high-load flying.
For example,if a motor peaks at 30A,a 40A ESC is recommended.
Voltage Matching:
The voltage rating of all three components must be consistent.If the motor is rated for 4S,the ESC and battery should also be 4S.
Using a battery with a higher voltage than rated will burn out the motor and ESC.
Response and Protocol:
For racing drones,high-frequency PWM+BLHeli_32 protocols are recommended.
Aerial photography/long-range drones can use low-to-mid response frequencies to improve energy efficiency.
Protection and Stability:
Industrial drones should use high-specification ESCs with heat sinks,overcurrent protection,and temperature control.
While more expensive,these ESCs can effectively prevent crashes caused by continuous heavy-load operation.
2. Motor and Propeller Matching Logic
KV Value vs.Prop Size:
High KV is matched with small props for high speed.
Low KV is matched with large props for high torque.
Blade Count and Throttle Response:
Two-blade props are most efficient but have relatively less thrust.
Three-blade props are the FPV mainstream,balancing responsiveness and power consumption.
Four-blade props are more"punchy"but noticeably increase battery drain.
Material and Rigidity:
Carbon fiber props are stiff and responsive but break easily.
Nylon props are durable but less efficient.
Composite props are an ideal choice for long-endurance aircraft.
3. How to achieve synergy among the three for optimal flight efficiency?
Thrust Matching:The propeller load matches the motor's torque,and the ESC current covers the peak power.
Voltage Matching:All three must have a unified rated voltage(e.g.,4S/6S/12S).
Scenario Adaptation:Racing focuses on response;aerial photography on stability and efficiency;industrial on sustained output.
Dynamic Adjustment:The flight control system constantly adjusts each ESC's output based on attitude feedback to maintain stability.
How to Choose a Drone Motor Kit?
The core of selecting a motor kit is to determine the propulsion system's parameters based on the drone's intended use and flight scenario.Different scenarios have completely different requirements for thrust,efficiency,response speed,and load capacity.Therefore,you cannot choose blindly based on KV value or size alone.This section will systematically introduce recommended motor kit configurations for five common use cases,along with representative brand models.
1. How to choose a drone motor kit based on the flight scenario?
Indoor/Micro Drone:
Indoor micro drones prioritize being lightweight,agile,and responsive,typically used for close-proximity FPV,small-area acrobatics,or recreation.
Motor:Small,lightweight motors(e.g.,1103,1204 specs)with high KV values(6000–8000KV)for a sensitive response.
ESC:Lightweight,low current,usually between 10–15A,supporting 1S–2S batteries.
Propeller:Often 2.5–3 inch nylon or plastic props with thin blades for fast RPM response.
Flight Characteristics:Quick takeoff,agile handling.Efficiency is not a high priority;weight and response speed are key.
Kit Recommendations:
Kit 1: iFlight XING NANO 1103 8000KV + iFlight SucceX Micro 15A ESC 2–4S + Gemfan 3016 3″
Kit 2: T-Motor F1103-II 8000KV + T-Motor air 10A ESC 2-3S + T-Motor T76S 3″
FPV Racing/Freestyle：
Racing and Freestyle are the most popular FPV scenarios,demanding extremely high burst power,response speed,and control precision.
Motor:Commonly 2207 or 2306 specs,with KV values between 1750–2300KV,paired with 4S or 6S batteries.
ESC:High response,high current,35A–45A recommended,supporting high-speed PWM and BLHeli_32 protocol.
Propeller:5-inch three-blade or four-blade carbon fiber props,balancing thrust and responsiveness.
Flight Characteristics:Strong burst power,rapid response,suitable for high-speed passes and acrobatic maneuvers.High demands on the ESC and battery's power delivery.
Kit Recommendations:
Kit 1: T-HOBBY F60 PRO V 1750KV + T-HOBBY F55A Pro II ESC 3-6s + T-HOBBY T5146
Kit 2: iFlight XING2 2306 1755KV + iFlight E45S 45A ESC 2-6S + iFlight Nazgul F5 Tri-blade
Cinewhoop/Lightweight Filming：
Cinewhoop aircraft are mainly used for short-range aerial shots and indoor cinematography,requiring high levels of flight smoothness and noise control.
Motor:Mid-to-low KV(2500-4000),stable thrust,and strong anti-vibration capabilities.
ESC:Medium current capacity,around 30A–40A,ensuring stable output.
Propeller:Often 3-inch three-blade props,typically nylon or plastic,for low noise and soft thrust.
Flight Characteristics:Flight stability is the priority,emphasizing gentle thrust and hovering ability,usually carrying a lightweight camera.
Kit Recommendations:
Kit 1: T-Motor F1404 3800KV + T-Motor F35A ESC 3-6S + T-Motor T76S 3″
Kit 2: iFlight XING 1504 3100KV + iFlight 15A ESC 2-4S + T-Motor T76S 3″
Aerial Filming/Long-Range：
Long-range and aerial photography drones require extremely high propulsion system efficiency,focusing on endurance,smooth power output,and reliability.
Motor:Often large-size,low-KV motors(330–400KV),paired with high-capacity 6S batteries.
ESC:High current capacity(80A–100A),emphasizing stable power delivery and low heat generation.
Propeller:Large diameter(around 15 inches)three-blade or four-blade props,made of carbon fiber or high-strength nylon.
Flight Characteristics:Long endurance,smooth thrust output,suitable for carrying heavier camera equipment.
Kit Recommendations:
Kit 1: T-Motor MN4014 330KV + T-MOTOR AIR 40A ESC 2-6S + T-Motor NS17×5.8
Kit 2: SunnySky V4014 400KV + Hobbywing XRotor 40A ESC + EOLO 15×5.5
Industrial/Heavy-Lift：
Industrial-grade drones need to provide continuous,massive thrust to carry heavy payloads.Therefore,the motors and ESCs must have high power,high current,and high reliability.
Motor:Extra-large specs,low KV(38–43KV),suitable for 6S and higher voltage systems.
ESC:Ultra-high current capacity(120A+),with comprehensive protection and heat dissipation designs.
Propeller:Large diameter(26 inches+)carbon fiber or composite material blades.
Flight Characteristics:Powerful output,high stability,suitable for logistics,mapping,and agricultural spraying.
Kit Recommendations:
Kit 1:T-Motor U15XL KV38 + T-Motor Thunder 300A ESC 24S + T-Motor NS52×20
Kit 2:T-Motor U15L KV43 + T-Motor Thunder 300A ESC 24S + T-Motor NS47×18
Frequently Asked Questions(FAQ)
1. Are drone motor kits suitable for beginners to install themselves?
Yes,most motor kits are designed for self-installation,even by beginners.However,it is recommended to choose a kit with clear wiring diagrams,pre-soldered connectors,and detailed instructions to avoid burning out the ESC or motor due to incorrect wiring or protocol mismatch.First-time builders can start with"plug-and-play"entry-level kits before attempting to mix and match their own motors,ESCs,and propellers.
2. When buying a drone motor kit,do I need to consider compatibility with the Flight Controller(FC)?
Yes.Although the motor kit itself does not include the FC,the ESC's signal protocol,supply voltage,and connector type must be compatible with the FC.For example,if the FC does not support the DShot protocol but the ESC only supports DShot,it will not work.Therefore,when purchasing a motor kit,you must also confirm the FC's output signal format,power interface,and voltage range.
3. Can I mix and match different brands in a drone motor kit?
In theory,yes,but it is not recommended for beginners.Motors,ESCs,and propellers from different brands may have slight differences in power curves,response latency,and connector specs,which could lead to reduced efficiency or unstable power delivery.If you must mix and match,carefully check the KV value,current rating,connector type,and protocol support,and prioritize combinations that have been proven by the community.
4. When upgrading a drone motor kit,what other components need to be upgraded simultaneously?
If it's a minor upgrade(like switching to more efficient propellers),you may not need to adjust the ESC and FC.However,if you are changing to a higher-KV or larger-sized motor,you will likely need to simultaneously upgrade the ESC(to a higher current rating)and the battery(to a higher voltage/capacity).Otherwise,you may experience insufficient power,severe overheating,or reduced flight times.
5. How can I judge if a drone motor kit is reliable?
A reliable motor kit usually has the following characteristics:
The motor windings are neat,it's well-balanced,and has low vibration.
The ESC supports mainstream protocols(like DShot,BLHeli_32)and responds quickly.
The propellers are rigid,have consistent weight,and are clearly labeled.
The brand has available test data or positive user feedback.
The supplier offers a warranty or after-sales support.
Additionally,you can judge its quality by reviewing thrust test reports,actual flight reviews,or community forums.
6. What types of drones are motor kits suitable for?
Besides FPV racing/freestyle drones,motor kits are widely used in Cinewhoop filming drones,long-range UAVs,agricultural drones,and industrial heavy-lift models.Different applications have different requirements for thrust,endurance,and efficiency.Therefore,when selecting a kit,you must consider not only the KV and size but also the specific nature of the flight mission,such as whether it requires long hover times,payload capacity,or high maneuverability.
