In UAV (Unmanned Aerial Vehicle) systems, the motor is the core component that determines flight performance, directly impacting thrust, endurance, and stability. As technology evolves, drones have expanded from lightweight aerial photography to high-load scenarios such as agricultural plant protection, industrial inspection, logistics transport, and scientific research. The quality of motor performance is the key differentiator between professional platforms and standard models. Whether it's an aerial photography drone seeking stable footage or an industrial drone requiring long operational hours, a motor that is powerful, responsive, reliable, and durable can significantly enhance overall performance and flight safety.
To this end, this article systematically selects the 15 most noteworthy Powerful Drone Motors of 2025. All models are representative units currently available on the market with stable performance, covering applications from light-load aerial photography to ultra-heavy-load scientific research. Based on manufacturer specifications, measured data, and user feedback, this article analyzes the core parameters, applicable scenarios, and reasons for recommendation for each motor, providing readers with an authoritative and practical reference for power system selection.
The motors included in this article are divided into five tiers according to their maximum thrust range:
6–10 kg, 10–20 kg, 20–30 kg, 30–50 kg, and 50 kg+. These correspond to different application scenarios, from light-load aerial photography and agricultural inspection to industrial research. Each tier features three selected representative models, complete with parameters and recommendations, to help readers quickly match their required power level and mission needs.

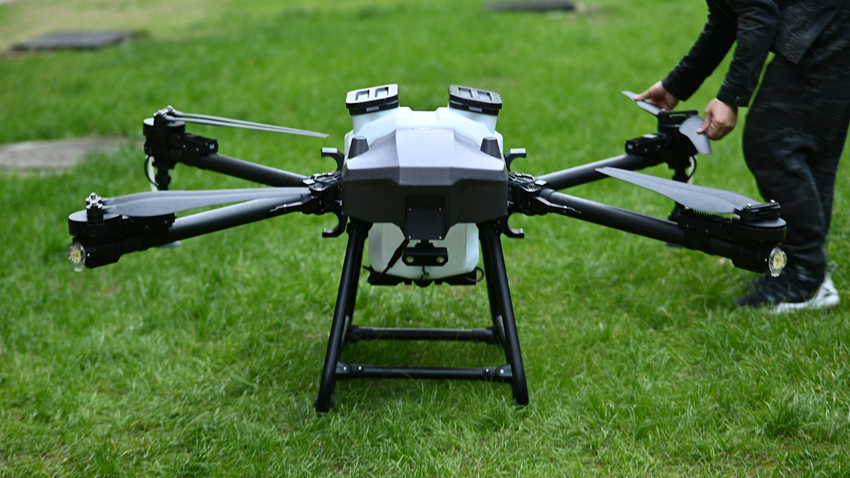

What Makes a Powerful Drone Motor
A Powerful Drone Motor is the core of the UAV power system, determining the aircraft's thrust output, energy efficiency, and payload capacity. Unlike motors for standard aerial photography, these motors are designed for high-load, long-endurance, and complex environmental operations, requiring high stability and thermal balance even under high power output.
Structurally, powerful motors typically feature larger stator volumes, higher-grade magnets, and high-temperature resistant windings, enabling sustained, efficient operation on 12S, 24S, or even higher voltage platforms. In terms of materials and craftsmanship, they often utilize precision CNC machining, high-temperature resistant magnets, thickened bearings, and optimized heat dissipation casings to ensure long-term reliability under high thrust output.
From a performance perspective, the advantage of a powerful drone motor is not just "more power," but achieving the optimal balance between thrust, efficiency, weight, and safety redundancy. For example, in a 30 kg-class industrial platform, an efficient 12S low-KV motor not only provides strong thrust but also reduces current load and thermal loss, thereby extending battery life and flight time.
These motors are widely used in fields such as agricultural spraying, inspection and mapping, logistics, scientific experiments, and hybrid-power UAVs. Their performance stability directly dictates mission success rates and the aircraft's lifespan. Therefore, understanding the design principles and performance characteristics of powerful drone motors is the prerequisite for power system selection and integration.
Next, this article will systematically review the 15 most representative powerful drone motors of 2025. starting from the 6–100 kg thrust range, to help you quickly find the most suitable power solution for different mission requirements.
6–10 kg Thrust Motors for Drones
The 6-10 kg thrust range primarily corresponds to platforms for light-load mapping, cinematography, routine inspections, and lightweight agricultural drones. Motors in this class emphasize efficiency, smoothness, and compatibility, typically operating on 6S–12S (up to 14S) voltage platforms. They prioritize low power consumption and stable response, suitable for quadcopter or hexacopter systems with a take-off weight (TOW) of about 8–15 kg.

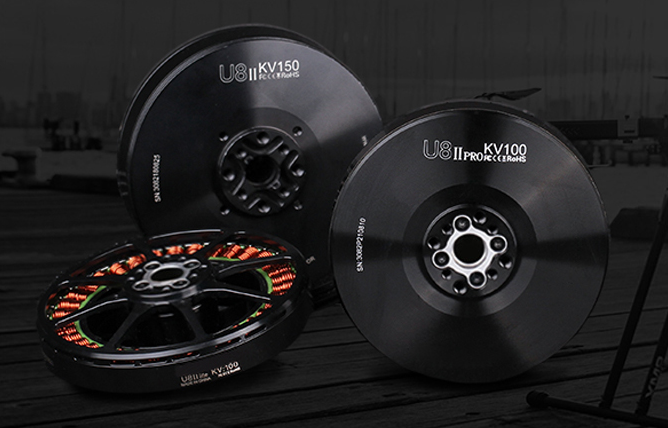

1. T-MOTOR U8Ⅱ PRO (KV100)
Parameters:
Dimensions: Φ87.3 × 29.55 mm / Weight: 287 g (incl. wire) / Voltage: 6–12 S / Peak Current: 31 A (180 s) / Max Power: 1450 W (180 s) / Max Thrust: 9.1 kg / Price: $309
Reason for Recommendation:
The U8Ⅱ PRO is T-MOTOR's flagship model for aerial photography and mapping. It offers sufficient thrust, smooth operation, and stable efficiency. Its comprehensive factory support (propeller and ESC combinations) simplifies assembly and tuning, making it widely used in aerial photography and inspection platforms.
2. T-MOTOR P60 (KV170)
Parameters:
Dimensions: Φ69 × 37 mm / Weight: 345 g (excl. wire) / Voltage: 6–14 S / Peak Current: 38 A (180 s) / Max Power: 1800 W (180 s) / Max Thrust: 8.4 kg / Price: $110
Reason for Recommendation:
The P60 is known for its high cost-effectiveness and good stability, suitable for light-load agriculture and routine inspection tasks. It is easy to maintain, highly compatible, and achieves efficient thrust output on a 12S platform, making it a reliable choice for entry-level, light-load drones.
3. T-HOBBY CINE99 (KV350)
Parameters:
Dimensions: Φ50.6 × 54.5 mm / Weight: 355 g (incl. wire) / Voltage: 12 S / Peak Current: 126 A / Max Power: 5670 W / Max Thrust: 8.8 kg / Price: $143
Reason for Recommendation:
The CINE99 is designed specifically for cinematography platforms, offering powerful thrust, smooth sound, and excellent dynamic response and compatibility. It is suitable for multi-axis cinematography rigs and gimbal systems, balancing thrust with stability and vibration control.
Summary
The 6–10 kg thrust tier represents the mainstream power range for light-load and small-to-medium-sized aerial photography drones.
U8Ⅱ PRO: Balanced performance, complete ecosystem, ideal for mapping and inspection.
P60: High cost-effective solution, easy to maintain, flexible build.
CINE99: Optimized for cinematography, balancing thrust and smoothness.
Motors in this tier typically operate on 6–12 S platforms, emphasizing efficiency and stability, and are widely used in aerial photography, inspection, and light-load mission platforms.
10–20 kg Thrust Motors for Drones
The 10–20 kg thrust range primarily targets medium-load agricultural drones, industrial inspection platforms, and research-use models. Motors in this class are required to balance thrust, efficiency, and durability. They must support long-duration loaded operations while possessing good response characteristics and system compatibility. Typical applications include quadcopters, hexacopters, or octocopters with a 10–25 kg take-off weight.
1. T-MOTOR U11Ⅱ (KV120)
Parameters:
Dimensions: Φ79.5 × 51.6 mm / Weight: 772 g (incl. wire) / Voltage: 12 S / Peak Current: 57.3 A (180 s) / Max Power: 2783 W / Max Thrust: 14 kg / Price: $349
Reason for Recommendation:
The T-MOTOR U11Ⅱ is a classic, versatile model in this range. Thanks to its stable winding design and heat-resistant materials, it has a proven track record in the field in agricultural and inspection drones. The motor's efficiency is outstanding on a 12S platform, with linear thrust response and good vibration control, making it suitable for applications requiring continuous load and long endurance. Its comprehensive factory support (propeller and ESC options) also facilitates assembly and tuning.
2. KDE 8218XF-120
Parameters:
Dimensions: Φ89 × 54.2 mm / Weight: 760 g / Voltage: 6–14 S / Peak Current: 110 A (180 s) / Max Power: 5695 W (180 s) / Max Thrust: 18.8 kg / Price: $710
Reason for Recommendation:
The KDE 8218XF-120 features a high-precision CNC casing and a dual-bearing structure, offering excellent mechanical precision and balance, representing one of the best industrial-grade motors. Its wide voltage compatibility (6S to 14S) makes it suitable for multiple platforms, maintaining stable efficiency under high loads. Its strong torque output and efficient cooling design make it ideal for industrial inspection, logistics, and research platforms that demand high continuous power. While expensive, its lifespan and consistency are exceptional.

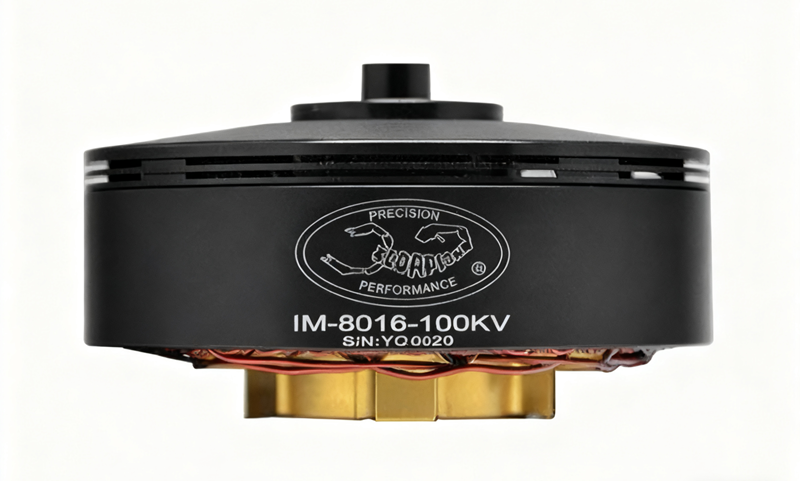

3. Scorpion IM-8016-100 KV
Parameters:
Diameter: Φ87.2 mm / Weight: 518.4 g (incl. wire) / Voltage: 12 S / Peak Current: 80 A / Max Power: 3552 W / Max Thrust: 16.5 kg / Price: $430
Reason for Recommendation:
The Scorpion IM-8016-100 KV is known for high torque output and excellent rotational balance. It uses high-temperature N45SH magnets and precision-wound coils internally, ensuring stability during long operations. Its weight control is excellent, achieving a high thrust-to-weight ratio for its class, making it suitable for agricultural drones and research models on a 12S platform. With smooth thrust delivery and good noise control, it is an ideal choice that balances performance and cost.
Summary
The 10–20 kg thrust tier represents the mainstream power range for medium-load UAVs.
U11Ⅱ: Known for stability and versatility.
KDE 8218XF-120: A high-end industrial solution with excellent precision and output.
Scorpion IM-8016: Offers an outstanding balance of cost-effectiveness and performance.
Whether for crop protection, inspection, or research, motors in this tier can meet the flight demands of 15–25 kg aircraft, providing reliable and efficient power output.
20–30 kg Thrust Motors for Drones
The 20–30 kg thrust range primarily corresponds to long-endurance industrial drones, logistics transport platforms, and large agricultural plant protection aircraft. Motors in this category are often paired with 22–25 S voltage platforms or high-efficiency propeller systems, striving to maintain stable thermal control and high efficiency under high thrust output. They are suitable for multi-rotor aircraft with a take-off weight of 20–40 kg.
1. KDE 10218XF-105
Parameters:
Dimensions: Φ109.1 × 55.2 mm / Weight: 1075 g / Voltage: 6–14 S / Peak Current: 142 A (180 s) / Max Power: 7355 W (180 s) / Max Thrust: 21.6 kg / Price: $985
Reason for Recommendation:
The KDE 10218XF-105 is an industrial-grade flagship motor, featuring high power density and high-temperature resistant windings. It can maintain stable efficiency during long-duration, high-load operations. Its machining precision and heat dissipation performance are outstanding, making it suitable for long-endurance inspection and logistics drones.
2. T-MOTOR U13Ⅱ (KV65)
Parameters:
Dimensions: Φ100 × 60 mm / Weight: 975 g (incl. wire) / Voltage: 22–25 S / Peak Current: 68 A (180 s) / Max Power: 6720 W (180 s) / Max Thrust: 28.7 kg / Price: $378
Reason for Recommendation:
The T-MOTOR U13Ⅱ is one of the most widely adopted mainstream models in this class, boasting a reliable structural design and excellent power stability. Its efficiency on a 25S platform is good, and its thrust output is smooth, making it suitable for large-scale heavy-lift, agricultural, and industrial platforms.
3. Eaglepower EA120 (KV105)
Parameters:
Dimensions: Φ110.4 × 60.4 mm / Weight: 1492 g (incl. wire) / Voltage: 12–14 S / Max Continuous Current: 113 A / Max Power: 5012 W / Max Thrust: 30 kg / Price: $360
Reason for Recommendation:
The EA120 delivers powerful thrust, features clearly stated specifications, and offers excellent cost-effectiveness. It uses high-strength magnets and a high-dissipation structure, capable of outputting 30 kg of peak thrust on a 14S voltage, and is often used in heavy-load agricultural and logistics platforms.
Summary
The 20–30 kg thrust tier represents the core power segment for medium-to-large industrial drones.
KDE 10218XF-105: An industrial, high-efficiency solution emphasizing long-duration output and precision.
T-MOTOR U13Ⅱ: Widely used, mature ecosystem, suitable for high-reliability platforms.
Eaglepower EA120: Offers high thrust and high cost-effectiveness, ideal for budget-sensitive projects.
Motors in this tier can support 25–40 kg multi-rotor systems, balancing efficiency, stability, and cost, making them the mainstream choice for most heavy-load drones.
30–50 kg Thrust Motors for Drones
The 30–50 kg thrust range is mainly intended for large industrial drones, hybrid-power composite-wing platforms, and long-endurance heavy-load missions. Motors in this bracket must maintain stable operation under high voltage and high loads, and possess excellent efficiency, heat dissipation, and structural strength. Typical applications include 30–50 kg take-off weight logistics aircraft, firefighting reconnaissance drones, and multi-mission industrial platforms.
1. T-MOTOR MN1018 (KV72)
Parameters:
Dimensions: Φ121 × 46.5 mm / Weight: 1020 g (incl. wire) / Voltage: 12–24 S / Peak Current: 79 A (180 s) / Max Power: 6888 W (180 s) / Max Thrust: 30.8 kg / Price: $380
Reason for Recommendation:
The MN1018 balances thrust and efficiency, featuring a large stator design and low-speed, high-torque characteristics. It can output over 30 kg of thrust on a 24S voltage. Its lightweight structure and good cooling performance make it suitable for long-endurance or hybrid-power UAV platforms.

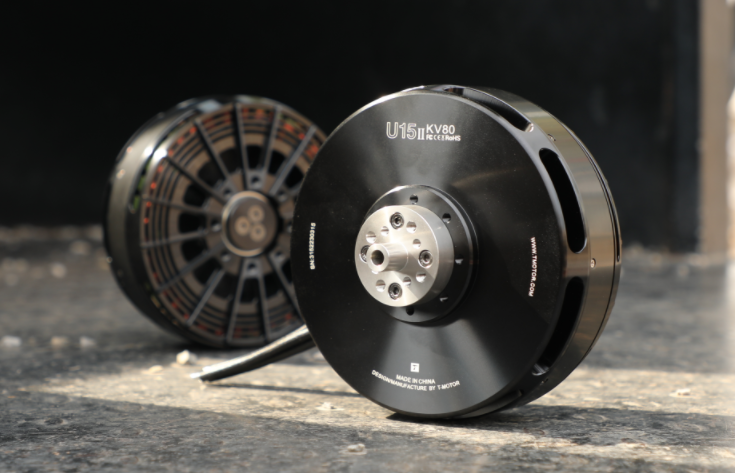

2. T-MOTOR U15Ⅱ (KV80)
Parameters:
Dimensions: Φ147.5 × 55 mm / Weight: 1740 g (incl. wire) / Voltage: 12–24 S / Peak Current: 143 A (180 s) / Max Power: 8580 W (180 s) / Max Thrust: 36.5 kg / Price: $690
Reason for Recommendation:
The U15Ⅱ is a representative model in this thrust class, known for its robust construction and high reliability, making it suitable for firefighting, rescue, and heavy-lift slung cargo missions. Its low-vibration output and good thermal management allow it to maintain high stability during long-term operations.
3. KDE Direct 13218XF-105 (KV105)
Parameters:
Dimensions: Φ150.2 × 55.2 mm / Weight: 2120 g (incl. wire) / Voltage: 6–14 S / Max Continuous Power: 9135 W (180 s @ 60.9 V) / Max Continuous Current: 150 A / Max Thrust: 32.3 kg / Price: $1525
Reason for Recommendation:
This motor belongs to KDE's industrial/military-grade lineup, equipped with ABEC-7 angular-contact bearings and a centrifugal fan, offering high durability and smooth output. On a 14S voltage with large propellers, it can cover the 30–50 kg thrust range and is often used in logistics and research-grade UAV platforms.
Summary
The 30–50 kg thrust tier marks the entry into large heavy-load UAV power levels.
T-MOTOR MN1018: A high-efficiency, lightweight solution, suitable for composite-wing and long-endurance platforms.
T-MOTOR U15Ⅱ: A high-reliability representative model, suitable for industrial and emergency missions.
KDE 13218XF-105: An industrial-grade high-performance motor, applicable for research and high-end applications.
Motors in this category can support 30–50 kg multi-rotor or hybrid platforms, providing a powerful and reliable core for industrial and scientific fields.
50 kg+ Thrust Motors for Drones
The 50 kg+ thrust level is primarily aimed at ultra-heavy-load industrial drones, scientific experimental platforms, and prototype-grade hybrid power systems. Motors in this range must possess extremely high structural strength, cooling capacity, and long-term stable output performance. Typical applications include 50–100 kg class cargo drones, long-endurance composite-wing aircraft, and manned experimental prototypes.
1. T-MOTOR U15L (KV43)
Parameters:
Dimensions: Φ151.5 × 86 mm / Weight: 3600 g (incl. wire) / Voltage: 24 S / Peak Current: 135 A (120 s) / Rated Power: 2800 W / Max Thrust: 63 kg / Price: $1099
Reason for Recommendation:
The U15L is an entry-level ultra-heavy-load solution, offering an excellent thrust-to-weight ratio and factory-supported system integration. Its design is reliable and highly adaptable, meeting the stable output demands of a 24S high-voltage platform. It is suitable for heavy-load inspection and long-endurance mission aircraft.
2. T-MOTOR U15XL (KV38)
Parameters:
Dimensions: Φ151.5 × 96 mm / Weight: 4408 g (incl. wire) / Voltage: 24 S / Peak Current: 180 A (120 s) / Rated Power: 3550 W / Max Thrust: 81 kg / Price: $1699
Reason for Recommendation:
The U15XL is an upgraded version of the U15 series, providing higher torque and a greater payload capacity. Its stable electromagnetic structure and improved bearing system maintain smooth output even under high-power operation. It is suitable for industrial heavy-load transport and research platforms, with excellent compatibility.
3. T-MOTOR U15XXL (KV29)
Parameters:
Dimensions: Φ151.5 × 106 mm / Weight: 5130 g (incl. wire) / Voltage: 24 S / Peak Current: 210 A (80 s) / Rated Power: 3300 W / Max Thrust: 100 kg / Price: $1999
Reason for Recommendation:
The U15XXL is the top-tier model in T-MOTOR's heavy-load series, with a single motor max thrust of up to 100 kg, representing the extreme power level currently available for civilian drones. It is often used for manned prototypes, hybrid power, and research-grade platforms, offering stable performance and high redundancy.
Summary
The 50 kg+ thrust tier represents the top power level for ultra-heavy-load and experimental-grade UAVs.
U15L: A stable, easy-to-integrate entry-level heavy-load solution.
U15XL: Higher payload and reliability, suitable for industrial and research use.
U15XXL: The representative model for 100 kg-class thrust, aimed at prototype and experimental platforms.
Motors in this tier are beyond the scope of conventional commercial use and are primarily utilized for high-end research, emergency rescue, or large-scale experimental UAVs, serving as the technical benchmark in the heavy-load field.
Powerful Drone Motor Parameters Overview：
Brand / Model | Size | Weight | Voltage | Peak Current | Max Power | Max Thrust | Price |
T-MOTOR U8Ⅱ PRO (KV100) | Φ87.3 × 29.55 mm | 287 g (w/ wire) | 6–12 S | 31 A (180 s) | 1450 W (180 s) | 9.1 kg | $309 |
T-MOTOR P60 (KV170) | Φ69 × 37 mm | 345 g (no wire) | 6–14 S | 38 A (180 s) | 1800 W (180 s) | 8.4 kg | $110 |
T-HOBBY CINE99 (KV350) | Φ50.6 × 54.5 mm | 355 g (w/ wire) | 12 S | 126 A | 5670 W | 8.8 kg | $143 |
T-MOTOR U11Ⅱ (KV120) | Φ79.5 × 51.6 mm | 772 g (w/ wire) | 12 S | 57.3 A (180 s) | 2783 W (180 s) | 14 kg | $349 |
KDE 8218XF-120 | Φ89 × 54.2 mm | 760 g | 6–14 S | 110 A (180 s) | 5695 W (180 s) | 18.8 kg | $710 |
Scorpion IM-8016-100 KV | Φ87.2 mm | 518.4 g (w/ wire) | 12 S | 80 A | 3552 W | 16.5 kg | $430 |
KDE 10218XF-105 | Φ109.1 × 55.2 mm | 1075 g | 6–14 S | 142 A (180 s) | 7355 W (180 s) | 21.6 kg | $985 |
T-MOTOR U13Ⅱ (KV65) | Φ100 × 60 mm | 975 g (w/ wire) | 22–25 S | 68 A (180 s) | 6720 W (180 s) | 28.7 kg | $378 |
Eaglepower EA120 (KV105) | Φ110.4 × 60.4 mm | 1492 g (w/ wire) | 12–14 S | 113 A (max cont.) | 5012 W | 30 kg | $360 |
T-MOTOR MN1018 (KV72) | Φ121 × 46.5 mm | 1020 g (w/ wire) | 12–24 S | 79 A (180 s) | 6888 W (180 s) | 30.8 kg | $380 |
T-MOTOR U15Ⅱ (KV80) | Φ147.5 × 55 mm | 1740 g (w/ wire) | 12–24 S | 143 A (180 s) | 8580 W (180 s) | 36.5 kg | $690 |
KDE 13218XF-105 (KV105) | Φ150.2 × 55.2 mm | 2120 g (w/ wire) | 6–14 S | 150 A (cont.) | 9135 W (180 s @ 60.9 V) | 32.3 kg | $1525 |
T-MOTOR U15L (KV43) | Φ151.5 × 86 mm | 3600 g (w/ wire) | 24 S | 135 A (120 s) | 2800 W (rated) | 63 kg | $1099 |
T-MOTOR U15XL (KV38) | Φ151.5 × 96 mm | 4408 g (w/ wire) | 24 S | 180 A (120 s) | 3550 W (rated) | 81 kg | $1699 |
T-MOTOR U15XXL (KV29) | Φ151.5 × 106 mm | 5130 g (w/ wire) | 24 S | 210 A (80 s) | 3300 W (rated) | 100 kg | $1999 |
Buying Guide | Powerful Drone Motor Selection Guide
Selecting the right drone motor is not just a matter of matching parameters; it is a core part of the overall system efficiency and reliability design. Different missions, take-off weights (TOW), and voltage platforms all dictate the choice of KV rating, thrust level, and power configuration. The following four dimensions are key factors to consider during selection.
1. Define Thrust Requirements
When designing a power system, the thrust requirement must correspond closely to the platform's mission objectives.
It is recommended to first calculate the total take-off weight (including airframe, batteries, payload, and avionics), and then set the thrust-to-weight ratio (T/W) based on the mission type:
Aerial Photography & Mapping Platforms: T/W ≈ 2.0–2.2. Balances endurance and noise.
Agriculture & Industrial Inspection Platforms: T/W ≈ 2.3–2.5. To cope with high temperatures and long flight times.
Heavy-Lift & Logistics Platforms: T/W ≥ 2.6. Provides sufficient redundancy for battery degradation or high-altitude/low-pressure conditions.
Calculation Formula:
Single Motor Thrust ≥ (Take-off Weight × T/W Ratio) ÷ Number of Motors
Example:
An industrial quadcopter with a 24 kg TOW, designed with a T/W = 2.4.
The single motor thrust should be no less than (24 × 2.4) ÷ 4 = 14.4 kg.
Also consider during selection:
Motor thrust is not a continuous value; a safety margin of 10–15% should be reserved.
The "Max Thrust" listed by manufacturers is often based on static tests and should be corrected for real-world load conditions.
2. Voltage & KV Selection
Voltage and KV rating directly determine the motor speed and propeller load matching, which is key to efficiency design.
KV Rating Definition: KV represents the motor's speed (RPM/V) per volt under no load.
Therefore:
High KV motors mean high speed, low torque; suitable for small props and high-speed platforms (e.g., racing or light-load).
Low KV motors mean low speed, high torque; suitable for large props and heavy-load platforms (e.g., industrial or agriculture).
The choice of voltage platform needs to be combined with the battery cell count (S) and target power:
6–8 S Systems: Light-load and small platforms. Current draw is higher, but cost is lower.
12–14 S Systems: Mainstream for medium and industrial platforms. High efficiency and good compatibility.
22–24 S Systems: High-thrust or hybrid platforms. Lower current and less thermal loss, but system requirements are higher.
Under the same thrust target, a "High Voltage + Low KV" setup is usually more efficient because it reduces operating current and thermal losses.
However, if the budget is limited or the platform size is restricted, a "Medium Voltage + Medium KV" compromise can be chosen, paired with the manufacturer's recommended propellers and ESCs.
3. System Matching & Safety Margin
A powerful motor system must remain stable in terms of power supply, wiring, and thermal management. This aspect is often overlooked but is crucial for reliability.
(1) ESC Configuration and Redundancy
The ESC's peak current rating should be 20–30% higher than the motor's peak current.
Choose an ESC that supports the same voltage level and enable current and temperature protection features.
For industrial drones, ESCs with active cooling modules or air-cooling systems are recommended.
(2) Wiring and Connectors
For platforms over 20 kg, ≥14 AWG copper wire is recommended.
Systems over 30 kg should upgrade to 12 AWG or 10 AWG.
Connectors should use metal pins and soldered connections to avoid excessive contact resistance at high currents.
(3) Heat Dissipation and Structural Layout
Motors should have good airflow or ducted designs.
For long-endurance missions, installing motor shrouds or heat sinks is recommended.
Maintain a distance of 10–15 cm or more between the ESC and motor to prevent thermal interference.
(4) Environment and Safety Redundancy
In high-temperature (>35°C) or high-altitude areas, air density decreases, which can cause a thrust loss of 10–15%. A higher-tier motor or larger propellers should be used.
For emergency response or scientific research platforms, at least 1.2× thrust redundancy should be reserved to maintain stability in extreme conditions.
4. Common Mistakes in Motor Selection
Focusing only on KV rating without matching prop diameter and voltage: The same KV performs vastly differently at different voltages.
Ignoring ESC current limits: Leads to power bottlenecks, thermal runaway, or burnout.
Using wires that are too thin: Significantly increases current loss and heat, which actually reduces thrust.
Blindly pursuing high power: More thrust means heavier and more power-hungry, which does not equal better efficiency.
Ignoring environmental factors: The lifespan of standard motors is drastically shortened in hot, humid, or dusty conditions.
Conclusion
Powerful drone motors determine the thrust, efficiency, and reliability of the entire aircraft. From the 6 kg to 100 kg thrust range, different models cover the full spectrum of applications, from light-load aerial photography and industrial inspection to ultra-heavy-load logistics. Whether for a professional platform seeking long endurance or a high-power experimental aircraft, rational motor selection is always key to performance optimization.
As the UAV industry moves toward a high-power and intelligent era, the motor system is upgrading from a simple "propulsion component" to the core of the aircraft's energy efficiency and safety. When selecting a motor, it is recommended to comprehensively consider the thrust-to-weight ratio, voltage platform, KV rating, and system heat dissipation to ensure sustained and efficient operation.
