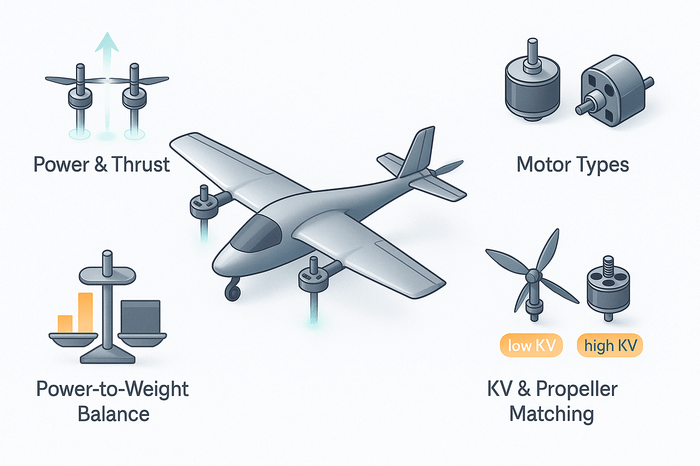

How to Choose VTOL Drone Motors?
Selecting the right motors for Vertical Take-Off and Landing (VTOL) drones requires careful consideration of multiple technical factors that directly impact flight performance, safety, and operational effectiveness. Unlike traditional multi-rotor drones, VTOL aircraft must perform both vertical lift operations and efficient forward flight, placing unique demands on their propulsion systems.
Power and Thrust Requirements
The foundation of motor selection begins with calculating your drone's power and thrust needs. VTOL drones typically require a thrust-to-weight ratio of 2:1 to 2.5:1 for safe operation in industrial or logistics applications, with high-agility racing configurations reaching approximately 3:1, while extreme aerobatic scenarios may require higher ratios. This means if your VTOL drone weighs 15kg, you need motors capable of generating at least 30kg of total thrust across all propellers.
To determine individual motor requirements, divide the total thrust needed by the number of motors. For a quad-rotor VTOL weighing 15kg with a 2:1 thrust ratio, each motor should produce approximately 7.5kg of thrust. However, always include a safety margin of 10-15% to account for varying flight conditions and payload changes.
Motor Type Selection
Brushless DC (BLDC) motors are the preferred choice for VTOL applications due to their high efficiency (85-90%), long lifespan, and reliable performance. These motors use electronic commutation instead of mechanical brushes, offering superior power-to-weight ratios and reduced maintenance requirements compared to brushed alternatives.
For demanding VTOL applications, permanent magnet synchronous motors (PMSM) can provide smoother torque and slightly higher power density within the same volume, but require sinusoidal wave FOC drive systems, which increases controller cost and complexity. Advanced applications may consider axial flux motors, which offer 30% higher power density than traditional motors.
KV Rating and Propeller Matching
The KV rating determines motor speed characteristics and must be matched to propeller size for optimal performance. Lower KV motors (29-65 KV) pair with larger propellers (22+ inches) to generate high thrust at lower RPMs, ideal for heavy-lift VTOL applications. Higher KV motors work better with smaller, lighter propellers for faster, more agile flight.
This relationship is critical because mismatched motor-propeller combinations can lead to motor overheating, reduced efficiency, or inadequate thrust generation. Use manufacturer thrust tables when available, as they provide tested performance data for specific motor-propeller combinations.
Power Density and Weight Constraints
VTOL aircraft face strict weight limitations, making power-to-weight ratio a crucial selection criterion. Current mainstream VTOL motors typically achieve power densities of 3-6 kW/kg, with top-tier aviation-grade designs exceeding 10 kW/kg for competitive performance. Heavier motors not only reduce payload capacity but also increase power consumption, creating a compounding effect on flight time and range.
Consider the physical dimensions carefully - wider motors offer better cooling and durability but sacrifice responsiveness, while taller motors provide higher RPMs but may generate more heat. Choose based on your operational priorities: payload capacity versus agility.
Thermal Management and Cooling
VTOL operations generate significant heat, particularly during vertical flight phases where motors operate at high power continuously. Effective cooling is essential to maintain motor efficiency and prevent thermal damage. Look for motors with:
- Adequate heat dissipation surfaces and ventilation paths
- Temperature ratings appropriate for your operating environment
- Liquid cooling compatibility for high-power applications
- IP-rated protection against environmental factors
Plan flight operations during cooler periods and implement cooling breaks for extended missions to prevent overheating.
Redundancy and Safety Considerations
VTOL aircraft require higher safety margins due to their complex flight profiles. Implement N+1 redundancy where the remaining motors can maintain controlled flight even if one fails. This typically means designing for 6-8 rotors rather than the minimum 4, with each motor sized to handle increased load during failure scenarios.
Consider dual ESC backup systems and independent control circuits to prevent single points of failure. The motor control system should support fail-safe modes and graceful degradation rather than catastrophic failure.
Voltage and Power Electronics
Higher voltage systems (12S to 24S) offer better efficiency and reduced current draw, but require more sophisticated power electronics. Match your motor voltage rating to your battery configuration and ESC capabilities. Modern VTOL motors often support 6S to 24S voltage ranges for flexibility.
Ensure your Electronic Speed Controllers (ESCs) can handle the motor's peak current requirements with adequate safety margin. Consider ESCs with advanced features like field-oriented control (FOC) for smoother operation and better efficiency.
Environmental and Operational Factors
Factor in your specific operating conditions when selecting motors. High-altitude operations reduce air density, requiring higher power for equivalent thrust. Extreme temperatures affect motor performance and battery capacity. Marine or dusty environments demand higher IP ratings for protection.
Consider the duty cycle of your operations - continuous high-power operation requires different motor specifications than intermittent use. Match motor thermal ratings to your expected operational profile.
Making the Final Selection
Start by clearly defining your VTOL drone's mission requirements: payload capacity, flight duration, operating environment, and safety requirements. Calculate thrust and power needs with appropriate safety margins. Research motors from established manufacturers like T-Motor, LIGPOWER, or KDE Direct that provide detailed specification sheets and thrust data.
Test motor-propeller combinations when possible, as real-world performance can vary from specifications. Consider the total system cost including motors, ESCs, batteries, and cooling systems. Remember that the most expensive motor isn't always the best choice - select based on how well the specifications match your specific requirements.
By systematically evaluating these factors, you can select VTOL drone motors that provide reliable, efficient performance while meeting your mission requirements and safety standards.
VTOL Drone Motors Product Comparison
The following comparison table showcases representative VTOL drone motors from LIGPOWER's V Series and VL Series product lines, arranged by maximum thrust capacity from smallest to largest:
Selection Guide Summary
For entry-level applications (8-15kg payloads), the V505 and VL5009 offer excellent value with the VL5009 providing propeller-locking advantages for energy efficiency. Mid-range operations (15-25kg payloads) are well-served by the V807 and VL8018, where the V807 excels in high-power scenarios while VL8018 focuses on energy-efficient propulsion systems. Heavy-lift applications (25kg+ payloads) benefit from the V10L and VL1035 for cost-effectiveness, or the premium V13L for maximum thrust capacity with advanced thermal management.
Choose V Series motors when you prioritize raw power output and maximum thrust-to-weight ratios, or select VL Series when energy efficiency and intelligent propeller management are critical for extended flight operations.
VTOL Drone Motors Applications
VTOL (Vertical Take-Off and Landing) drone motors are designed to power drones that can take off, hover, and land vertically. This unique capability makes VTOL drones suitable for a wide range of industries and application scenarios. Below are some of the main areas where VTOL drone motors are making an impact:
Aerial Surveying and Mapping
VTOL drones are widely used for land surveying, agriculture, and environmental monitoring. Their ability to take off and land in tight spaces makes them ideal for collecting high-resolution images and data from remote or difficult-to-reach locations.
Delivery and Logistics
In the logistics industry, VTOL drones enable the rapid and efficient delivery of packages, medical supplies, and critical goods. Their vertical take-off ability allows them to operate in urban environments where space is limited, reducing delivery times and costs.
Inspection and Maintenance
VTOL drones are commonly used to inspect infrastructure such as power lines, wind turbines, and pipelines. They provide access to hard-to-reach or hazardous areas while minimizing risk to human workers and reducing the need for expensive scaffolding or shutdowns.
Emergency Response and Disaster Relief
During natural disasters or emergencies, VTOL drones can quickly deploy to affected areas to assess damage, deliver aid, or locate survivors. Their versatility and maneuverability make them valuable tools for first responders.
Film and Photography
In the media and entertainment industry, VTOL drones are used for capturing dynamic aerial shots and live broadcasts. Their stable hover capability and ease of operation in confined spaces provide creative flexibility for filmmakers and photographers.
VTOL drone motors play a crucial role in enabling these applications, offering both the power and efficiency needed for reliable vertical flight and smooth transitions between hovering and forward flight.
VTOL Drone Motors Frequently Asked Questions
Below are answers to common questions about VTOL drone motors and their applications:
Q: What makes VTOL drone motors different from standard multirotor motors?
A: VTOL drone motors are specifically designed to handle the dynamic load variations of flight mode transitions, featuring enhanced speed control precision, optimized efficiency curves across wider RPM ranges, and robust construction for sustained operation during both vertical and horizontal flight phases.
Q: How do I calculate power requirements for a VTOL aircraft?
A: Calculate power needs for both flight modes separately. Small (<2 kg) aircraft typically require 0.2-0.4 kW per motor, while commercial/payload-class VTOL can reach 1-5 kW per motor depending on aircraft weight and mission requirements. Cruise flight relative to hover power typically reduces consumption by ≈30-50%, which should be calculated based on specific aerodynamic design. Consider transition phase power spikes and add 25-30% safety margin to your calculations.
Q: What propeller considerations are unique to VTOL applications?
A: VTOL applications often require variable-pitch propellers or optimized fixed-pitch designs that balance hover efficiency with forward flight performance, validated by wind-tunnel and flight-test data indicating 3-8% efficiency gain. Consider propeller folding mechanisms for transition aircraft and ensure adequate ground clearance during vertical operations, maintaining ≥7 in (≈18 cm) propeller-to-ground clearance per FAA AC-65-15A.
Q: How important is motor reliability for VTOL operations?
A: Motor reliability is critical for VTOL aircraft as they typically operate over populated areas or in mission-critical applications. Select motors with proven track records, appropriate redundancy, and comprehensive testing data for your specific operational profile.
Q: Can standard multirotor motors be used in VTOL applications?
A: While possible for experimental applications, dedicated VTOL motors offer superior performance for commercial operations. Standard multirotor motors may lack the torque reserves, thermal mass and bearing life required for repeated transition cycles in reliable VTOL operations.
Q: What maintenance considerations are important for VTOL motors?
A: VTOL motors experience more varied operating conditions than single-mode aircraft. Implement regular inspection schedules, monitor bearing condition due to variable loads, and track motor temperatures during transition phases. Maintain spare motor inventory for mission-critical applications.
