A Complete Guide to BLDC Drone Motors

In a drone's power system,the BLDC(Brushless DC)Drone Motor is a critical core component.Through electronic commutation,it delivers efficient and stable power output,making it widely used in FPV racing,aerial photography,and industrial applications.Selecting the appropriate BLDC Drone Motor not only significantly enhances the aircraft's thrust,flight time,and stability but also ensures operational reliability and safety.

This article will provide a detailed analysis of the principles,key parameters,and selection logic for BLDC Drone Motors to help you choose the most suitable motor for different application scenarios.Whether you are a drone beginner or a seasoned pilot,this guide will help you master the fundamental concepts of motor selection,laying a solid foundation for building a high-performance drone.

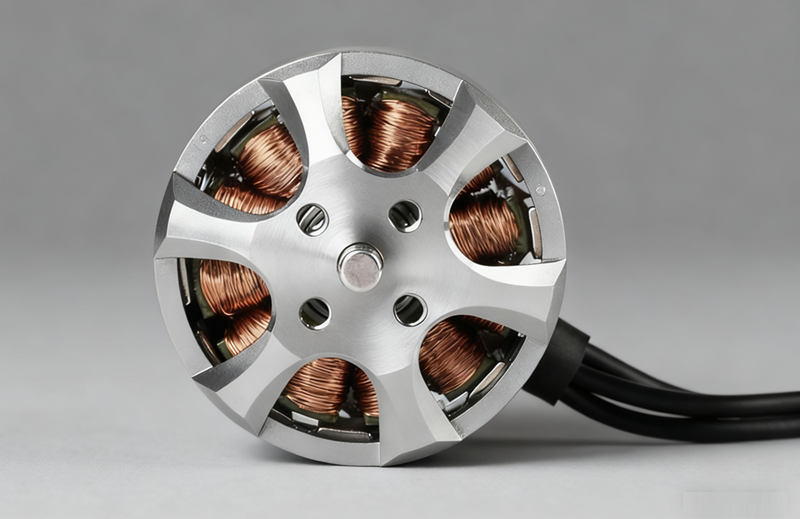

BLDC Drone Motor Basics

1. Working Principle of BLDC Drone Motors

A BLDC motor is a direct current(DC)motor controlled by electronic commutation.Unlike traditional brushed motors,BLDC motors do not use carbon brushes or a commutator.Instead,they rely on an Electronic Speed Controller(ESC)to control the direction of the current,achieving highly efficient,variable speed control.The motor is primarily composed of a stator and a rotor.The stator generates a rotating magnetic field,and the permanent magnets within the rotor interact with this field,driving the motor to rotate.

Because BLDC motors do not require brushes,they offer higher efficiency,a longer lifespan,and faster response speeds.This makes them ideal for aircraft requiring high precision and rapid response,such as FPV racing and aerial photography drones.Through this principle,BLDC motors provide stable thrust and ensure the aircraft's climb rate,hovering stability,and load capacity.

2. Composition of a BLDC Drone Motor

A BLDC(Brushless DC)drone motor is made up of several key parts:the stator,rotor,motor shaft,bearings,and housing.These components work together to convert electrical energy into efficient rotational motion.

Stator:The stator is the stationary part of the motor,containing copper windings wrapped around an iron core.When current flows through the windings,it creates a rotating magnetic field that drives the rotor.Its design—including winding layout and pole count—determines the motor’s torque and efficiency.

Rotor:The rotor is the moving part,fitted with strong permanent magnets.It spins under the influence of the stator’s magnetic field,turning the motor shaft and propeller.In drones,rotors are lightweight and well-balanced to reduce vibration and improve responsiveness.

Motor Shaft and Bearings:The motor shaft transfers torque from the rotor to the propeller,while bearings support rotation and reduce friction.High-quality bearings ensure smooth,quiet operation and extend motor life.

Housing:The housing protects internal parts and helps dissipate heat.Drone motors typically use aluminum alloy shells for light weight,strength,and cooling efficiency.

3. Core Advantages of BLDC Drone Motors

The main advantages of BLDC motors include:

High Efficiency and High Power Density:For the same volume,BLDC motors provide greater thrust and longer flight times.

Fast Response and Precise Control:Suitable for fast-flying and high-sensitivity scenarios.

Low Maintenance Cost and High Reliability:The brushless design reduces wear and tear,extending the motor's lifespan.

Low Noise and Low Vibration:Stable rotation reduces in-flight noise and vibration,enhancing flight stability.

Key BLDC Drone Motor Parameters Explained

Selecting the right BLDC motor requires understanding several key parameters that directly impact its performance and suitability.The following are the most important parameters and their meanings:

1. KV Rating

The KV rating indicates the motor's speed(RPM)per volt under no-load conditions.For example,a 2300KV motor will have a no-load speed of 2300 RPM at 1V.High-KV motors have higher speeds and faster responses,making them suitable for small propellers and high-speed flight.Low-KV motors have lower speeds but greater torque,making them ideal for large propellers and long-endurance flights.

2. Motor Size

The motor size directly determines its torque output and the applicable propeller size.Motor size is typically expressed as"Stator Diameter×Stator Height."For example,a 2306 motor has a stator diameter of 23mm and a stator height of 6mm.A larger motor size generally produces stronger torque,supporting larger propellers and higher currents.

3.Thrust and Thrust-to-Weight Ratio(TWR)

Thrust is the direct measure of a motor's output capability.The thrust-to-weight ratio(TWR)is the ratio of total thrust to the aircraft's total weight.A higher TWR results in stronger maneuverability and quicker responses.Different flight requirements demand different TWRs.For instance,racing drones require a high TWR for rapid maneuvers,while aerial photography drones prioritize stability,requiring a moderate TWR.

4. Current and Efficiency

Current directly affects the motor's energy efficiency and heat dissipation.The motor's continuous current rating indicates the current it can handle during normal operation,while the peak current(or burst current)represents the maximum current it can withstand for short periods.A reasonable current design helps improve motor efficiency and prolong its lifespan.Excessive current will cause the motor to overheat,impacting performance.Therefore,it is crucial to balance current and heat management by selecting a matching ESC and battery.

5. Voltage Platform

The voltage platform(expressed as S count,e.g.,4S,6S)directly impacts the motor's operating speed.Higher voltage increases the motor's speed and reduces the current draw for the same power output,thereby increasing system efficiency.However,high voltage also places greater demands on the ESC and battery,requiring a comprehensive balance between voltage,current,and motor matching.

6. Maximum Power

Maximum power is the highest power value,typically in Watts(W),that the motor can continuously output under maximum load.It determines the load the motor can handle and the maximum power output it can provide.Motors with high maximum power are-suited for applications requiring significant thrust,such as long-endurance flights and heavy-lift tasks.

How to Select the Right BLDC Drone Motor?

Drone motor selection is essentially a process of determining performance parameters based on the"flight objective."Different flight types have different priorities regarding thrust,response speed,efficiency,weight,noise,and reliability.

When selecting a motor,the goal is not to maximize a single parameter but to find a balance between all performance metrics based on the specific application.

The following sections categorize common flight scenarios into seven major types,each with a relatively stable range of motor parameters and pairing conventions.

1. Tinywhoop

Tinywhoops are the most lightweight drone form factor,typically used for indoor flying,entertainment,or beginner practice.

This category is characterized by high KV,small propellers,and low voltage,focusing on flexibility and agile control.Common motor sizes are 0802–1103,with KV ratings between 14000–25000KV,paired with 1S–2S battery platforms.

Due to limited thrust,the all-up weight is usually kept under 50 grams,emphasizing"light"and"fast"rather than powerful thrust.

Summary of Characteristics:

Small motor size,lightweight

High KV,small-diameter propellers

Rapid response,agile flight

Short flight time,limited endurance

2. FPV(Racing/Freestyle)

This is the primary category for FPV pilots,covering the two main flight styles:racing and freestyle.

The motor configurations for both are very similar,typically using medium-sized motors like 2205,2207,or 2306,with KV ratings in the 1700–2800KV range,paired with 4S–6S battery platforms.

Racing setups lean toward higher KV values for quick response and explosive power.Freestyle setups focus more on throttle feel and linearity,using slightly lower KV values,but prioritizing motor stability and controllability.

Summary of Characteristics:

Medium-sized motors,balancing thrust and agility

Medium-to-high KV,suitable for high-response scenarios

4S–6S voltage platforms are mainstream

Requires good thermal management and prop-motor matching

3. Cinewhoop(Cinematic)

Cinewhoop drones emphasize flight stability,low noise,and smooth control,making them ideal for aerial photography,filmmaking,and low-speed precision flying.

Motors are often lightweight models like 1404 or 1507,with KV ratings between 1400–3000KV,paired with 3S–6S battery platforms.

Compared to racing drones,this category prioritizes efficiency and vibration suppression.The motors typically do not have high power redundancy,but their output is extremely smooth.

Summary of Characteristics:

Small-to-medium motor size,medium-to-low KV

Low noise and minimal vibration

Stability for cinematography is the priority

Suitable for low-to-medium speed flight and stationary hovering

4. Long Range(Endurance/Light Industrial Payload)

The core objective for long-range and light industrial applications is to maximize efficiency and endurance.

These drones often use larger motors like 2806 or 3110,with KV ratings between 400–1200KV,paired with 6S–12S battery platforms and large propellers.

Unlike FPV,these aircraft do not seek high-speed response.Instead,they use a combination of high torque and low RPM to achieve longer flight times per unit of energy.

Summary of Characteristics:

Large motor size,low KV,high voltage platform

Adapted for large-diameter propellers,high efficiency

Focus on thermal management and stable output

Suitable for inspection,mapping,power line,and agricultural tasks

5. Heavy Lift

Heavy lift drones are used to carry high-value equipment(such as cinema cameras,large sensors,or logistics payloads).Their motors must provide extremely strong torque and sustained power output.

Commonly,4114-6010 or even larger motors are used,with KV ratings typically between 100–600KV,and voltage platforms as high as 6S–12S.

The design focus for these aircraft is reliability and thermal management,often incorporating significant power redundancy to ensure stable operation over long periods.

Summary of Characteristics:

Large motor size,low KV,large propellers

High voltage platform,massive thrust output

Emphasis on safety redundancy and stability

Suitable for heavy transport and large-scale aerial cinematography

6. VTOL(Vertical Take-Off and Landing)

VTOL platforms emphasize aviation-grade flight characteristics,especially the high thrust required during take-off and landing phases.Motor configurations are typically low KV,large props,and high efficiency,optimized for stability and power consumption during the cruise phase.VTOL motor requirements during take-off/landing are similar to multirotors,while the cruise phase is closer to fixed-wings.Therefore,motor selection must consider both lift and cruise efficiency.

Motors are often large models like 5606–8015,with KV ratings between 150–300KV,usually paired with a 12S battery platform.For heavy-lift tasks,the KV may be as low as 100KV.

Summary of Characteristics:

Low KV,large propellers,high efficiency

Suitable for long-distance cruise

High requirements for motor efficiency and vibration control

Often used in industrial and scientific research scenarios

7. Fixed-Wing

Fixed-wing platforms are primarily focused on optimizing energy efficiency for long-duration,long-distance flights.Motor configurations are typically low KV with large propellers,emphasizing high efficiency and low energy consumption to maximize flight time and stability.Motor selection for fixed-wing drones is more singular,focusing mainly on efficient cruise and endurance.

Motors are often small-to-medium sizes like 2216 or 2312(or 3510 5015 for large wings),with KV ratings typically between 800–1400KV(for small/medium wings)or 100–600KV(for large wings),paired with 2S–6S battery platforms.

Summary of Characteristics:

Low KV,large propellers,high efficiency

Targeted for long-duration cruise

Emphasis on energy efficiency and low vibration

Suitable for industrial and research-focused endurance missions

Table of Drone Power System Configurations for Various Scenarios:

Matching Motors with ESCs,Propellers,Flight Controllers,and Batteries

In practice,a motor cannot function alone.It must be paired with an ESC,propellers,and a battery to form a stable and efficient power system.The matching of these components directly impacts the aircraft's thrust,stability,and efficiency.The following is the logic for matching the motor with other core components.

1. Motor and ESC Matching Logic

The motor and ESC are the core pairing in the power system.The ESC adjusts the motor speed based on signals from the flight controller,so their match is critical.When selecting an ESC,ensure its continuous and peak current ratings can meet the motor's demands,leaving an appropriate safety margin.

Current and Voltage Matching:The ESC's continuous current rating must be greater than or equal to the motor's peak current draw,and the voltage platform must match the motor's rated voltage.For example,a 2306 1800KV motor suited for a 6S battery requires an ESC that supports 6S and is rated for at least 45A.

Signal Protocol:Choose an ESC that supports protocols like DShot or Oneshot to reduce signal latency,especially in racing and high-precision flight scenarios.

Heat Dissipation and Durability:For high-load or long-duration flights,the ESC's cooling capability is crucial.Ensure you select a high-quality ESC with good heat dissipation to prevent overheating.

2. Motor and Propeller Matching Logic

The motor and propeller match determines the aircraft's thrust and control characteristics.Different KV ratings and motor sizes are adapted for different propeller diameters and pitches.

KV and Prop Matching:High-KV motors have high speed but low torque,suitable for small props,providing fast response.Low-KV motors have low speed but high torque,suitable for large props,ideal for long,stable flights and heavy-lift tasks.

Propeller Blade Count:Two-blade props are generally the most efficient and suitable for most applications.Three-blade props offer faster response but have higher current draw,good for racing.Four-blade(or more)props are used in scenarios requiring stability,like Cinewhoops.

Propeller Diameter and Current:A larger propeller diameter or steeper pitch places a heavier load on the battery and ESC.Ensure the motor,battery,and ESC are matched to avoid excessive power consumption.

3. Motor and Battery Matching Logic

The motor's KV rating determines its speed at different voltages,while the battery's voltage platform(S count)defines the motor's actual operating range.A proper motor and battery combination enhances the aircraft's efficiency and safety.

KV×Voltage≈No-load RPM:For example,a 2300KV motor on a 4S(16.8V)battery has a theoretical no-load speed of~38,640 RPM.Ensure the motor speed matches the propeller's load capacity to prevent overload.

Higher Voltage is Not Always Better:While higher voltage increases motor speed,it also means higher current and more heat.The choice of a high-voltage battery must be matched with the capabilities of the motor,ESC,and propeller to avoid system overload.

Battery Capacity and Discharge Rate:The battery must be selected based on its capacity(mAh)and discharge rate(C-rating).High C-rating batteries are suited for high-power scenarios(like racing),while long-endurance missions prioritize higher capacity batteries,though care must be taken to avoid excessive battery weight.

4. Motor and Flight Controller(FC)System Matching

The flight control system determines the motor's control precision and response speed.When pairing with high-KV motors,ensure the FC has a sufficient refresh rate and filtering capabilities to prevent control errors and instability.

Signal Refresh Rate Matching:The FC needs to support a high-frequency refresh rate(e.g.,4kHz–8kHz),especially with high-KV motors(2300KV and up),to ensure latency-free communication with the ESC.

Filtering and Vibration Suppression:High-speed motors can easily generate vibrations.The FC must have adequate filtering functions to ensure stable flight.

BLDC Drone Motor Use and Maintenance

Although BLDC motors require less maintenance due to their brushless design,regular care and inspection are still very important to ensure their long-term,efficient operation.Proper usage habits and timely maintenance can extend the motor's lifespan and reduce failures.

1. Daily Maintenance and Inspection Points

Motors can accumulate dust or other external contaminants during prolonged use or high-load flights,all of which can affect performance.Therefore,daily maintenance is crucial.

Clean Debris and Dust:Sand,dust,or grass clippings can easily accumulate inside the motor.After every 5–10 flights,it is recommended to use compressed air or a soft brush to clean the gaps and winding areas,keeping the motor clean to avoid affecting heat dissipation and rotor balance.

Check Bearing Status:The motor should spin smoothly without resistance.If you hear unusual noises or the rotation is not smooth,the bearings may be damaged or rusted from water exposure and should be replaced.

Check Motor Wires and Solder Joints:The connection between the ESC and motor must be secure.Check for loose or oxidized wires to prevent poor contact,which can cause motor stuttering or damage.

Waterproofing and Corrosion Prevention:If flying in humid or coastal environments,consider waterproofing the motors,but avoid applying conformal coating to moving parts.

2. Tips for Extending Lifespan

Motor performance degradation is usually caused by prolonged high-load operation,overheating,and accumulated vibration.Good usage habits can effectively extend motor life.

Avoid Prolonged High-Load Operation:Especially in FPV racing or heavy-lift platforms,continuous high loads will cause the motor to overheat,impacting its lifespan.It is advisable to manage the throttle appropriately and avoid running at full power for extended periods.

Maintain Good Heat Dissipation:Ensure the motor and ESC have good ventilation.This is especially critical in industrial or VTOL platforms;optimize the aircraft design to improve cooling and reduce heat buildup.

Maintain Propeller Balance:Unbalanced propellers will accelerate motor bearing wear and create additional vibration.Use a dynamic balancing tool to regularly check and correct propeller balance.

Gentle Take-offs and Landings:Avoid hard landings that can impact the motor shaft and motor mount.This is particularly important for small FPV and Cinewhoop builds.

3. Common Issues and Troubleshooting

BLDC Drone Motor Industry Trends and Future

BLDC motor technology is already very mature,but the rapid development of the drone industry is pushing power systems into a new phase.The future focus of competition will no longer be just"KV and thrust,"but rather efficiency,intelligence,and system integration.

1. Technological Innovation Directions

Lightweight and High Efficiency:Higher-grade magnets,more refined windings,and lightweight casings will allow motors to achieve higher thrust-to-weight ratios and efficiency in smaller volumes.

Rise of Axial Flux Motors:These possess high torque and high efficiency,making them particularly suitable for long-endurance and VTOL platforms.

Popularization of FOC Smart Control:Field-Oriented Control(FOC)provides smoother drive,lower noise,and can be deeply integrated with the flight control system.

2. Industry Development Trends

Standardization in FPV:Motor parameters and matching methods have largely solidified;competition is shifting toward efficiency and reliability.

Rapid Growth in Long-Endurance and Industrial Applications:Low KV+large props+high voltage is becoming the mainstream configuration.

Intelligent Integration:Motors will form a closed-loop system with ESCs,flight controllers,and AI algorithms to achieve dynamic speed adjustment and status monitoring.

Conclusion

BLDC motors are the core power source for modern drones.Leveraging advantages such as high efficiency,low maintenance,and long lifespan,they are widely used in FPV racing,aerial photography,and industrial fields.Selecting the right BLDC motor can significantly improve a drone's thrust,endurance,and flight stability.

This article has detailed the working principles of BLDC motors,their key parameters(such as KV rating,motor size,thrust,and efficiency),and how to select the appropriate motor based on different flight requirements.It also discussed how to match motors with ESCs,propellers,and batteries to optimize flight performance.

Proper motor care and regular inspection are also key to extending a motor's service life.Through reasonable usage habits and maintenance,the reliability and durability of the motor can be greatly enhanced.
