Name: V4215
Brand: LIGPOWER
SKU: LIGPOWER001465
Price: 65.90 USD
Availability: InStock

65.90

Available points: 0 Points Points reward: 65 Points

KV：

KV320
KV420
KV600

Quantity：

65.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

Robust Power,
Effortless Heavy Loads

Suitable for 13-inch X4 or X8 cinematic drones.
Delivering a maximum thrust of over 6.5kg and a continuous
thrust of 2-4kg, easily handles with high load requirements.
Well-suited for scenarios with high power demands,
like cinematic filming.

The King of Range Under Large Load

Unique electromagnetic optimization design enables it to achieve an outstanding range of over 15km even with a load of 5kg, ensuring the efficiency and smoothness of filming. For X4 drone at 12.7kg takeoff weight: V4125 320KV motors, Cine1310-3 props, 12S 20,000mAh battery → 15min flight time, 15km range (5kg payload).

Innovative Design,
Superior Compatibility

The unique top bell design is suitable for Cine13-15 inch props and also provides a prop adapter compatible with traditional M6 single-hole props. It features M4 screw holes and non-protruding locking shaft screws in motor base, allowing it to perform well in various scenes and frame configurations.

Cine 13-15

PROPS

M6 SINGLE-HOLE

PROPS

Technical Drawing

Specification

Type	V4215	Motor Dimension	Φ50.4*44.8mm
Magnet	Galvanized Arc Magnet	Coil insulation test	500V withstand voltage test(3s)
Waterproof and dustproof class	/	Configuration	12N14P
Dynamic balance requirements standards	≤5mg	Bearings	Imported 606-ZZ
Shaft Diameter	4mm	Lead	14AWG*600mm
Screw Diameter	Φ30-M4-4	Prop Adapter Shaft Thread	Φ15/Φ12-M3-4/M6 (with prop adaptor)
Packing Size	12010045mm	Packing Weight	300g

Tech Specs
Recommended Voltage	KV320	Idle Current(10V)	1.1A
Max Power(1s)	3285W	Internal Resistance	82mΩ
Rated Voltage (Lipo)	12S	Peak Current(1s)	72A
Max Thrust	7309g	Weight (incl.cable)	263g

Recommended Voltage	KV420	Idle Current(10V)	1.5A
Max Power(1s)	2195W	Internal Resistance	55mΩ
Rated Voltage (Lipo)	8S	Peak Current(1s)	64A
Max Thrust	6561g	Weight (incl.cable)	266g

Recommended Voltage	KV600	Idle Current(10V)	2.4A
Max Power(1s)	2125W	Internal Resistance	33mΩ
Rated Voltage (Lipo)	6S	Peak Current(1s)	98A
Max Thrust	5915g	Weight (incl.cable)	260g

Recommended
Motor	V4215 KV320	Frame Type	13 Inch X4
Prop	Cine1310	Lipo Cells	12S
ESC	C80A 5-12S Single ESC	Recommended takeoff weight range	Within 10kg
FC	F7 Pro+BEC (12S to 8S below)	Max Takeoff Weight	12kg
Test Data:	1、10000mAh 12S battery (2600g), load weight 3000g, AUW 8100g, flight time 18 minutes. 2、20000mAh 12S battery (5200g), load weight 5000g, AUW 12700g, flight time 20 minutes. 3、8000mAh 12S battery (2000g), load weight 7000g, AUW 12100g, flight time 9 minutes.

Motor	V4215 KV420	Frame Type	13 Inch X4
Prop	Cine1310	Lipo Cells	8S
ESC	V-70A-4IN1-8S /C-80A-4IN1-8S	Recommended takeoff weight range	Within 9kg
FC	Velox F7 SE 8S/F7 Pro	Max Takeoff Weight	11kg
Test Data:	1、10000mAh 8S battery (1700g), load weight 3000g, AUW 7200g, flight time 12 minutes. 2、20000mAh 8S battery (3400g), load weight 5000g, AUW 10900g, flight time 16 minutes. 3、10000mAh 8S battery (1700g), load weight 7000g, AUW 11200g, flight time 16 minutes.

Motor	V4215 KV600	Frame Type	13 Inch X4
Prop	Cine1310	Lipo Cells	6S
ESC	V-70A-4IN1-8S /C-80A-4IN1-8S	Recommended takeoff weight range	Within 8kg
FC	Velox F7 SE 8S/F7 Pro	Max Takeoff Weight	10kg
Test Data:	1、10000mAh 6S battery (2600g), load weight 3000g, AUW 8100g, flight time 16 minutes. 2、20000mAh 6S battery (2600g), load weight 5000g, AUW 10100g, flight time 10 minutes. 3、20000mAh 6S battery (1300g), load weight 7000g, AUW 10800g, flight time 5 minutes.

Test Data

Type	Propeller	Voltage (V)	Throttle (%)	Current (A)	RPM	Thrust (g)	Power (W)	Efficiency (g/W)	Torque (N*m)	Operating Temperature (℃)
V4215 KV320	T-HOBBY Cine1510	32.10	10%	0.20	789	57	7	8.77	0.03	61℃ (Ambient temperature: 25℃)
		32.08	20%	0.89	1685	305	29	10.68	0.10
		32.05	30%	2.59	2526	745	83	8.99	0.21
		31.98	40%	5.01	3226	1236	160	7.72	0.34
		31.88	50%	9.36	3970	1889	298	6.33	0.52
		31.75	60%	14.68	4603	2553	466	5.48	0.69
		31.59	70%	21.30	5163	3222	673	4.79	0.87
		31.39	80%	29.63	5677	3900	930	4.19	1.06
		31.19	90%	37.59	6081	4485	1173	3.83	1.22
		31.00	100%	45.51	6432	5027	1411	3.56	1.37
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV320	T-HOBBY P18*6.1	32.10	10%	0.18	810	57	6	10.06	0.02	47℃ (Ambient temperature: 25℃)
		32.09	20%	0.75	1744	300	24	12.41	0.07
		32.05	30%	2.20	2605	749	71	10.62	0.17
		32.00	40%	4.21	3350	1285	135	9.54	0.28
		31.91	50%	7.71	4130	1975	246	8.02	0.42
		31.81	60%	12.16	4834	2724	387	7.04	0.58
		31.68	70%	17.67	5445	3484	560	6.23	0.73
		31.50	80%	24.86	6030	4299	783	5.49	0.91
		31.35	90%	31.15	6465	4966	977	5.08	1.05
		31.13	100%	40.09	6949	5777	1248	4.63	1.22
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV320	T-HOBBY Cine1310	48.00	10%	0.29	1245	81	14	5.74	0.03	92℃ (Ambient temperature: 25℃)
		47.98	20%	1.00	2550	394	48	8.23	0.11
		47.93	30%	2.75	3763	935	132	7.10	0.23
		47.87	40%	5.43	4820	1557	260	5.99	0.38
		47.76	50%	9.86	5918	2354	471	5.00	0.57
		47.62	60%	15.83	6899	3213	754	4.26	0.77
		47.44	70%	23.06	7772	4087	1094	3.74	0.98
		47.18	80%	33.43	8618	5000	1577	3.17	1.21
		46.95	90%	43.13	9254	5809	2025	2.87	1.41
		46.65	100%	55.06	9810	6555	2569	2.55	1.60
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV320	T-HOBBY Cine1312	48.00	10%	0.31	1222	86	15	5.78	0.04	103℃ (Ambient temperature: 25℃)
		47.98	20%	1.12	2511	429	54	7.96	0.13
		47.93	30%	3.06	3695	979	147	6.67	0.27
		47.86	40%	5.94	4710	1605	284	5.64	0.43
		47.73	50%	10.97	5767	2410	524	4.60	0.64
		47.56	60%	18.00	6734	3283	856	3.84	0.87
		47.37	70%	26.04	7541	4122	1233	3.34	1.10
		47.13	80%	35.70	8235	4951	1683	2.94	1.33
		46.82	90%	48.57	8844	5718	2274	2.51	1.54
		46.48	100%	62.21	9271	6300	2892	2.18	1.70
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV320	T-HOBBY Cine1508	47.98	10%	0.32	1209	117	15	7.64	0.04	170℃ (Ambient temperature: 25℃)
		47.95	20%	1.25	2459	570	60	9.48	0.15
		47.90	30%	3.51	3584	1274	168	7.57	0.32
		47.82	40%	6.98	4556	2098	334	6.29	0.52
		47.67	50%	12.84	5526	3129	612	5.11	0.77
		47.49	60%	20.44	6368	4218	971	4.35	1.03
		47.23	70%	30.97	7125	5306	1463	3.63	1.30
		46.95	80%	42.41	7703	6230	1991	3.13	1.52
		46.63	90%	55.44	8115	6941	2585	2.68	1.70
		46.25	100%	71.04	8308	7309	3285	2.22	1.79
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV320	T-HOBBY P15*5	47.99	10%	0.26	1273	66	13	5.34	0.02	55℃ (Ambient temperature: 25℃)
		47.97	20%	0.75	2664	324	36	8.97	0.06
		47.95	30%	1.95	3951	783	93	8.40	0.14
		47.90	40%	3.80	5127	1372	182	7.54	0.25
		47.82	50%	6.99	6355	2148	334	6.43	0.38
		47.71	60%	11.21	7458	2990	535	5.59	0.52
		47.59	70%	16.66	8481	3912	793	4.94	0.68
		47.40	80%	23.83	9463	4919	1130	4.35	0.86
		47.24	90%	30.88	10248	5817	1459	3.99	1.03
		47.03	100%	39.52	10995	6755	1858	3.64	1.20
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY Cine1510	24.02	10%	0.30	814	63	7	8.70	0.03	55℃ (Ambient temperature: 25℃)
		24.00	20%	1.16	1663	299	28	10.73	0.10
		23.95	30%	3.23	2460	714	77	9.25	0.20
		23.87	40%	6.56	3170	1205	157	7.70	0.33
		23.75	50%	11.37	3829	1769	270	6.55	0.48
		23.59	60%	18.09	4436	2391	427	5.61	0.65
		23.38	70%	26.75	5004	3042	625	4.86	0.83
		23.16	80%	35.53	5455	3621	823	4.40	0.98
		22.91	90%	45.90	5863	4182	1052	3.98	1.14
		22.65	100%	56.45	6214	4709	1279	3.68	1.28
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY P18*6.1	24.02	10%	0.27	831	60	6	9.34	0.02	39℃ (Ambient temperature: 25℃)
		24.00	20%	0.98	1733	297	24	12.56	0.07
		23.96	30%	2.68	2548	710	64	11.06	0.16
		23.90	40%	5.38	3296	1238	129	9.63	0.27
		23.80	50%	9.50	4015	1867	226	8.26	0.40
		23.66	60%	15.10	4667	2550	357	7.14	0.54
		23.48	70%	22.59	5292	3305	530	6.23	0.70
		23.29	80%	30.24	5798	3992	704	5.67	0.84
		23.08	90%	39.18	6264	4683	904	5.18	0.99
		22.82	100%	49.85	6712	5402	1138	4.75	1.14
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY Cine1310	32.10	10%	0.29	1110	64	9	6.79	0.02	60℃ (Ambient temperature: 25℃)
		32.08	20%	1.15	2278	302	37	8.19	0.09
		32.03	30%	3.00	3359	727	96	7.56	0.18
		31.96	40%	6.14	4366	1266	196	6.46	0.31
		31.84	50%	10.81	5305	1884	344	5.48	0.46
		31.69	60%	17.20	6184	2565	545	4.71	0.62
		31.48	70%	25.75	7009	3314	810	4.09	0.80
		31.27	80%	34.27	7683	3994	1072	3.73	0.96
		31.01	90%	44.83	8312	4693	1390	3.37	1.13
		30.69	100%	58.11	8914	5403	1783	3.03	1.31
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY Cine1312	32.10	10%	0.31	1091	67	10	6.77	0.03	67℃ (Ambient temperature: 25℃)
		32.08	20%	1.27	2233	323	41	7.91	0.10
		32.03	30%	3.31	3298	777	106	7.33	0.21
		31.94	40%	6.77	4273	1316	216	6.09	0.35
		31.82	50%	11.87	5179	1937	378	5.13	0.51
		31.64	60%	19.01	6022	2620	602	4.36	0.69
		31.41	70%	28.54	6812	3366	897	3.75	0.89
		31.18	80%	37.96	7430	4008	1184	3.39	1.07
		30.90	90%	49.58	8010	4664	1532	3.04	1.25
		30.56	100%	63.60	8528	5301	1943	2.73	1.42
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY Cine1508	32.10	10%	0.33	1078	91	11	8.66	0.04	77℃ (Ambient temperature: 25℃)
		32.07	20%	1.42	2196	446	46	9.76	0.12
		32.01	30%	3.87	3202	1012	124	8.17	0.26
		31.91	40%	8.03	4129	1725	256	6.73	0.43
		31.77	50%	13.78	4951	2507	438	5.73	0.62
		31.55	60%	22.60	5758	3428	713	4.81	0.84
		31.31	70%	32.70	6416	4292	1024	4.19	1.05
		31.01	80%	44.92	7000	5145	1393	3.69	1.26
		30.69	90%	58.08	7477	5890	1782	3.30	1.44
		30.34	100%	72.35	7872	6561	2195	2.99	1.61
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV420	T-HOBBY P15*5	32.10	10%	0.26	1136	53	8	6.29	0.01	37℃ (Ambient temperature: 25℃)
		32.09	20%	0.87	2373	250	28	8.98	0.05
		32.06	30%	2.07	3504	592	66	8.93	0.11
		32.00	40%	4.33	4627	1092	139	7.88	0.20
		31.92	50%	7.53	5685	1695	240	7.06	0.30
		31.81	60%	12.02	6668	2368	382	6.19	0.42
		31.68	70%	17.73	7598	3108	562	5.53	0.54
		31.51	80%	24.25	8395	3840	764	5.03	0.67
		31.29	90%	33.60	9259	4714	1051	4.48	0.83
		31.07	100%	42.37	9929	5444	1317	4.14	0.96
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV600	T-HOBBY Cine1310	24.02	10%	0.44	1243	78	11	7.44	0.03	70℃ (Ambient temperature: 25℃)
		23.98	20%	1.83	2435	347	44	7.90	0.10
		23.91	30%	4.67	3517	807	112	7.23	0.20
		23.80	40%	9.12	4478	1329	217	6.12	0.33
		23.63	50%	16.40	5409	1953	388	5.04	0.47
		23.38	60%	26.76	6301	2665	626	4.26	0.64
		23.10	70%	38.21	7030	3334	882	3.78	0.80
		22.77	80%	51.47	7673	3986	1172	3.40	0.96
		22.43	90%	65.29	8195	4562	1465	3.11	1.10
		22.00	100%	82.37	8672	5124	1812	2.83	1.24
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV600	T-HOBBY Cine1312	24.02	10%	0.46	1219	85	11	7.68	0.04	78℃ (Ambient temperature: 25℃)
		23.98	20%	2.04	2384	384	49	7.84	0.12
		23.90	30%	5.25	3463	859	126	6.84	0.23
		23.78	40%	10.05	4365	1370	239	5.73	0.37
		23.59	50%	17.89	5257	1989	422	4.71	0.53
		23.30	60%	29.72	6107	2692	693	3.89	0.71
		23.00	70%	42.36	6783	3327	974	3.41	0.88
		22.66	80%	56.32	7363	3924	1276	3.08	1.05
		22.29	90%	71.10	7825	4442	1585	2.80	1.19
		21.88	100%	87.37	8237	4930	1912	2.58	1.32
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV600	T-HOBBY Cine1508	24.01	10%	0.50	1188	108	12	9.05	0.05	93℃ (Ambient temperature: 25℃)
		23.97	20%	2.27	2334	507	54	9.33	0.14
		23.88	30%	6.09	3333	1100	145	7.57	0.28
		23.74	40%	11.67	4182	1766	277	6.38	0.44
		23.53	50%	20.52	4985	2532	483	5.24	0.62
		23.18	60%	34.63	5766	3412	803	4.25	0.83
		22.85	70%	48.58	6325	4152	1110	3.74	1.01
		22.43	80%	65.61	6817	4850	1472	3.30	1.18
		22.03	90%	81.33	7179	5408	1792	3.02	1.32
		21.60	100%	98.36	7486	5915	2125	2.78	1.44
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
V4215 KV600	T-HOBBY P15*5	24.02	10%	0.37	1295	69	9	7.72	0.02	46℃ (Ambient temperature: 25℃)
		24.00	20%	1.37	2581	303	33	9.22	0.06
		23.94	30%	3.45	3756	701	83	8.49	0.13
		23.87	40%	6.60	4805	1201	158	7.62	0.22
		23.74	50%	11.74	5868	1829	279	6.57	0.32
		23.57	60%	19.16	6907	2557	452	5.66	0.45
		23.36	70%	27.54	7779	3275	643	5.09	0.57
		23.06	80%	39.93	8678	4115	921	4.47	0.72
		22.79	90%	50.84	9337	4795	1159	4.14	0.84
		22.49	100%	63.05	9929	5450	1418	3.84	0.96
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds. (The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)

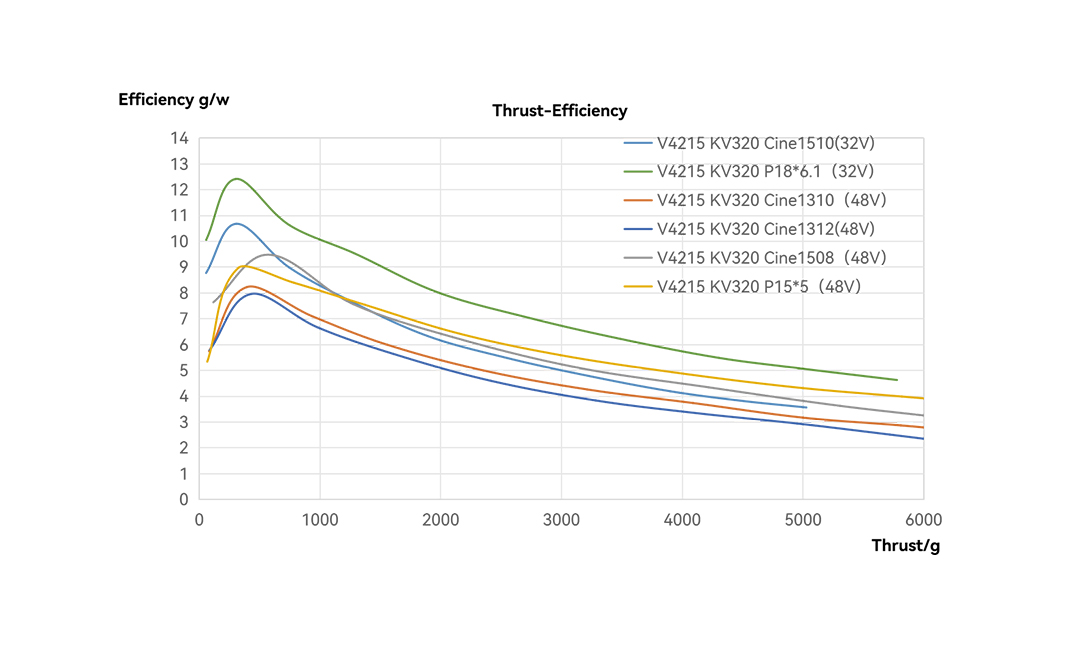

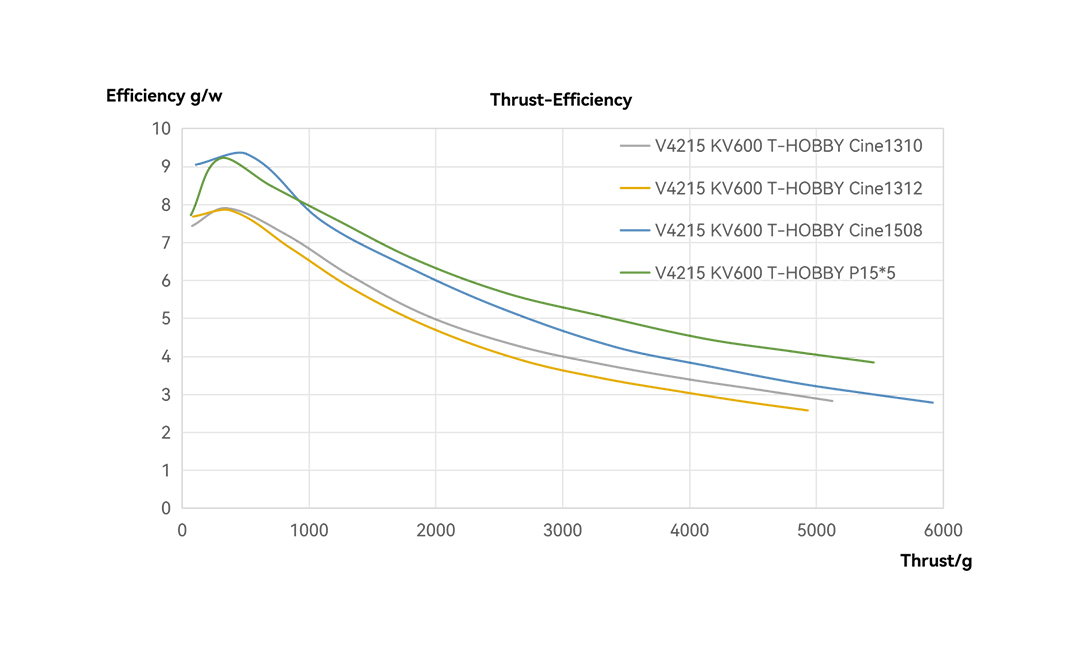

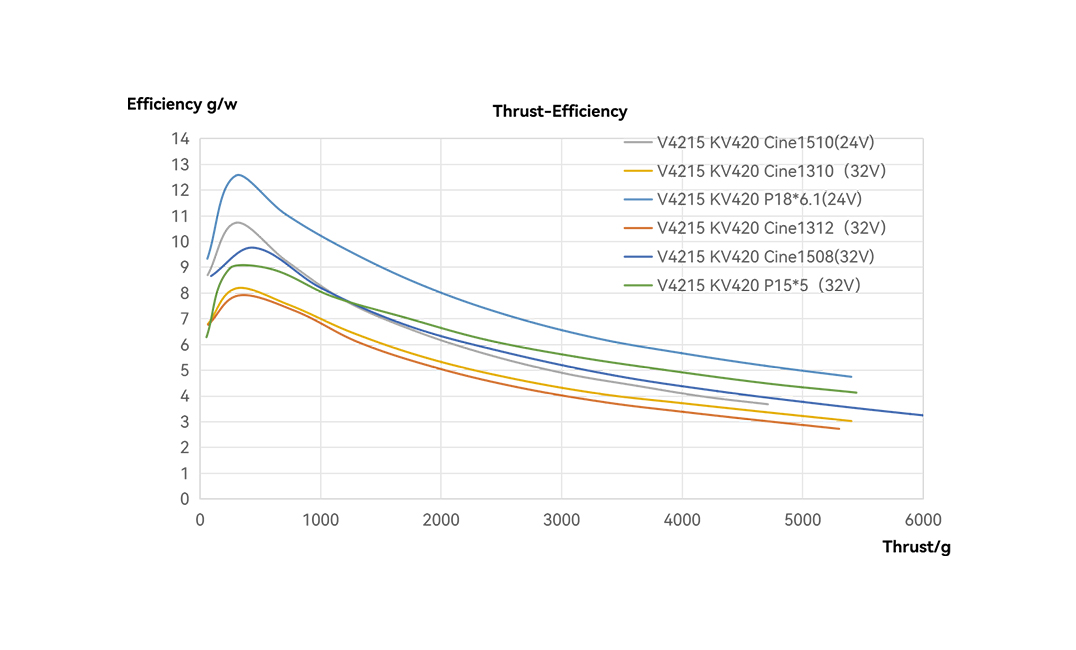

Analysis Chart

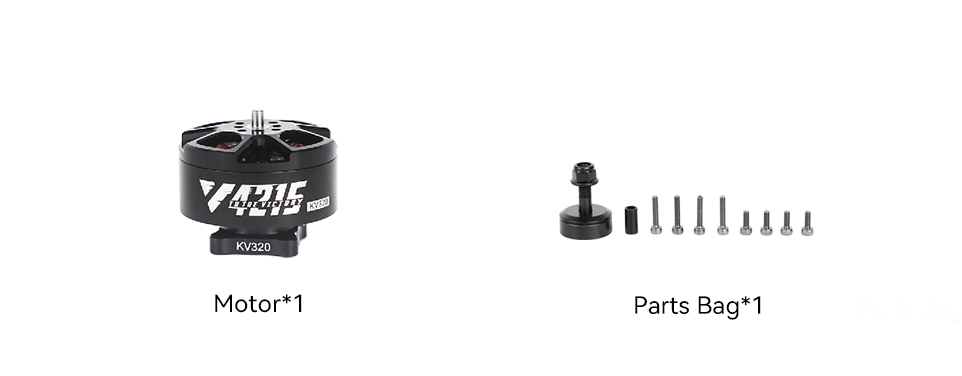

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
