How to Choose FPV Drone Parts?
FPV drone parts encompass all the components needed to build a first-person view quadcopter capable of transmitting live video to your goggles or screen. Proper part selection directly impacts performance, reliability, safety, and budget – making informed choices crucial for both new builders and experienced pilots upgrading their rigs.
Understanding your intended use case is fundamental to selecting compatible components. The main build archetypes include:
- Freestyle: Agile drones optimized for acrobatics and creative flying
- Racing: Lightweight, high-speed builds focused on quick acceleration and tight turns
- Cinematic (Cinewhoop): Stable platforms with ducted propellers for smooth video capture
- Long-range: Efficient builds prioritizing flight time and signal penetration
- Tiny Whoop: Indoor micro drones with prop guards for safe indoor flying

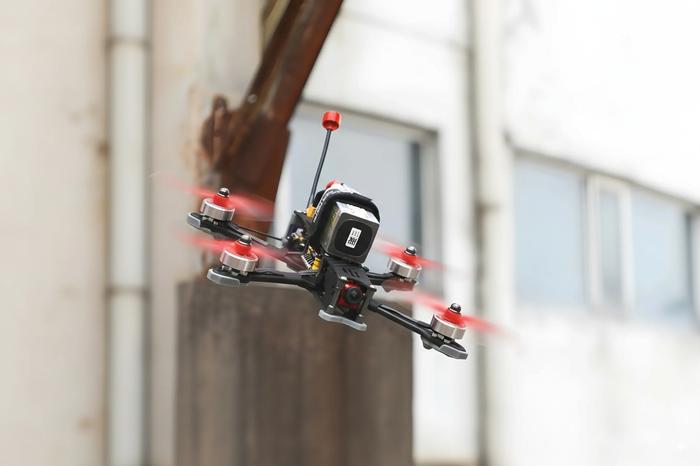

Component-by-Component Guide
Frame
The frame serves as your drone's foundation, determining size constraints and durability. Key considerations include:
- Size: Frame class typically refers to propeller diameter (e.g., "5 inch"), with wheelbase (motor-to-motor diagonal distance) measured in millimeters (e.g., ~220-250mm for 5" class)
- Mounting patterns: Ensure FC mounting holes match (30.5×30.5mm, 20×20mm, or 25.5×25.5mm) and consider VTX/camera mounting space with USB/SD card access
- Material: Carbon fiber offers excellent strength-to-weight ratio
- Weight: Lighter frames improve agility but may sacrifice crash protection
- Arm thickness: Thicker arms (5-6mm) provide better crash resistance for 5" freestyle builds, while racing/lightweight frames may use thinner arms

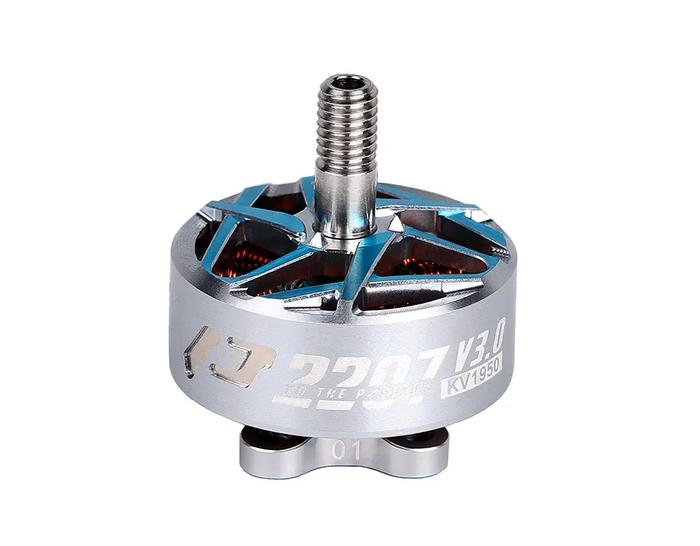

Motors
Motors convert electrical energy into mechanical thrust. Critical specifications:
- KV Rating: RPM per volt – higher KV spins faster with smaller props, lower KV provides more torque for larger props
- Stator Size: Larger stators (e.g., 2207 vs 2205) generate more power but add weight
- Voltage Compatibility: Match motor specs to your intended battery cell count
- Build Quality: Look for quality bearings and balanced rotors
Formula: Motor RPM = KV × Battery Voltage

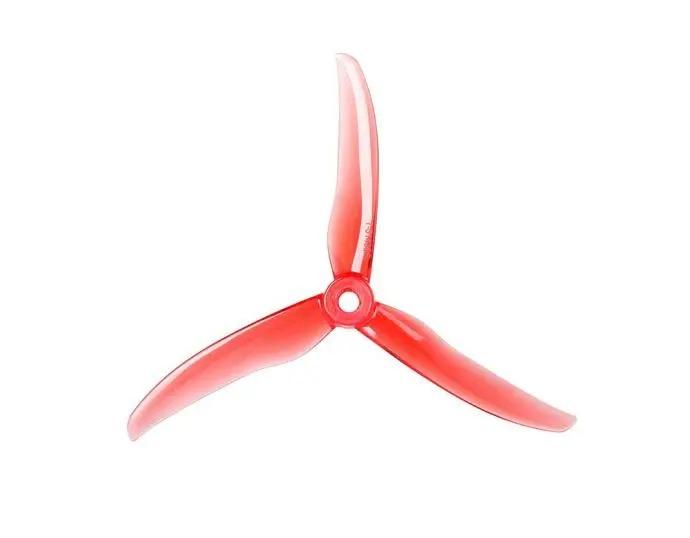

Propellers
Propellers generate thrust through their rotation. Key factors:
- Diameter/Pitch: Larger diameter and higher pitch increase thrust but require more power - larger props need lower KV motors and higher voltage systems
- Blade Count: More blades (tri-blade vs bi-blade) provide smoother power delivery
- Material Trade-offs: Plastic props are durable and affordable; carbon fiber is lighter but more brittle
- System Matching: Propeller size must match motor KV, battery voltage, and ESC capacity - always check manufacturer recommendations

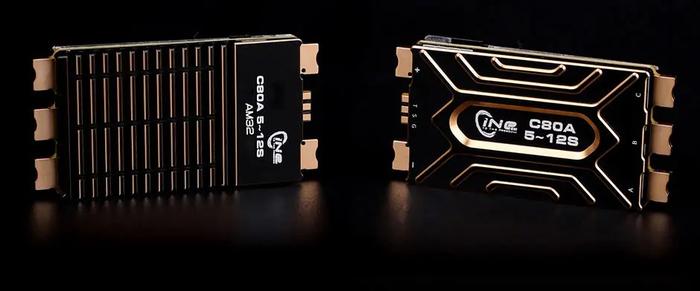

ESCs (Electronic Speed Controllers)
ESCs regulate power delivery to motors. Essential specifications:
- Current Rating: Continuous amperage capacity per motor – choose ratings 20-30% above expected motor draw
- Burst Rating: Short-term current handling capability (typically 10+ seconds)
- Firmware: Bluejay (open source, supports Bi-DShot RPM telemetry), BLHeli_32 (closed source, supports serial telemetry and RPM feedback), AM32 (open source 32-bit with Bi-DShot and variable PWM support)
- Configuration: 4-in-1 saves weight/space; individual ESCs offer redundancy
- Protocol Support: DShot for digital throttle control; Bidirectional DShot enables RPM telemetry for RPM filtering; full ESC telemetry (voltage, current, temperature) typically requires serial connection
Flight Controller (FC)
The flight controller is your drone's brain, processing sensor data and executing flight commands. Consider:
- Processor: F7/H7 processors offer more computational power and UART ports than F4, enabling higher sampling rates and more peripherals
- Gyroscope: Different sensors (BMI270 vs MPU6000) vary in noise characteristics and bandwidth, affecting filtering options and tuning flexibility
- UART Ports: Determine peripheral connectivity options
- Built-in Features: OSD, current sensing, wireless configuration
- Firmware: Betaflight for freestyle/racing performance, iNav for GPS/autonomous features
VTX/Video System
Video transmission provides the FPV experience through live video feed. Options include:
- Analog & HDZero: Ultra-low latency (~10-20ms per frame), ideal for racing and responsive flying
- Digital Systems: DJI O3/O4 offers best image quality with ~30ms latency (1080p/100fps mode); Walksnail Avatar provides balanced image quality and latency; HDZero combines digital clarity with analog-like low latency
- Power Levels: Higher output increases range but may cause interference - comply with local frequency regulations and race event channel restrictions
- Channel Support: Ensure compatibility with local regulations and other pilots
- Antenna Connectors: Match connector types - SMA/RP-SMA for external antennas, MMCX/U.FL for onboard VTX connections
Camera
FPV cameras capture the pilot's view with minimal latency. Key specs:
- Sensor Technology: Modern FPV cameras primarily use CMOS sensors - focus on WDR performance, low-light capability, field of view, and physical size/weight
- Latency: Analog and HDZero systems typically achieve ~10-20ms per frame; DJI/Walksnail systems range from ~20-50ms depending on settings
- Dynamic Range: WDR (Wide Dynamic Range) helps in high-contrast lighting conditions
- System Compatibility: Digital systems (DJI/Walksnail/HDZero) require ecosystem-specific cameras
Receiver (RX)
Receivers interpret control signals from your transmitter. Consider:
- Protocol Options: ExpressLRS (open source, high packet rates, available in 2.4GHz/900MHz), TBS Crossfire (868/915MHz, excellent long-range stability), FrSky protocols for established reliability
- Frequency Selection: Lower frequencies (900MHz) offer better obstacle penetration; higher frequencies (2.4GHz) enable smaller antennas and higher update rates
- Latency: Critical for racing and precision flying
- Telemetry: Two-way communication for battery voltage, RSSI monitoring
Batteries
Power systems determine flight time and performance. Types include:
- LiPo: High discharge rates, excellent for performance flying
- Li-ion: Higher energy density suitable for long-range cruising, but lower discharge rates make them unsuitable for aggressive freestyle/racing - requires efficient motor/prop combinations
- Cell Count: 3S (11.1V), 4S (14.8V), 6S (22.2V) affecting power and speed
- Capacity: mAh rating determines flight time
- C-Rating: Discharge capability – higher C-rating supports more aggressive flying
- Connectors: XT60, XT30 based on current requirements
Antennas
Antennas are crucial for both control and video signals. Key concepts:
- Polarization: Circular polarized antennas recommended for FPV due to consistent signal regardless of orientation - avoid mixing circular and linear polarized antennas
- Gain: Higher gain increases range but narrows beam width
- Durability: Consider crash resistance for your flying style
- Matching: Both TX and RX antennas should use same polarization type and connector compatibility
Match Parts to Use-Cases
Sample Configurations
5" Freestyle Build:
- Frame: 5" carbon fiber with 5mm arms
- Motors: 2207/2306, 6S 1750-1950KV (or 4S with higher KV)
- Props: 5x4x3 or 5x4.3x3
- ESC: 45-55A 4-in-1 with Bidirectional DShot/RPM filtering support
- Battery: 6S 1100-1300mAh LiPo (or 4S 1500mAh for higher KV setup)
3" Cinewhoop Build:
- Frame: 3" with ducted prop guards
- Motors: 1404 3800KV
- Props: 3" ducted bi-blade
- ESC: 25A+ individual or 4-in-1
- Battery: 4S 850mAh for weight balance
Budget & Tiered Recommendations
Good (Entry Level - $200-300)
- Invest in: Quality transmitter/receiver system, basic goggles
- Save on: Frame materials, motor specifications, camera quality
Better (Intermediate - $300-500)
- Invest in: Better flight controller, quality ESCs, improved camera
- Maintain: Reliable radio system, adequate but not premium frame
Best (Advanced - $500+)
- Invest in: Premium digital video system, high-end flight controller, quality frame
- Upgrade: Motors, props, and batteries for specific performance needs
Priority Spending Order:
- Radio system (transmitter/receiver) – affects all future builds and is reusable across multiple drones
- Goggles – core to FPV experience and universal across different builds
- Flight controller & ESCs – determine reliability and performance characteristics
- Frame & motors – impact durability and flight characteristics
Common Pitfalls & How to Avoid
Over-propping: Using props too large for motor KV/voltage combination
- Solution: Follow manufacturer specifications and community recommendations
Inadequate ESC rating: Choosing ESCs with insufficient current capacity
- Solution: Select ESCs rated 20-30% above expected motor draw
Mismatched antenna polarization: Mixing linear and circular polarized antennas
- Solution: Use matching circular polarized antennas for both TX and RX
Poor component mounting: Inadequate vibration isolation or cooling
- Solution: Use appropriate standoffs, ensure airflow, secure all connections
Voltage system confusion: Mixing components with incompatible voltage ratings
- Solution: Verify all components support chosen battery cell count
Top Picks: Recommended FPV Drone Parts
This comparison section provides detailed technical specifications for LIGPOWER's FPV drone components across motors, ESCs, propellers, flight controllers, and stacks. Use these tables to select compatible components based on your specific build requirements, voltage systems, and performance needs.
Motors
Motor Category Summary
FPV motor selection varies significantly by application size and voltage system. High-KV motors (19000-2550KV) suit micro/tiny builds and 4S systems, while low-KV options (477-1950KV) work with 6S-12S setups for larger drones. Stator sizes range from 0703 for tiny whoops to 3610 for heavy-lift cinematics. Key differentiators include mounting patterns (9mm-19mm), shaft materials (standard vs titanium), and specialized features like IP protection for cinematic applications. Match motor KV to your battery voltage and propeller size - higher voltage systems require lower KV ratings for equivalent performance.
ESCs
ESC Category Summary
ESC selection depends primarily on motor current requirements and battery voltage. Continuous current ratings range from 35A-80A with 20-30% safety margins recommended. Voltage support varies from 3-6S for standard builds to 12S for heavy-lift applications. Modern ESCs use AM_32 or BLHeli_32 firmware with Dshot protocols for digital control. 4-in-1 designs save weight/space while individual ESCs offer redundancy. Key considerations include mounting patterns (20x20mm vs 30.5x30.5mm), telemetry support, and thermal management features like dual heat sinks or enhanced PCB designs.
Propellers
Propeller Category Summary
Propeller selection directly impacts flight characteristics and motor compatibility. Sizes range from 1.2" micro props to 10.5" heavy-lift variants. Pitch values (1.9-5.0) determine thrust vs speed characteristics - lower pitch provides more torque, higher pitch increases top speed. Three-blade designs offer balanced performance between thrust and efficiency. Materials vary from standard polymer to glass fiber nylon for durability. Match propeller diameter and pitch to your motor KV and battery voltage - larger props require lower KV motors and higher cell counts. Specialized applications like cinematic filming benefit from low-vibration designs.

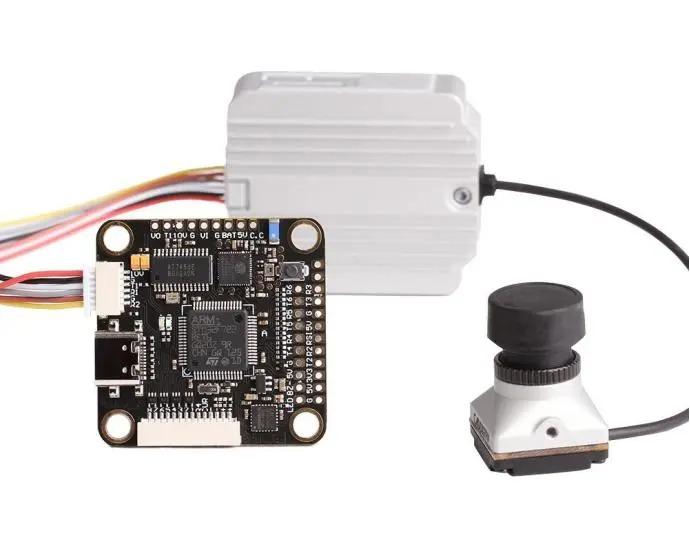

FPV Flight Controllers
FPV Flight Controller Category Summary
Flight controller selection centers on processing power, sensor quality, and connectivity options. F7/H7 processors offer superior performance over F4 variants with faster sampling rates and more peripheral support. Modern gyroscopes (ICM42688, BMI270) provide better noise characteristics than legacy MPU6000. UART count (4-8) determines peripheral connectivity for receivers, VTX, GPS, and telemetry. Mounting patterns split between 20x20mm for racing builds and 30.5x30.5mm for larger applications. Advanced features include wireless configuration, dual BEC outputs for HD systems, and specialized firmware like FETTEC Alpha for enhanced performance. Consider your specific needs: racing prioritizes processing speed and weight, while cinematic builds benefit from stabilization features and 8-motor support.

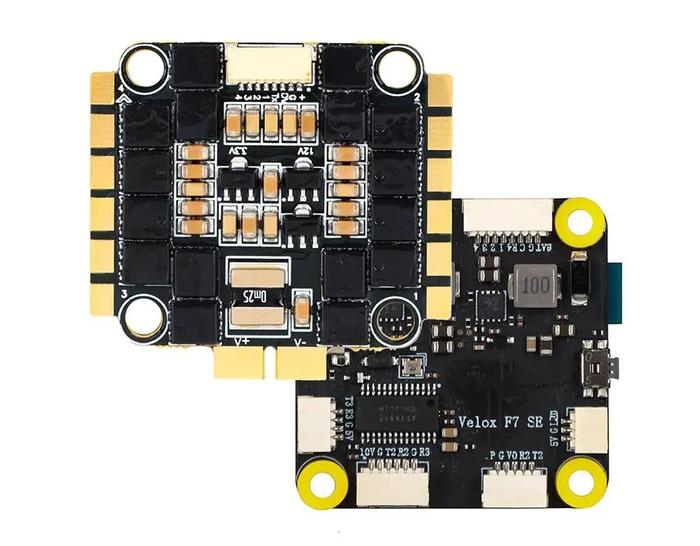

FPV Stack
FPV Stack Category Summary
Integrated stacks combine flight controllers and ESCs for simplified building and improved compatibility. Stack selection balances processing power, current capacity, and feature integration. High-end options offer F7/H7 processors with advanced gyroscopes and wireless connectivity, while budget stacks provide essential functionality at lower cost. Current ratings (13-55A) must match motor requirements with appropriate safety margins. Voltage support ranges from 1S micro applications to 6S performance builds. Key advantages include reduced wiring complexity, matched component compatibility, and space savings. Consider specialized features like HD VTX support, wireless configuration, and integrated barometers based on your specific application requirements.
Final Summary
FPV drone part selection requires matching components across voltage systems, current requirements, and mounting patterns. Motors range from ultra-light 1S micros to heavy-lift 12S cinematics - match KV ratings to battery voltage and propeller size for optimal performance. ESCs must exceed motor current draw by 20-30% with appropriate firmware support (AM32/BLHeli32) and digital protocols. Flight controllers should offer adequate processing power (F7/H7 preferred) with sufficient UARTs for your peripheral needs. Integrated stacks simplify builds while maintaining component compatibility. Start with your intended application (racing, freestyle, cinematic) to guide voltage selection, then match components within that electrical system for reliable, high-performance results.
FPV Drone Parts Common Questions
Below are answers to frequently asked questions about FPV drone parts and component selection:
Q: What's the difference between racing and freestyle FPV parts?
A: For typical 5-inch platforms: 6S systems commonly use 1600-2100KV, while 4S systems use 2300-2800KV. Racing builds tend toward higher instantaneous response and lighter weight (slightly higher KV, more aggressive prop pitch, lighter frames), while freestyle prioritizes durability and smooth power delivery (slightly lower KV, crash-resistant construction, greater torque reserves). Specific choices still depend on battery voltage, propeller size/pitch, and desired flight characteristics.
Q: How do I match motor KV to my battery setup?
A: For 5-inch platforms: 4S typically uses 2300-2800KV, while 6S uses 1600-2100KV. Micro and smaller prop platforms can use higher KV ratings. No-load theoretical RPM ≈ KV × Battery Voltage (without propeller); actual RPM with propeller will be significantly lower. Single LiPo cell charges to 4.2V (nominal 3.7V) → 4S/6S full charge reaches 16.8V/25.2V respectively (nominal 14.8V/22.2V).
Q: What ESC current rating do I need for my motors?
A: Choose ESCs based on motor maximum continuous current with 10-30% safety margin, while ensuring the ESC's burst current rating (typically<10s) meets transient demands. For example: if motor draws 40A continuous → select 50-60A ESC for better reliability (also consider cooling and flight style). Always verify both continuous and peak current specifications under your specific motor-prop-voltage combination.
Q: Can I mix different brands of FPV components?
A: Yes, but requires careful verification: ① FC-ESC wiring/pinout definitions (different brands use non-standardized pin orders - incorrect connections can damage hardware); ② Mounting hole patterns and screw specifications; ③ ESC/FC support for DShot and bidirectional DShot; ④ VTX/digital system voltage and current requirements (e.g., 9-10V BEC output capacity). Always reference manufacturer wiring diagrams and specifications before connecting different brand components.
Q: How important is DShot protocol support?
A: DShot digital protocols (600/1200/2400) provide more precise motor control compared to analog PWM signals, resulting in better flight performance and reduced electrical noise. DShot2400 offers the fastest response times for competitive racing applications. While not absolutely essential, DShot support significantly improves flight characteristics and is now considered standard for serious FPV applications.
Q: What's the lifespan of FPV drone parts?
A: Component lifespan varies significantly based on usage intensity and crash frequency. Motors can last 50-100+ flight hours with proper maintenance, while ESCs and flight controllers may last years if not damaged by crashes. Propellers are consumable items requiring regular replacement. Factors affecting lifespan include flight style (racing/freestyle vs casual), crash frequency, environmental conditions, and maintenance practices.
Q: How do I prevent electromagnetic interference between FPV components?
A: EMI prevention involves proper component spacing, quality shielding, filtered power supplies, and careful wire routing. Keep video transmitter antennas away from power systems, use ferrite cores on power leads when necessary, ensure solid ground connections, and avoid running high-current wires parallel to signal wires. Quality components typically include better internal filtering to minimize interference issues.
