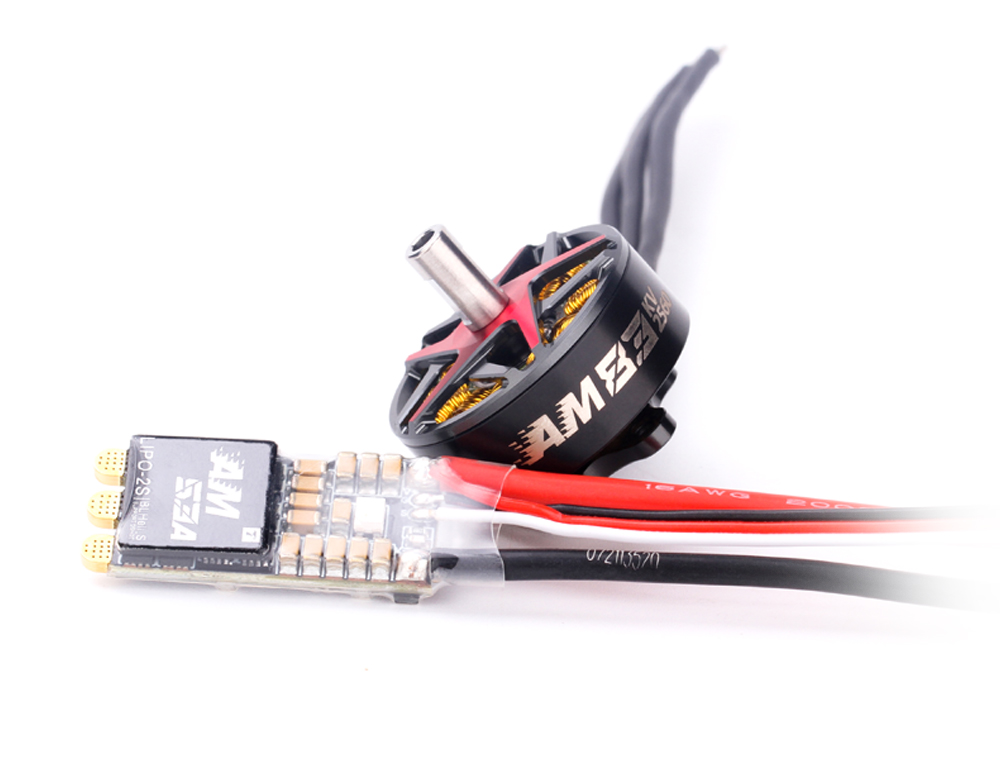

AM53A P5B

238.00

Available points: 2000 Points Points reward: 238 Points

Quantity：

238.00

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

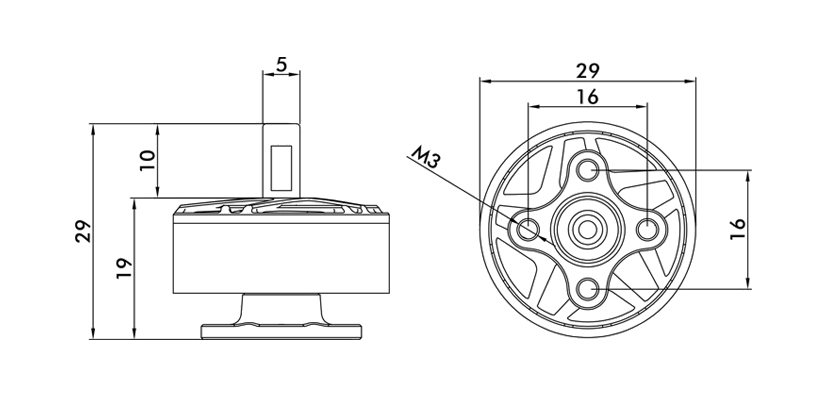

Technical Drawing

Specification

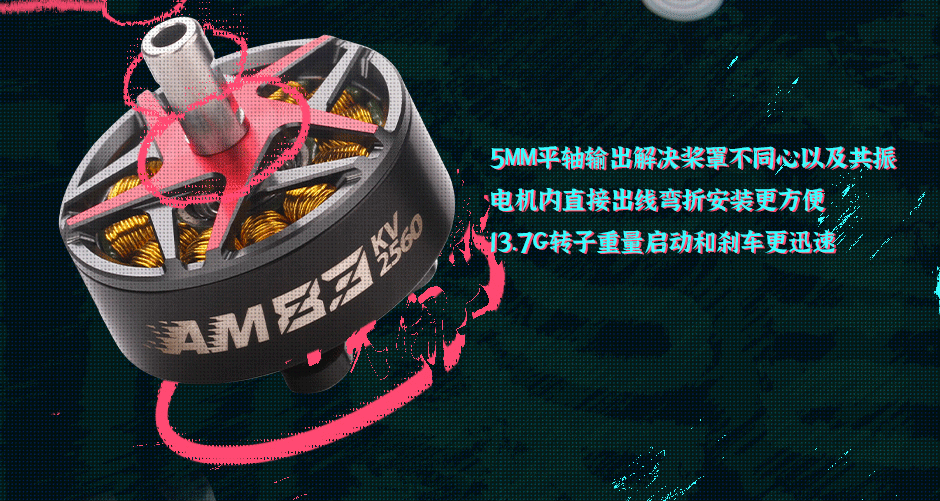

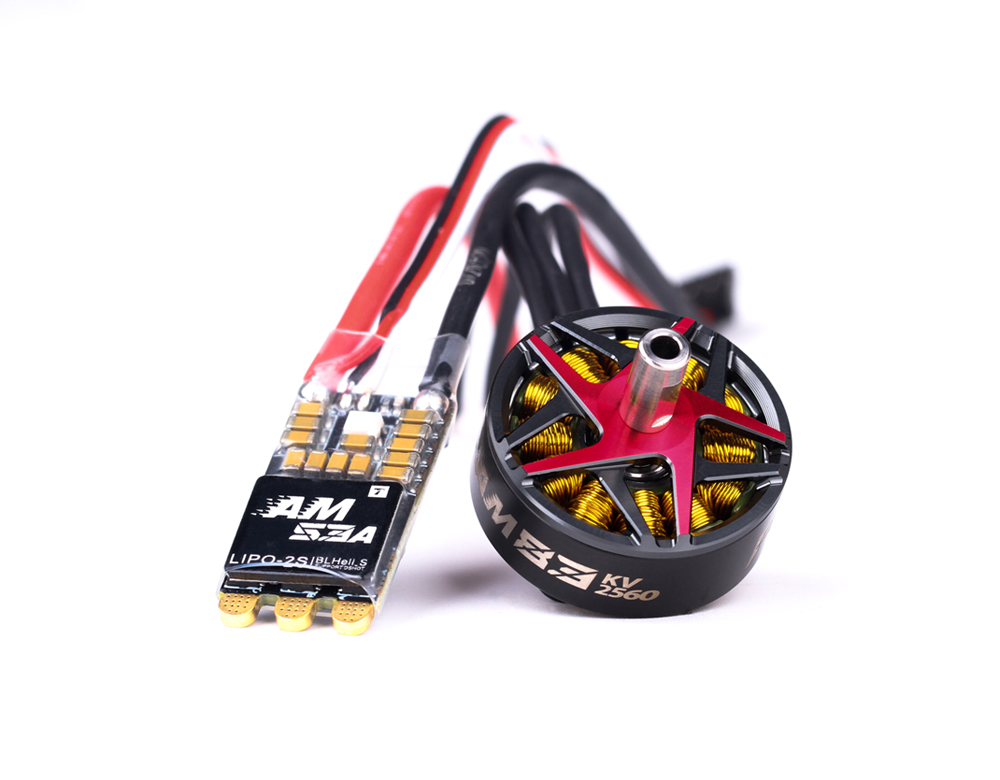

测试型号AM83 kv 2560重量（含线）38g
高度28.5mm直径29mm
轴径5mm出线长度80mm

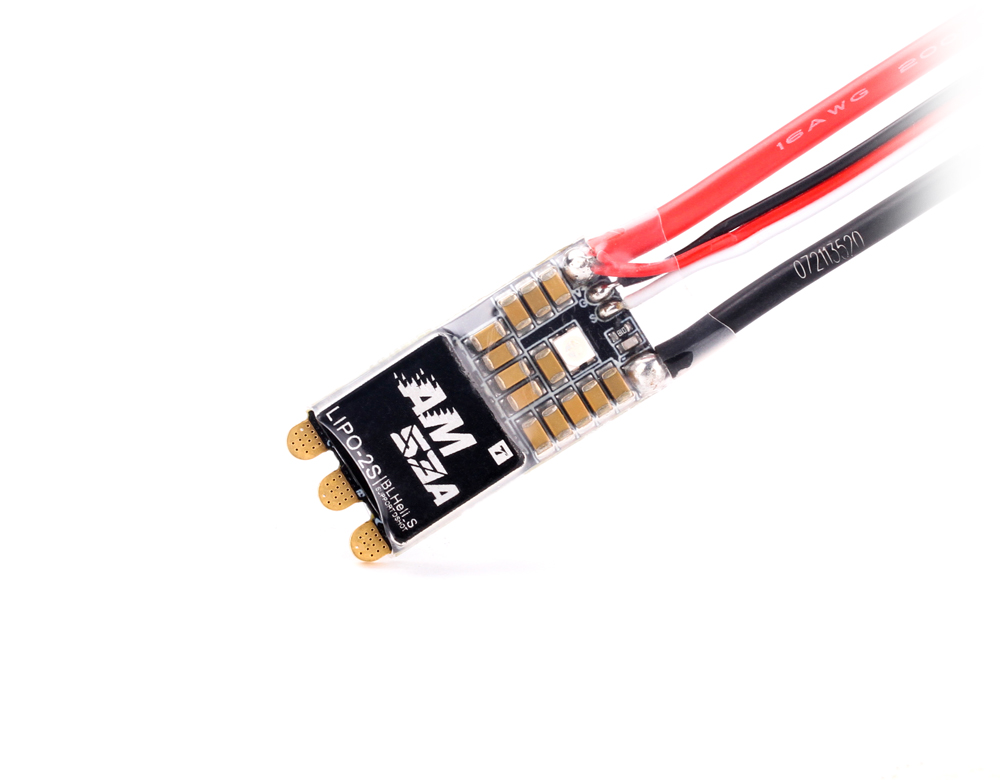

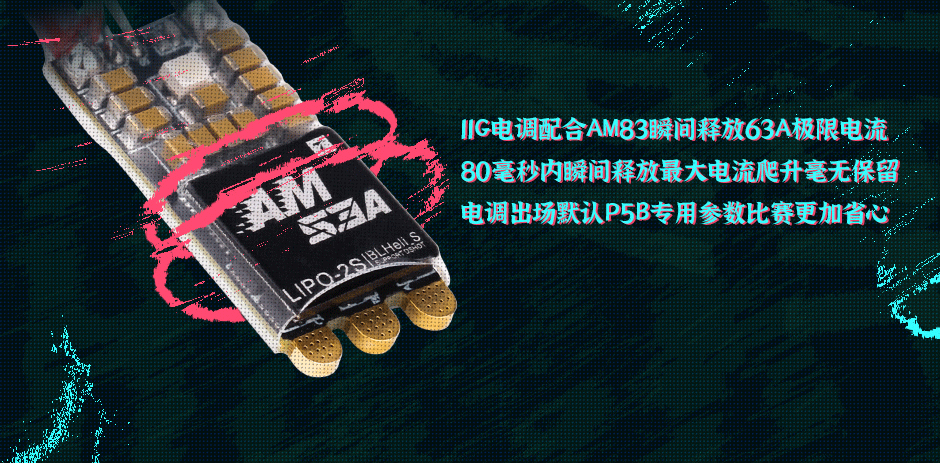

测试型号AM53A输入电压2s
重量11g持续电流53A
峰值电流63ABEC 输出输入电压一致
电源线100mm 16AWG信号线150mm
外观尺寸33.4×15.3×5.6mm

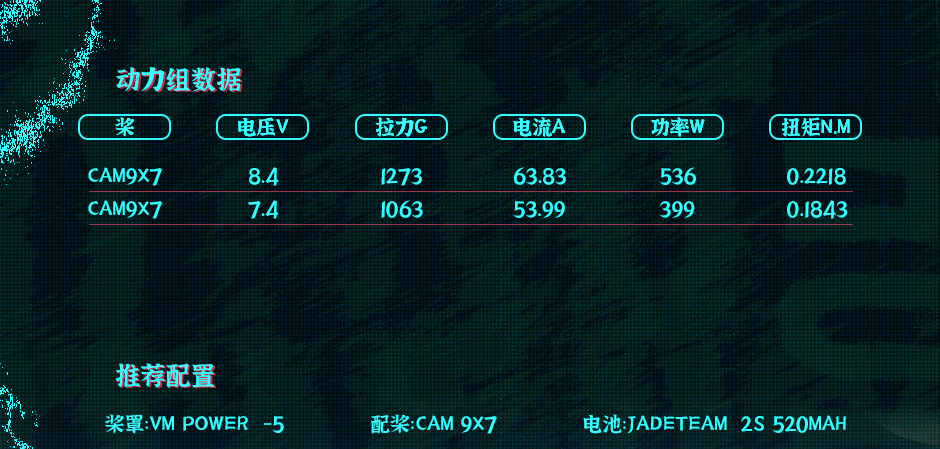

Test Data
型号桨电压
(V)		电流
(A)		功率
(W)		扭矩
(N*m)		拉力
(g)
Am83Cam9X78.4063.83536.000.2221273
Cam9X77.4053.99399.000.1841063

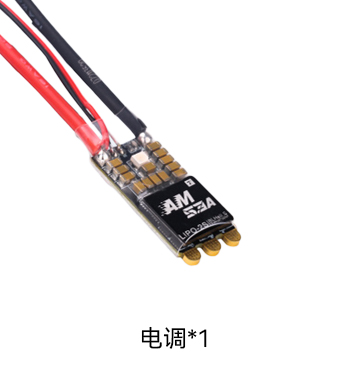

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
