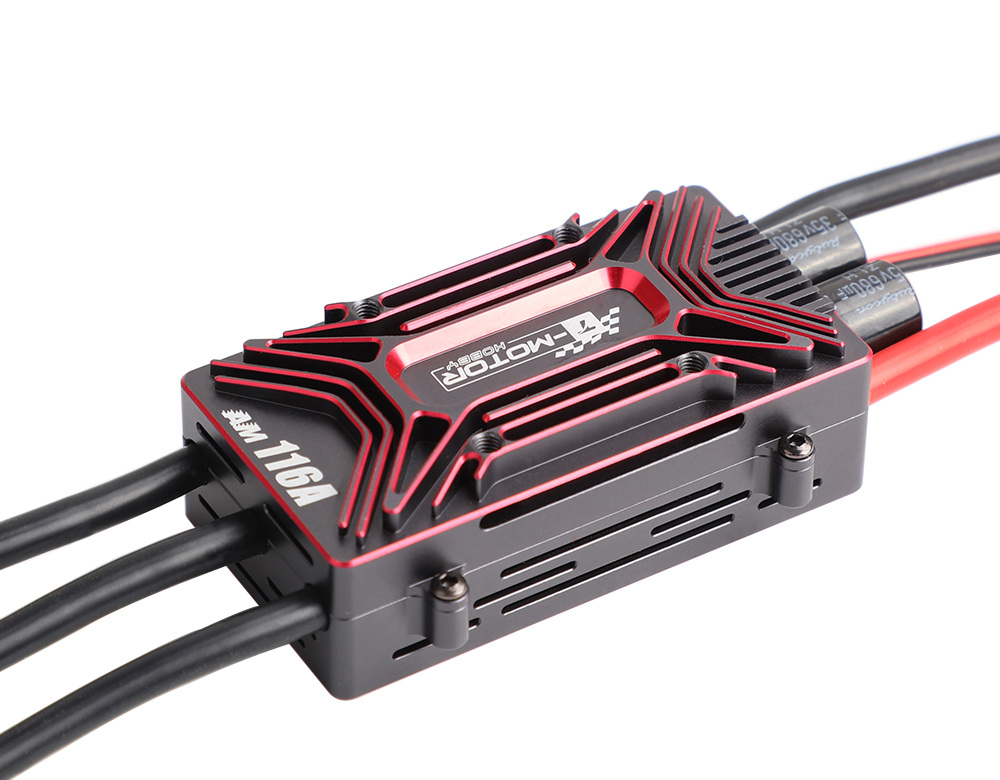

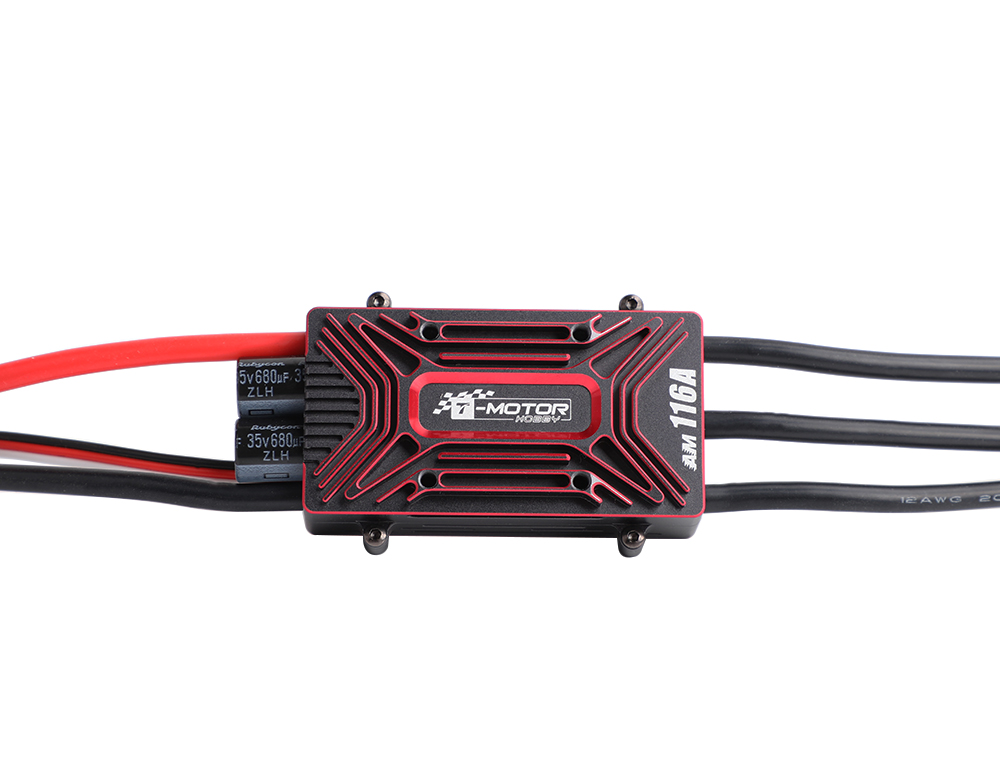

About T-HOBBY AM116A 3D Brushless ESC For Fixed Wing Aircraft


AM116A is a 0-latency competition-level ESC specially designed for 60-70-inch（70E/90E）3D aircraft.

It supports 3-8s lithium batteries and can be used with T-HOBBY AM600/AM670 and T-HOBBY AT41/52 series motors.


AM116A Highlights:


1. Continuous and stable power output to ensure stability and safety

2. High-performance 32-bit ARM microprocessor with up to 48MHz operatingfrequency.

3. ESC firmware changed to AM32.

4.High efficiency and high power UBEC,The output voltage can be switched between5.8v and 7.4v and 8.2v by software.Continuous output current 15aInstantly supports 25a

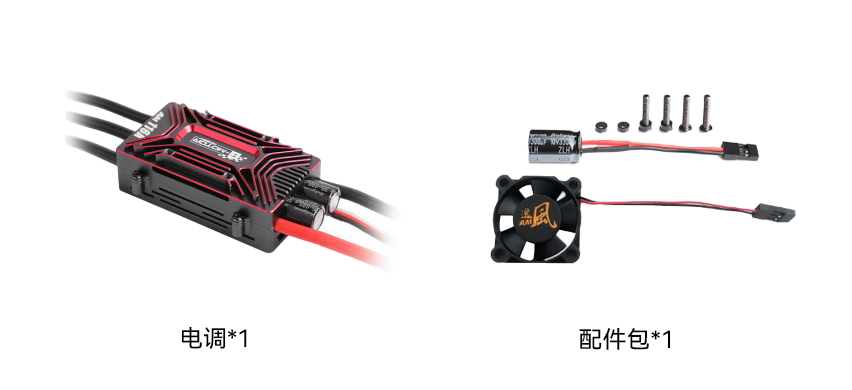

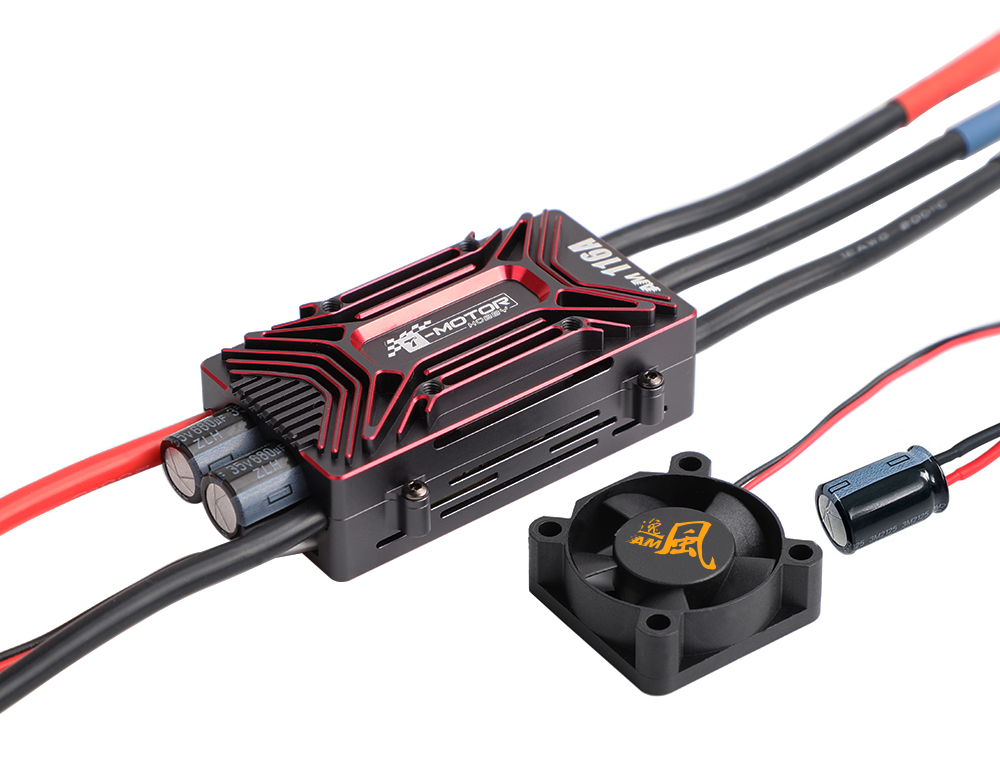

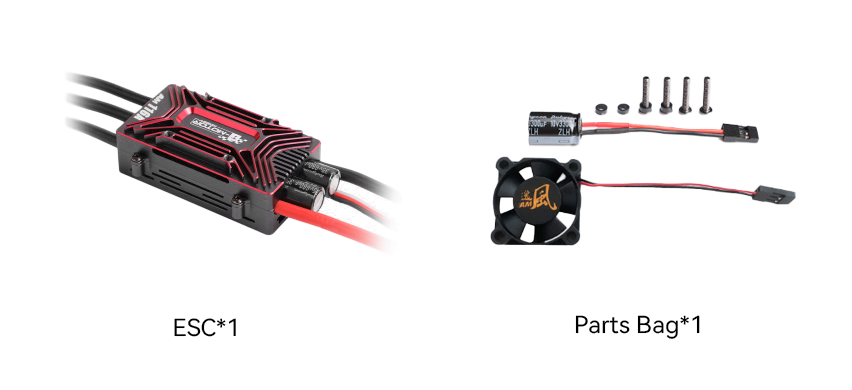

Packing List Includes:


1x T-HOBBY AM116A ESC

1x Parts pack


Matching Guide:


AM600 Motor / AM670 Motor

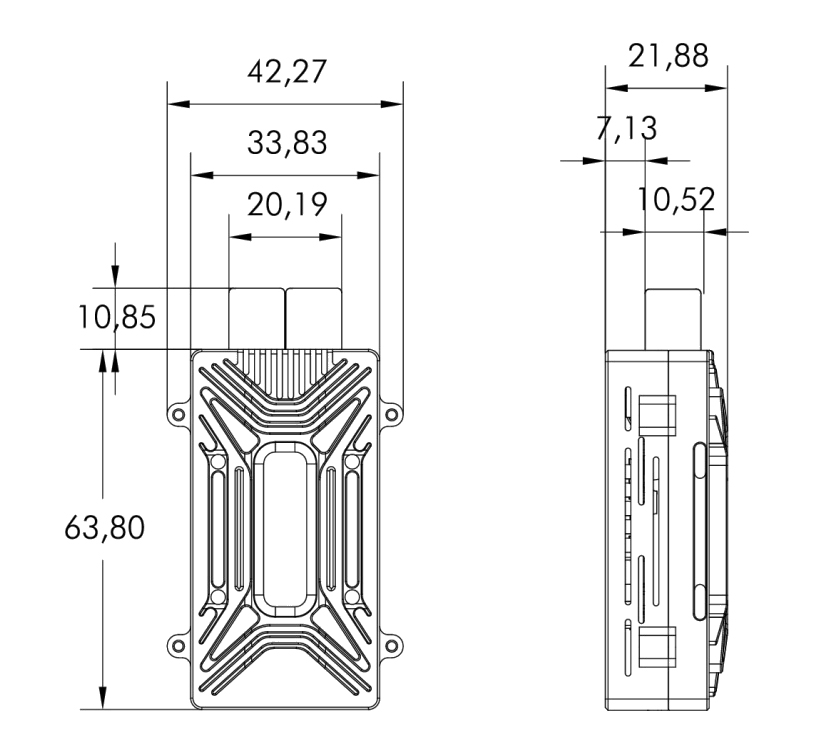

Technical Drawing

Specification
ESC Size75.1*42.2*21.8mmWeight113g
Power Wire 200mm-12AWGPower Plug Without Plug
output Wire 90mm-12AWGOutput plug4.0gold plugs (Female)
Signal Wire400mm （black+red+white）Signal-return Wire410mm (Brown+red+orange)
Battery3-8S LipoRated current116A
Peak Current136AUBEC Output Voltage5.8V-7.4-8.2V
UBEC Output Current15AData Transmission CardAM LINK
ESC Programming CardAM LINKESC Programming softwarewindows，android
Note: All the wire length above is the original length not the length you see from the outside
Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
