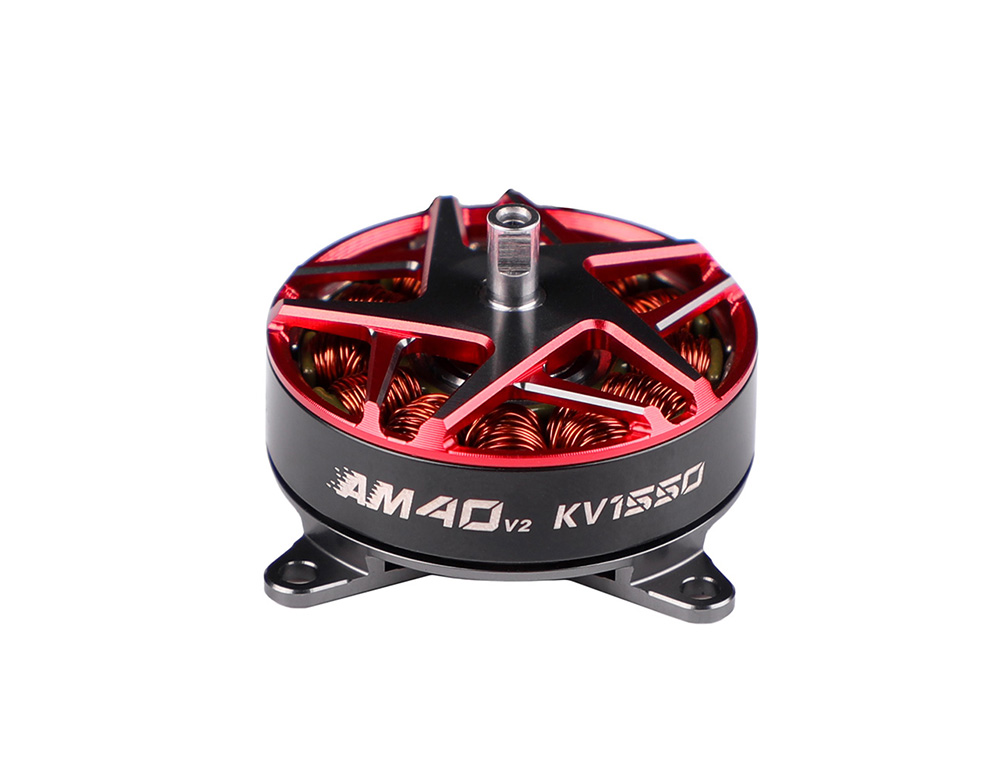

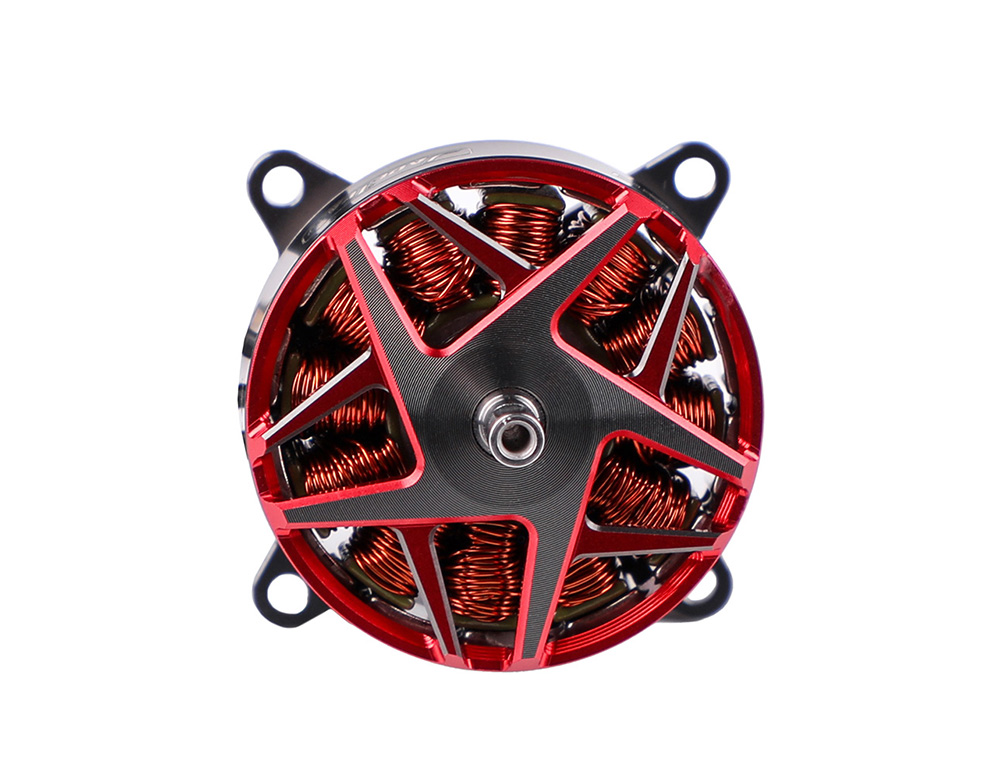

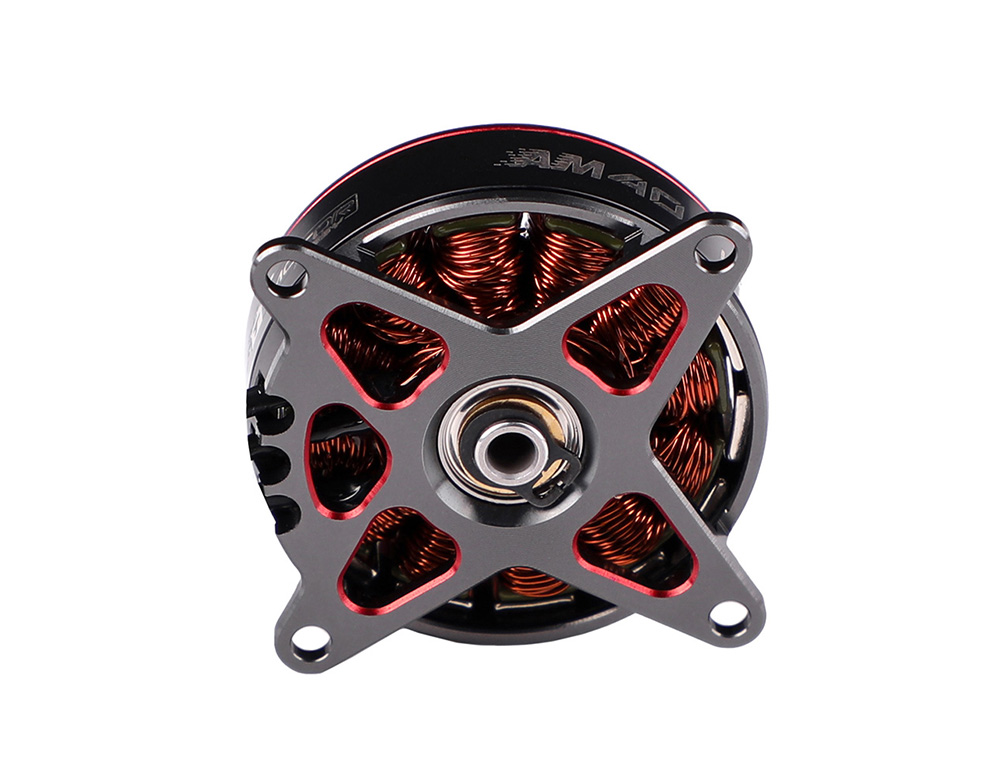

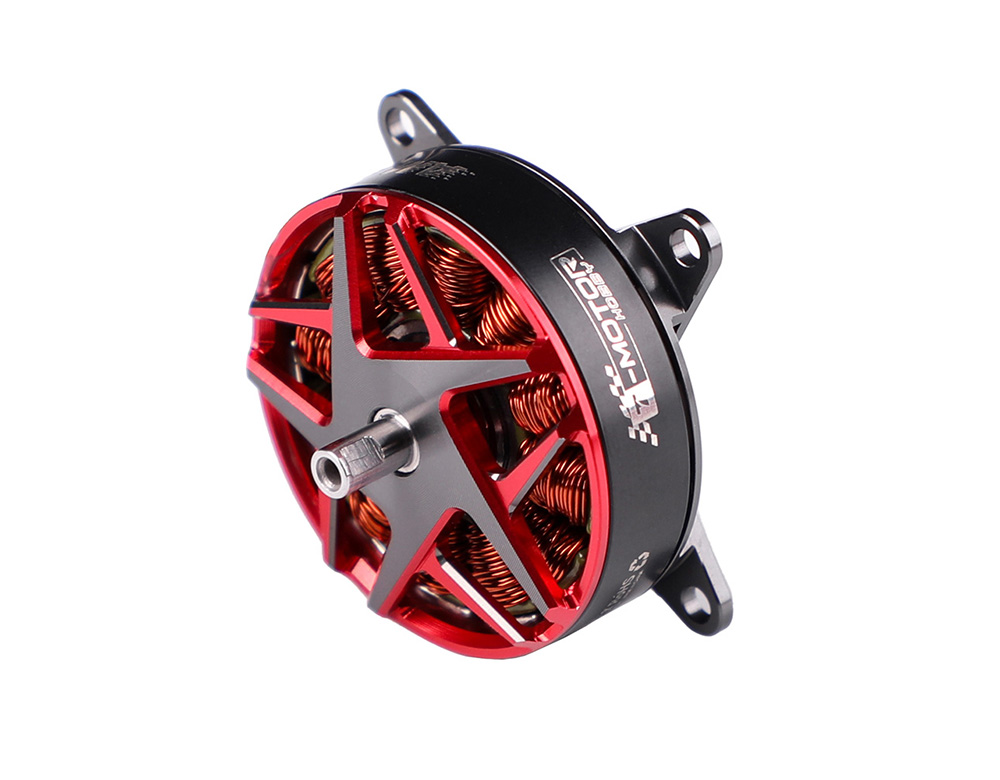

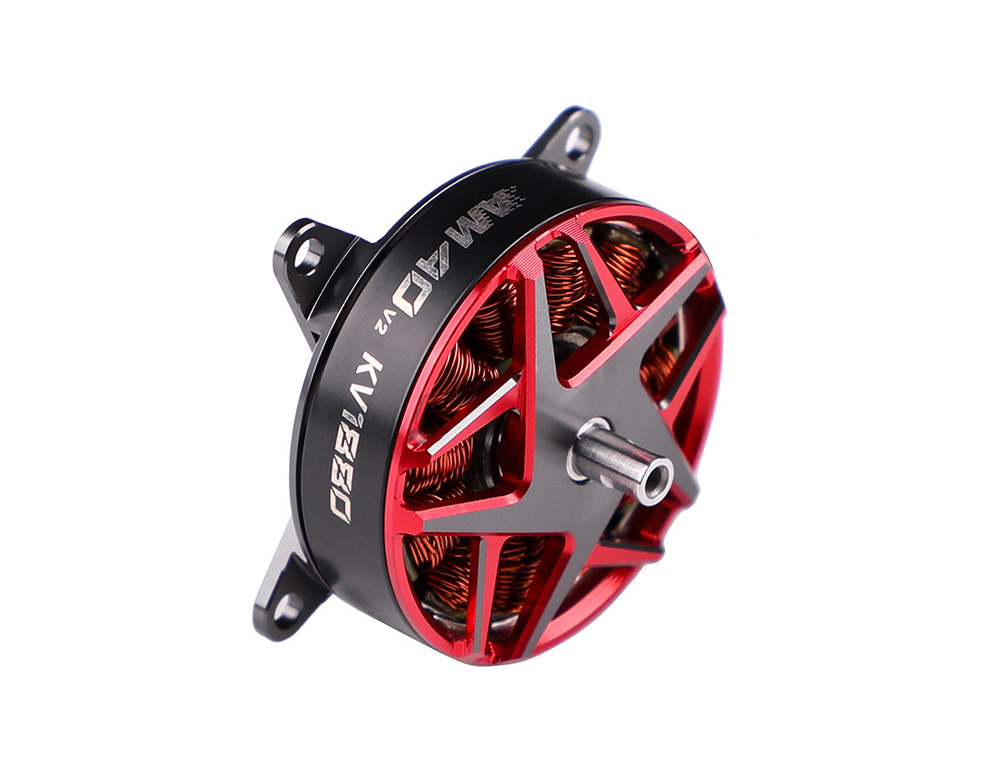

T-HOBBY AM40V2 F3P Indoor&Outdoor Airplane Brushless Motor 1550KV/1880KV

Name: T-HOBBY AM40V2 F3P Indoor&Outdoor Airplane Brushless Motor 1550KV/1880KV
Brand: LIGPOWER
SKU: LIGPOWER001327
Price: 29.99 USD
Availability: InStock

29.99

Available points: 0 Points Points reward: 29 Points

1.Excellent control and balance experience
2. Light and robust
3.You can switch D to 3D to 4D flight freely

Parameter：

KV1550
KV1880

category：

Quantity：

29.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

About T-HOBBY AM40 V2 F3P Fixed Airplane Motor

T-HOBBY AM40 V2 is made for F3Pcompetition, The fast response have been improved compared to the previous generation

You can switch 3D to 4D flight freely, and suitable for 150-250g F3P RC airplane.

AM40 V2 Hightlight:

1.Optimized for BPP 4D flight again and the power curve is more suitable for 4D flight.

2.Continuing the pentagram design of AM family, improving the strength 15%,increased the bidirectional thrust strength11%.

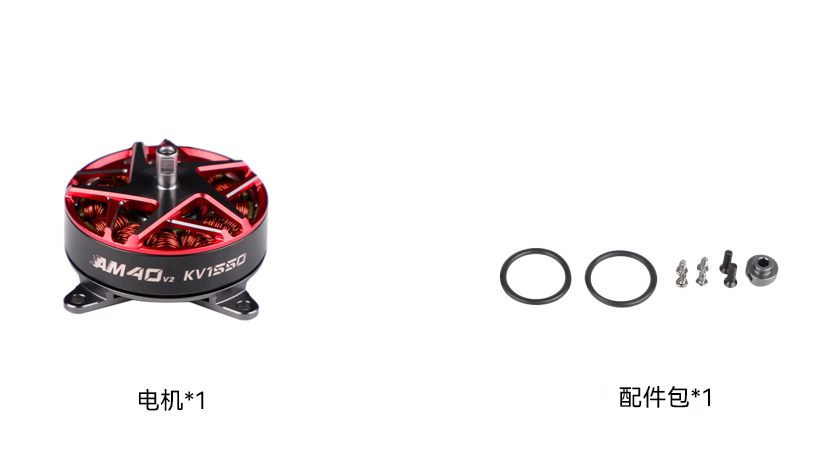

Packing List Includes:

1x T-HOBBY AM40 V2 Motor

1x Hardware pack

Matching Guide:

FS8040 Fixed Wing Prop

3D/4D AM16A ESC

CONTINUATION OF THE
AM FAMILY-STYLE CUTOUT DESIGN TO IMPROVE STRENGTH

INCREASED THE OVERALL
SHELL STRENGTH15
INCREASED THE BIDIRECTIONAL
THRUST STRENGTH11

Von Mises(N/㎡)
(a)
Von Mises(N/㎡)
(b)
Von Mises(N/㎡)
(c)

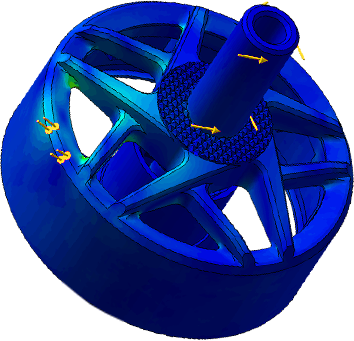

100N impact simulation by CAE
Torque (: Per item:0.2 N.m); Force 2 (:Per item:100 N)

IMPROVEMENT FOR BPP 4D FLIGHT

Optimize the magnetic circuit, the power curve is more suitable for 4D flight,Improve heat dissipation, continuous power of BPP flight does not decay

DESIGNED FOR COMPETITION AND PLAY WHATEVER YOU LIKE

T-HOBBY breaks with tradition，the am40 was born to meet different flight experience you can quickly enjoy the 4d and 3d flight feeling

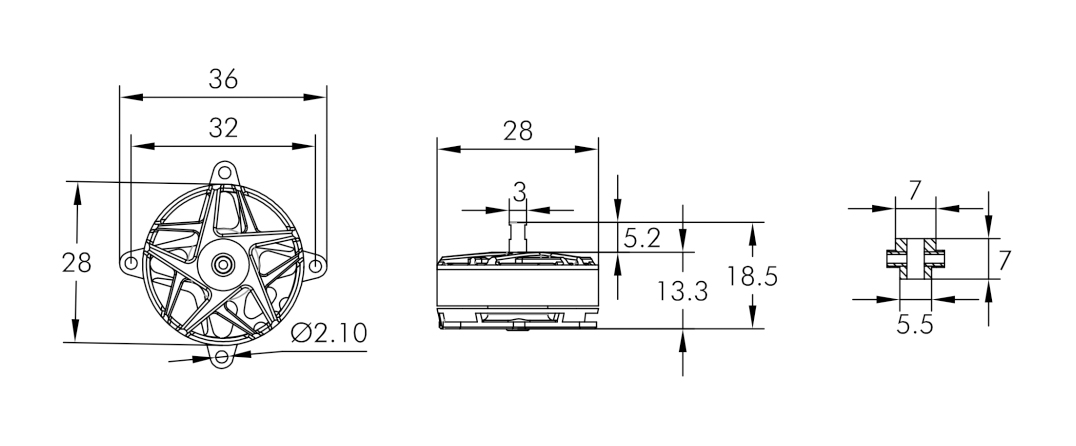

Technical Drawing

Specification Export to Excel

Test Item	KV1550	Weight (Incl. Cable)	23.7g
Motor Dimensions	Φ28*18.7mm	Internal Resistance	135mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.62A	Peak Current(180s)	19A
Max Power (180S)	208w

Test Item	KV1880	Weight (Incl. Cable)	25.3g
Motor Dimensions	Φ28*18.7mm	Internal Resistance	75.1mΩ
Lead	40mm	Configuration	12N14P
Shaft Diameter	IN：3mm	Rated Voltage(Lipo)	2-3S
Idle Current(10V)	0.88A	Peak Current(180s)	24A
Max Power (180S)	215W

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AM40 V2 KV1550	Polyme Carbon 8044	40%	8.38	0.98	8.20	3922	0.01	91	11.07	34.5
		50%	8.37	1.80	15.10	4919	0.01	149	9.85
		60%	8.35	2.95	24.60	5845	0.02	215	8.74
		70%	8.33	4.34	36.20	6688	0.03	281	7.78
		80%	8.31	6.03	50.10	7451	0.04	354	7.06
		90%	8.28	8.13	67.30	8151	0.05	435	6.47
		100%	8.24	10.51	86.60	8802	0.06	515	5.95
		40%	12.57	1.96	24.70	5754	0.02	203	8.23	44.2
		50%	12.55	3.51	44.00	6983	0.04	311	7.06
		60%	12.52	5.52	69.10	8076	0.05	424	6.14
		70%	12.48	8.00	99.80	9047	0.07	548	5.49
		80%	12.44	10.91	135.80	9896	0.09	669	4.93
		90%	12.39	14.44	178.90	10672	0.10	791	4.42
		100%	12.33	17.93	221.20	11275	0.11	890	4.03
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM40 V2 KV1550	Polymer Carbon 9048	40%	8.38	1.31	11.00	3682	0.01	124	11.26	44.6
		50%	8.36	2.37	19.80	4557	0.03	194	9.78
		60%	8.34	3.88	32.30	5381	0.04	278	8.59
		70%	8.31	5.75	47.80	6121	0.05	364	7.62
		80%	8.28	7.93	65.70	6735	0.06	448	6.83
		90%	8.24	10.50	86.50	7312	0.07	531	6.14
		100%	8.20	13.46	110.40	7817	0.09	619	5.61
		40%	12.56	2.59	32.60	5317	0.03	282	8.65	75
		50%	12.53	4.62	57.90	6384	0.05	411	7.09
		60%	12.49	7.15	89.30	7281	0.07	537	6.02
		70%	12.45	10.14	126.20	8055	0.09	663	5.25
		80%	12.39	13.76	170.50	8715	0.10	796	4.67
		90%	12.33	17.74	218.80	9213	0.12	897	4.10
		100%	12.27	21.81	267.60	9612	0.13	973	3.64
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM40 V2 KV1880	Polymer Carbon 8044	40%	8.37	1.84	15.40	4849	0.02	138	8.98	54
		50%	8.35	3.38	28.20	6019	0.03	224	7.95
		60%	8.32	5.45	45.40	7037	0.04	316	6.97
		70%	8.28	7.94	65.70	7940	0.05	410	6.23
		80%	8.24	10.93	90.00	8743	0.06	509	5.66
		90%	8.18	14.51	118.70	9495	0.08	612	5.16
		100%	8.13	18.16	147.60	10121	0.09	702	4.76
		40%	12.55	3.71	46.60	6959	0.04	319	6.86	70
		50%	12.51	6.45	80.70	8294	0.06	465	5.76
		60%	12.46	9.95	124.00	9448	0.08	613	4.94
		70%	12.40	14.06	174.30	10453	0.10	762	4.37
		80%	12.32	19.11	235.50	11315	0.12	905	3.84
		90%	12.23	24.80	303.40	11932	0.13	1016	3.35
		100%	12.14	30.93	375.60	12344	0.14	1090	2.90
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AM40 V2 KV1880	Polymer Carbon 9048	40%	8.36	2.42	20.20	4463	0.02	193	9.55	58
		50%	8.33	4.47	37.30	5518	0.04	297	7.98
		60%	8.29	7.16	59.40	6409	0.05	407	6.86
		70%	8.25	10.30	84.90	7164	0.07	516	6.08
		80%	8.19	14.00	114.70	7813	0.08	616	5.37
		90%	8.13	18.32	148.90	8382	0.10	730	4.90
		100%	8.06	22.99	185.20	8842	0.11	812	4.39
		40%	12.53	4.79	59.90	6331	0.05	386	6.43	101
		50%	12.47	8.75	109.10	7356	0.07	544	4.99
		60%	12.41	12.73	157.90	8266	0.09	698	4.42
		70%	12.34	17.42	215.00	9073	0.11	849	3.95
		80%	12.26	22.89	280.50	9614	0.13	965	3.44
		90%	12.17	28.81	350.60	10026	0.14	1054	3.01
		100%	12.08	34.89	421.30	10251	0.15	1109	2.63
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

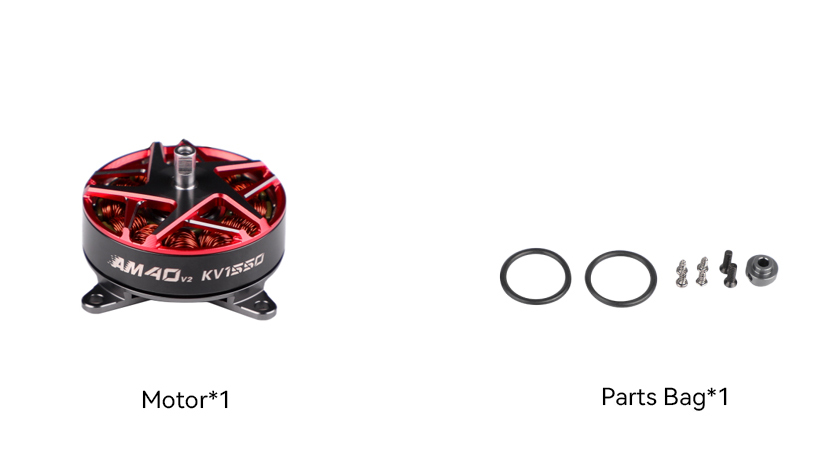

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
