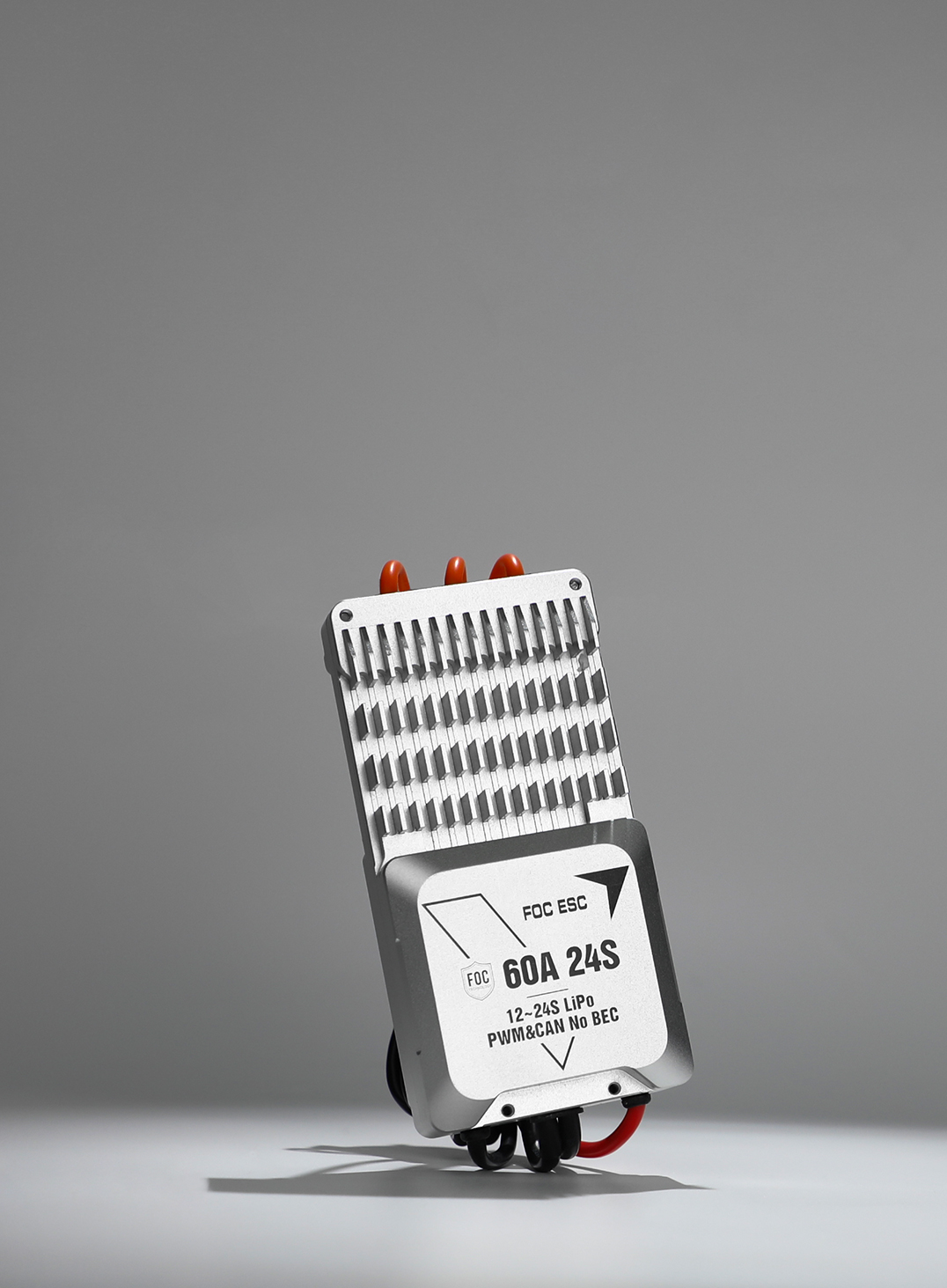

V60A 24S
V SERIES ESC
V60A 24S
THE ADVANCED EDITION OF FOC ESCS
Fast
Response
Efficient
Driving
Accurate
Control
Low-Noise
Operation
Fast
Response
Efficient
Driving
Accurate
Control
Low-Noise
Operation

Recommendation

U13 II
Motor
V60A 24S
ESC
G32
Propeller

Specification

12~24S (Max 105V)

Support Voltage

35A

Con. Current

65A

Peak Current

180g(Excl. Cable)/283.5g

ESC Weight

115*57*26.5mm

ESC Size

Technical Drawing

V60A 24S-en.png

Specification
ModelNo.V60A24SPowerCableSiliconeWire-Red/
Black-14AWG-1200mm
Size115*57*26.5mm(L*W*H)SignalCableShieldedCables-Black-
OD4.2-5C-330mm-JP-
3P*2-BlackBlankWhite-
GreenYellowGray
Weight(Incl.Cables)283.5gEncoderCablesShieldedCables-Black-
24AWG-5C-370mm-
M6AviationConnector
MotorCableSiliconeWire-Orange-
14AWG-250mm		ProtocolPWM/CAN
SupportVoltage12~24S(Max105V)BECNO
ContinuousCurrent35AThrottlePos.Range1040~1940
PeakCurrent(<10s)65AThrottleRefresh
Frequency		50~500Hz
StandbyConsumption≤50mA@100VThrottle
ResponseSpeed		300ms

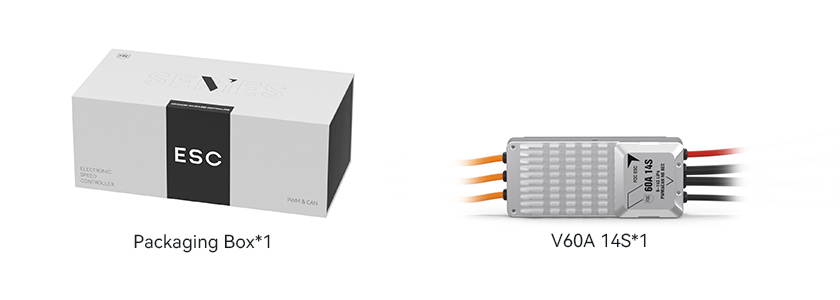

Packing List

V60A 14S-pack-en.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
