V200A 24S
V SERIES ESC
V200A 24S
THE ADVANCED EDITION OF FOC ESCS
Fast
Response
Efficient
Driving
Accurate
Control
Low-Noise
Operation
Fast
Response
Efficient
Driving
Accurate
Control
Low-Noise
Operation

Recommendation

V13L
Motor
V200A 24S
ESC
G38
Propeller

Specification

12~24S (Max 105V)

Support Voltage

100A

Con. Current

200A

Peak Current

580g(Excl. Cable)/748g

ESC Weight

146*74*39.5mm

ESC Size

Technical Drawing

V200A 24S-en.png

Specification
ModelNo.V200A24SPowerCableSiliconeWire-Red/
Black-10AWG-1200mm
Size146*74*39.5mm(L*W*H)SignalCableShieldedCables-Black-
OD4.2-5C-500mm-JP-
3P*2-BlackBlankWhite-
GreenYellowGray
Weight(Incl.Cables)748gEncoderCablesShieldedCables-Black-
24AWG-5C-460mm-
M6AviationConnector
MotorCableSiliconeWire-Orange-
10AWG-250mm		ProtocolPWM/CAN
SupportVoltage12~24S(Max105V)BECNO
ContinuousCurrent100AThrottlePos.Range1040~1940
PeakCurrent(<10s)200AThrottleRefresh
Frequency		50~500Hz
StandbyConsumption≤50mA@100VThrottle
ResponseSpeed		300ms

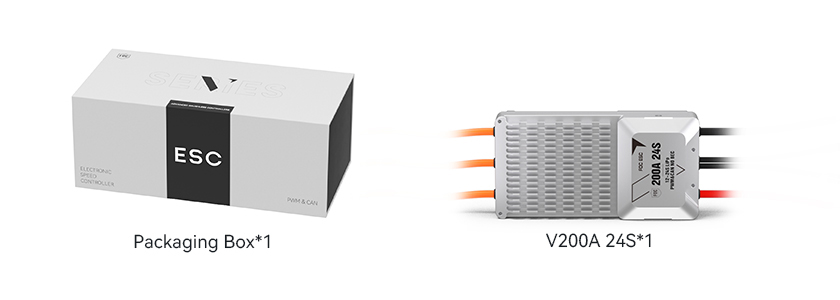

Packing List

V200A 24S-pack-en.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
