T-HOBBY AM53A 2S Outdoor Sailplane ESC

39.90

Available points: 2000 Points Points reward: 39 Points

1.11g ESC matches AM83
2.Releasing 63A limit current
3.special parameters of P5B competition
Quantity：

39.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications
  • Download

About T-HOBBY AM53A ESC For Outdoor Sailplane ESC


T-HOBBY AM53A ESC is specially built for the P5B glider competition. The factory sets parameters specific to the P5B competition to make it more convenient for users.

It is recommended to use it with a T-HOBBY AM83 motor.


AM53A Highlights:


1.T-HOBBY opens the three-second era, climbing to 115-122 meters in 3 seconds,climbing to 201-207 meters in 5 seconds.

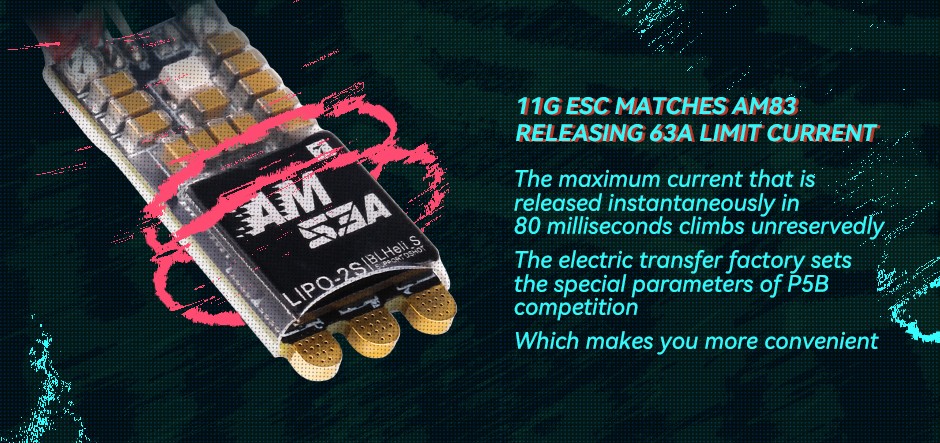

2.11g ESC matches AM83 motor releasing 63A limit current.

3.The maximum current that is released instantaneously in80 milliseconds climbs unreservedly


Packing List Includes:

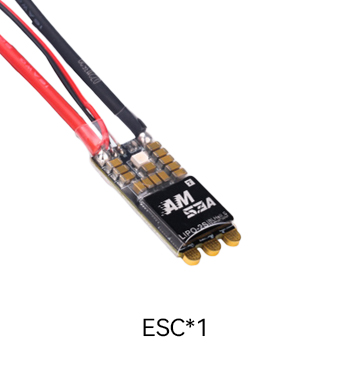

1x T-HOBBY AM53A P5B ESC

1x Parts pack


Matching Guide:

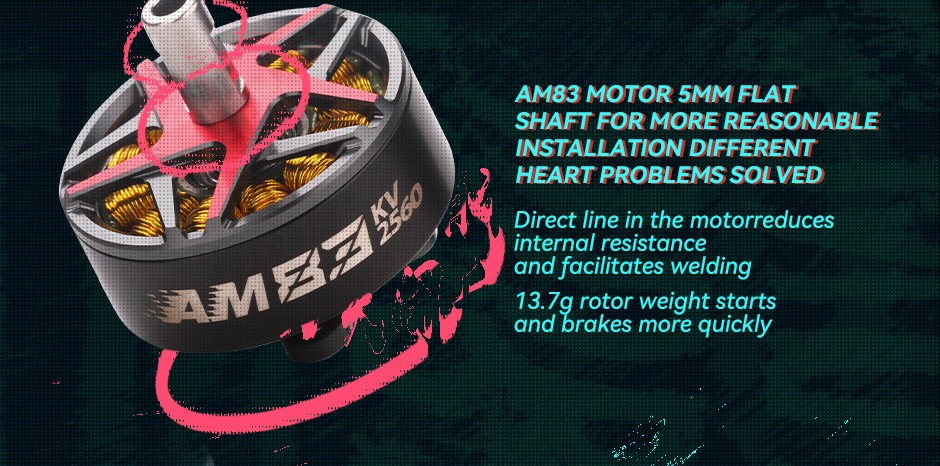

AM83 Motor

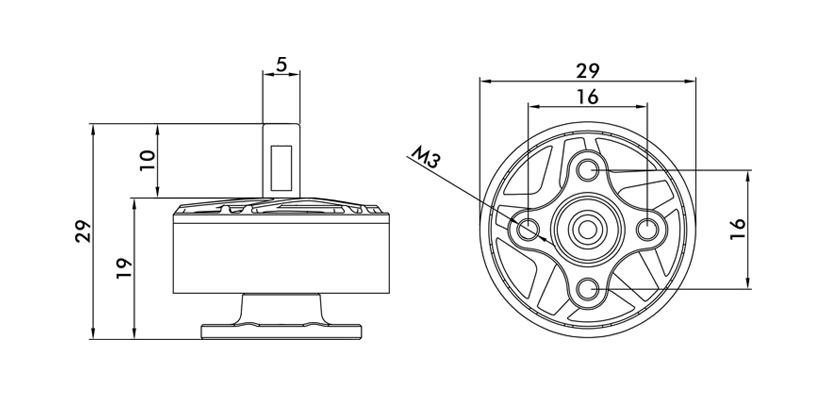

Technical Drawing

Specification Export to Excel
Test ItemAM83 kv 2560Weight (Incl. Cable)38g
Height28.5mmMotor Dimensions29mm
Shaft Diameter5mmLead80mm
Test ItemAM53AInput Voltage(Lipo)2s
Weight11gContinuous Current53A
Peak Current63ABEC OutputSame as voltage
Power line100mm 16AWGSignal line150mm

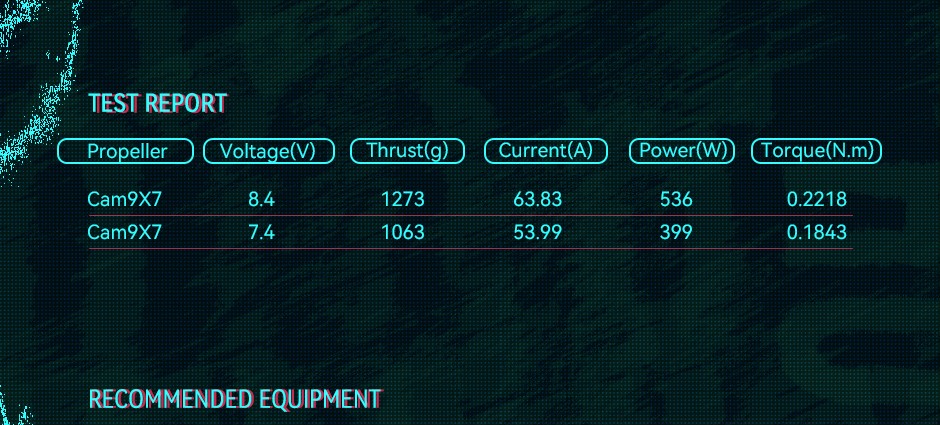

Test Data Export to Excel
TypePropellerVoltage
(V)		Current
(A)		Power
(W)		Torque
(N*m)		Thrust
(g)
Am83Cam9X78.4063.83536.000.2221273
Cam9X77.4053.99399.000.1841063
Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
