How to Choose FPV Drone Motors?
Choosing the right motors for your FPV drone build directly impacts performance, flight time, reliability, and budget. Motors are the heart of your quad, converting electrical energy into the thrust that keeps you airborne and responsive to your commands.
Different FPV applications demand different motor characteristics:
- Freestyle builds need balanced torque and efficiency for dynamic maneuvers
- Racing quads prioritize lightweight, high-response motors
- Cinewhoops require smooth, controlled power delivery for stable footage
- Long-range aircraft focus on maximum efficiency for extended flight times
- Tiny whoops need compact motors optimized for indoor flying
Understanding motor specifications and matching them to your intended use case will help you build a drone that performs exactly as intended while staying within budget.
Motor Fundamentals
Brushless Motor Basics
Modern FPV drones use brushless motors, which offer superior efficiency, reliability, and performance compared to brushed alternatives. The key specifications you'll encounter include:
KV Rating (RPM per Volt): This indicates theoretical no-load RPM per volt applied. A 2400KV motor will spin at approximately 2,400 RPM per volt under no-load conditions. Actual RPM under load (with propellers) will be lower due to aerodynamic drag and motor resistance. Higher KV means more speed but typically less torque.
Stator Size: Expressed as a four-digit number like 2207 or 2306, where the first two digits represent stator diameter (22mm or 23mm) and the last two represent height (7mm or 6mm). Larger stators generally produce more torque but weigh more.
Thrust vs. Efficiency Trade-offs
Motors must balance several competing factors:
- Higher thrust often means higher current draw and heat generation
- Efficiency (measured in grams of thrust per watt) affects flight time
- Weight impacts agility and overall performance
- Thermal behavior determines how well the motor handles sustained loads
Understanding these relationships helps you select motors that match your performance priorities.

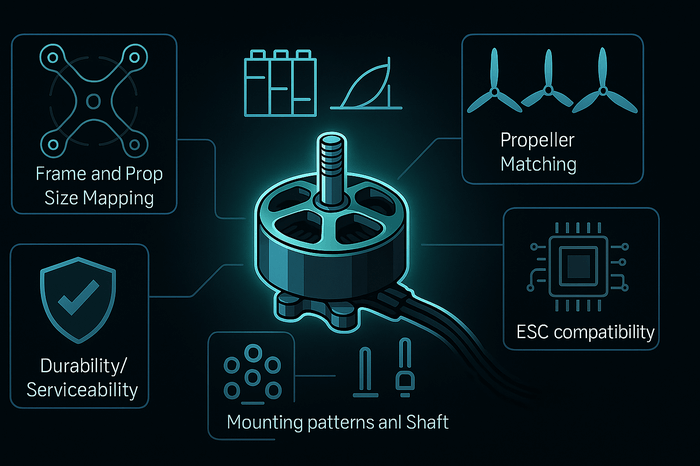

Core Selection Criteria
Frame and Prop Size Mapping
Your frame size dictates compatible motor and propeller combinations. This fundamental relationship guides all other motor selection decisions.
Typical configurations:
- 5" frames: 2207, 2306, 2205 motors with 5" propellers
- 3" frames: 1408, 1505, 1607 motors with 3" propellers
- 7" frames: 2208, 2306, 2508 motors with 7" propellers
- Micro frames (65-85mm): 0703, 0802, 1102 motors with 1-2" propellers
KV and Battery Cell Count Relationships
Battery voltage and motor KV work together to determine operational RPM ranges. Most FPV pilots use either 4S (14.8V nominal) or 6S (22.2V nominal) lithium polymer batteries.
4S vs. 6S considerations:
- 4S setups: Higher KV motors (2300-2700) compensate for lower voltage
- 6S setups: Lower KV motors (1600-2000) prevent excessive RPM and heat
- Power delivery: At the same power output, 6S draws lower current with reduced I²R losses
- Component stress: 6S reduces voltage drop and thermal stress on ESCs and batteries through lower amperage
Propeller Matching
Propeller selection dramatically affects motor performance, current draw, and flight characteristics. Propellers are measured by diameter and pitch (e.g., 5045 = 5" diameter, 4.5" pitch).
Propeller impact factors:
- Larger diameter: More thrust, higher current draw, requires more torque
- Higher pitch: Increased top speed, more aggressive throttle response
- Blade count: Three-blade props offer more thrust but reduce efficiency compared to two-blade designs
- Material and profile: FPV commonly uses PC (polycarbonate) props for durability; carbon fiber props are stiffer but more brittle and prone to dangerous breakage
ESC Compatibility and Current Headroom
Your ESC (Electronic Speed Controller) must handle the current demands of your chosen motor and propeller combination. Always maintain 20-30% current headroom above calculated peak draw to prevent ESC damage and ensure reliable operation.
ESC selection guidelines:
- Continuous current rating: Should exceed motor's continuous current by 25%
- Burst current capability: Must handle brief current spikes during aggressive maneuvers
- Voltage rating: Match your battery cell count (4S or 6S compatibility)
- Protocol support: Ensure ESC supports modern protocols (DSHOT300/600) for responsive control
Mounting Patterns and Shaft Compatibility
Physical motor mounting must match your frame's specifications. Pay attention to both mounting hole patterns and shaft dimensions.
Mounting specifications:
- Hole patterns: 16x16mm is most common for 5" builds; some frames also support 16x19mm
- Shaft/propeller mount: 5" and larger typically use M5 threaded shaft with self-locking nuts; T-mount (two M2 screws) is common for 2-4" micro builds
- Motor height: Ensure adequate propeller clearance above and below the motor
- Wiring length: Verify motor leads reach your ESC connections
Durability and Serviceability Features
Quality construction details affect long-term reliability and maintenance requirements.
Durability indicators:
- Bearing quality: Sealed bearings resist dirt and moisture better than basic designs
- Magnet attachment: Properly secured magnets prevent delamination during crashes
- Bell design: Robust construction resists impact damage
- Wire gauge: Adequate wire thickness prevents voltage drop and overheating
- Serviceability: Some motors allow bearing replacement and rebuilding

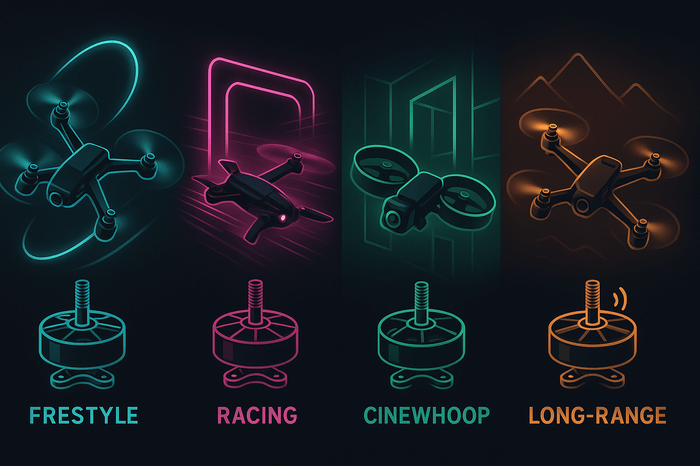

Use-Case Mapping: Pick Your Mission
Freestyle (5" Builds)
Freestyle flying demands motors that balance torque and efficiency while providing responsive throttle control for complex maneuvers and recovery from challenging orientations.
Typical specifications:
- Stator size: 2207, 2306 for balanced performance
- KV range: 2300-2400 for 4S, 1900-2100 for 6S
- Propellers: 5045-5150 three-blade for responsive handling
- Priority: Consistent power delivery, reasonable efficiency, crash durability
Key characteristics: Freestyle motors should provide enough torque for quick direction changes and prop wash recovery while maintaining adequate efficiency for 4-6 minute flight sessions.
Racing (5" Builds)
Competitive racing prioritizes maximum acceleration and top speed, often accepting reduced efficiency and increased component stress.
Typical specifications:
- Stator size: Lighter 2205, 2207 designs for reduced rotational mass
- KV range: 2400-2700 for 4S, 1800-2100 for 6S
- Propellers: 5045-5040 two-blade for maximum speed
- Priority: Peak power output, lightweight construction, aggressive throttle response
Key characteristics: Racing motors emphasize power-to-weight ratio and instant throttle response. Expect higher current draw and heat generation during competition sessions.
Cinewhoop (2-3.5" Builds)
Cinematic filming requires smooth, predictable power delivery with minimal vibration and noise. Ducted prop designs alter airflow characteristics compared to open propeller setups.
Typical specifications:
- Stator size: 1408, 1505, 1607 for appropriate frame scale
- KV range: 3000-4000 for 4S, 2400-2800 for 6S (higher KV compensates for ducted prop efficiency loss)
- Propellers: 3" ducted props with moderate pitch
- Priority: Smooth power delivery, low vibration, quiet operation, thermal management
Key characteristics: Cinewhoop motors must provide adequate thrust within ducted propeller constraints while minimizing noise and vibration that could affect camera footage.

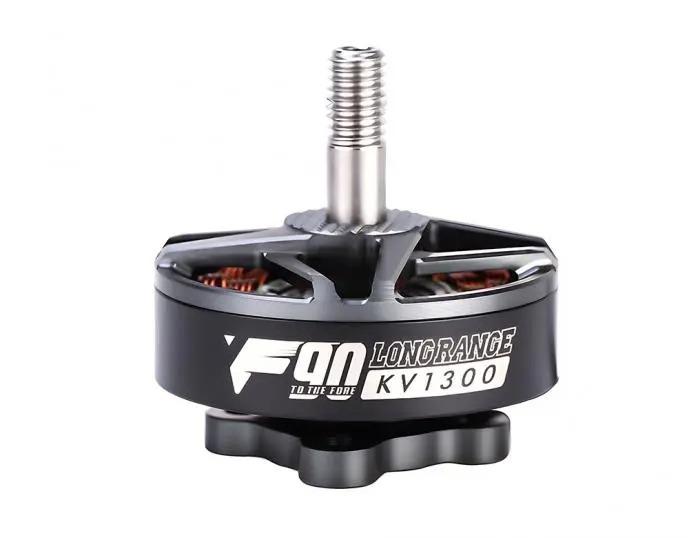

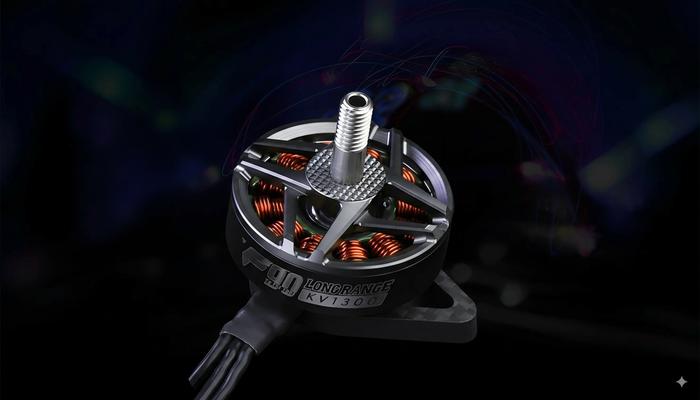

Long-Range (7" Builds)
Extended flight missions prioritize efficiency above all else, accepting reduced agility in exchange for maximum flight time and range.
Typical specifications:
- Stator size: 2507, 2806.5, 2807 are most common (optimized for efficiency); 2208, 2306 also work but with limited torque reserves
- KV range: 1300-1700 for 4S, 1100-1400 for 6S
- Propellers: 7" two-blade with conservative pitch (7040-7050)
- Priority: Maximum efficiency, thermal management, reliability over extended periods
Key characteristics: Long-range motors operate at lower RPM with larger propellers for optimal efficiency. Consider Li-ion battery compatibility and heat dissipation during extended flights.
Tiny Whoop (65-85mm Builds)
Micro builds require specialized motors integrated with all-in-one (AIO) flight controller stacks, emphasizing weight savings and appropriate scale performance.
Typical specifications:
- Stator size: 0703, 0802, 1102 micro motors
- KV range: 19,000-26,000+ for 1S, 14,000-18,000 for 2S (higher KV compensates for tiny prop diameter)
- Propellers: 31mm, 40mm, or 65mm depending on frame size
- Priority: Minimal weight, integrated design, appropriate thrust for indoor flying
Key characteristics: Tiny whoop motors are typically pre-matched with compatible AIO systems and props, limiting customization but ensuring proper integration.
Motor Specifications Comparison Table
Note: Values are indicative ranges. Actual specifications may vary based on specific design requirements and available components.
Understanding Motor Testing Data
Key Performance Metrics
When reviewing motor specifications or test data, focus on:
Thrust curves: Show how thrust varies with throttle input and voltage
Efficiency data: Grams of thrust per watt consumed, typically peaks at moderate throttle levels
Current draw: Helps size ESC requirements and estimate flight time
Temperature rise: Indicates thermal performance under sustained loads
What Test Results Reveal
- Peak efficiency points: Usually occur at moderate throttle levels, refer to thrust test data for specific motors
- Current spikes: Maximum draw typically occurs at full throttle with heavy props
- Heat generation: Sustained high-current operation causes temperature rise
- RPM limits: Maximum safe operating speed varies by construction quality
Common Selection Pitfalls
Over-Propping
Problem: Choosing propellers too large or aggressive for the motor/ESC combination
Solution: Check manufacturer thrust tables and ensure ESC current capacity exceeds motor draw by 20-30%
KV/Voltage Mismatch
Problem: Pairing high KV motors with high voltage, causing overspeeding and excessive current draw
Solution: Follow established KV ranges for your battery voltage and frame size
Ignoring Thermal Limits
Problem: Motors overheating during sustained aggressive flying
Solution: Consider cooling airflow in your build and avoid sustained full-throttle operation
Wrong Mounting Hardware
Problem: Incorrect shaft diameter, mounting pattern, or motor height
Solution: Verify all physical dimensions before ordering
Quick Motor Selection Workflow
Step-by-Step Selection Checklist
Follow this systematic approach to choose motors that match your build requirements and flying goals.
☐ Step 1: Define Your Mission
- Determine primary use case (freestyle, racing, cinewhoop, long-range, tiny whoop)
- Identify performance priorities (speed, efficiency, smoothness, durability)
- Set realistic budget expectations for motor investment
☐ Step 2: Establish Frame and Propeller Constraints
- Confirm frame size and motor mounting specifications (16x16mm most common, some support 16x19mm)
- Determine maximum propeller diameter for your frame
- Check for any clearance restrictions or design limitations
☐ Step 3: Select Battery Configuration
- Choose between 4S and 6S based on performance goals and component compatibility
- Consider battery weight, size, and discharge characteristics
- Factor in charging infrastructure and replacement costs
☐ Step 4: Calculate KV Requirements
- Match motor KV to battery voltage for appropriate RPM ranges
- Consider propeller size and pitch in final RPM calculations
- Verify RPM stays within reasonable limits for chosen application
☐ Step 5: Verify ESC Compatibility
- Ensure ESC current rating exceeds motor requirements by 25-30%
- Confirm voltage compatibility with chosen battery configuration
- Check for modern protocol support (DSHOT300/600) if desired
☐ Step 6: Check Physical Integration
- Verify motor mounting pattern matches frame specifications
- Confirm shaft diameter compatibility with propeller mounting
- Ensure adequate wire length and routing options
☐ Step 7: Validate Performance Expectations
- Review thrust tables and efficiency curves from manufacturer or independent testing
- Confirm specifications align with performance goals and flight time requirements
- Consider thermal characteristics for intended flight duration
☐ Step 8: Plan for Testing and Tuning
- Budget for initial propeller experimentation to optimize performance
- Prepare to monitor component temperatures during initial flights
- Plan PID tuning adjustments to match motor response characteristics
This systematic approach ensures your motor selection integrates properly with all system components while delivering the performance characteristics needed for your specific FPV application. Take time to research and verify specifications before making final purchases, as motor changes often require complementary upgrades to ESCs, propellers, and flight controller tuning parameters.
Top Picks: Recommended FPV Drone Motors
Our selection features versatile, reliable FPV motors for any budget, chosen for proven performance, build quality, and fit—from micro indoor to heavy-lift cinema.
Summary
This lineup spans FPV from micro indoor to pro cinema. F40 PRO IV and F60PROV lead racing with optimized linearity and responsive control; P2207 V3 gives freestyle pilots flexible KV choices; V2207 V2 remains the value pick. F80 PRO bridges racing and long-range with versatile KV options and high thrust output. For cinema, Cine30 is a dependable 3″ cinewhoop with environmental protection, while F100 provides smooth cinematic power for 7-8" builds and CINE66 delivers maximum heavy-lift thrust. Long-range pilots benefit from F90's efficiency for 6-7" builds and V2812's stable performance for larger platforms. Micro builds benefit from the lightweight, crash-tolerant M0803; F1408-II suits smaller cinewhoops.
Fit guide: match stator size to your frame, choose KV for your battery voltage, and use an ESC with comfortable headroom. Racing favors low weight and snap response; cinema prioritizes smoothness and thermal control.
FPV Drone Motors Frequently Asked Questions
Q: What KV rating should I choose for my 5-inch FPV drone?
A: KV selection depends on your battery voltage and intended use. For 4S batteries, choose 2400-2700KV for racing or 2300-2400KV for freestyle. For 6S batteries, opt for 1600-2000KV for optimal performance. Higher KV provides more speed but consumes more power, while lower KV offers better torque and efficiency.
Q: How do I determine the correct motor size for my frame?
A: Motor size should match your frame's motor mounting spacing and overall build requirements. 5-inch frames typically use 2207/2306/2207.5 motors, 3-inch frames work well with 1404-1507 motors, and 7-inch builds require 2808+ motors. Always verify the mounting hole pattern (16x16mm most common, some frames support 16x19mm) matches your frame specifications.
Q: What's the difference between F-Series, P-Series, and V-Series motors?
A: F-Series motors are optimized for racing with maximum power output and minimal weight. P-Series motors focus on freestyle applications with smooth control and balanced performance. V-Series motors offer versatile performance suitable for multiple applications, from racing to cinematic use, with enhanced durability features.
Q: How important is motor timing and can I adjust it?
A: Motor timing significantly affects performance characteristics. Most modern brushless motors have optimized timing from the factory. While some ESCs allow timing adjustment, incorrect settings can reduce efficiency or damage the motor. For optimal performance, use the manufacturer's recommended timing settings unless you have specific tuning experience.
Q: Should I choose titanium shaft motors over steel shaft motors?
A: Titanium shafts offer superior strength-to-weight ratio and corrosion resistance, making them ideal for racing and freestyle applications where crashes are common. Steel shafts are typically more cost-effective and sufficient for casual flying. Titanium is worth the investment for competitive or intensive flying scenarios.
Q: How do I maintain optimal motor performance over time?
A: Regular maintenance includes cleaning debris from motor bells, checking bearing smoothness, ensuring proper motor mounting torque, and monitoring operating temperatures. Replace motors showing bearing noise, reduced performance, or visible damage. Proper ESC calibration and avoiding over-propping also extend motor lifespan.
Q: What propeller sizes work best with different motor sizes?
A: Motor and propeller pairing affects performance and efficiency. 2207/2306 motors typically pair with 5-inch props, 1404-1507 motors work well with 3-4 inch props, and larger 2808+ motors suit 6-8 inch propellers. Always check manufacturer thrust data and ensure your setup doesn't exceed motor or ESC current ratings.
