How to Choose Drone Motors
Choosing the right motor is crucial for your drone's performance and capabilities. Whether you're building a simple quadcopter or designing an advanced UAV, understanding motor selection fundamentals will help you achieve the optimal flight characteristics for your specific needs.

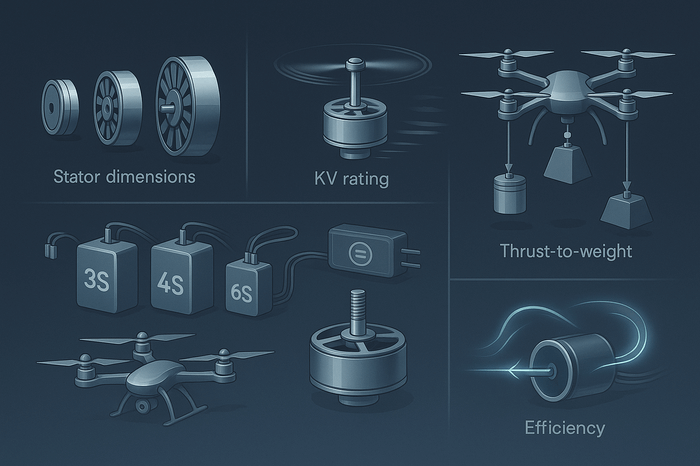

Key Factors to Consider
Motor Size and Stator Dimensions
Motor size is indicated by a four-digit code representing stator diameter and height in millimeters. For example, a 2207 motor has a 22mm stator diameter and 7mm height. The stator size directly impacts torque production capability—larger stators generate more torque but add weight and reduce responsiveness.
Stator volume can be calculated using the cylinder formula: volume = π × radius² × height. This measurement helps compare torque potential between different motors. Generally, larger stator volumes provide more torque for spinning bigger propellers, while smaller volumes offer better responsiveness for agile flight.
KV Rating and Speed Characteristics
The KV rating (RPM per volt) indicates how fast the motor spins per volt of input without a propeller attached. This specification fundamentally determines the motor's operational characteristics:
- Low KV motors (100-200 KV): Provide high torque for large propellers, ideal for heavy-lift applications and smooth flight
- Medium KV motors (1500-2300 KV): Offer balanced performance for general-purpose drones
- High KV motors (2300+ KV): Deliver high speed and responsiveness for racing applications
The relationship between KV rating and coil turns is inverse—more wire windings (higher T count) result in lower KV but higher torque output.
Thrust Requirements and Weight Calculations
Thrust calculation forms the foundation of motor selection. The basic formula is: thrust per motor = Maximum Take-off Weight (MTOW) ÷ number of motors. However, for safe operation, your total thrust should be at least 2:1 ratio compared to drone weight, with 3:1 or 4:1 being ideal for responsive flight.
For example, if your quadcopter weighs 2kg, you need minimum 4kg total thrust (1kg per motor), but 6-8kg total thrust provides better performance margins.
Voltage Compatibility and Power Systems
Motor voltage compatibility must match your battery system. Common configurations include:
- 3S LiPo (11.1V): Suitable for smaller drones and recreational use
- 4S LiPo (14.8V): Standard for most FPV and photography drones
- 6S+ LiPo: Required for high-performance and heavy-lift applications
Higher voltage systems generally provide more efficient power delivery and enable higher thrust output.
Efficiency and Current Draw
Motor efficiency, typically measured in grams per watt (g/W), determines flight time and battery performance. More efficient motors convert a higher percentage of electrical energy into thrust, extending flight duration. Consider efficiency across the entire throttle range, not just at maximum power.
Current draw specifications indicate the motor's electrical requirements and help ensure compatibility with your ESC and battery discharge capabilities.
Step-by-Step Motor Selection Process
Step 1: Define Your Application and Requirements
Start by clearly identifying your drone's intended use:
- Racing drones: Prioritize high KV, responsiveness, and lightweight construction
- Aerial photography: Focus on stability, efficiency, and smooth operation
- Heavy-lift applications: Emphasize high torque, low KV, and robust construction
- Long-endurance flights: Optimize for efficiency and thermal management
Step 2: Calculate Total System Weight
Accurately determine your drone's Maximum Take-off Weight including:
- Frame and structural components
- Flight controller, ESCs, and electronics
- Motors and propellers
- Battery system
- Payload (camera, sensors, cargo)
- Safety margin (10-20% additional weight)
Step 3: Determine Frame Size and Propeller Constraints
Your frame size determines maximum propeller diameter, which directly influences motor selection. The general relationship follows:
Step 4: Select Appropriate Motor Size and KV Rating
Based on your propeller size and application requirements, choose motor stator dimensions that provide adequate torque. Use the stator volume calculation to compare torque potential between options.
For KV selection, consider the propeller coefficient formula: KV = Pc ÷ S, where Pc is the propeller coefficient and S is the number of LiPo cells. Typical propeller coefficients are:
- 5-inch props: Pc = 9600
- 6-inch props: Pc = 7600
- 7-inch props: Pc = 6400
Step 5: Verify Thrust and Performance Specifications
Ensure your selected motors can produce the required thrust with your chosen propellers. Manufacturers typically provide thrust charts showing performance across different propeller sizes and voltages. Verify that the motor can achieve your target thrust-to-weight ratio.
Step 6: Check Electrical Compatibility
Confirm that your motor's current draw is compatible with:
- ESC current rating (with safety margin)
- Battery discharge capability
- Power system thermal management
Step 7: Consider Weight and Mounting Requirements
Evaluate the motor's weight impact on overall drone performance. Heavier motors increase angular moment of inertia, potentially reducing responsiveness. Ensure mounting patterns match your frame specifications.
Common Mistakes to Avoid
Undersizing Motors for Application
One of the most frequent errors is selecting motors too small for the intended propeller size. Using inadequate motor size results in poor efficiency, overheating, and oscillation issues during flight.
Mismatching KV Rating and Propeller Size
Choosing high KV motors with large propellers or low KV motors with small propellers creates inefficient combinations. Always match KV rating to propeller size according to established guidelines.
Ignoring Current Draw and ESC Compatibility
Selecting motors with current requirements exceeding ESC capabilities can lead to component failure. Always ensure adequate current handling capacity with safety margins.
Overlooking Weight Distribution Effects
Heavy motors positioned at frame extremities significantly impact drone responsiveness and agility. Consider the trade-off between motor power and weight for your specific application.
Focusing Only on Maximum Thrust
While peak thrust is important, consider efficiency across the entire operating range, especially at cruise throttle where most flight time occurs.
Advanced Selection Considerations
Thermal Management
For extended flight operations or high-power applications, consider motors with enhanced cooling features. Some heavy-lift motors incorporate centrifugal fans and improved heat dissipation designs.
Environmental Factors
Operating conditions such as altitude, temperature, and humidity affect motor performance. High-altitude operations may require motors with higher power ratings to compensate for reduced air density.
Maintenance and Reliability
Professional applications should prioritize motors with proven reliability records and available maintenance support. Consider factors like bearing quality, magnet retention, and manufacturer reputation.
Testing and Validation
After selecting motors, validate your choices through:
- Thrust stand testing: Measure actual thrust output with your specific propeller combinations
- Current draw verification: Confirm electrical requirements match your power system capabilities
- Thermal testing: Ensure motors operate within safe temperature ranges during typical flight profiles
- Flight testing: Evaluate real-world performance and make adjustments as needed
Drone Motor Product Comparison

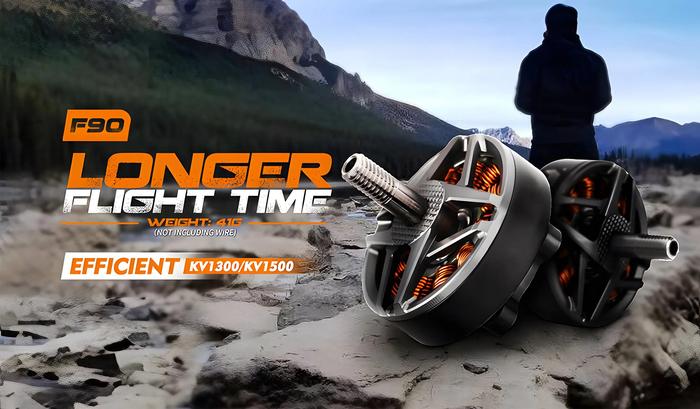

FPV & Racing
These motors span from ultra-lightweight micro builds to powerful long-range platforms, offering distinct advantages for different racing styles. The F40 PRO V and F60 PRO V deliver premium performance with titanium construction and optimized magnetic circuits for competitive racing, while the F90 excels in cinematic long-range applications requiring smooth, stable flight characteristics. For budget-conscious builders, the V-series motors provide excellent value with reliable performance for recreational flying and training. Choose higher KV variants (2000+) for aggressive racing builds, or lower KV options (1500-1750) for efficiency-focused long-range setups.

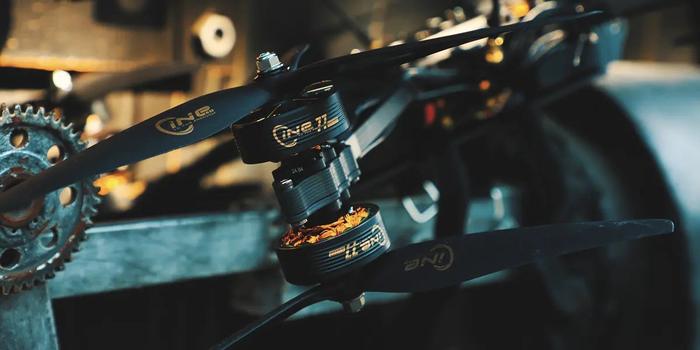

Professional Cinematography
These motors cater to different cinematography requirements, from lightweight aerial photography to heavy professional cinema rigs. The CINE series offers specialized cinematic features with the CINE77 providing exceptional flight endurance for extended shooting sessions, while the CINE66 focuses on safety with its unibell design. The MN Navigator series delivers reliability for professional aerial photography, with MN3110 and MN3510 suitable for smaller camera setups, and MN4014/MN5212 designed for heavier cinema cameras requiring maximum stability. Choose CINE77 for long-duration shoots with heavy payloads, or MN3110 for smooth footage with lighter camera systems where precision tracking is essential.

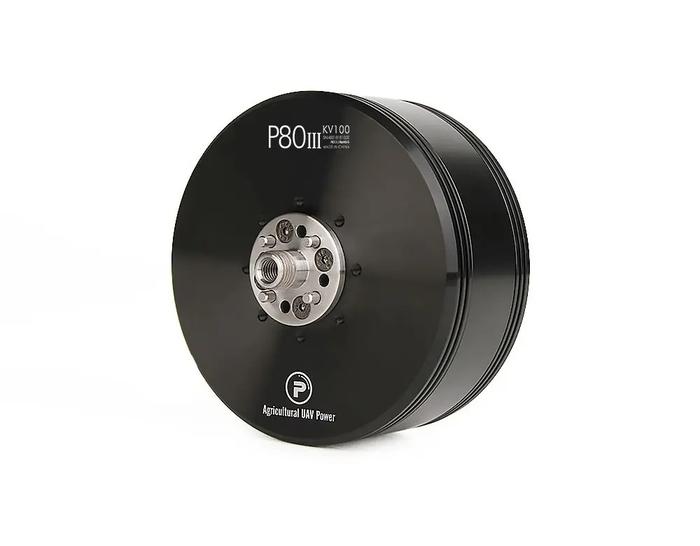

Agricultural Spraying
The P60 and P80 motors are specifically engineered for agricultural drone operations, with the P60 suited for medium-scale spraying operations up to 8.4kg thrust, while the P80 delivers powerful 16kg thrust for heavy-duty agricultural applications. Both feature specialized anti-corrosion coatings that provide triple the resistance against pesticide exposure compared to standard motors. Choose the P60 for efficient coverage of medium-sized fields with moderate payload requirements, or opt for the P80 when maximum spray capacity and extended operational range are essential for large-scale agricultural operations.
Industrial Heavy-Lift & Logistics
This industrial motor range spans from efficient mid-weight logistics (U8Ⅱ) to extreme heavy-lift capabilities (U15XXL), with each motor optimized for specific payload requirements. The U8Ⅱ offers excellent efficiency for drone delivery services, while U13Ⅱ and U15Ⅱ provide robust performance for industrial inspection and cargo transport. For the heaviest logistics applications, V13L and U15XXL deliver unmatched thrust capacity with advanced cooling systems. Select U8Ⅱ for efficient package delivery, U13Ⅱ/U15Ⅱ for industrial cargo missions, or V13L/U15XXL when maximum payload capacity is the primary requirement.

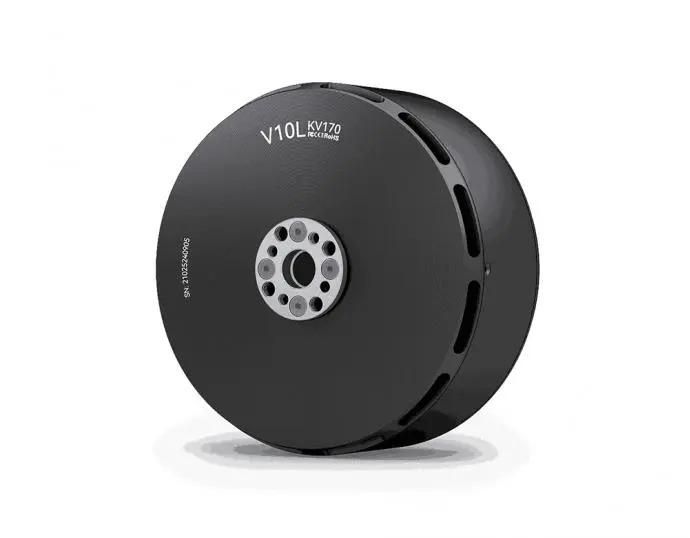

VTOL & Hybrid Fixed-Wing
These motors are specifically designed for VTOL and hybrid fixed-wing applications, with the V-series optimizing vertical lift efficiency and the AT-series focusing on forward flight performance. V505 and V605 excel in smaller VTOL platforms requiring efficient transitions, while V10L provides heavy-lift capability for larger hybrid aircraft. The AT-series long-shaft motors deliver superior aerodynamic efficiency for fixed-wing flight phases, with AT4130 perfect for medium-scale VTOL aircraft and AT1030 designed for heavy-lift fixed-wing operations. Choose V-series motors when vertical lift efficiency is paramount, or AT-series when optimizing for forward flight performance and extended range capabilities.

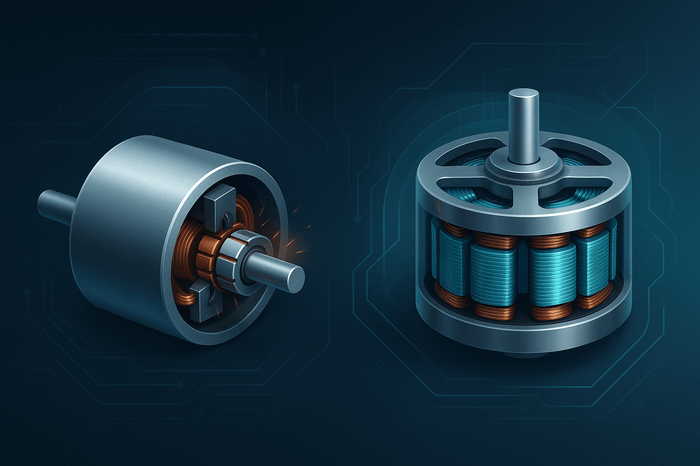

Types of Drone Motors
Types of Drone Motors are crucial to a drone's performance, efficiency, and flight capability, making the right choice essential for any build or upgrade.
Brushed Motors
Brushed DC motors represent the simplest and most economical type of drone motor available today. These motors have been around for decades and continue to serve specific niches in the drone market.
How Brushed Motors Work
Brushed motors operate through a straightforward mechanism involving physical contact between carbon brushes and a rotating commutator. The motor consists of a rotor (armature) with copper windings and a commutator, along with stationary brushes that maintain electrical contact with the rotating components. When electricity flows through the brushes to the armature windings, it creates a magnetic field that interacts with permanent magnets in the stator, causing rotation.
Key Characteristics
- Simple construction with fewer electronic components
- Direct current operation without requiring complex control systems
- Physical brushes that wear down over time through friction
- Lower manufacturing costs due to simpler design
Pros and Cons
Advantages:
- Cost-effective: Significantly cheaper than brushless alternatives
- Simple control: Easy to operate without complex electronic speed controllers
- Straightforward design: Fewer components mean easier troubleshooting
- Wide availability: Common and readily available from many suppliers
Disadvantages:
- Limited efficiency: Energy loss through brush friction and electrical resistance
- Shorter lifespan: Brushes wear out and require replacement
- Lower power output: Cannot match the performance of brushless motors
- Heat generation: Friction creates excess heat, reducing efficiency
- Maintenance requirements: Regular brush replacement needed
Suitable Use Cases
Brushed motors are ideal for low-cost drones, toy drones, and educational projects where performance is less critical than affordability. They work well for beginners learning basic drone principles or for lightweight indoor drones where high performance isn't necessary.
Brushless Motors (BLDC)
Brushless DC motors have become the standard for modern drone applications, offering superior performance, efficiency, and reliability compared to their brushed counterparts.
How Brushless Motors Work
Brushless motors eliminate physical brushes by using electronic commutation through Electronic Speed Controllers (ESCs). The motor consists of a stator with electromagnetic coils and a rotor with permanent magnets. The flight controller sends signals to the ESC, which then adjusts the flow of electric current to the stator windings, creating a rotating magnetic field that interacts with the rotor's permanent magnets to produce rotation.
Key Characteristics
- Electronic commutation eliminates brush friction
- Higher power-to-weight ratios than brushed motors
- Precise speed and direction control through ESCs
- Available in various sizes and KV ratings for different applications
Pros and Cons
Advantages:
- Superior efficiency: Minimal energy loss compared to brushed motors
- Longer lifespan: No brush wear means extended operational life
- Higher power output: Better power-to-weight ratios for improved performance
- Precise control: Electronic commutation enables exact speed and direction control
- Lower maintenance: No brushes to replace or maintain
- Quieter operation: Reduced mechanical noise from eliminated brush friction
Disadvantages:
- Higher cost: More expensive due to complex electronic components
- ESC requirement: Needs compatible Electronic Speed Controllers for operation
- Complex control systems: Requires more sophisticated flight control electronics
Suitable Use Cases
Brushless motors excel in racing drones, aerial photography platforms, industrial applications, and any scenario requiring high performance, efficiency, or reliability. They're the preferred choice for serious hobbyists and professional applications.

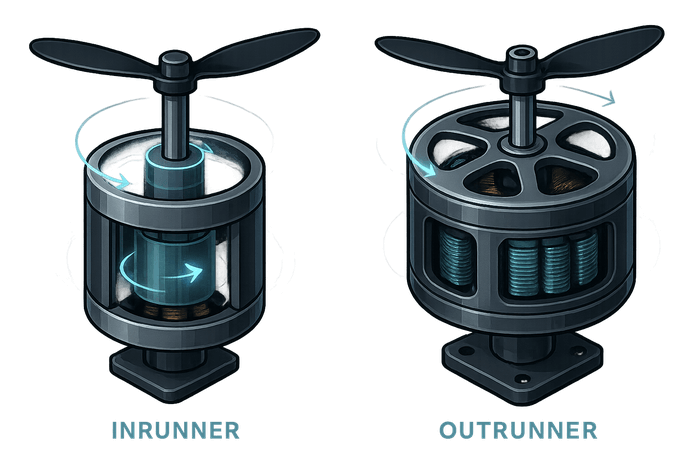

Motor Configuration Types
Inrunner Motors
Inrunner motors feature a rotor that spins inside the stator, typically operating at high RPM. These motors are commonly used in applications requiring direct drive systems.
Characteristics:
- High-speed operation with lower torque
- Compact design suitable for space-constrained applications
- Better suited for smaller propellers and high-speed applications
Outrunner Motors
Outrunner motors have the rotor rotating around the outside of the stator, providing higher torque at lower RPM. This configuration is more common in multirotor drones due to superior torque output and efficiency.
Characteristics:
- Higher torque output at lower speeds
- Better efficiency for drone applications
- Ideal for larger propellers and heavy-lift scenarios
- More common in quadcopters and multirotors
Specialized Motor Types
Coaxial Motors
Coaxial motors represent an advanced configuration where two propellers are mounted on the same motor shaft, with one positioned above the other.
How Coaxial Motors Work
These motors feature a unique design with counter-rotating propellers that utilize reactive counter-force to improve efficiency. The dual propeller setup on a single motor shaft creates enhanced thrust while maintaining compact dimensions.
Key Features
- Dual propeller configuration for increased efficiency
- Built-in redundancy for safety-critical applications
- Compact design relative to thrust output
- Counter-rotating setup reduces torque effects
Pros and Cons
Advantages:
- Increased efficiency: Higher thrust per power input compared to traditional motors
- Built-in redundancy: If one propeller fails, the other maintains thrust
- Compact design: More thrust in less space than equivalent traditional setups
- Reduced vibration: Counter-rotating propellers minimize vibration
Disadvantages:
- Limited availability: Fewer market options compared to traditional motors
- Higher complexity: More complex design and maintenance requirements
- Higher cost: Specialized design commands premium pricing
- Balancing challenges: Requires precise propeller balancing
Suitable Use Cases
Coaxial motors are ideal for heavy-lift applications, critical missions where failure is unacceptable, and scenarios with size constraints requiring maximum thrust density.
Coreless Motors
Coreless motors represent a specialized brushed motor variant designed for specific lightweight applications.
Characteristics:
- Lightweight construction for minimal drone weight impact
- Reduced electromagnetic interference
- Fast response times due to low rotor inertia
- Typically used in micro and nano drones
Applications of Drone Motors
Drone motors power a wide array of applications, each demanding specific performance traits to meet industry needs efficiently and reliably.
1. Professional Cinematography and Content Creation
Aerial photography and videography represents the most widespread commercial application of drone motors today. These systems are designed to capture high-quality aerial footage for films, television productions, commercials, real estate marketing, and content creation. The motors must provide exceptionally smooth and stable flight characteristics to ensure professional-grade image and video capture.
Recommended Motor Type: Low KV brushless motors (300-800 KV) are essential for this application, operating at lower RPM while generating higher torque to enable larger diameter propellers that provide superior stability and reduced vibration. BLDC outrunner motors are preferred for their precision, smooth operation, and ability to eliminate camera shake for professional-grade cinematic footage.
2. Security and Surveillance Operations
Surveillance drones perform reconnaissance missions for law enforcement, border patrol, and wildlife monitoring operations, requiring extended flight times and consistent performance while carrying cameras, sensors, and communication equipment. These applications span various sectors where reliable data collection and monitoring capabilities are essential for operational success.
Recommended Motor Type: High-efficiency brushless motors are utilized for their reliability, precise control capabilities, and excellent power-to-weight ratio, enabling these aircraft to carry substantial surveillance payloads while maintaining stable flight characteristics essential for effective data collection.
3. Commercial Package Delivery
Delivery drones transport goods autonomously or through remote control, revolutionizing last-mile logistics with fast and efficient delivery solutions across various industries. These systems must transport packages of varying weights over considerable distances while maintaining energy efficiency for cost-effective operations.
Recommended Motor Type: Low KV brushless motors paired with large propellers and high-voltage battery systems (6S-12S) provide the high thrust capabilities necessary for transporting heavy payloads over considerable distances while maintaining energy efficiency for extended range operations.
4. Precision Agriculture and Crop Management
Agricultural drones perform pesticide spraying, crop monitoring, and field mapping operations across large agricultural areas while carrying specialized equipment such as spraying systems or high-resolution sensors. These systems require powerful motors with extended operational capabilities to cover large agricultural areas effectively while operating in challenging environmental conditions.
Recommended Motor Type: Low KV brushless motors with corrosion-resistant coils and optimized stator structures are paired with large carbon fiber propellers and high-voltage battery systems (8S-12S) with waterproof ESCs to handle substantial payloads while operating reliably in challenging environmental conditions and resisting agricultural chemical exposure.
5. High-Speed Racing and Aerobatic Competition
Racing drones prioritize high-speed flight, agility, and rapid maneuvering capabilities, focusing on responsiveness and acceleration over flight time or payload capacity. These systems require motors optimized for maximum power output and quick response times under high-stress operating conditions.
Recommended Motor Type: High KV brushless motors (2000-3000 KV) provide maximum RPM and rapid acceleration when paired with small, lightweight propellers and high-discharge battery systems (4S-6S) with high C ratings for instant power delivery and superior speed performance.
6. Infrastructure and Industrial Asset Inspection
Industrial drones perform critical inspection tasks including infrastructure monitoring, power line inspection, oil and gas facility surveillance, and construction site management, carrying specialized sensors and imaging equipment in potentially hazardous environments. These applications require reliable, efficient motors capable of operating in challenging conditions where equipment failure can have significant safety and economic implications.
Recommended Motor Type: Low KV brushless motors provide the reliability, durability, and high torque necessary for lifting inspection payloads while maintaining stable flight characteristics essential for detailed data collection in challenging industrial conditions.
7. Cartographic Surveying and Mapping
GIS survey drones collect geographical data for mapping, surveying, and analysis in urban planning, environmental monitoring, and disaster management applications, requiring precise flight control and data collection capabilities in confined spaces or challenging environments. These systems must capture detailed data while maintaining precise positioning and stability.
Recommended Motor Type: Coreless drone motors offer lightweight design and smooth operation characteristics that provide superior agility and maneuverability for capturing detailed geographical data while maintaining precise positioning and stability.
Frequently Asked Questions
How do I determine motor and ESC compatibility?
The ESC current rating should exceed the motor's maximum continuous current by 20-30%. For example, the U12Ⅱ KV60 motor with a maximum continuous current of 40A should use an ESC rated at 50A or higher. Additionally, the ESC voltage range must cover the motor's operating voltage.
What are common causes of drone motor overheating?
Motor overheating is primarily caused by: oversized propellers; excessive current; motor overloading; poor heat dissipation; bearing issues. Solutions include: selecting appropriately sized propellers; ensuring correct ESC current limiting; adding heat sinks or active cooling systems; regular bearing maintenance.
How can I extend drone motor lifespan?
- Regularly check bearings and add lubricant every 50-100 hours depending on usage frequency
- Keep motors clean, especially dust screens and cooling vents
- Avoid prolonged full-power operation, keeping it below 80% capacity
- Choose appropriately sized motors for your load to avoid long-term overloading
- Check motor temperature after flights; normal temperature should be below 70°C
How does KV value affect drone performance?
Higher KV means faster motor speed but less torque; lower KV means slower speed but greater torque. High KV motors suit smaller propellers and high-speed flight, while low KV motors are better for large propellers and high-load applications. For example, in the U8 series, the KV85 version is ideal for efficiency-prioritized long-duration missions, while the KV110 version is better suited for applications requiring greater thrust.
How do I select the right propeller for my motor?
- Reference the manufacturer's recommended propeller specifications
- Consider motor KV value: low KV pairs with large propellers, high KV with small propellers
- Note propeller material: carbon fiber is lightweight and strong, nylon is economical and durable
- Test different combinations to find the optimal efficiency point
Why are some motors labeled "waterproof" rather than for "underwater" use?
Waterproof motors (such as IP45 rated) are designed to resist rain and humid environments but are not suitable for complete submersion. These motors typically use sealed designs to protect internal windings and bearings, but prolonged water exposure can cause internal corrosion and electrical issues. True underwater motors require special sealing and anti-corrosion designs.
Knowledge Expansion
Explore more drone power solutions and deepen your industry expertise with these curated resources and guides.
Related Product Categories
Drone ESCs
Discover reliable electronic speed controllers for precise UAV power management.
Drone Propellers
Browse aerodynamic propellers optimized for efficiency, thrust, and low noise.
UAV Power Combo Packs
Get complete propulsion kits for easy integration and maximum performance.
Featured Blog Articles
